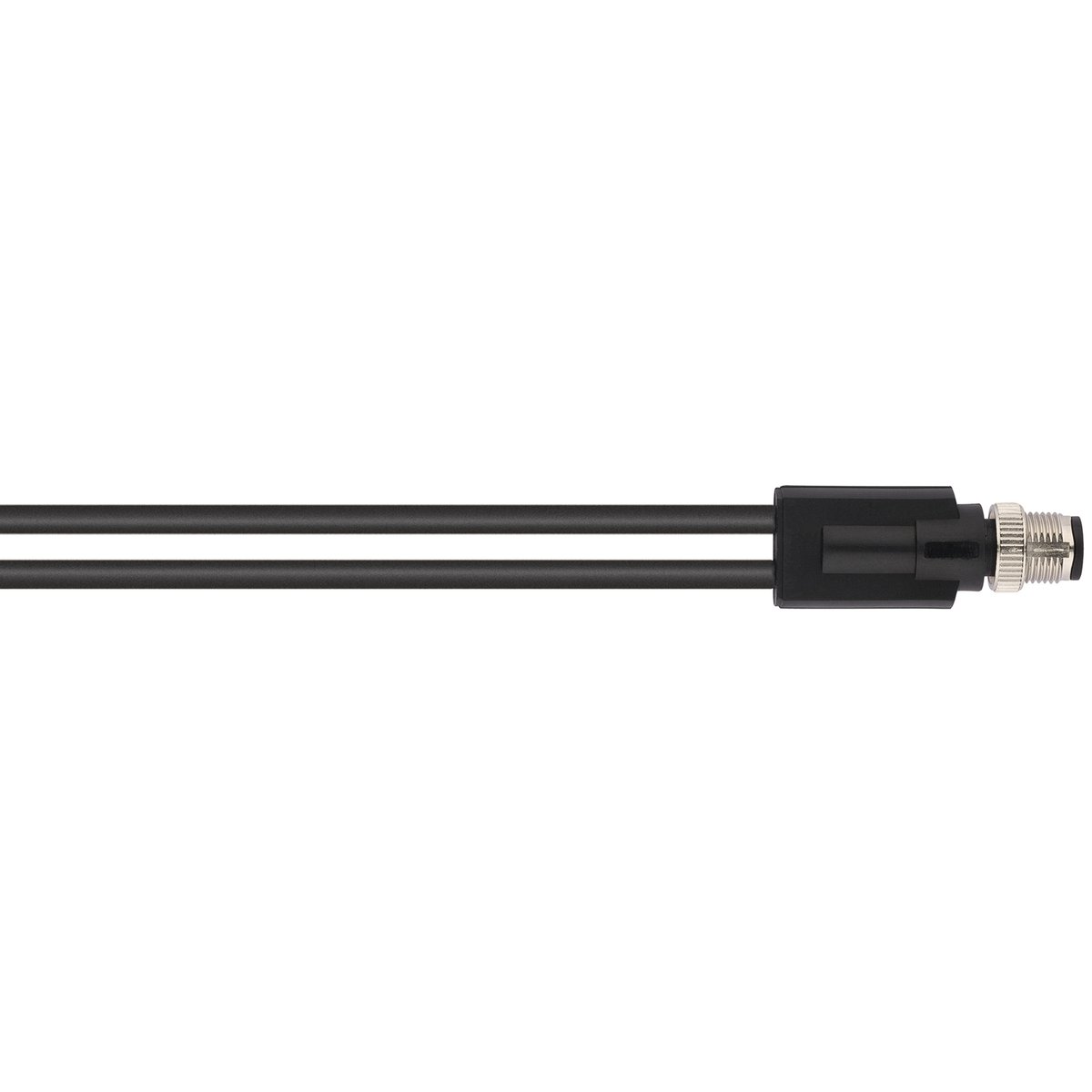

UNITRONIC® SENSOR M12Y

Naziv

Koda izdelka

Višina

Product type

Veljaven Fieldbus ali Ethernet Sistem

Cena

Količina

AB-C3-M12Y-2,0PUR

22260500

20 mm

Pre-assembled sensor/actuator cable

Sensor/Actuator

8,78 €

Informativni dobavni rok: 5-8 delovnih dni. Predviden dobavni rok za izbrano količino prosimo preverite v košarici.

AB-C3-M12Y-5,0PUR

22260513

20 mm

Pre-assembled sensor/actuator cable

Sensor/Actuator

12,91 €

Informativni dobavni rok: 5-8 delovnih dni. Predviden dobavni rok za izbrano količino prosimo preverite v košarici.

AB-C3-M12Y-10,0PUR

22260526

20 mm

Pre-assembled sensor/actuator cable

Sensor/Actuator

21,51 €

Informativni dobavni rok: 5-8 delovnih dni. Predviden dobavni rok za izbrano količino prosimo preverite v košarici.

Benefits

Cost-saving due to quick and easy installation
Space-saving due to compact dimensions
Durable, resistant product thanks to the outer sheath material that is resistant to abrasions, notches and cuts.
Direct line assembled on one side for flexible definition of the cable length and free choice of further connection.
UL certification according to technical data enables the product to be used on the North American market.
The integrated vibration protection of the connector makes it resistant to shocks and vibrations.
When plugged in, protection class IP 65, IP 67 and IP 68 can be achieved.
M12Y connector enables parallel branching of power and signal wires and thus reduces the wiring effort.
Powerful up to 4 A for actuators and sensors with increased energy requirements.
Ideally suited where space is limited, as two sensors or actuators can be supplied via a single M12 connection.

Suitable for outdoor use.
The PU outer sheath and connectors withstand high mechanical stresses.
The cable design allows flexible, constantly flexing use in moving machine parts and cable chains.
The PU outer sheath is resistant to mineral oil-based lubricants and is highly chemical resistant.
Can be used in dry, damp and, especially, harsh and oily environments.
For simultaneous power supply and signal transmission of two sensors or actuators with 3-wire connection.

If applicable, the prices are solid metal prices without surcharges and VAT. Sales only to business customers.
Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.
Photographs and graphics are not to scale and do not represent detailed images of the respective products.
