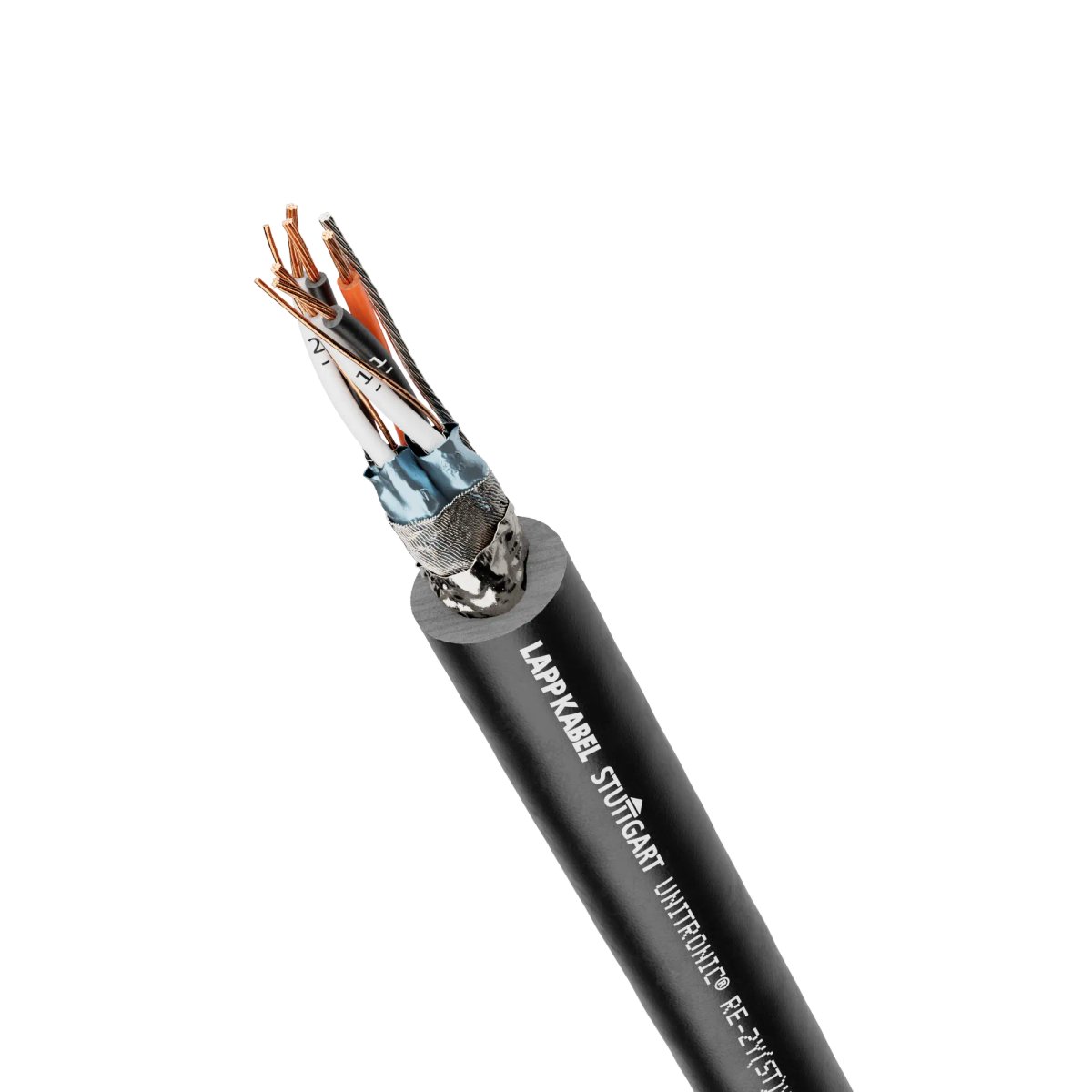

Slika UNITRONIC® RE-2Y(ST)Yv PiMF

UNITRONIC® RE-2Y(ST)Yv PiMF

Bodite prvi in ​​ocenite ta izdelek
Naziv
Koda izdelka
test voltage conductor/conductor
Testna napetost vodnika/opleta
Nominal cross section conductor (mm2)
Cena
Količina
+
UNITRONIC® RE-2Y(ST)YV PIMF 2X2X0,5 BU
0032438
2 kV
0.6 kV
0.5 mm2
2,13 €
*
*

Naročilu bo dodan strošek manipulacije in reza 15€ na rez

Na zalogi, predviden rok dobave 5-8 delovnih dni.
+
UNITRONIC® RE-2Y(ST)YV PIMF 2X2X0,5 BK
0032448
2 kV
0.6 kV
0.5 mm2
2,00 €
*
*

Naročilu bo dodan strošek manipulacije in reza 15€ na rez

Na zalogi, predviden rok dobave 5-8 delovnih dni.
+
UNITRONIC® RE-2Y(ST)YV PIMF 4X2X0,5 BK
0032449
2 kV
0.6 kV
0.5 mm2
3,01 €
*
*

Naročilu bo dodan strošek manipulacije in reza 15€ na rez

Ni zaloge, predviden rok dobave: 24. 11. 2025.
+
UNITRONIC® RE-2Y(ST)YV PIMF 8X2X0,5 BK
0032450
2 kV
0.6 kV
0.5 mm2
5,28 €
*
*

Naročilu bo dodan strošek manipulacije in reza 15€ na rez

Na zalogi, predviden rok dobave 5-8 delovnih dni.
+
UNITRONIC® RE-2Y(ST)YV PIMF 10X2X0,5 BK
0032451
2 kV
0.6 kV
0.5 mm2
6,03 €
*
*

Naročilu bo dodan strošek manipulacije in reza 15€ na rez

Min. količina za naročanje: 1500
Na zalogi, predviden rok dobave 5-8 delovnih dni.
+
UNITRONIC® RE-2Y(ST)YV PIMF 16X2X0,5 BK
0032453
2 kV
0.6 kV
0.5 mm2
9,25 €
*
*

Naročilu bo dodan strošek manipulacije in reza 15€ na rez

Na zalogi, predviden rok dobave 5-8 delovnih dni.
+
UNITRONIC® RE-2Y(ST)YV PIMF 2X2X1,3 BU
0032458
2 kV
0.6 kV
1.3 mm2
2,88 €
*
*

Naročilu bo dodan strošek manipulacije in reza 15€ na rez

Na zalogi, predviden rok dobave 5-8 delovnih dni.
+
UNITRONIC® RE-2Y(ST)YV PIMF 2X2X1,3 BK
0032464
2 kV
0.6 kV
1.3 mm2
2,72 €
*
*

Naročilu bo dodan strošek manipulacije in reza 15€ na rez

Na zalogi, predviden rok dobave 5-8 delovnih dni.
+
UNITRONIC® RE-2Y(ST)YV PIMF 4X2X1,3 BK
0032465
2 kV
0.6 kV
1.3 mm2
4,64 €
*
*

Naročilu bo dodan strošek manipulacije in reza 15€ na rez

Na zalogi, predviden rok dobave 5-8 delovnih dni.
+
UNITRONIC® RE-2Y(ST)YV PIMF 8X2X1,3 BK
0032466
2 kV
0.6 kV
1.3 mm2
9,48 €
*
*

Naročilu bo dodan strošek manipulacije in reza 15€ na rez

Na zalogi, predviden rok dobave 5-8 delovnih dni.
+
UNITRONIC® RE-2Y(ST)YV PIMF 12X2X1,3 BK
0032467
2 kV
0.6 kV
1.3 mm2
12,36 €
*
*

Naročilu bo dodan strošek manipulacije in reza 15€ na rez

Min. količina za naročanje: 1000
Rok dobave sporočimo po obdelavi naročila.

Benefits

  • Aluminium-laminated plastic foil static screen with tin-plated drain wire minimises the interference of high frequency, electromagnetic fields
  • Decoupling of circuits by means of twisted-pair (TP) design (crosstalk effects)
  • Low capacitance due to polyolefin-based insulation

Applications

  • Electrically intended for use when modern process computers have to process large volumes of data, e.g. high-capacity computer systems in waste incineration plants or sewage treatment plants
  • These cables are suitable for fixed installation in dry or damp rooms and, in case of versions with a black outer sheath, also for outdoor use
  • In measurement and control engineering
  • Thanks to reinforced, nominal/ minimum average wall thickness of the outer sheath of at least 1.8 mm, for applications, where a reinforced outer sheath may turn out to be advantageous.

Documentation

Notes

  • Please find our standard lengths at: www.lappkabel.de/kabel-standardlaengen.
  • If applicable, the prices are solid metal prices without surcharges and VAT. Sales only to business customers.
  • Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.
  • Photographs and graphics are not to scale and do not represent detailed images of the respective products.
