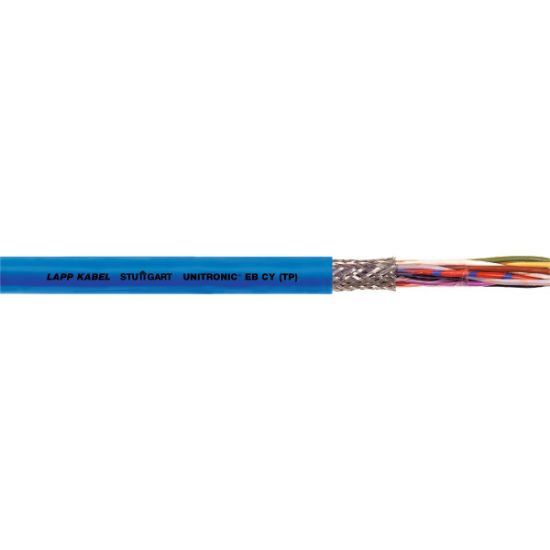

UNITRONIC® EB CY (TP)

Bodite prvi in ocenite ta izdelek

Naziv

Koda izdelka

Testna napetost

Max. conductor resistance at 20 °C

Nominal cross section conductor (mm2)

Cena

Količina

UNITRONIC® EB CY (TP) 2x2x0,75

0012620

2.5 kV

26 ?/km

0.75 mm2

2,17 €

Dolžina *
Poljubna dolžina * Naročilu bo dodan strošek manipulacije in reza 15€ na rez

Informativni dobavni rok: 5-8 delovnih dni. Predviden dobavni rok za izbrano količino prosimo preverite v košarici.

UNITRONIC® EB CY (TP) 3x2x0,75

0012621

2.5 kV

26 ?/km

0.75 mm2

2,81 €

Dolžina *
Poljubna dolžina * Naročilu bo dodan strošek manipulacije in reza 15€ na rez

Informativni dobavni rok: 5-8 delovnih dni. Predviden dobavni rok za izbrano količino prosimo preverite v košarici.

UNITRONIC® EB CY (TP) 4x2x0,75

0012622

2.5 kV

26 ?/km

0.75 mm2

3,68 €

Dolžina *
Poljubna dolžina * Naročilu bo dodan strošek manipulacije in reza 15€ na rez

Informativni dobavni rok: 5-8 delovnih dni. Predviden dobavni rok za izbrano količino prosimo preverite v košarici.

UNITRONIC® EB CY (TP) 6x2x0,75

0012624

2.5 kV

26 ?/km

0.75 mm2

4,97 €

Dolžina *
Poljubna dolžina * Naročilu bo dodan strošek manipulacije in reza 15€ na rez

Informativni dobavni rok: 5-8 delovnih dni. Predviden dobavni rok za izbrano količino prosimo preverite v košarici.

UNITRONIC® EB CY (TP) 10x2x0,75

0012626

2.5 kV

26 ?/km

0.75 mm2

7,46 €

Dolžina *
Poljubna dolžina * Naročilu bo dodan strošek manipulacije in reza 15€ na rez

Informativni dobavni rok: 5-8 delovnih dni. Predviden dobavni rok za izbrano količino prosimo preverite v košarici.

Benefits

Overall braid minimises electrical interference
Decoupling of circuits by means of twisted-pair (TP) design (crosstalk effects)
Classified fire behaviour according to EU Directive 305/2011 (BauPVO/CPR) with article number selection on the LAPP website.
Core marking according to DIN 47100 colour code for unambiguous identification of the single cores.
The conductor circuits are well decoupled thanks to the twisted pair (TP) with short lay lengths.
Compact design enables small outer diameters despite high number of cores.
Ideal protection against electromagnetic interference thanks to copper stranded shielding with a high degree of coverage.

Applications

Reliable data transmission in intrinsically safe circuits
In EMC-sensitive environments(electromagnetic compatibility)
For use in control, regulation and measurement circuits.
Especially for environments where electromagnetic compatibility (EMC) is required.
The PVC outer sheath is resistant to acids and alkalis and has limited oil resistance.
Can be used universally at machine interfaces for many applications for data and signal transmission in the low-frequency range.
For use in devices, machines and systems of the "intrinsic safety" ignition protection type ("i").
For intrinsically safe circuits according to IEC 60079-14 / EN 60079-14 / VDE 0165 (part 1).

Documentation

Notes

Please find our standard lengths at: www.lappkabel.de/kabel-standardlaengen.
If applicable, the prices are solid metal prices without surcharges and VAT. Sales only to business customers.
Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.
Photographs and graphics are not to scale and do not represent detailed images of the respective products.
