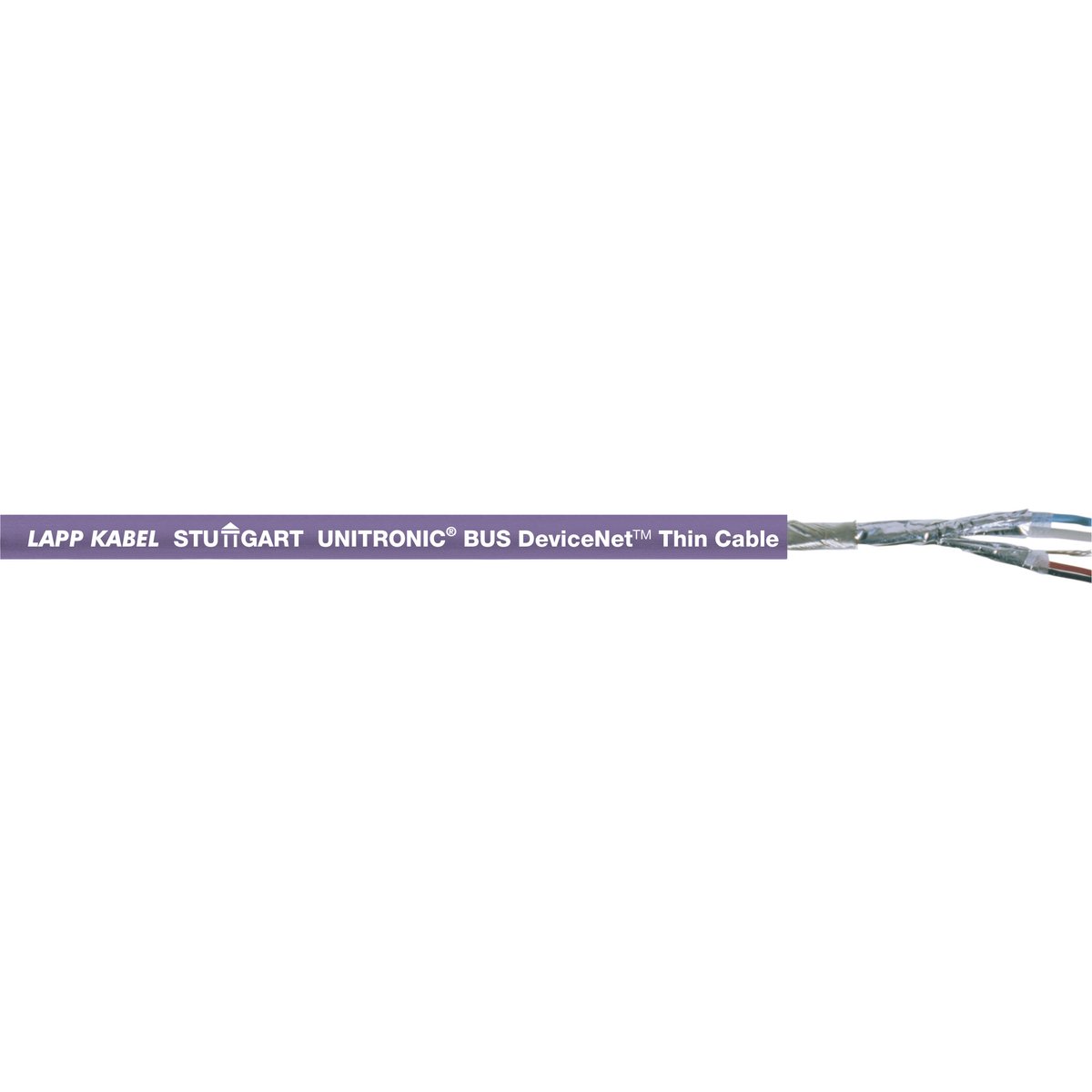

Slika UNITRONIC® DeviceNet Thick+Thin
Slika UNITRONIC® DeviceNet Thick+Thin Slika UNITRONIC® DeviceNet Thick+Thin

UNITRONIC® DeviceNet Thick+Thin

Bodite prvi in ​​ocenite ta izdelek
Naziv
Koda izdelka
Maks. najvišja delovna napetost (ne za napajalne aplikacije)
test voltage conductor/conductor
Nominal characteristic impedance
Cena
Količina
+
UNITRONIC® BUS DN THICK FRNC
2170340
300 V
2 kV
120 ?
9,44 €
*
*

Naročilu bo dodan strošek manipulacije in reza 15€ na rez

Informativni dobavni rok: 5-8 delovnih dni. Predviden dobavni rok za izbrano količino prosimo preverite v košarici.
+
UNITRONIC® BUS DN THIN FRNC
2170341
300 V
2 kV
120 ?
3,94 €
*
*

Naročilu bo dodan strošek manipulacije in reza 15€ na rez

Informativni dobavni rok: 5-8 delovnih dni. Predviden dobavni rok za izbrano količino prosimo preverite v košarici.
+
UNITRONIC® BUS DN THICK Y
2170342
300 V
2 kV
120 ?
7,22 €
*
*

Naročilu bo dodan strošek manipulacije in reza 15€ na rez

Informativni dobavni rok: 5-8 delovnih dni. Predviden dobavni rok za izbrano količino prosimo preverite v košarici.
+
UNITRONIC® BUS DN THIN Y
2170343
300 V
2 kV
120 ?
2,40 €
*
*

Naročilu bo dodan strošek manipulacije in reza 15€ na rez

Informativni dobavni rok: 5-8 delovnih dni. Predviden dobavni rok za izbrano količino prosimo preverite v košarici.

Benefits

  • DeviceNet combines signal transmission and a 24 V power supply in a single four-wire cable.
  • The "THIN" and "THICK" variants offer different core cross-sections, core insulation and outer sheath materials, thus enabling the optimal choice for a wide variety of installation situations and mechanical requirements.
  • Available with robust PVC or halogen free FRNC outer sheath.
  • Ideal protection against electromagnetic interference due to aluminium compound foil pair shielding and copper stranded shielding as overall shielding.
  • DNV approval for maritime use (depending on the product).
  • UL certification according to technical data enables the product to be used on the North American market.

Applications

  • For fieldbus communication in DeviceNet-based networks, to perform wiring to connect sensors and actuators to the controllers.
  • Typical applications include limit switches, photoelectric switches, valve terminals, motor starters, actuators and PLCs.
  • For fixed installation.
  • Suitable for outdoor use.
  • The "THIN" variant is designed as a drop cable for short branches from the main line to individual subscribers (max. 6 m per drop).
  • Fixed Installation
  • DeviceNet™ connects industrial devices e.g. limit switches, photoelectric switches, valve islands, motor starters, drives, PLCs, etc.
  • The "THICK" variant is designed as a trunk line for long transmission distances of up to 500 m.

Documentation

Notes

  • LAPP Kabel is a member of the PROFIBUS user organisation (PNO).
  • Please find our standard lengths at: www.lappkabel.de/kabel-standardlaengen.
  • If applicable, the prices are solid metal prices without surcharges and VAT. Sales only to business customers.
  • Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.
  • DeviceNet is a registered trademark of the user organisation ODVA (USA).
  • Photographs and graphics are not to scale and do not represent detailed images of the respective products.
