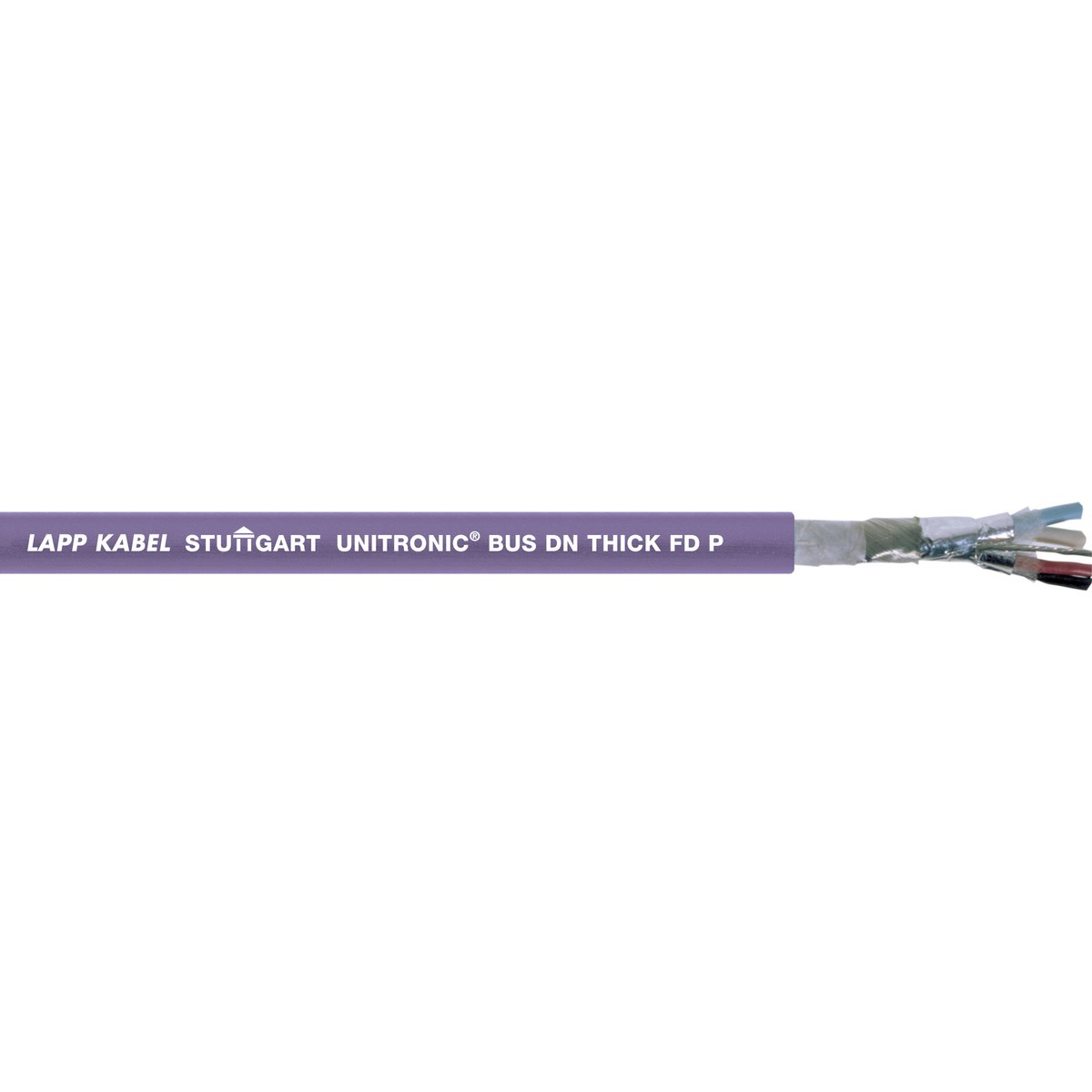

Slika UNITRONIC® DeviceNet FD Thick+Thin
Slika UNITRONIC® DeviceNet FD Thick+Thin Slika UNITRONIC® DeviceNet FD Thick+Thin

UNITRONIC® DeviceNet FD Thick+Thin

Bodite prvi in ​​ocenite ta izdelek
Naziv
Koda izdelka
Maks. najvišja delovna napetost (ne za napajalne aplikacije)
Testna napetost
Nominal characteristic impedance
Cena
Količina
+
UNITRONIC® BUS DN THICK FD P
2170344
300 V
2 kV
120 ?
7,41 €
*
*

Naročilu bo dodan strošek manipulacije in reza 15€ na rez

Informativni dobavni rok: 5-8 delovnih dni. Predviden dobavni rok za izbrano količino prosimo preverite v košarici.
+
UNITRONIC® BUS DN THIN FD P
2170345
300 V
2 kV
120 ?
3,07 €
*
*

Naročilu bo dodan strošek manipulacije in reza 15€ na rez

Informativni dobavni rok: 5-8 delovnih dni. Predviden dobavni rok za izbrano količino prosimo preverite v košarici.
+
UNITRONIC® BUS DN THICK FD Y
2170346
300 V
2 kV
120 ?
7,94 €
*
*

Naročilu bo dodan strošek manipulacije in reza 15€ na rez

Informativni dobavni rok: 5-8 delovnih dni. Predviden dobavni rok za izbrano količino prosimo preverite v košarici.
+
UNITRONIC® BUS DN THIN FD Y
2170347
300 V
2 kV
120 ?
3,26 €
*
*

Naročilu bo dodan strošek manipulacije in reza 15€ na rez

Informativni dobavni rok: 5-8 delovnih dni. Predviden dobavni rok za izbrano količino prosimo preverite v košarici.

Benefits

  • Available with robust PVC or abrasion-resistant PU outer sheath.
  • The "THIN" and "THICK" variants offer different core cross-sections, core insulation and outer sheath materials, thus enabling the optimal choice for a wide variety of installation situations and mechanical requirements.
  • Ideal protection against electromagnetic interference due to aluminium compound foil pair shielding and copper stranded shielding as overall shielding.
  • DeviceNet combines signal transmission and a 24 V power supply in a single four-wire cable.
  • UL certification according to technical data enables the product to be used on the North American market.

Applications

  • The "THIN" variant is designed as a drop cable for short branches from the main line to individual subscribers (max. 6 m per drop).
  • Suitable for outdoor use.
  • For highly flexible applications
  • DeviceNet™ connects industrial devices e.g. limit switches, photoelectric switches, valve islands, motor starters, drives, PLCs, etc.
  • The cable design allows flexible, constantly flexing use in moving machine parts and cable chains.
  • The "THICK" variant is designed as a trunk line for long transmission distances of up to 500 m.
  • Typical applications include limit switches, photoelectric switches, valve terminals, motor starters, actuators and PLCs.
  • For fieldbus communication in DeviceNet-based networks, to perform wiring to connect sensors and actuators to the controllers.

Documentation

Notes

  • Please find our standard lengths at: www.lappkabel.de/kabel-standardlaengen.
  • If applicable, the prices are solid metal prices without surcharges and VAT. Sales only to business customers.
  • Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.
  • DeviceNet is a registered trademark of the user organisation ODVA.
  • Photographs and graphics are not to scale and do not represent detailed images of the respective products.
