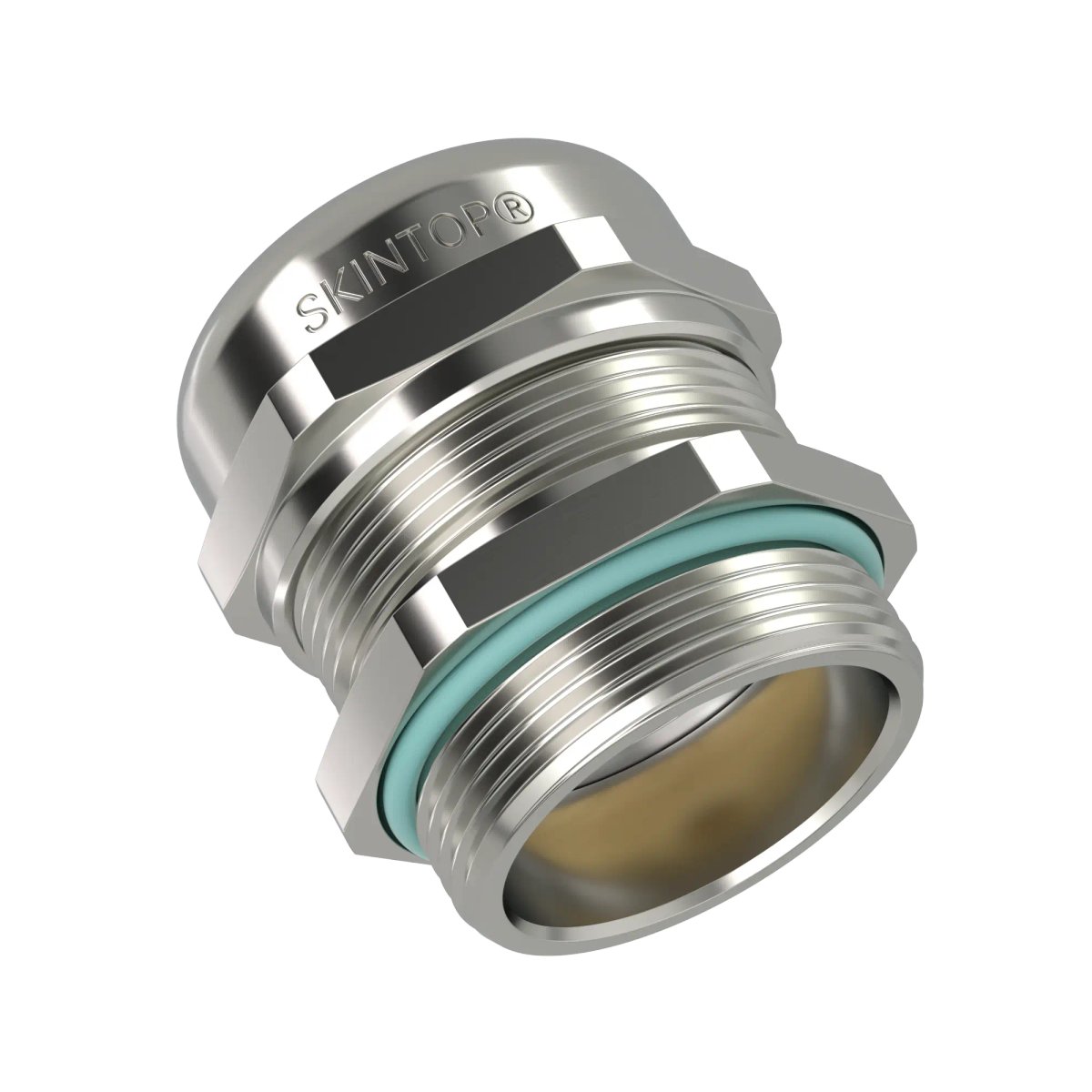

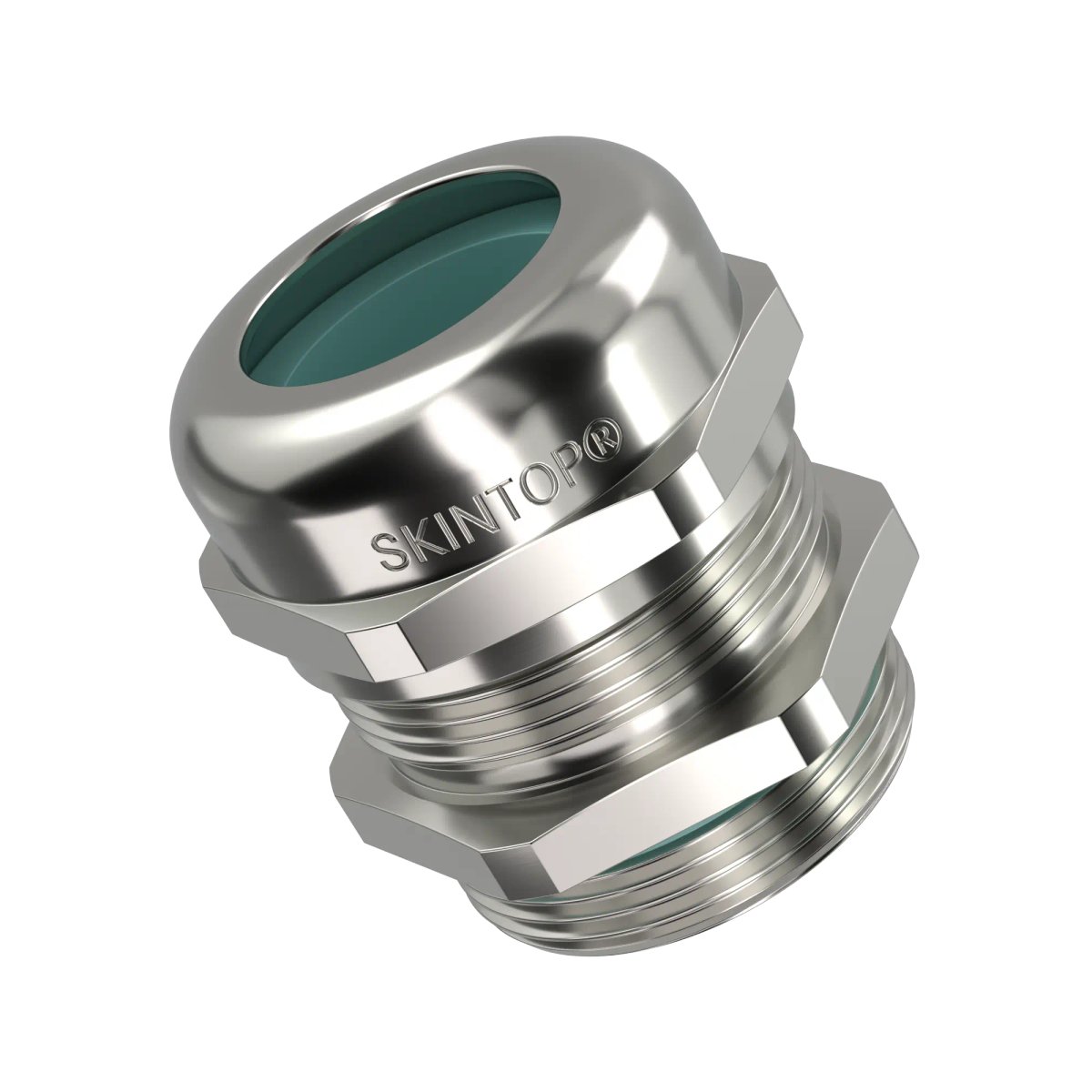

SKINTOP® TRAIN EMC / SKINTOP® TRAIN EMC XL

Bodite prvi in ocenite ta izdelek

Naziv

Koda izdelka

Št. kabelskih vhodov

Dolžina

Širina

Cena

Količina

SKINTOP® TRAIN EMC M20X1.5 XL

53113851

1 pc.

41 mm

24 mm

6,36 €

Rok dobave sporočimo po obdelavi naročila.

SKINTOP® TRAIN EMC M16X1.5

53113840

1 pc.

30 mm

20 mm

5,76 €

Na zalogi, predviden rok dobave 5-8 delovnih dni.

SKINTOP® TRAIN EMC M20X1.5

53113841

1 pc.

33 mm

24 mm

6,15 €

Rok dobave sporočimo po obdelavi naročila.

SKINTOP® TRAIN EMC M25X1.5

53113842

1 pc.

35 mm

29 mm

6,86 €

Rok dobave sporočimo po obdelavi naročila.

SKINTOP® TRAIN EMC M32X1.5

53113843

1 pc.

41.5 mm

36 mm

9,08 €

Na zalogi, predviden rok dobave 5-8 delovnih dni.

SKINTOP® TRAIN EMC M40X1.5

53113844

1 pc.

47 mm

45 mm

14,01 €

Rok dobave sporočimo po obdelavi naročila.

SKINTOP® TRAIN EMC M50X1.5

53113845

1 pc.

52 mm

54 mm

20,09 €

Rok dobave sporočimo po obdelavi naročila.

SKINTOP® TRAIN EMC M50X1.5 XL

53113855

1 pc.

60.5 mm

54 mm

20,17 €

Na zalogi, predviden rok dobave 5-8 delovnih dni.

SKINTOP® TRAIN EMC M40X1.5 XL

53113854

1 pc.

54 mm

45 mm

14,56 €

Na zalogi, predviden rok dobave 5-8 delovnih dni.

SKINTOP® TRAIN EMC M32X1.5 XL

53113853

1 pc.

51.5 mm

36 mm

9,45 €

Rok dobave sporočimo po obdelavi naročila.

SKINTOP® TRAIN EMC M25X1.5 XL

53113852

1 pc.

42.5 mm

29 mm

6,97 €

Rok dobave sporočimo po obdelavi naročila.

SKINTOP® TRAIN EMC M16X1.5 XL

53113850

1 pc.

38 mm

20 mm

5,85 €

Rok dobave sporočimo po obdelavi naročila.

SKINTOP® TRAIN EMC M63X1.5

53113846

1 pc.

60 mm

67 mm

42,30 €

Rok dobave sporočimo po obdelavi naročila.

Benefits

The best possible sealing enables protection class IP 68 (3 bar).
Safe, fast and uncomplicated installation.
Reliable EMC protection is guaranteed even after dismantling and reinstallation, as the copper stranded shielding is not damaged by the brass brush.
Increases fire safety, as the full-surface compression forms a closed and tight barrier against fire and smoke in the event of a fire.
Halogen free materials make the product suitable for use in public areas.

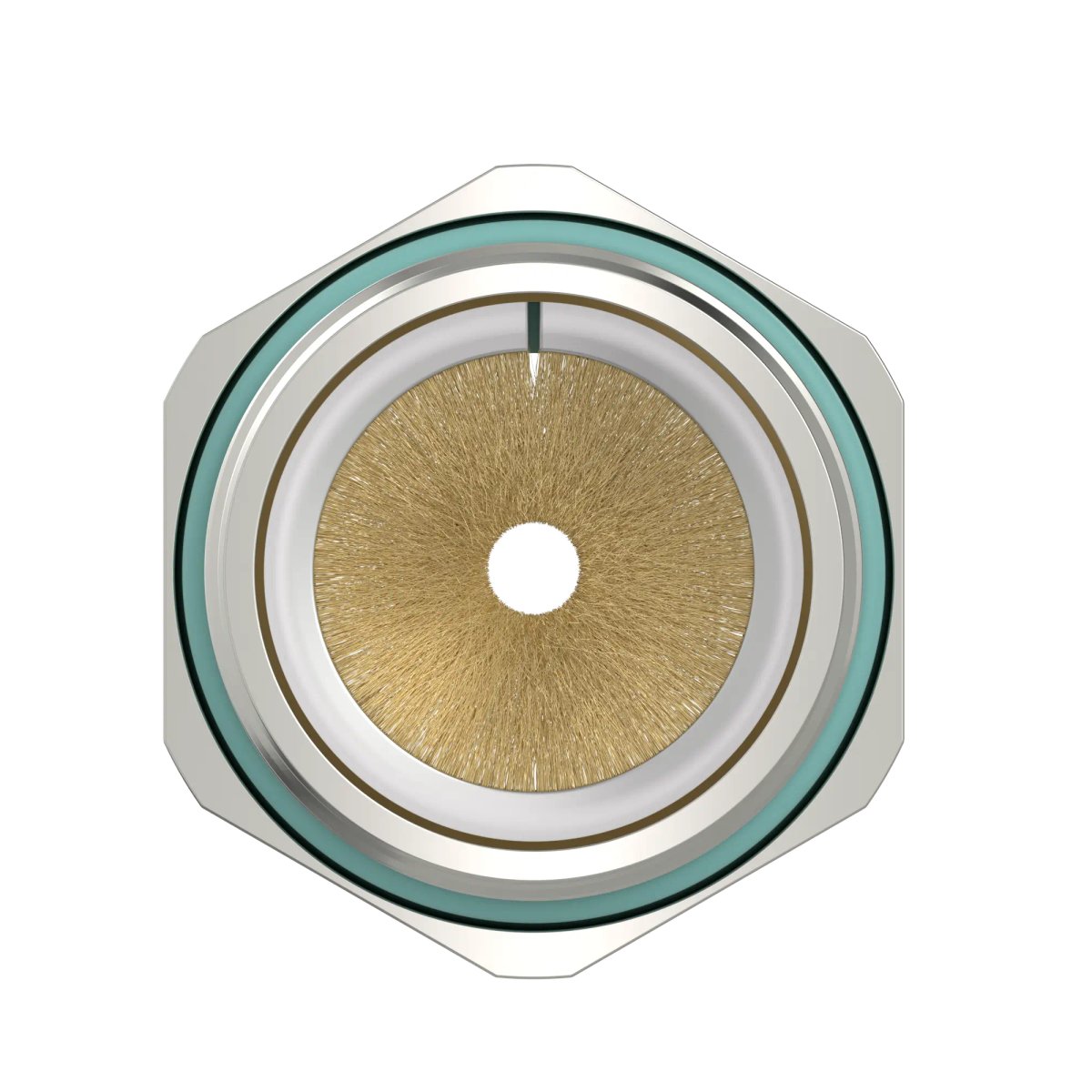

Optimum EMC protection thanks to the unique 360° brass brush, which creates a low-resistance contact between the copper stranded shielding and the cable gland.

Applications

Withstands high chemical and mechanical stress.
For EMC-compliant insertion of copper-shielded cables.
Suitable for outdoor use, subject to the temperature range.
The "XL" version is particularly suitable for thick-walled housing thanks to the exceptionally long connection thread.
Can be used in railway vehicles in accordance with standards (fire behaviour test in accordance with DIN EN 45545-2, requirement sets R22/R23, hazard levels HL1-HL3; fire resistance test in accordance with DIN EN 45545-3, classification E30).
Note: For painted, anodised or powder-coated housings, use the counter nut SKINDICHT® SM-PE-M for equipotential bonding.

Documentation

Notes

Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.
Photographs and graphics are not to scale and do not represent detailed images of the respective products.
If applicable, the prices are solid metal prices without surcharges and VAT. Sales only to business customers.
