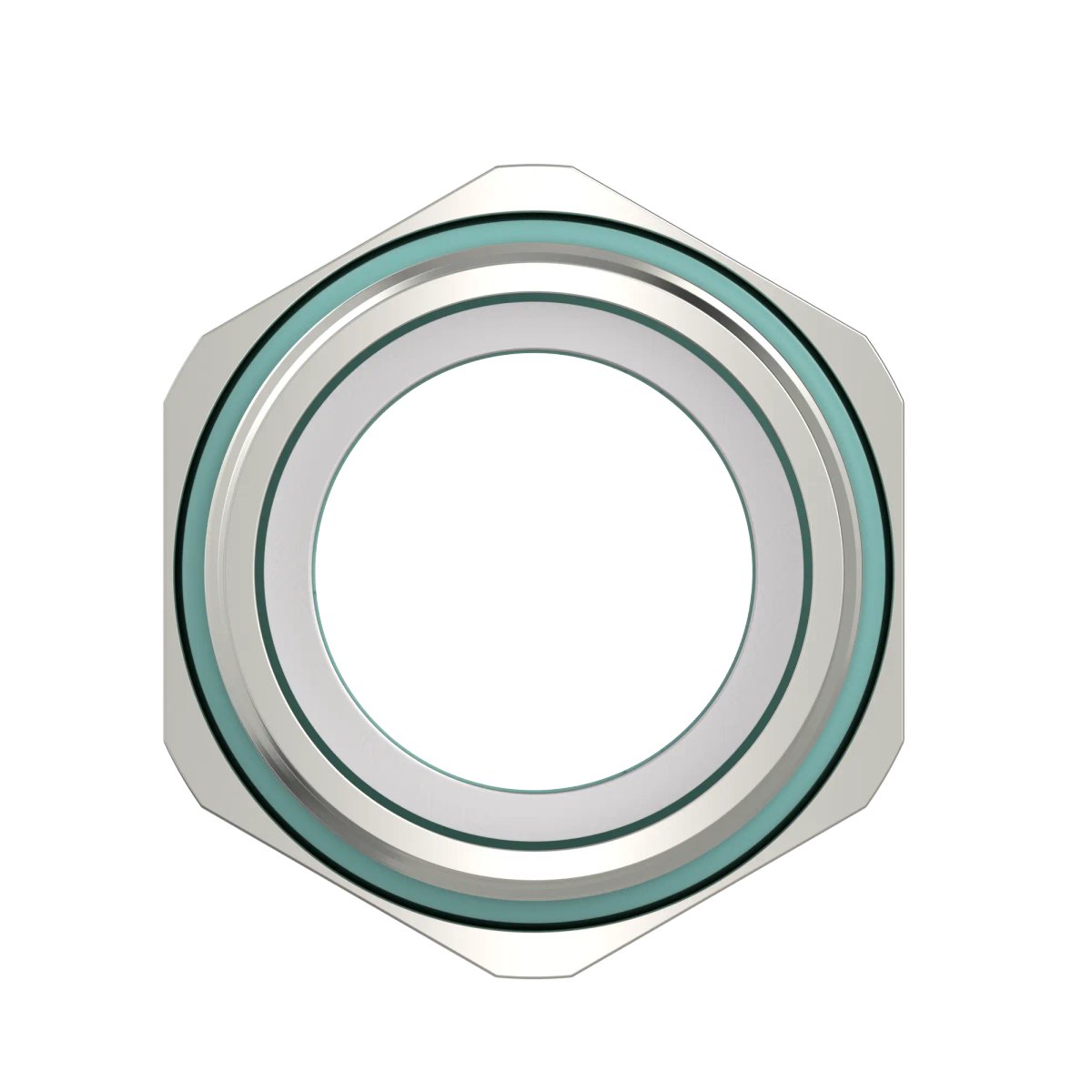

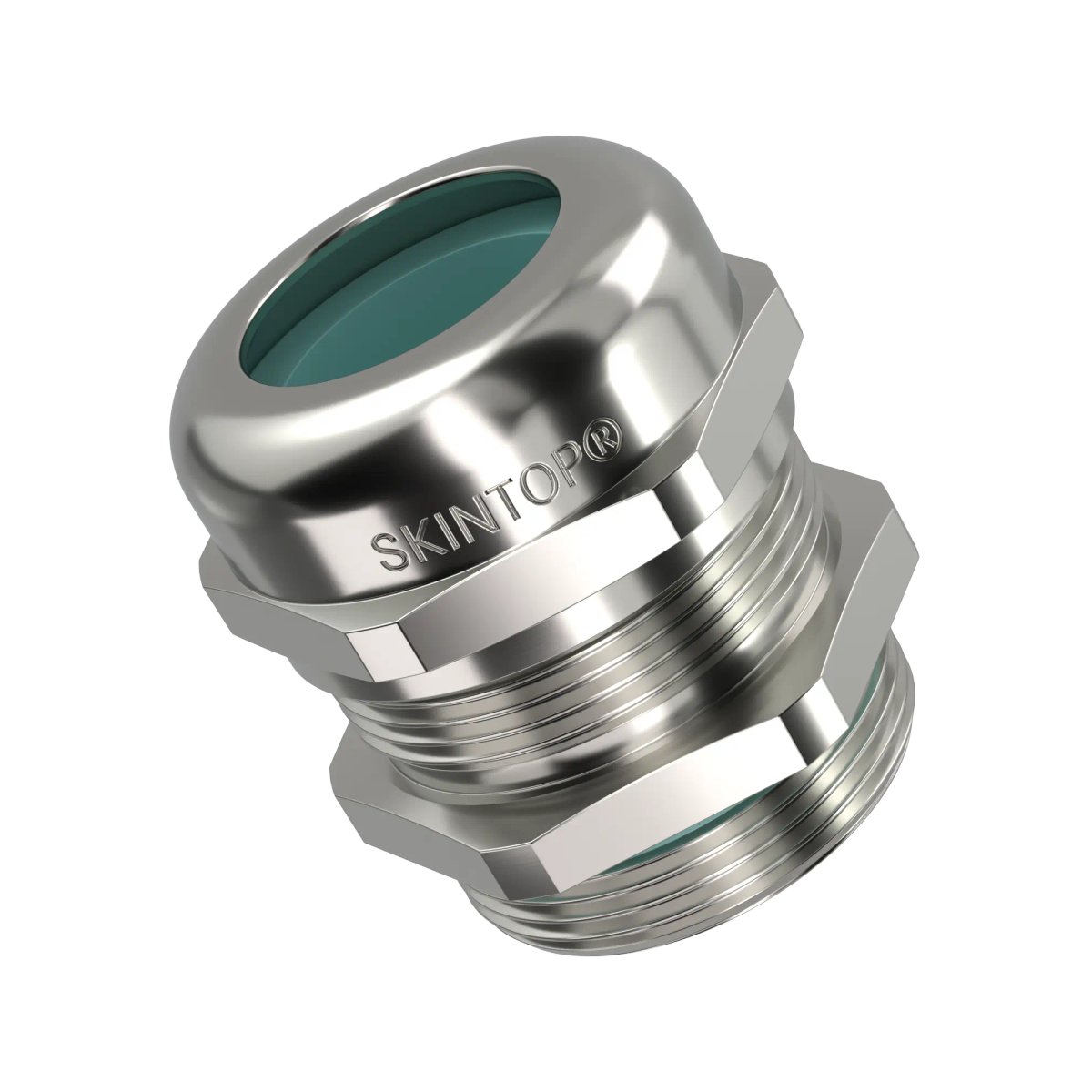

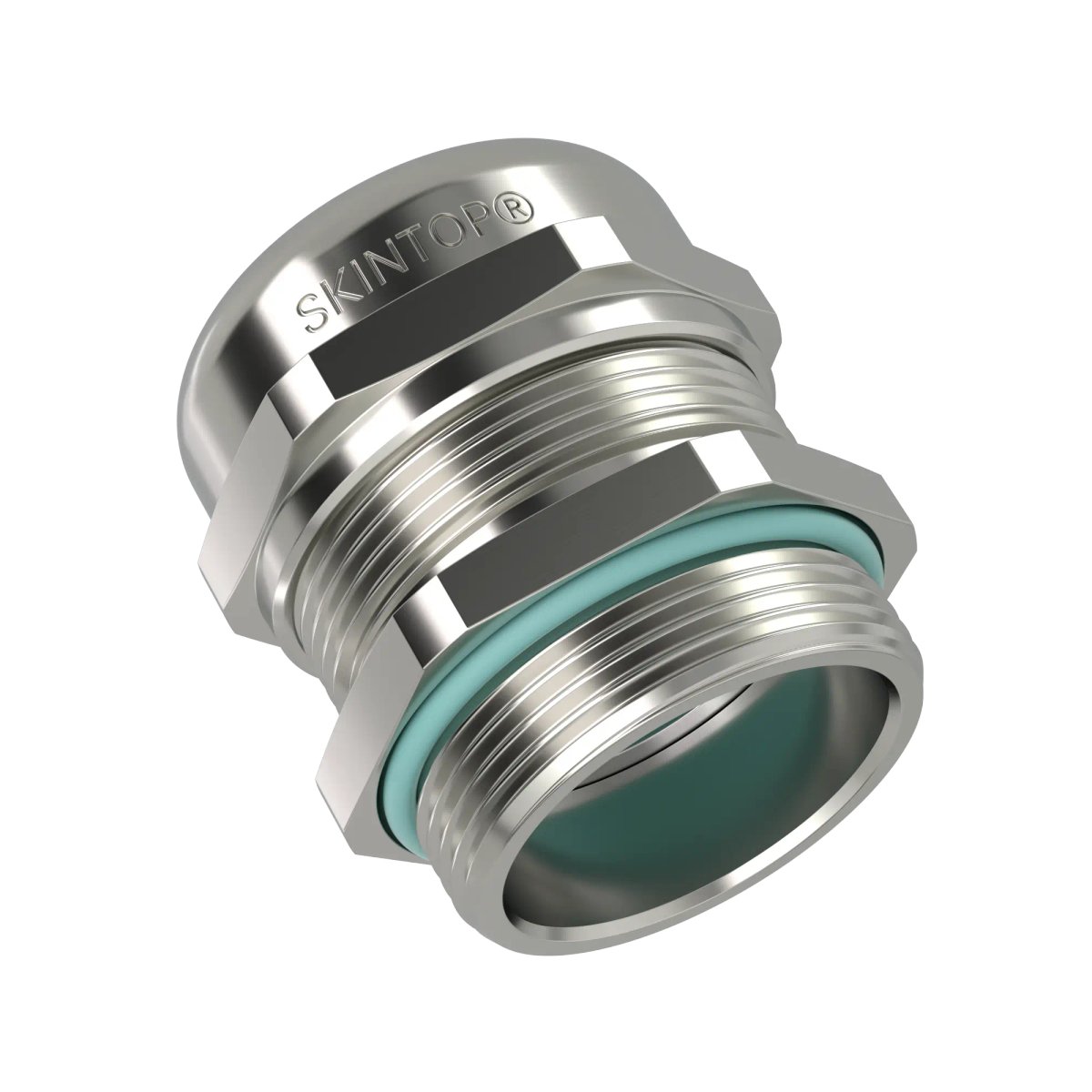

Slika SKINTOP® TRAIN / SKINTOP® TRAIN XL
Slika SKINTOP® TRAIN / SKINTOP® TRAIN XL Slika SKINTOP® TRAIN / SKINTOP® TRAIN XL Slika SKINTOP® TRAIN / SKINTOP® TRAIN XL

SKINTOP® TRAIN / SKINTOP® TRAIN XL

Bodite prvi in ​​ocenite ta izdelek
Naziv
Koda izdelka
Št. kabelskih vhodov
Dolžina
Širina
Cena
Količina
+
SKINTOP® TRAIN M40X1.5 XL
53113815
1 pc.
54 mm
54 mm
13,45 €
Na zalogi, predviden rok dobave 5-8 delovnih dni.
+
SKINTOP® TRAIN M50X1.5
53113806
1 pc.
52 mm
54 mm
18,46 €
Na zalogi, predviden rok dobave 5-8 delovnih dni.
+
SKINTOP® TRAIN M63X1.5
53113807
1 pc.
60 mm
67 mm
40,19 €
Na zalogi, predviden rok dobave 5-8 delovnih dni.
+
SKINTOP® TRAIN M12X1.5 XL
53113810
1 pc.
32 mm
16 mm
3,78 €
Na zalogi, predviden rok dobave 5-8 delovnih dni.
+
SKINTOP® TRAIN M16X1.5 XL
53113811
1 pc.
38 mm
20 mm
4,60 €
Na zalogi, predviden rok dobave 5-8 delovnih dni.
+
SKINTOP® TRAIN M20X1.5 XL
53113812
1 pc.
41 mm
29 mm
5,47 €
Na zalogi, predviden rok dobave 5-8 delovnih dni.
+
SKINTOP® TRAIN M25X1.5 XL
53113813
1 pc.
42.5 mm
36 mm
5,62 €
Na zalogi, predviden rok dobave 5-8 delovnih dni.
+
SKINTOP® TRAIN M32X1.5 XL
53113814
1 pc.
51.5 mm
45 mm
8,81 €
Na zalogi, predviden rok dobave 5-8 delovnih dni.
+
SKINTOP® TRAIN M50X1.5 XL
53113816
1 pc.
60.5 mm
67 mm
18,54 €
Na zalogi, predviden rok dobave 5-8 delovnih dni.
+
SKINTOP® TRAIN M40X1.5
53113805
1 pc.
47 mm
45 mm
12,90 €
Na zalogi, predviden rok dobave 5-8 delovnih dni.
+
SKINTOP® TRAIN M25X1.5
53113803
1 pc.
35 mm
29 mm
6,44 €
Na zalogi, predviden rok dobave 5-8 delovnih dni.
+
SKINTOP® TRAIN M32X1.5
53113804
1 pc.
41.5 mm
36 mm
8,44 €
Na zalogi, predviden rok dobave 5-8 delovnih dni.
+
SKINTOP® TRAIN M20X1.5
53113802
1 pc.
33 mm
24 mm
5,26 €
Na zalogi, predviden rok dobave 5-8 delovnih dni.
+
SKINTOP® TRAIN M16X1.5
53113801
1 pc.
30 mm
20 mm
4,51 €
Na zalogi, predviden rok dobave 5-8 delovnih dni.
+
SKINTOP® TRAIN M12X1.5
53113800
1 pc.
25.5 mm
16 mm
3,62 €
Na zalogi, predviden rok dobave 5-8 delovnih dni.

Benefits

  • Halogen free materials make the product suitable for use in public areas.
  • Increases fire safety, as the full-surface compression forms a closed and tight barrier against fire and smoke in the event of a fire.
  • The best possible sealing enables protection class IP 68 (3 bar).
  • Safe, fast and uncomplicated installation.

Applications

  • The "XL" version is particularly suitable for thick-walled housing thanks to the exceptionally long connection thread.
  • Can be used in railway vehicles in accordance with standards (fire behaviour test in accordance with DIN EN 45545-2, requirement sets R22/R23, hazard levels HL1-HL3; fire resistance test in accordance with DIN EN 45545-3, classification E30).
  • For sealing and strain relieving cable insertion into a housing.
  • Withstands high chemical and mechanical stress.
  • Suitable for outdoor use, subject to the temperature range.

Documentation

Notes

  • If applicable, the prices are solid metal prices without surcharges and VAT. Sales only to business customers.
  • Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.
  • Photographs and graphics are not to scale and do not represent detailed images of the respective products.
