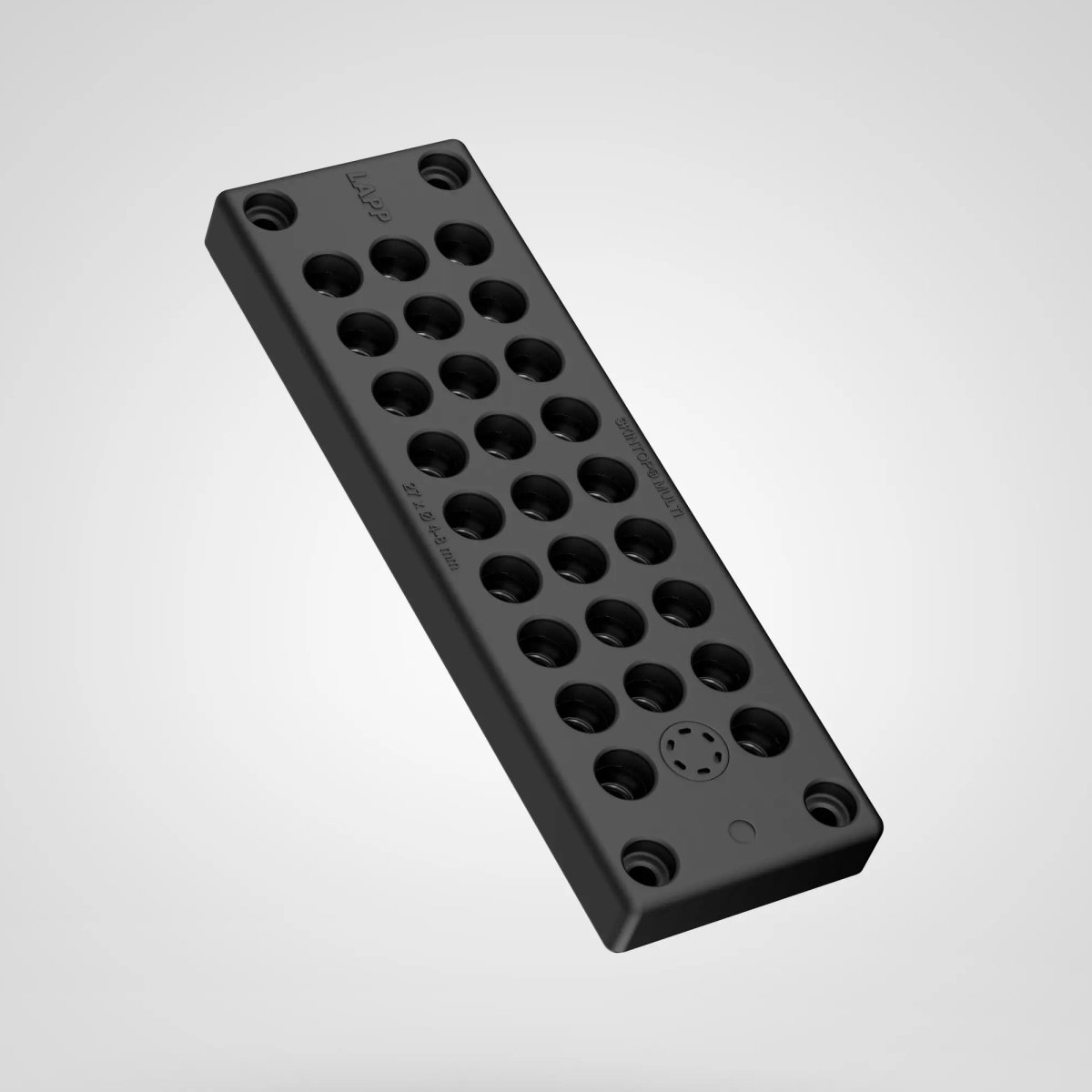

SKINTOP® MULTI VENT

Naziv
Koda izdelka
Št. kabelskih vhodov
Dolžina
Širina
Cena
Količina
+
SKINTOP® MULTI VENT Version 1
52220092
21 pc.
144 mm
46 mm
40,63 €
Rok dobave sporočimo po obdelavi naročila.
+
SKINTOP® MULTI VENT Version 2
52220093
20 pc.
144 mm
46 mm
40,66 €
Rok dobave sporočimo po obdelavi naročila.
+
SKINTOP® MULTI VENT Version 3
52220094
29 pc.
144 mm
46 mm
40,69 €
Rok dobave sporočimo po obdelavi naročila.
+
SKINTOP® MULTI VENT Version 4
52220095
11 pc.
144 mm
46 mm
40,63 €
Rok dobave sporočimo po obdelavi naročila.

Benefits

  • Multi-cable entry system allows a higher packing density (up to 29 cables depending on the variant).
  • Large clamping ranges, each variable by 4 mm, for different cable diameters and clamping ranges especially for AS-i bus cables.
  • Flexibility in selecting the cable diameter reduces the variety of parts in the warehouse, generating logistical and cost benefits.
  • Direct cable entry without pre-piercing the bushings thanks to elastic gel technology with innovative membrane technology.
  • Included: breathable pressure compensation element that ensures the necessary pressure compensation when the housing is closed. This completely prevents moisture penetration.

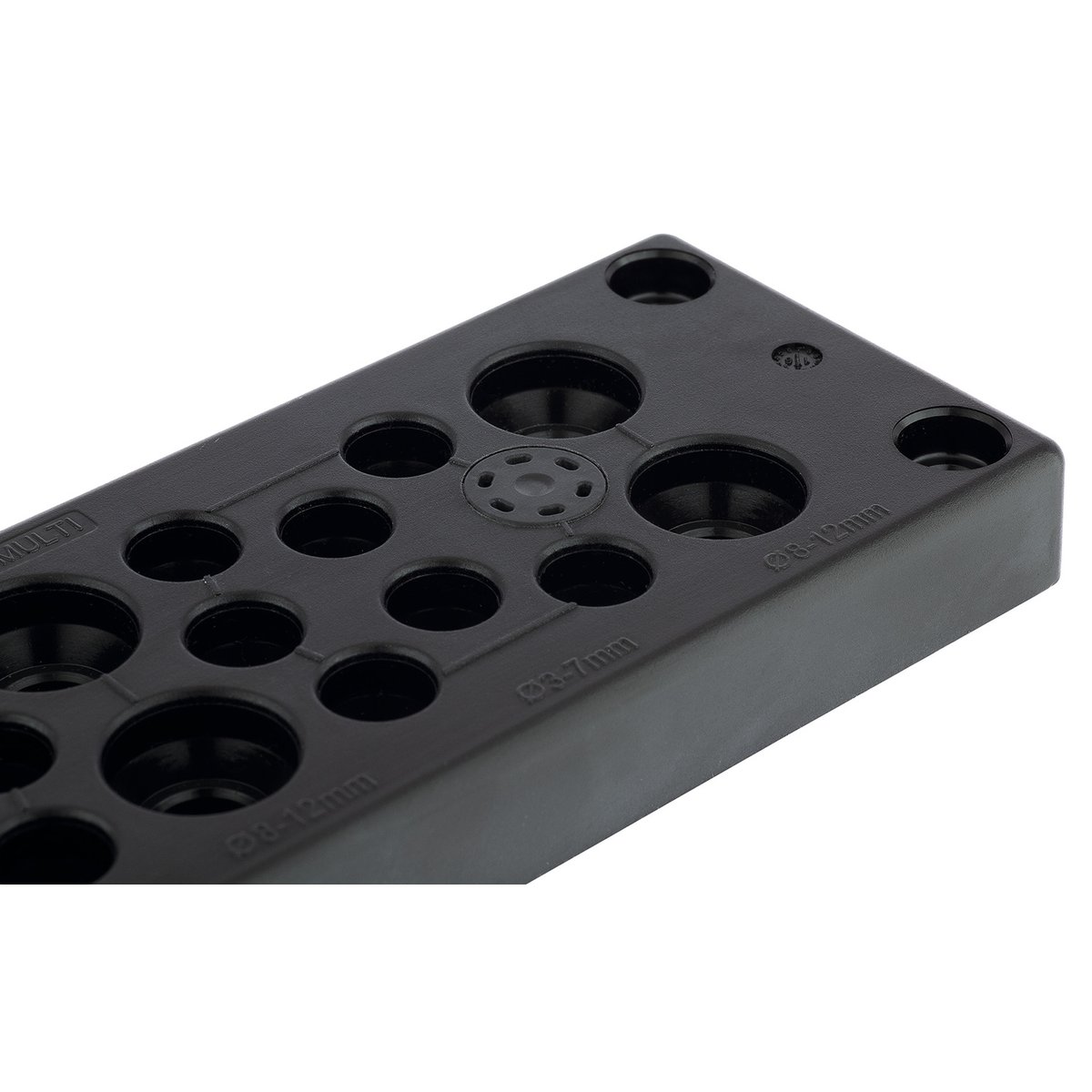

  • Clear marking of bushing points and clamping ranges. As a result, there is no potential for errors during cable insertion.
  • Easy assembly of the multi-cable entry on the housing using 4 fastening screws. The adhesive effect of the sealing gel enables the product to be positioned very easily during assembly.
  • Available in different versions for a wide range of applications.

Applications

  • For sealing and strain relief, multiple insertions of non-assembled cables and media hoses through one housing.
  • Especially for closed housings where optimum ventilation is needed.
  • Can be used in dry, damp and oily environments.
  • Suitable for outdoor use.

Documentation

Notes

  • * Prices are net prices without VAT and surcharges. Sale to business customers only.
  • Photographs and graphics are not to scale and do not represent detailed images of the respective products.
