Naziv
Koda izdelka
Št. kabelskih vhodov
Dolžina
Širina
Cena
Količina
+

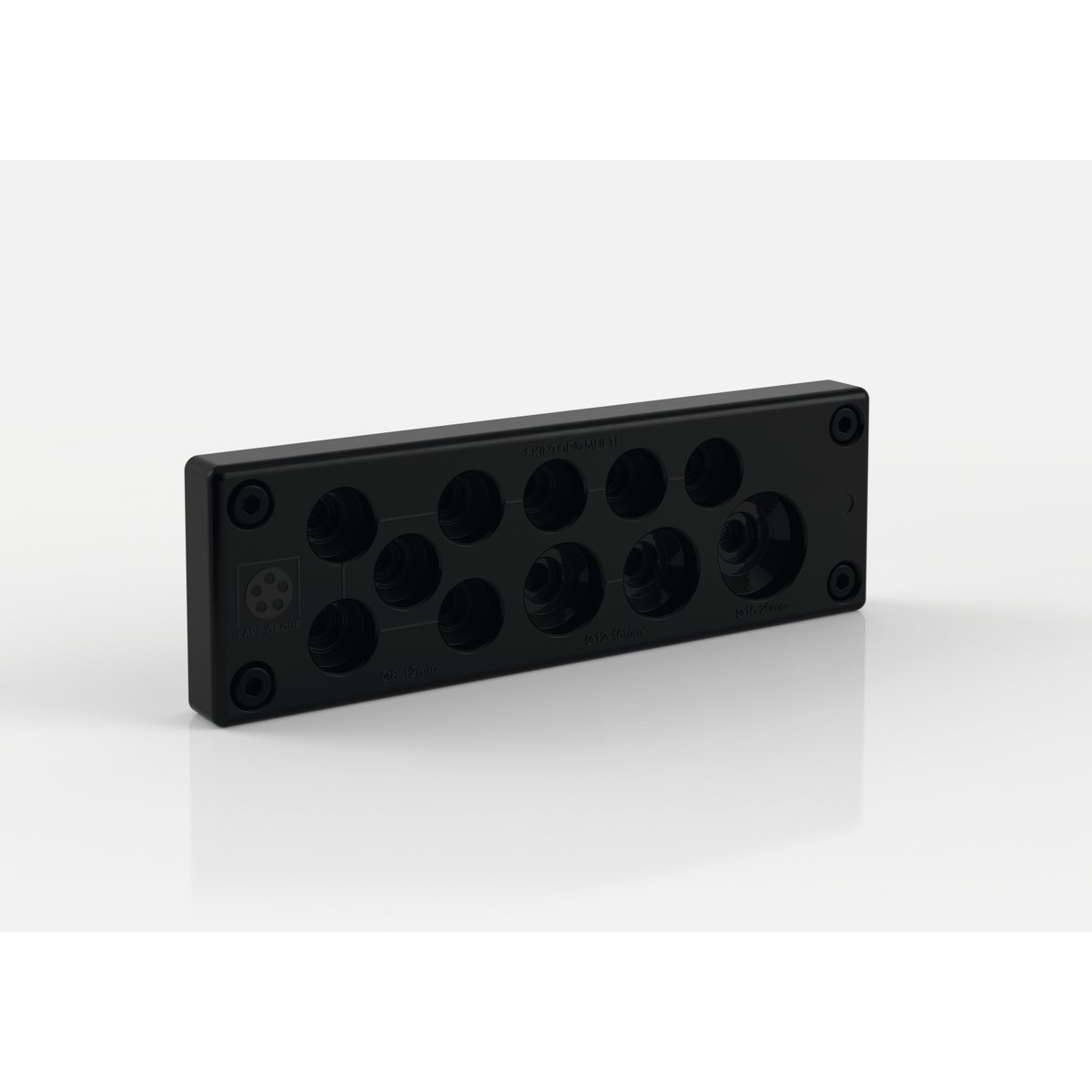

SKINTOP® MULTI VERSION 1
52220065
22 pc.
144 mm
46 mm
10,26 €
Na zalogi, predviden rok dobave 5-8 delovnih dni.
+
SKINTOP® MULTI VERSION 2
52220073
21 pc.
144 mm
46 mm
10,01 €
Na zalogi, predviden rok dobave 5-8 delovnih dni.
+
SKINTOP® MULTI VERSION 3
52220080
30 pc.
144 mm
46 mm
10,35 €
Na zalogi, predviden rok dobave 5-8 delovnih dni.
+
SKINTOP® MULTI VERSION 4
52220085
11 pc.
144 mm
46 mm
9,75 €
Na zalogi, predviden rok dobave 5-8 delovnih dni.
+
SKINTOP® MULTI VERSION 5
52220101
27 pc.
144 mm
46 mm
16,57 €
Rok dobave sporočimo po obdelavi naročila.
+
SKINTOP® MULTI VERSION 6
52220104
24 pc.
144 mm
46 mm
16,57 €
Na zalogi, predviden rok dobave 5-8 delovnih dni.

Benefits

  • Large clamping ranges, variable by 4 mm each for different cable diameters.
  • Multi-cable entry system allows a higher packing density (up to 30 cables depending on the variant).
  • Large clamping ranges, variable by 4 mm each for different cable diameters.
  • Direct cable entry without pre-piercing the bushings thanks to elastic gel technology with innovative membrane technology.
  • Clear marking of bushing points and clamping ranges. As a result, there is no potential for errors during cable insertion.
  • Flexibility in selecting the cable diameter reduces the variety of parts in the warehouse, generating logistical and cost benefits.
  • Easy assembly of the multi-cable entry on the housing using 4 fastening screws. The adhesive effect of the sealing gel enables the product to be positioned very easily during assembly.
  • The best possible sealing off of the housing and the cables enables protection class IP 68. Unoccupied bushings remain securely closed and sealed.
  • Available in different versions for a wide range of applications.

Applications

  • For sealing and strain relief, multiple insertions of non-assembled cables and media hoses through one housing.
  • Compliant with standards for use in rail vehicles (fire behaviour test according to DIN EN 45545, hazard levels HL1 and HL2).
  • Can be used in dry, damp and oily environments.
  • Suitable for outdoor use.

Notes

  • Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.
  • If applicable, the prices are solid metal prices without surcharges and VAT. Sales only to business customers.
  • Photographs and graphics are not to scale and do not represent detailed images of the respective products.
