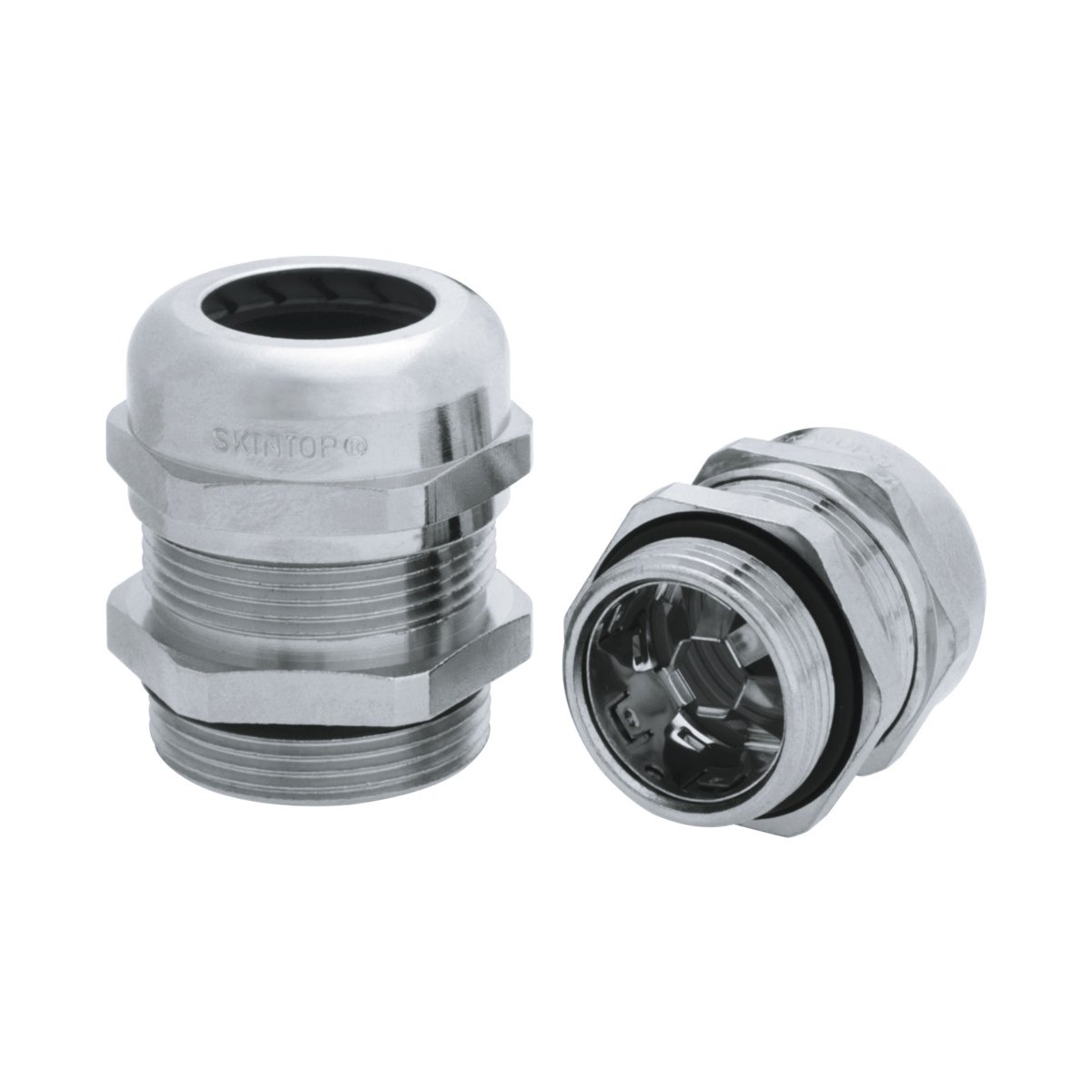

SKINTOP® MS-SC-M / SKINTOP® MS-SC-M-XL

Naziv
Koda izdelka
Št. kabelskih vhodov
Dolžina
Odprtina fi
Cena
Količina
+
SKINTOP® MS-SC-M 12X1.5
53112610
1 pc.
26.5 mm
7 mm
1,85 €
*
Na zalogi, rok dobave 2-4 delovne dni.
+
SKINTOP® MS-SC-M 16X1.5
53112620
1 pc.
32 mm
10 mm
2,58 €
*
Na zalogi, rok dobave 2-4 delovne dni.
+
SKINTOP® MS-SC-M-XL 16X1.5
53112625
1 pc.
37 mm
10 mm
2,73 €
*
Na zalogi, predviden rok dobave 5-8 delovnih dni.
+
SKINTOP® MS-SC-M 20X1.5
53112630
1 pc.
35.5 mm
13 mm
2,51 €
*
Na zalogi, rok dobave 2-4 delovne dni.
+
SKINTOP® MS-SC-M-XL 20X1.5
53112635
1 pc.
39.5 mm
13 mm
3,13 €
*
Na zalogi, rok dobave 2-4 delovne dni.
+
SKINTOP® MS-SC-M 25X1.5
53112640
1 pc.
37.5 mm
17 mm
3,52 €
*
Na zalogi, rok dobave 2-4 delovne dni.
+
SKINTOP® MS-SC-M-XL 25X1.5
53112645
1 pc.
41.5 mm
17 mm
3,62 €
*
Na zalogi, predviden rok dobave 5-8 delovnih dni.
+
SKINTOP® MS-SC M 32X1.5
53112650
1 pc.
42.2 mm
21 mm
6,27 €
*
Na zalogi, rok dobave 2-4 delovne dni.
+
SKINTOP® MS-SC-M-XL 32X1.5
53112655
1 pc.
48.2 mm
21 mm
6,66 €
*
Na zalogi, predviden rok dobave 5-8 delovnih dni.
+
SKINTOP® MS-SC M 40X1.5
53112660
1 pc.
49.5 mm
28 mm
10,18 €
*
Na zalogi, rok dobave 2-4 delovne dni.
+
SKINTOP® MS-SC-M-XL 40X1.5
53112665
1 pc.
53.5 mm
28 mm
8,96 €
*
Na zalogi, predviden rok dobave 5-8 delovnih dni.
+
SKINTOP® MS-SC-M 50X1.5
53112670
1 pc.
52 mm
35 mm
14,62 €
*
Na zalogi, rok dobave 2-4 delovne dni.
+
SKINTOP® MS-SC-M-XL 50X1.5
53112675
1 pc.
57 mm
35 mm
13,66 €
*
Na zalogi, predviden rok dobave 5-8 delovnih dni.
+
SKINTOP® MS-SC-M 25X1.5
53112640LF
1 pc.
37.5 mm
17 mm
5,72 €
*
Rok dobave sporočimo po obdelavi naročila.
+
SKINTOP® MS-SC M 32X1.5
53112650LF
1 pc.
42.2 mm
21 mm
8,38 €
*
Na zalogi, predviden rok dobave 5-8 delovnih dni.
+
SKINTOP® MS-SC-M 20X1.5
53112630LF
1 pc.
35.5 mm
13 mm
4,40 €
*
Na zalogi, predviden rok dobave 5-8 delovnih dni.
+
SKINTOP® MS-SC-M 16X1.5
53112620LF
1 pc.
32 mm
10 mm
3,63 €
*
Rok dobave sporočimo po obdelavi naročila.
+
SKINTOP® MS-SC M 40X1.5
53112660LF
1 pc.
49.5 mm
28 mm
13,09 €
*
Na zalogi, predviden rok dobave 5-8 delovnih dni.
+
SKINTOP® MS-SC-M 50X1.5
53112670LF
1 pc.
52 mm
35 mm
22,87 €
*
Na zalogi, predviden rok dobave 5-8 delovnih dni.
+
SKINTOP® MS-SC-M 12X1.5
53112610LF
1 pc.
26.5 mm
7 mm
2,83 €
*
Na zalogi, predviden rok dobave 5-8 delovnih dni.

Benefits

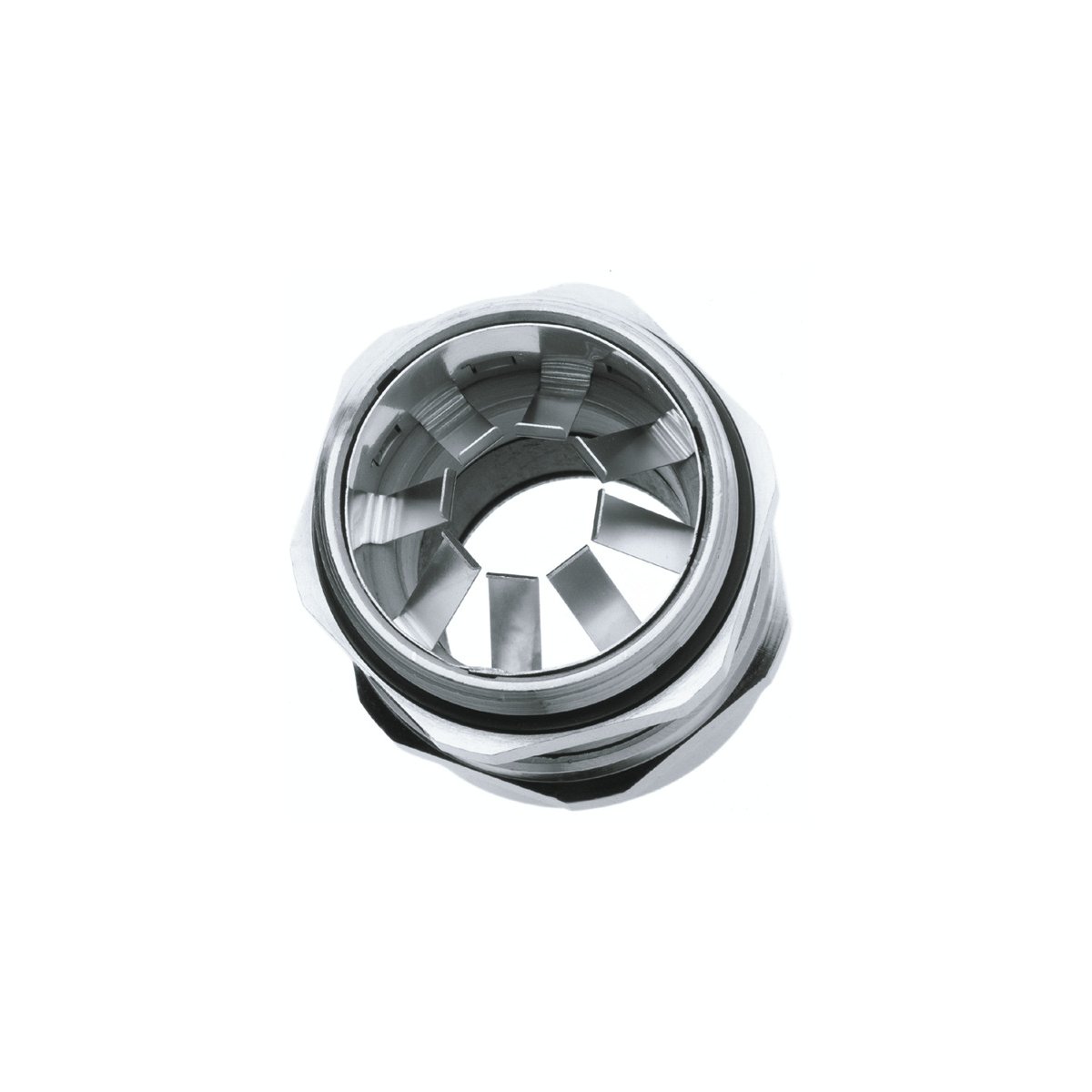

  • Optimum EMC protection thanks to integrated, highly conductive and flexible contact spring, which creates a low-resistance transition between the braided shield and the cable gland.
  • Safe, fast and uncomplicated installation.
  • The best possible sealing enables protection classes IP 68 (10 bar) and IP 69.
  • Large, variable clamping range for different cable outer diameters.
  • Suitable for cables with or without an inner sheath.
  • UL certification according to technical data enables the product to be used on the North American market.
  • Article numbers ending with “LF” are lead-free product alternatives with otherwise identical product properties. “Lead-free” articles comply with the RoHS directive even after the expiry of the exemption on 21/07/2021, which allowed a lead content of up to four percent in copper alloys.

Applications

  • For EMC-compliant insertion of copper-shielded cables.
  • For use in control systems, motors and frequency converters.

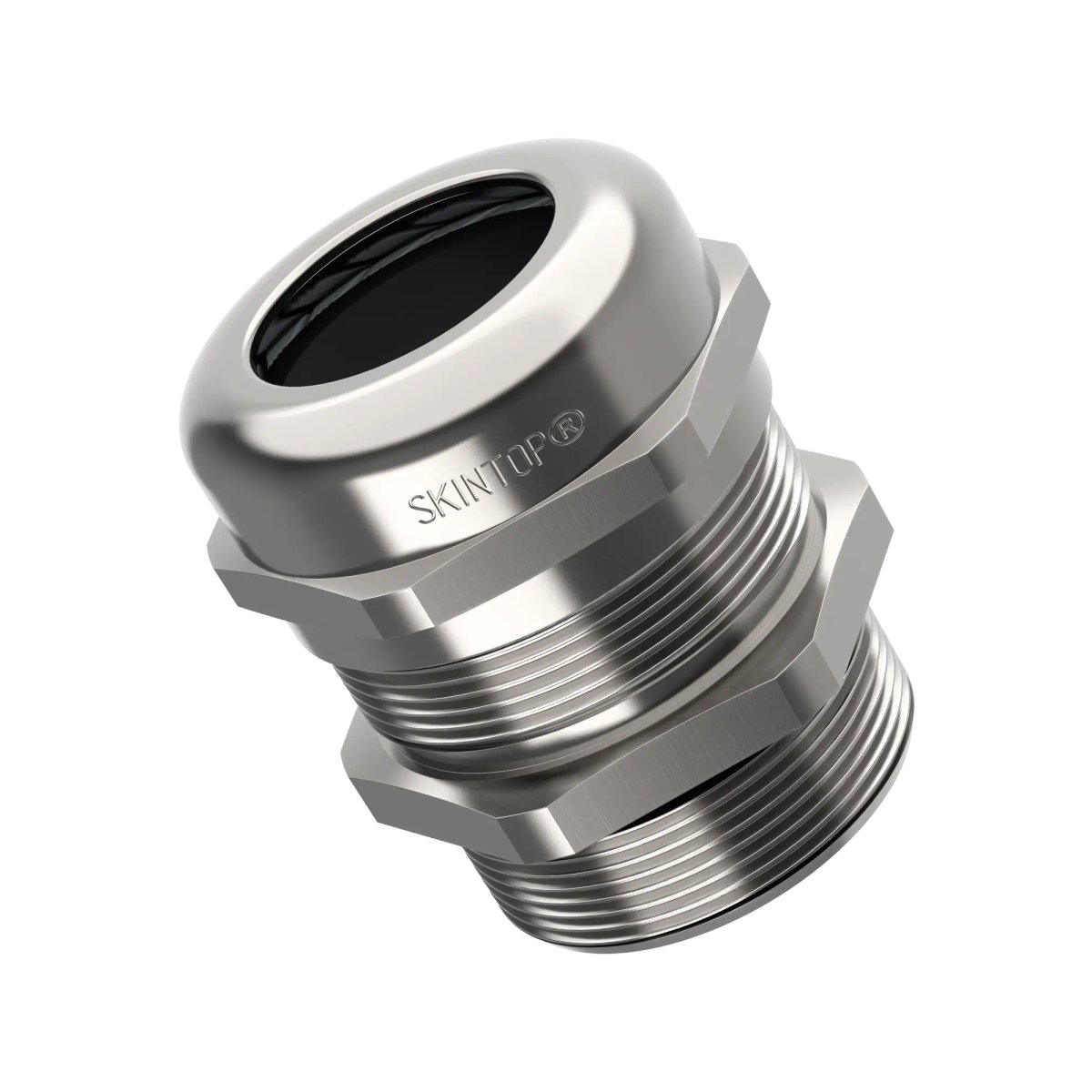

  • The SKINTOP® MS-SC-M-XL version is particularly suitable for thick-walled housing thanks to the exceptionally long connection thread.
  • Withstands high chemical and mechanical stress.
  • Suitable for outdoor use, subject to the temperature range.
  • Note: For painted, anodised or powder-coated housings, use the counter nut SKINDICHT® SM-PE-M for equipotential bonding.

Notes

  • Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.
  • If applicable, the prices are solid metal prices without surcharges and VAT. Sales only to business customers.
  • Photographs and graphics are not to scale and do not represent detailed images of the respective products.
