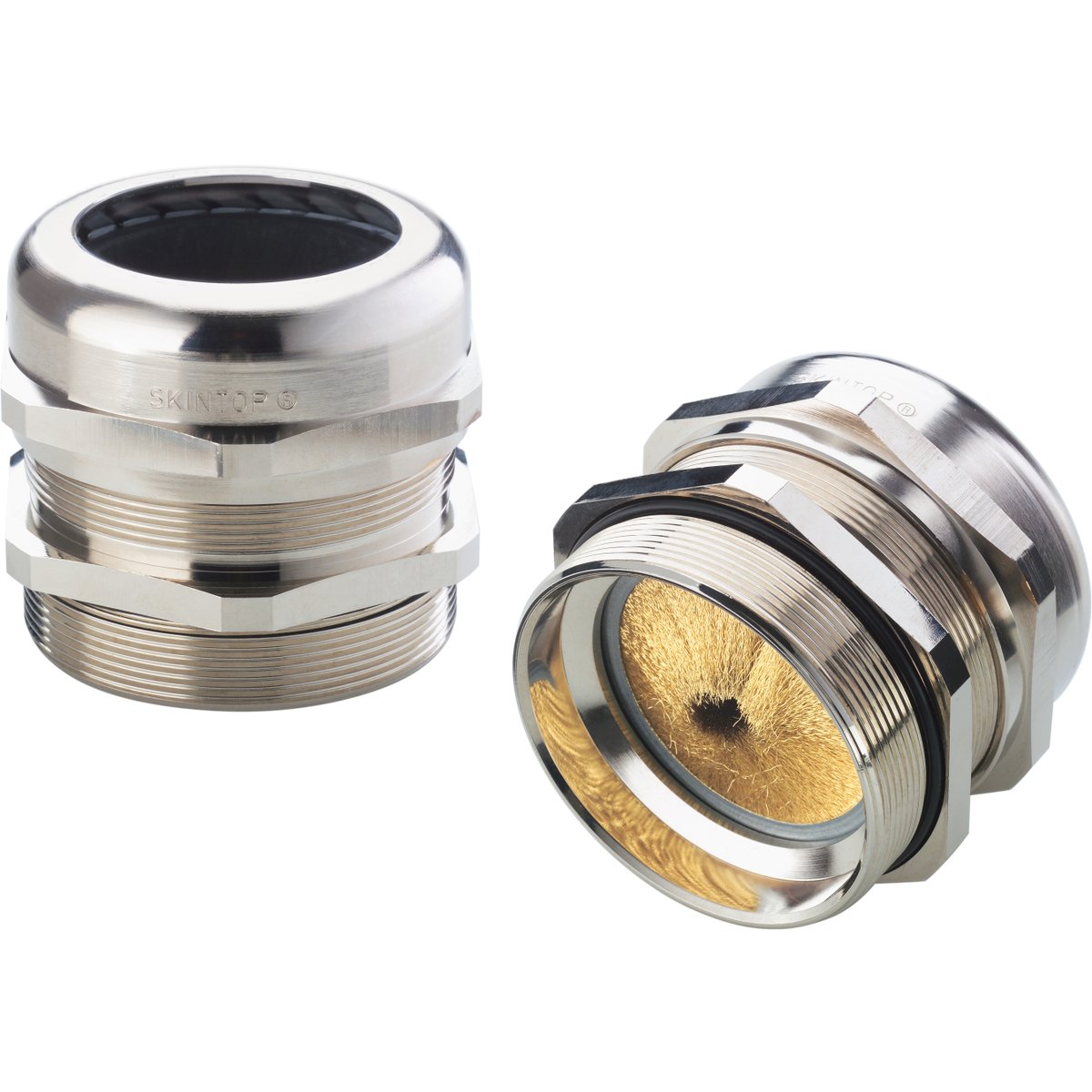

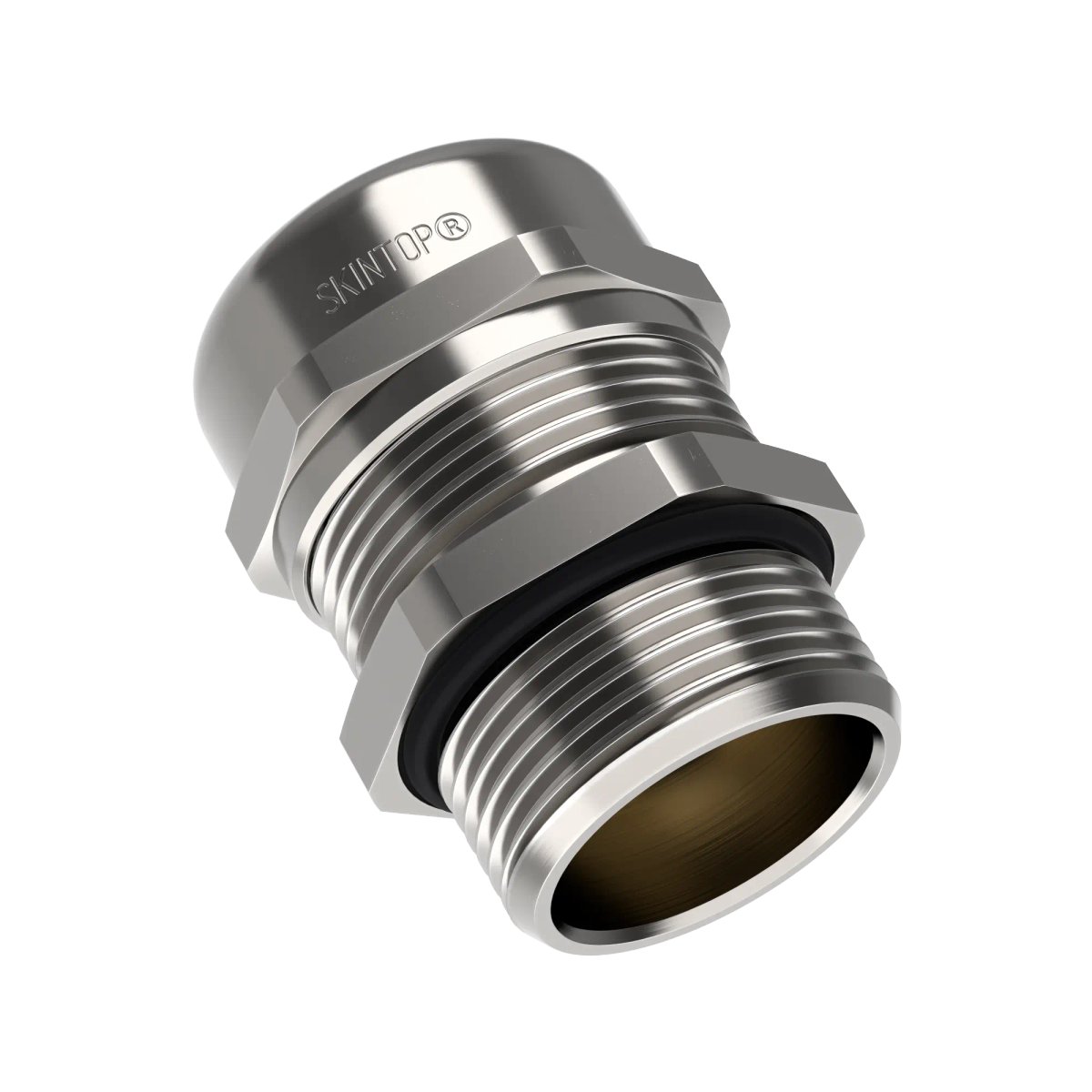

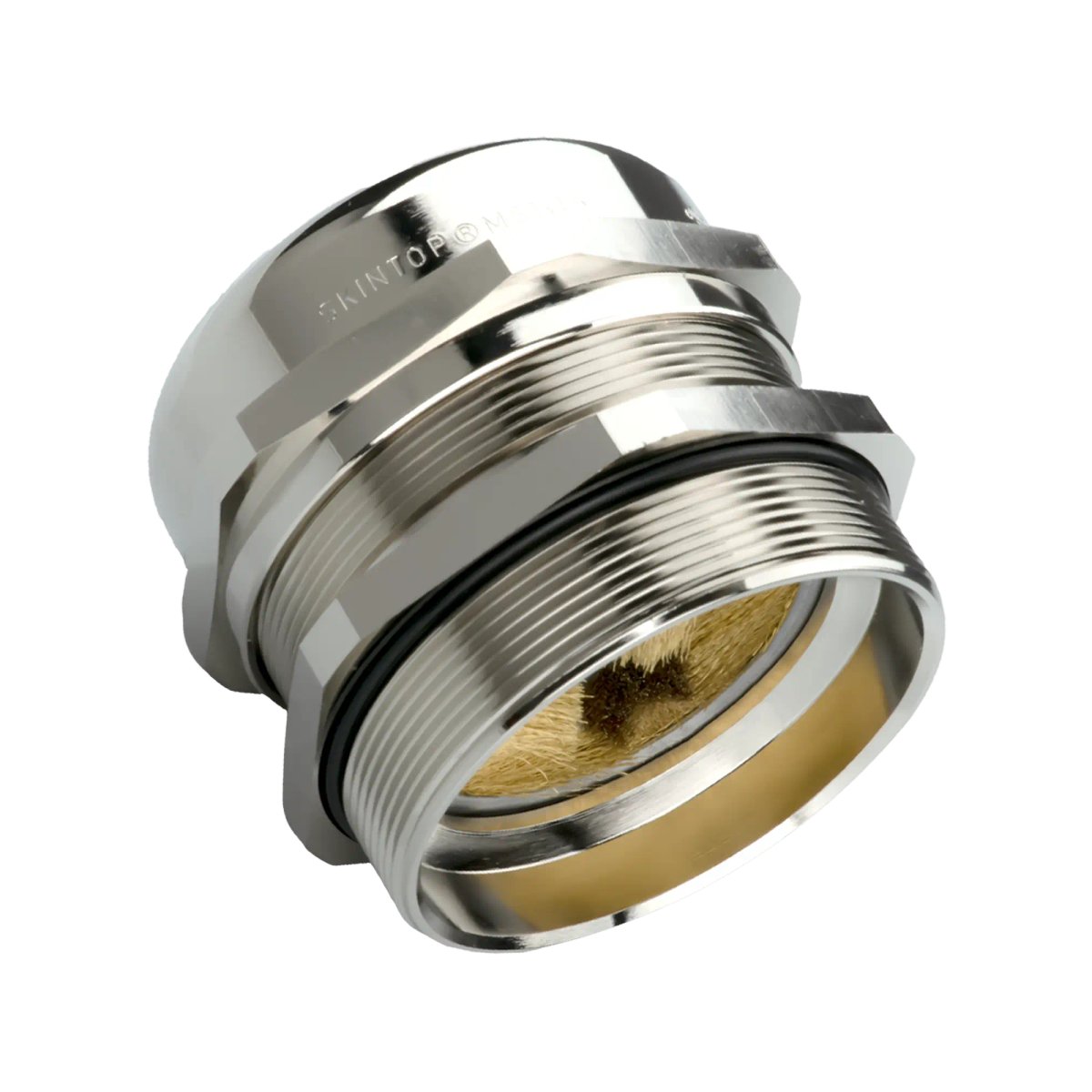

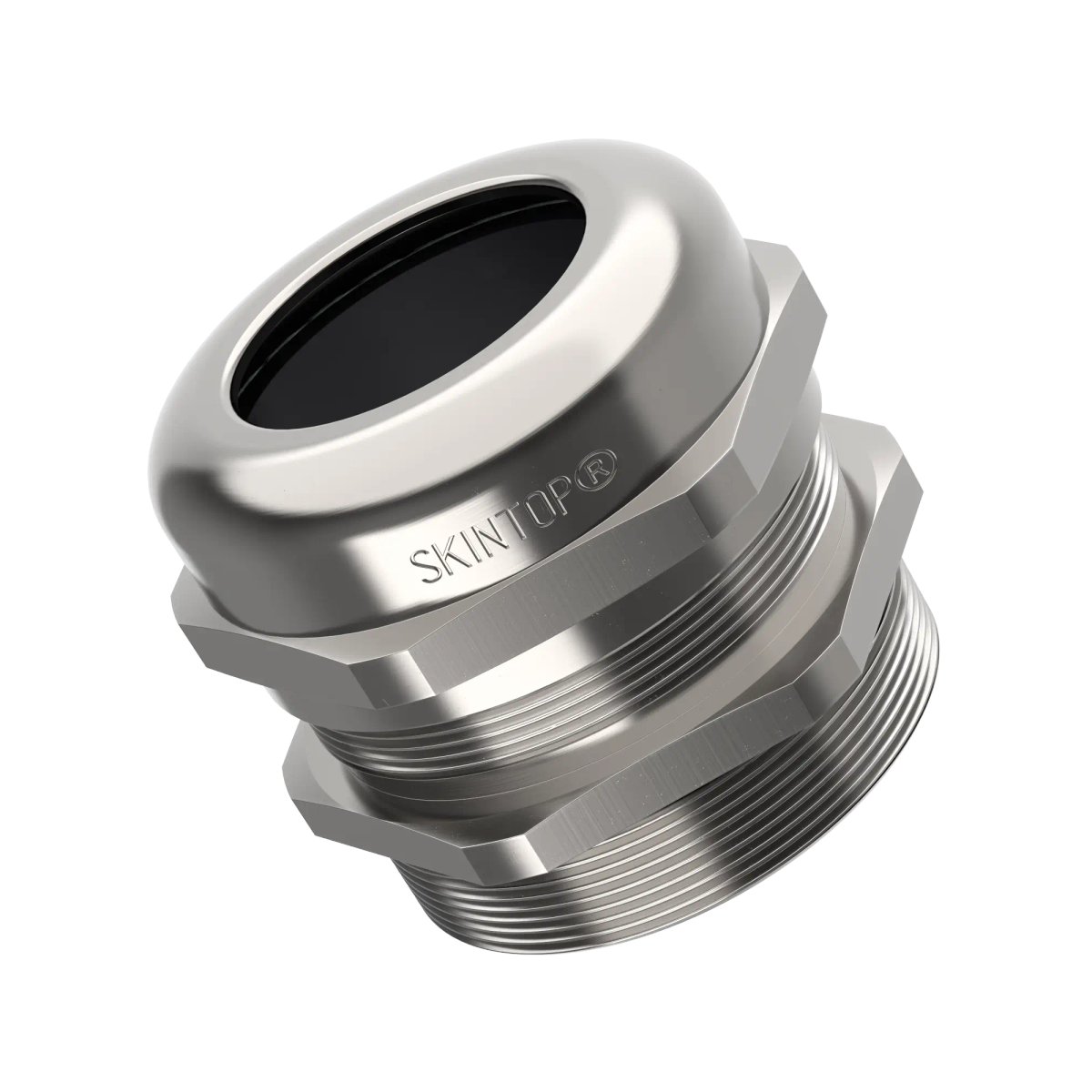

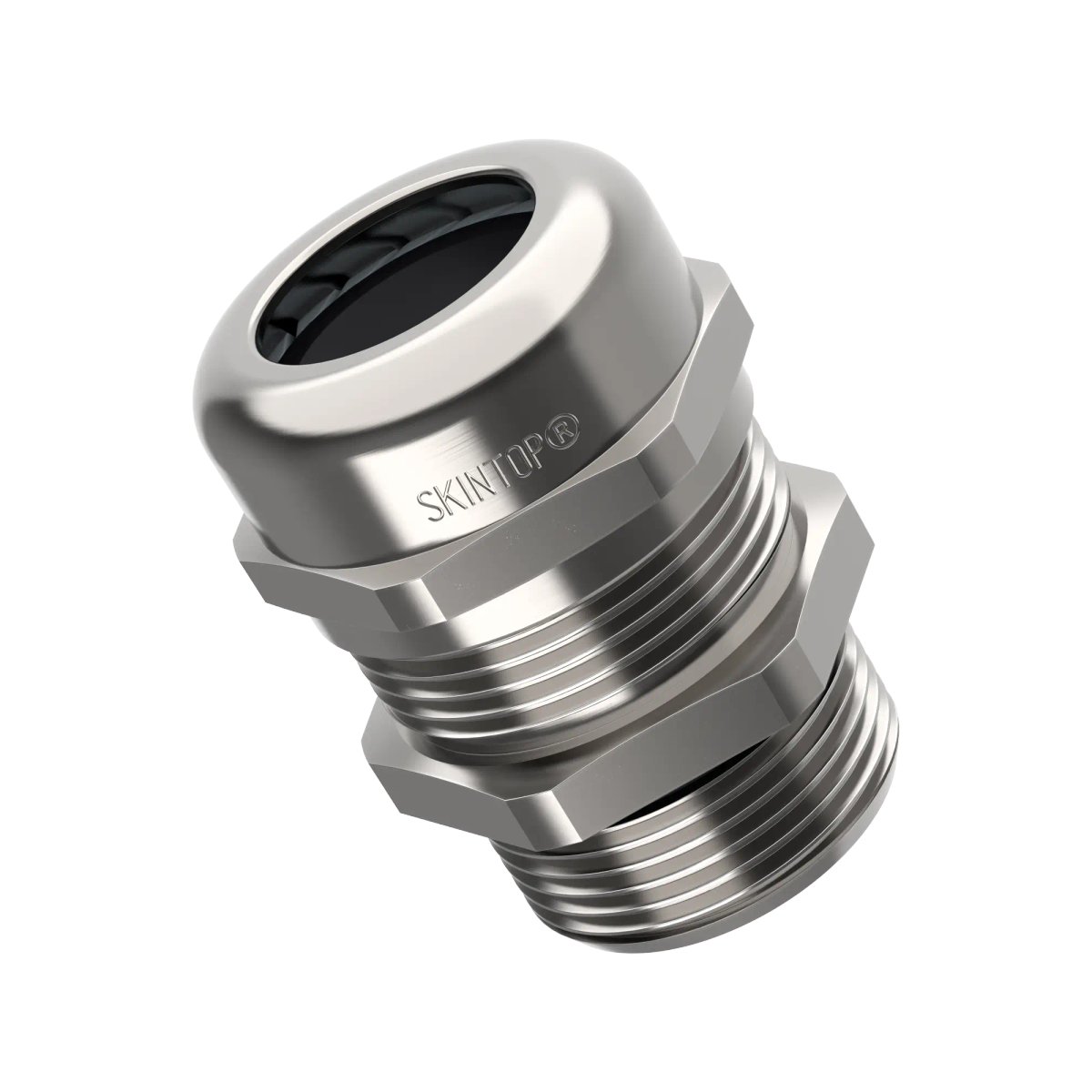

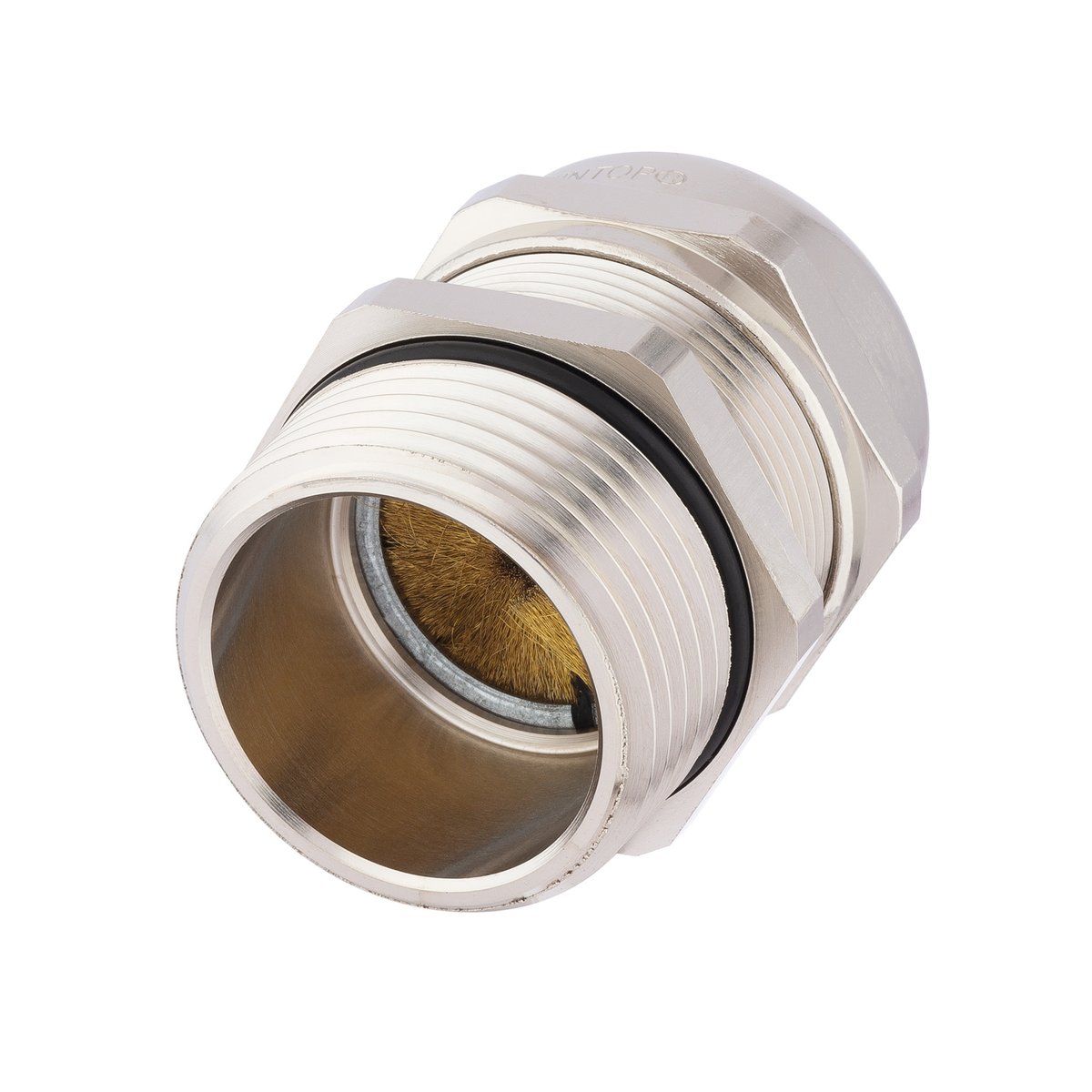

SKINTOP® MS-M BRUSH / SKINTOP® MS-M BRUSH XL

Naziv
Koda izdelka
Št. kabelskih vhodov
Dolžina
Odprtina fi
Cena
Količina
+
SKINTOP® MS-M BRUSH 75X1.5 PLUS
53112500
1 pc.
105 mm
68 mm
85,34 €
Na zalogi, predviden rok dobave 5-8 delovnih dni.
+
SKINTOP® MS-M BRUSH 75X1.5
53112501
1 pc.
105 mm
63 mm
90,18 €
Rok dobave sporočimo po obdelavi naročila.
+
SKINTOP® MS-M BRUSH 90X2
53112503
1 pc.
135.5 mm
78 mm
200,31 €
Na zalogi, predviden rok dobave 5-8 delovnih dni.
+
SKINTOP® MS-M BRUSH 110X2 PLUS
53112504
1 pc.
154 mm
98 mm
342,02 €
Na zalogi, predviden rok dobave 5-8 delovnih dni.
+
SKINTOP® MS-M BRUSH 110X2
53112505
1 pc.
154 mm
88 mm
357,15 €
Na zalogi, predviden rok dobave 5-8 delovnih dni.
+
SKINTOP® MS-M BRUSH 20X1.5
53112507
1 pc.
37 mm
13 mm
6,80 €
*
Rok dobave sporočimo po obdelavi naročila.
+
SKINTOP® MSR-M BRUSH 25X1.5
53112671
1 pc.
38.5 mm
13 mm
5,28 €
*
Na zalogi, predviden rok dobave 5-8 delovnih dni.
+
SKINTOP® MS-M BRUSH 25X1.5
53112676
1 pc.
38.5 mm
17 mm
5,53 €
*
Na zalogi, rok dobave 2-4 delovne dni.
+
SKINTOP® MS-M BRUSH 32X1.5
53112677
1 pc.
45.5 mm
21 mm
7,15 €
*
Na zalogi, rok dobave 2-4 delovne dni.
+
SKINTOP® MS-M BRUSH 40X1.5
53112678
1 pc.
48 mm
28 mm
10,24 €
*
Na zalogi, predviden rok dobave 5-8 delovnih dni.
+
SKINTOP® MS-M BRUSH 50X1.5
53112679
1 pc.
55.5 mm
35 mm
13,75 €
*
Na zalogi, predviden rok dobave 5-8 delovnih dni.
+
SKINTOP® MS-M BRUSH 63X1.5
53112680
1 pc.
67 mm
45 mm
26,31 €
Na zalogi, predviden rok dobave 5-8 delovnih dni.
+
SKINTOP® MS-M BRUSH 63X1.5 PLUS
53112681
1 pc.
76 mm
55 mm
33,62 €
Na zalogi, predviden rok dobave 5-8 delovnih dni.
+
SKINTOP® MS-M BRUSH 40x1,5 XL o.UL
53113729
1 pc.
54.5 mm
28 mm
6,71 €
Na zalogi, predviden rok dobave 5-8 delovnih dni.
+
SKINTOP® MS-M BRUSH 25x1,5 XL o.UL
53113727
1 pc.
42.5 mm
17 mm
3,92 €
Na zalogi, predviden rok dobave 5-8 delovnih dni.
+
SKINTOP® MS-M BRUSH 20x1,5 XL
53112527
1 pc.
41 mm
13 mm
45,80 €
Na zalogi, predviden rok dobave 5-8 delovnih dni.
+
SKINTOP® MS-M BRUSH 50x1,5 XL o.UL
53112673
1 pc.
60.5 mm
35 mm
56,54 €
Rok dobave sporočimo po obdelavi naročila.
+
SKINTOP® MS-M BRUSH 32x1,5 XL o.UL
53113728
1 pc.
51.5 mm
21 mm
5,20 €
Na zalogi, predviden rok dobave 5-8 delovnih dni.

Benefits

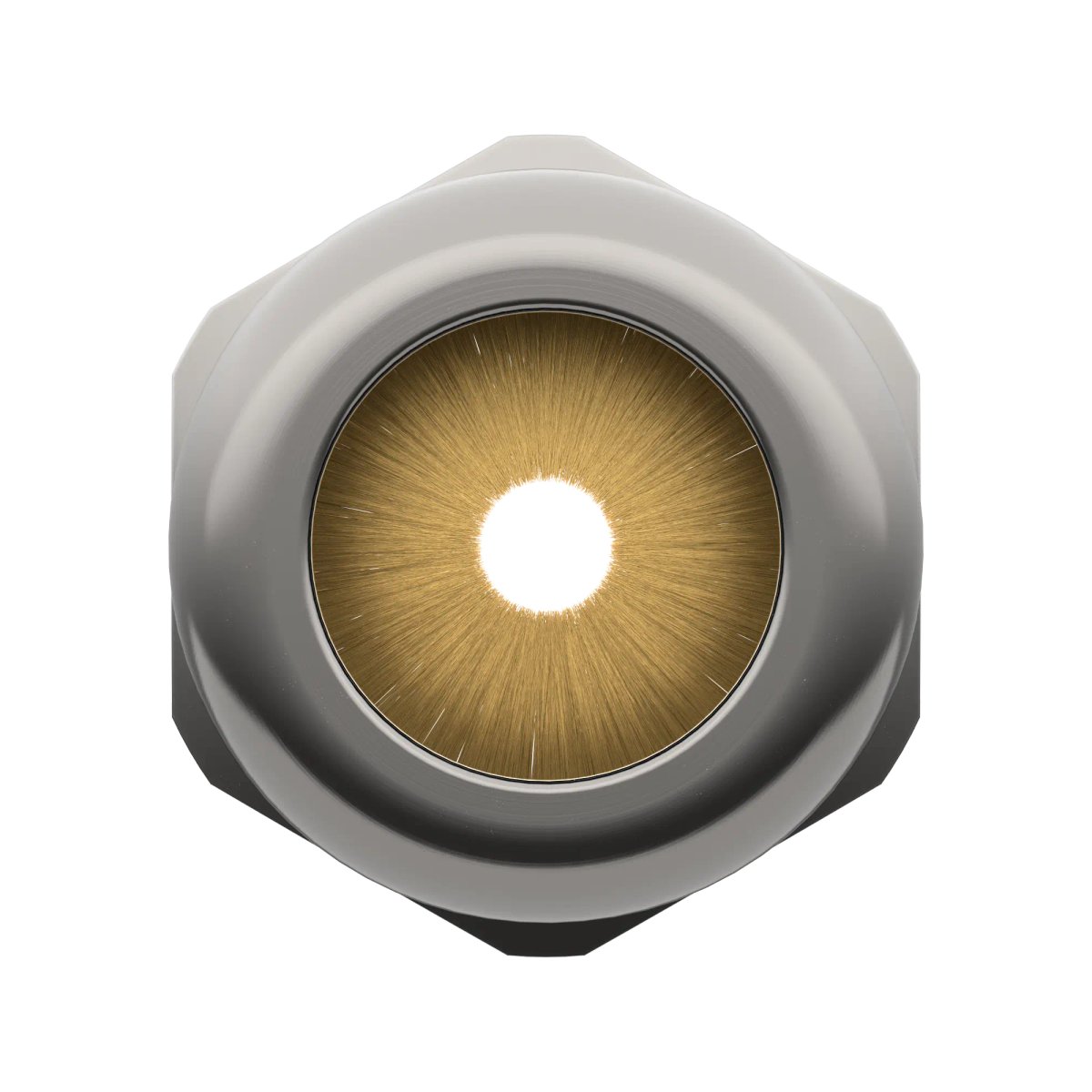

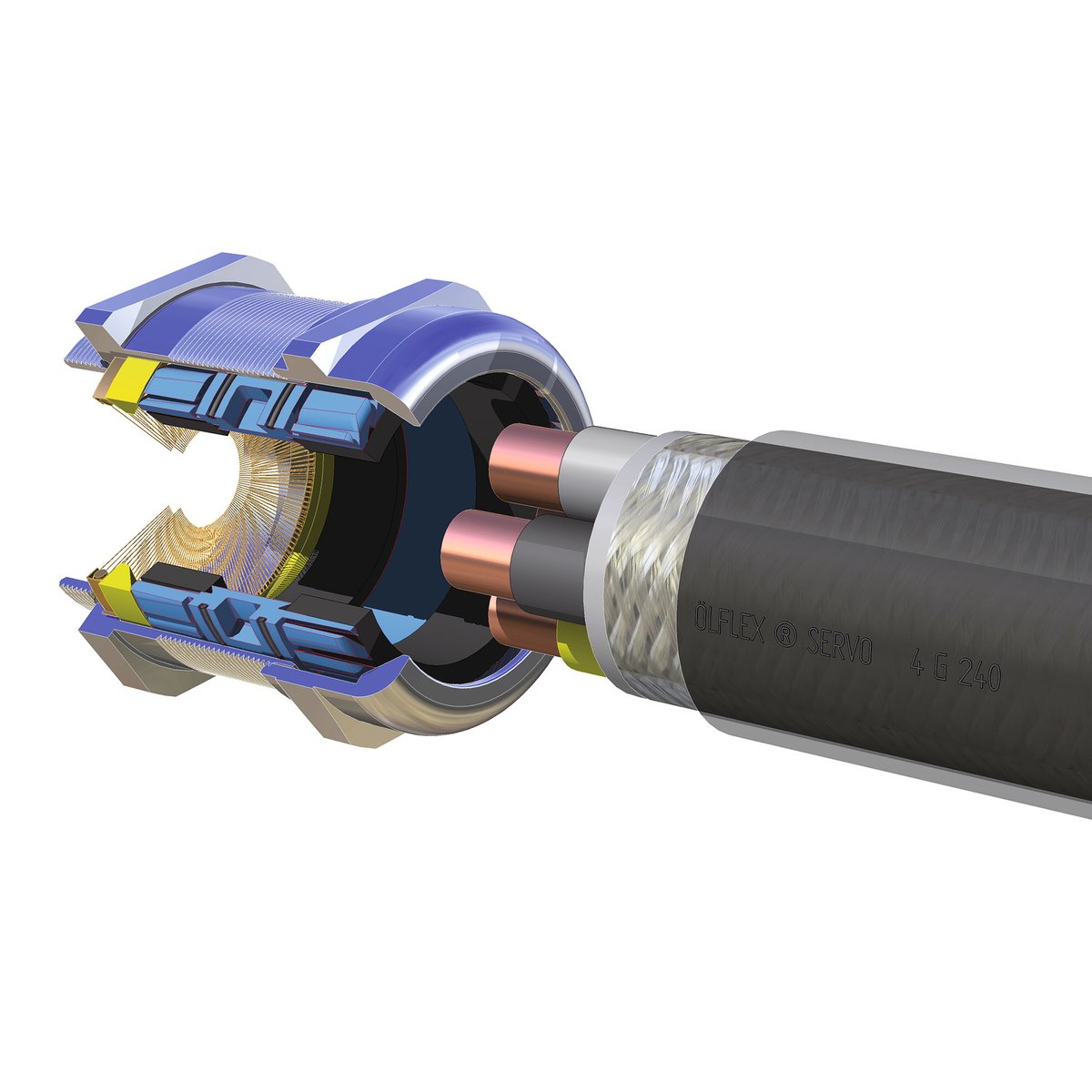

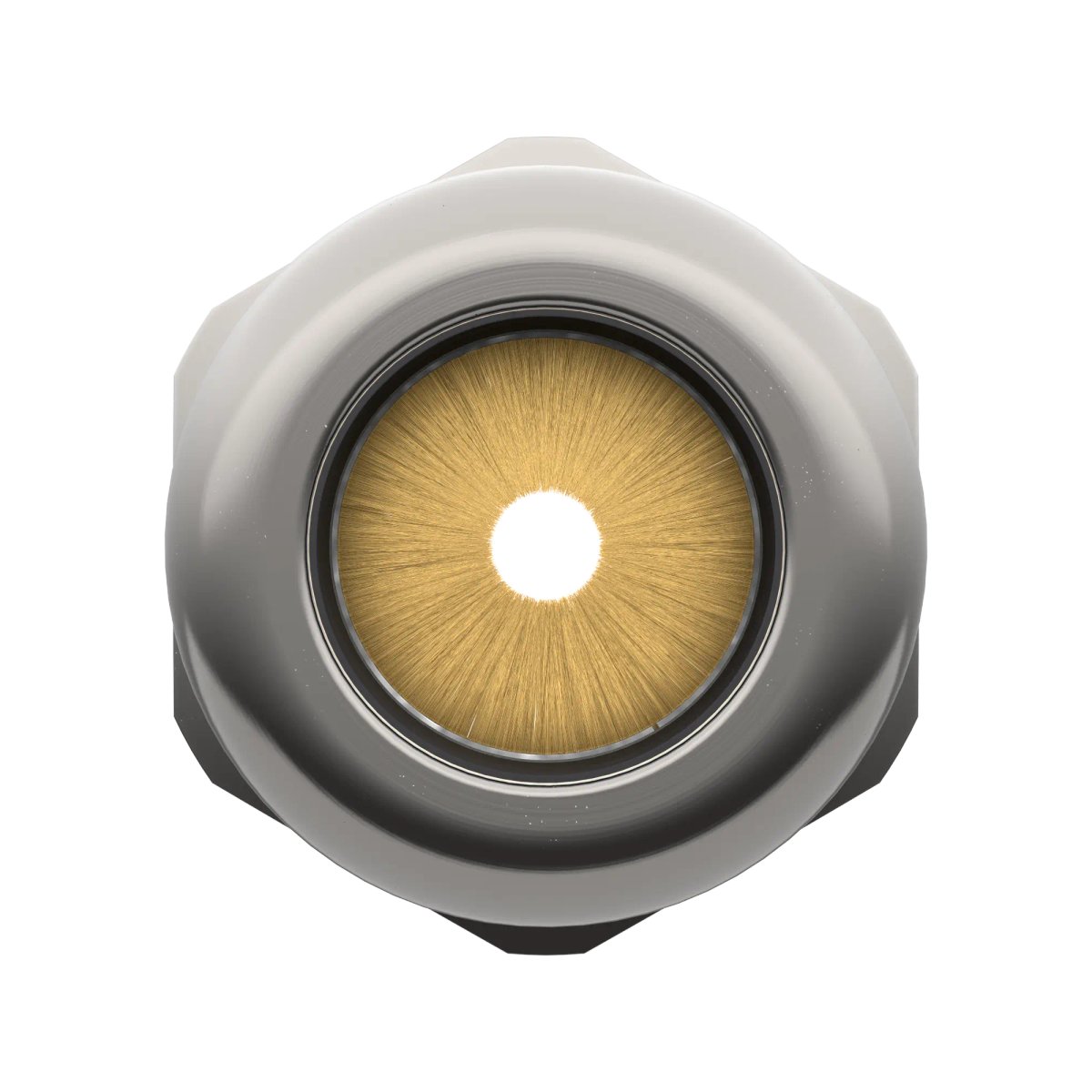

  • Optimum EMC protection thanks to the unique 360° brass brush that creates a low-resistance contact between the braided shield and the cable gland.
  • Reliable EMC protection is guaranteed even after dismantling and reinstallation, as the braided shield is not damaged by the brass brushes.
  • Safe, fast and uncomplicated installation.
  • The best possible sealing enables protection class IP 68 (10 bar) and/or IP 68 (10 bar) and IP 69.
  • Innovative double lamella basket in sizes M75x1.5 to M110x2 simplifies assembly and prevents lever action on heavy cables.
  • Reliable EMC protection is guaranteed even after dismantling and reinstallation, as the copper braided screening is not damaged by the brass brush.
  • Safe, fast and uncomplicated installation.
  • Innovative double lamella basket in sizes M75x1.5 to M110x2 simplifies assembly and prevents lever action on heavy cables.
  • Optimum EMC protection thanks to the unique 360° brass brush, which creates a low-resistance contact between the copper braided screening and the gland.
  • The best possible sealing enables protection classes IP 68 (10 bar) and IP 69.

Applications

  • For EMC-compliant insertion of copper-shielded cables.
  • For use in control systems, motors and frequency converters.
  • Withstands high chemical and mechanical stress.
  • Suitable for outdoor use, subject to the temperature range.
  • Note: For painted, anodised or powder-coated housings, use the counter nut SKINDICHT® SM-PE-M for equipotential bonding.
  • The "XL" version is particularly suitable for thick-walled housing thanks to the exceptionally long connection thread.

Notes

  • If applicable, the prices are solid metal prices without surcharges and VAT. Sales only to business customers.
  • Photographs and graphics are not to scale and do not represent detailed images of the respective products.
  • Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.
