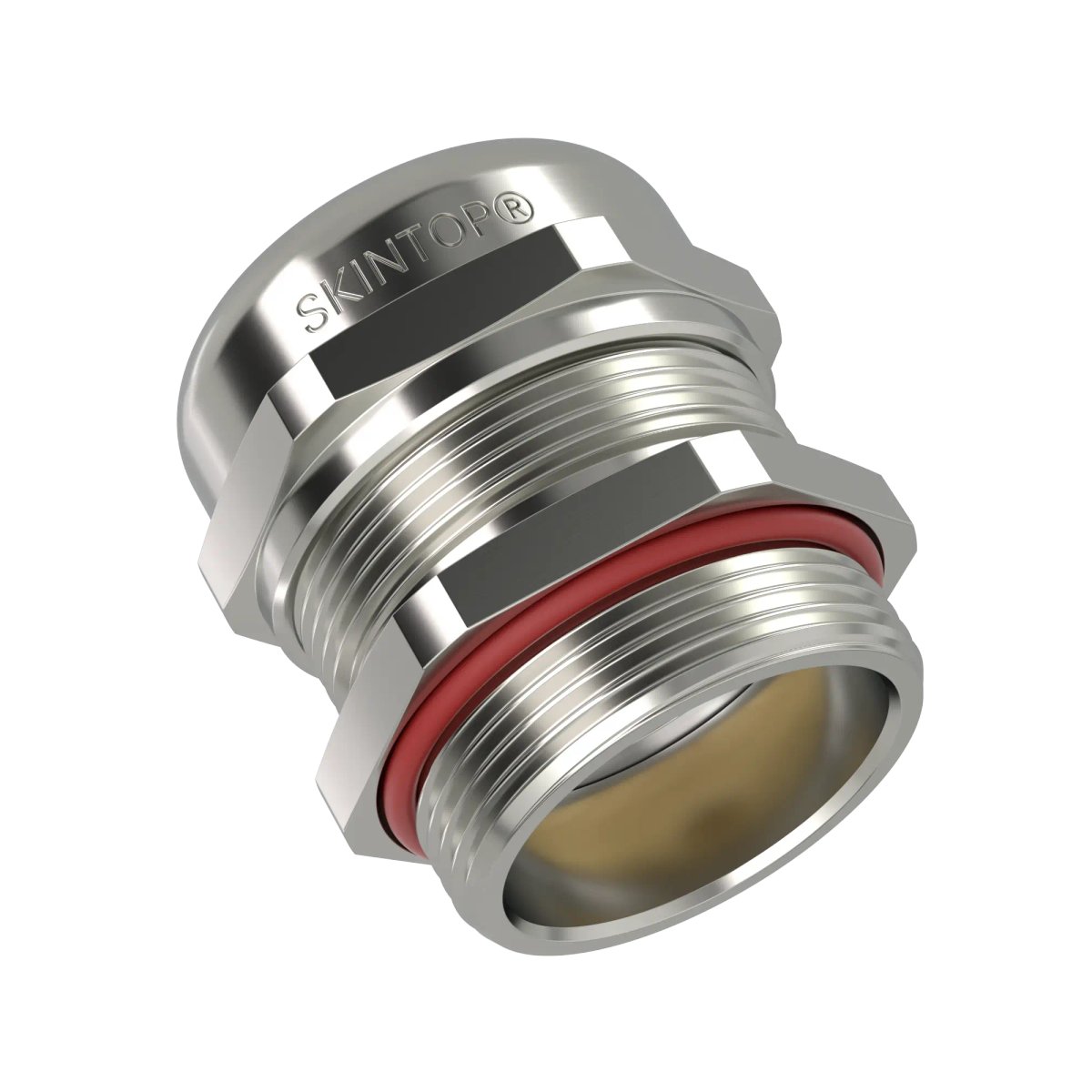

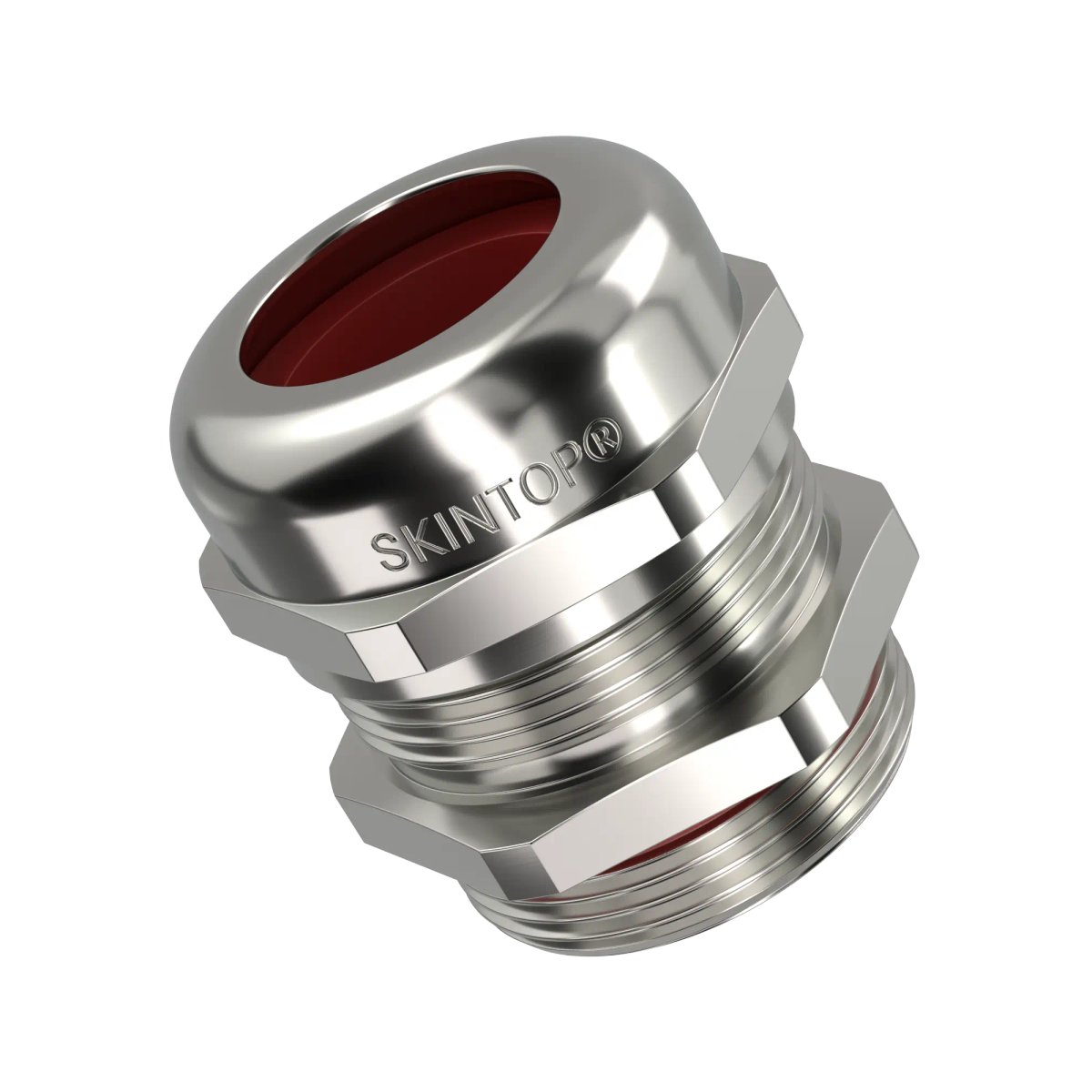

SKINTOP® HEAT EMC / SKINTOP® HEAT EMC XL

Naziv
Koda izdelka
Št. kabelskih vhodov
Dolžina
Širina
Cena
Količina
+
SKINTOP® HEAT EMC M16X1.5
53113940
1 pc.
30 mm
20 mm
6,51 €
Rok dobave sporočimo po obdelavi naročila.
+
SKINTOP® HEAT EMC M20X1.5
53113941
1 pc.
33 mm
24 mm
7,08 €
Rok dobave sporočimo po obdelavi naročila.
+
SKINTOP® HEAT EMC M25X1.5
53113942
1 pc.
35 mm
29 mm
7,88 €
Rok dobave sporočimo po obdelavi naročila.
+
SKINTOP® HEAT EMC M32X1.5
53113943
1 pc.
41.5 mm
36 mm
10,14 €
Rok dobave sporočimo po obdelavi naročila.
+
SKINTOP® HEAT EMC M50X1.5 XL
53113955
1 pc.
60.5 mm
54 mm
22,08 €
Rok dobave sporočimo po obdelavi naročila.
+
SKINTOP® HEAT EMC M40X1.5 XL
53113954
1 pc.
54 mm
45 mm
15,48 €
Rok dobave sporočimo po obdelavi naročila.
+
SKINTOP® HEAT EMC M32X1.5 XL
53113953
1 pc.
51.5 mm
36 mm
10,16 €
Rok dobave sporočimo po obdelavi naročila.
+
SKINTOP® HEAT EMC M25X1.5 XL
53113952
1 pc.
42.5 mm
29 mm
7,91 €
Rok dobave sporočimo po obdelavi naročila.
+
SKINTOP® HEAT EMC M20X1.5 XL
53113951
1 pc.
41 mm
24 mm
7,09 €
Rok dobave sporočimo po obdelavi naročila.
+
SKINTOP® HEAT EMC M16X1.5 XL
53113950
1 pc.
38 mm
20 mm
6,56 €
Rok dobave sporočimo po obdelavi naročila.
+
SKINTOP® HEAT EMC M63X1.5
53113946
1 pc.
60 mm
67 mm
42,81 €
Rok dobave sporočimo po obdelavi naročila.
+
SKINTOP® HEAT EMC M50X1.5
53113945
1 pc.
52 mm
54 mm
21,66 €
Rok dobave sporočimo po obdelavi naročila.
+
SKINTOP® HEAT EMC M40X1.5
53113944
1 pc.
47 mm
45 mm
15,15 €
Rok dobave sporočimo po obdelavi naročila.

Benefits

  • Protects the cable sheath, as the full-surface pressing enables uniform all-round sealing.
  • Thanks to FKM sealing, extremely heat-resistant and suitable for use at extremely hot temperatures (up to + 200°C).
  • The best possible sealing enables protection class IP 68 (3 bar).
  • Large, variable clamping range for different cable outer diameters.
  • Reliable EMC protection is guaranteed even after dismantling and reinstallation, as the copper stranded shielding is not damaged by the brass brush.

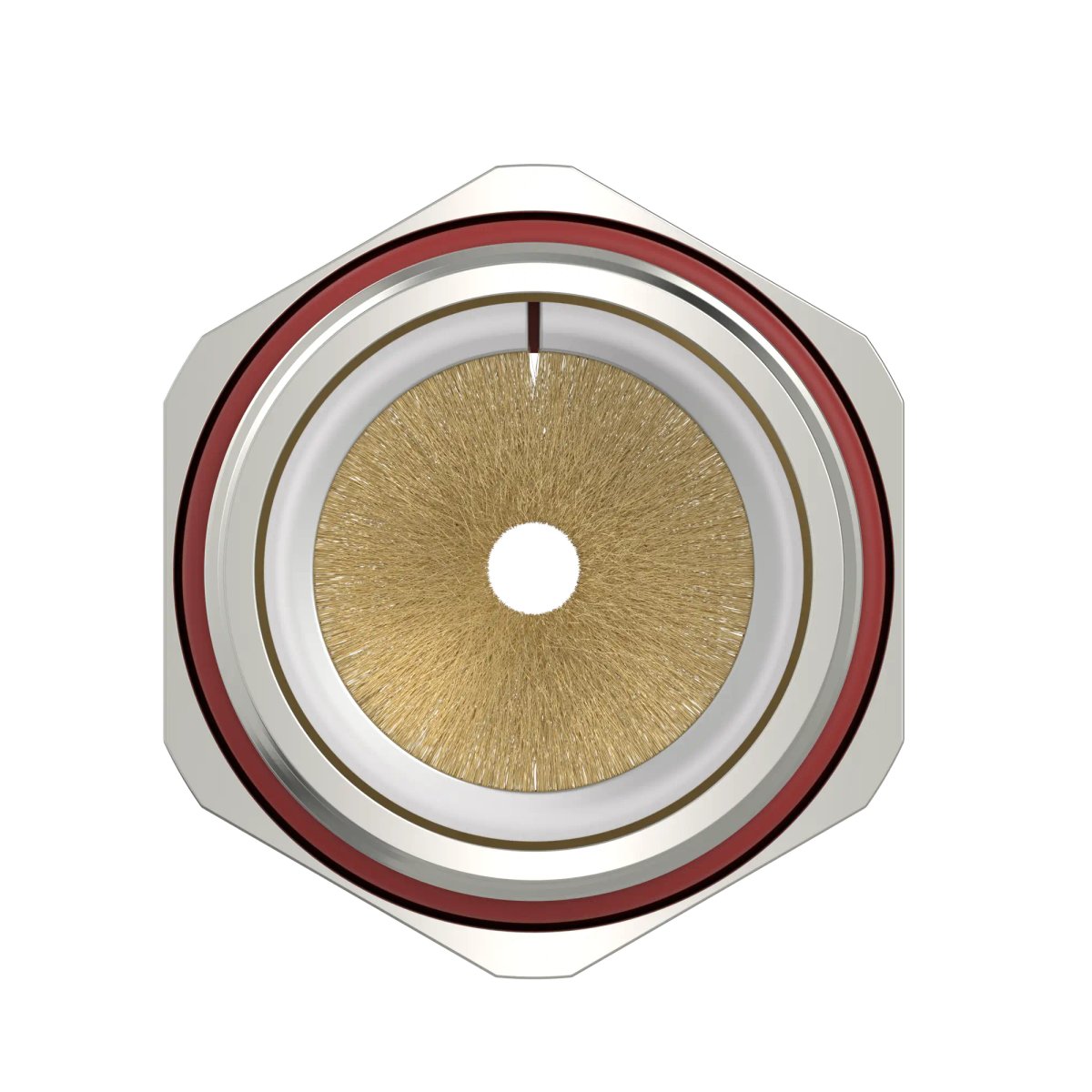

  • Optimum EMC protection thanks to the unique 360° brass brush, which creates a low-resistance contact between the copper stranded shielding and the cable gland.

Applications

  • For EMC-compliant insertion of copper-shielded cables.
  • Good oil and chemical resistance.
  • Suitable for outdoor use.
  • For use with ÖLFLEX® HEAT cables.
  • Withstands high mechanical stress.
  • Note: For painted, anodised or powder-coated housings, use the counter nut SKINDICHT® SM-PE-M for equipotential bonding.

Notes

  • Photographs and graphics are not to scale and do not represent detailed images of the respective products.
  • If applicable, the prices are solid metal prices without surcharges and VAT. Sales only to business customers.
  • Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.
