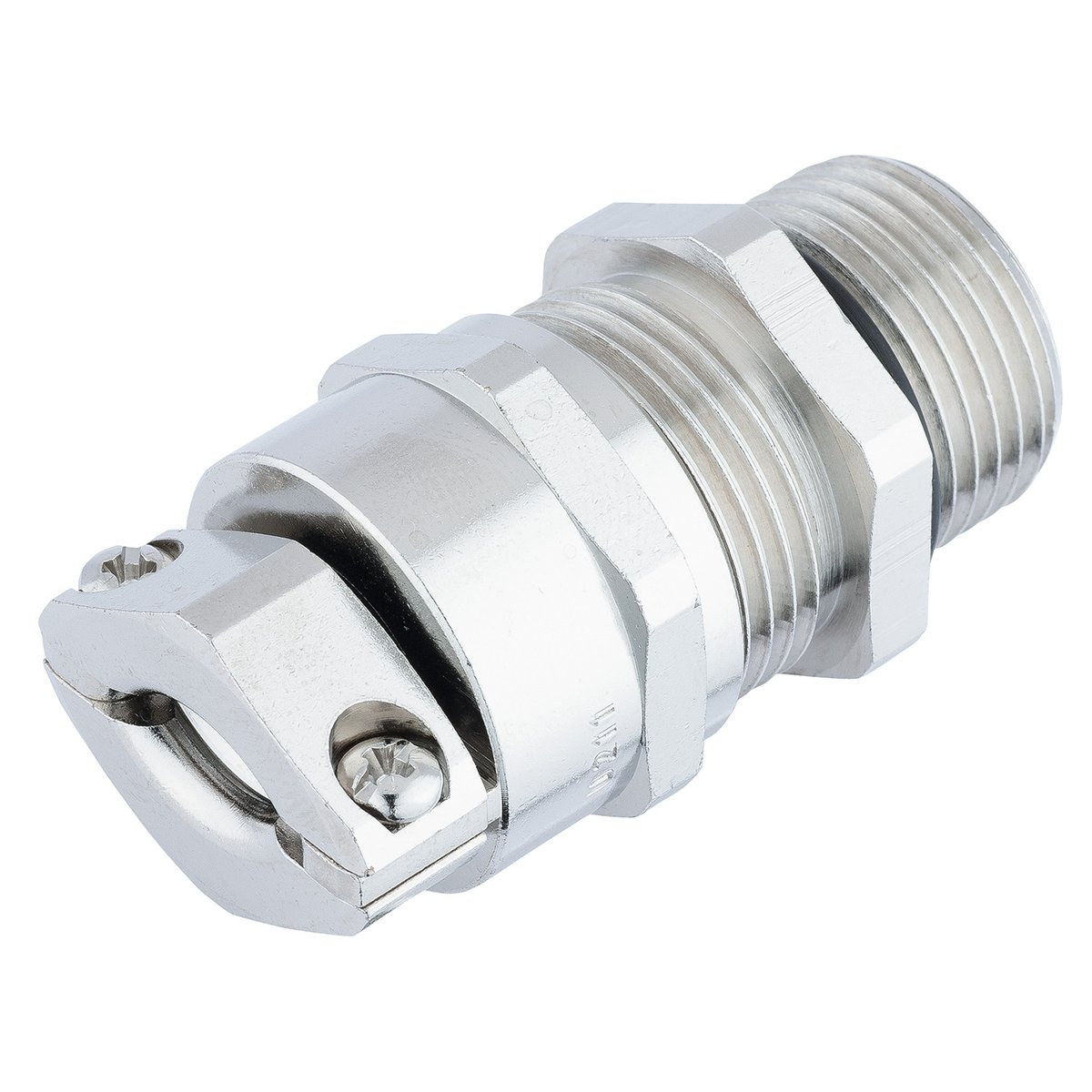

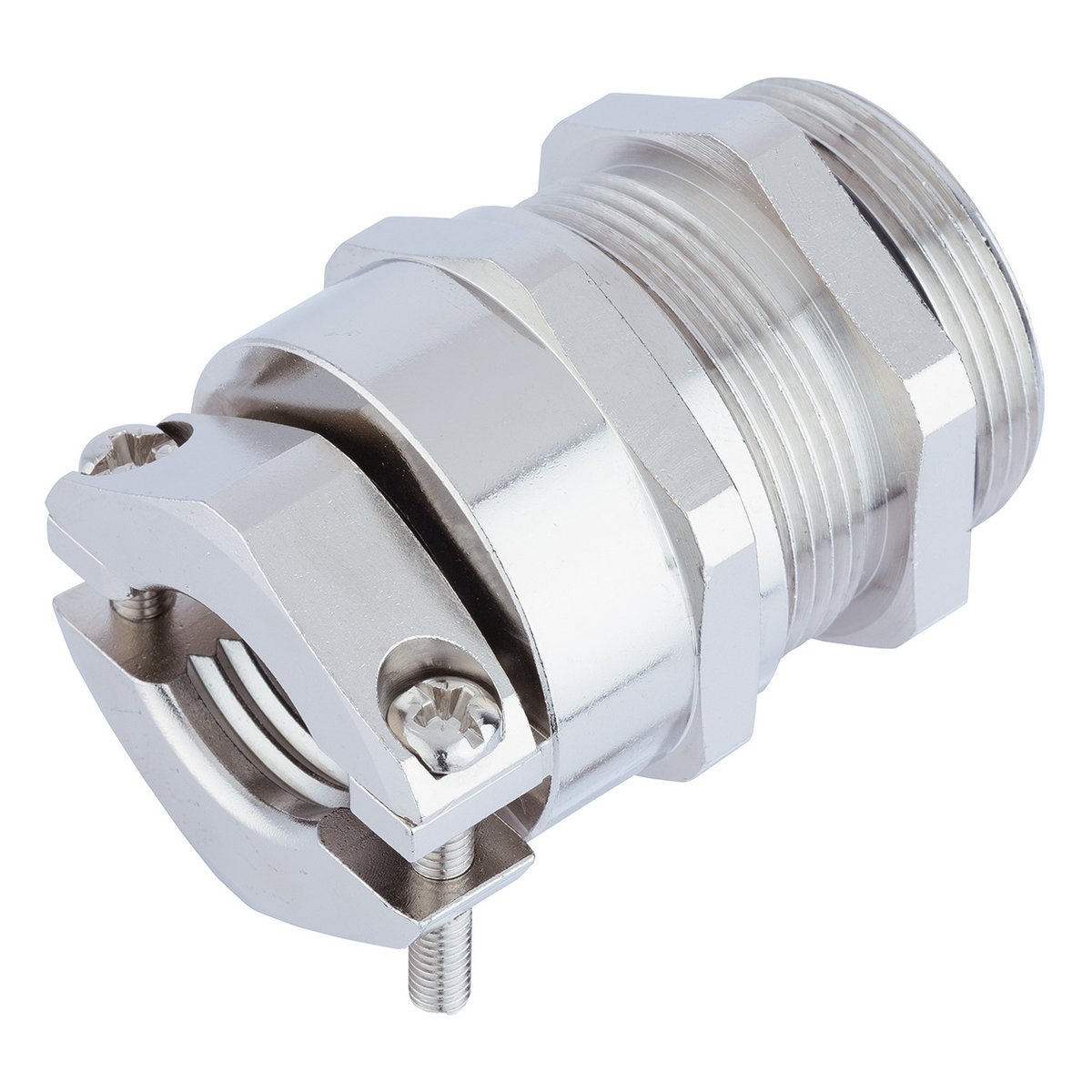

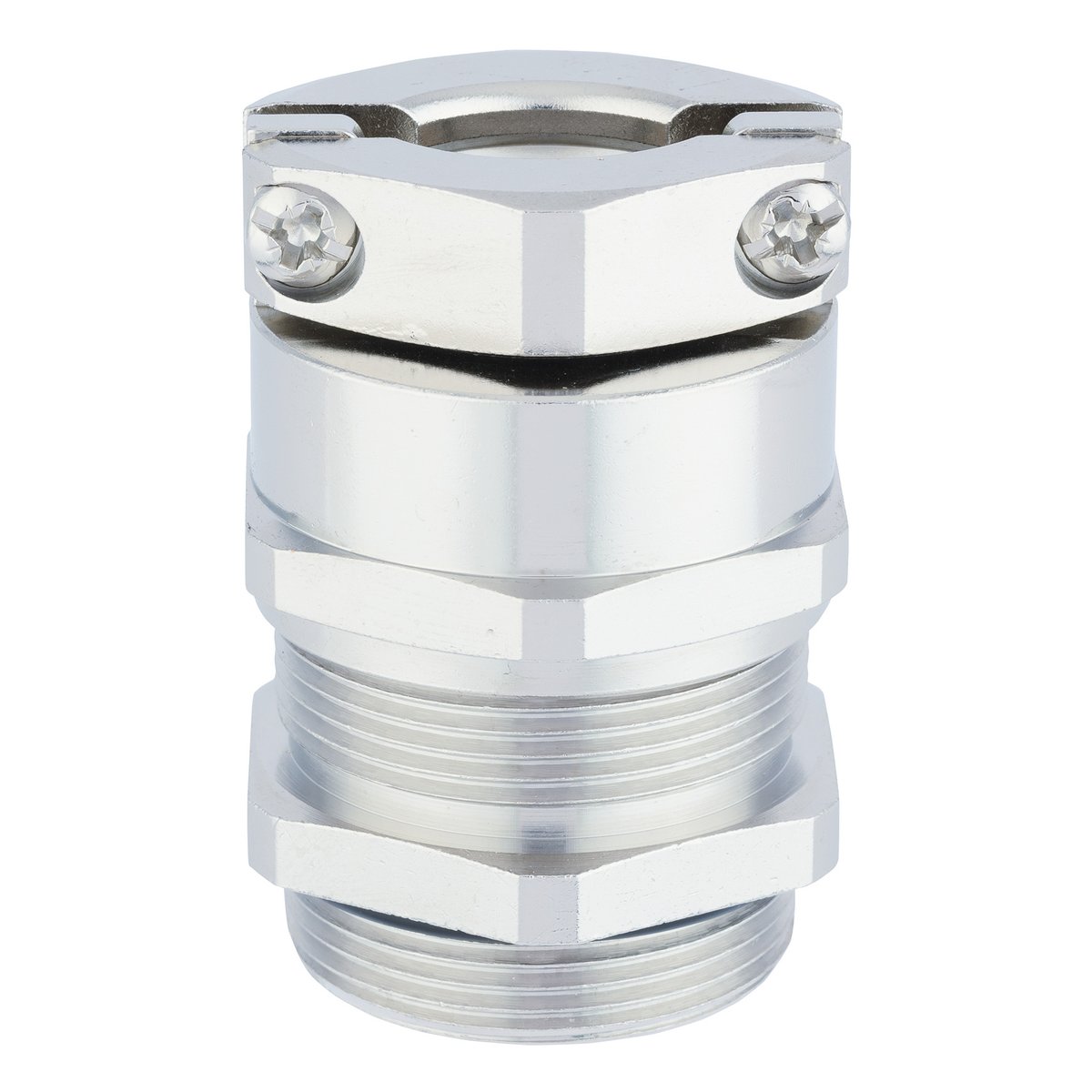

SKINTOP® GRIP-M / SKINTOP® GRIP-M-XL

Naziv
Koda izdelka
Št. kabelskih vhodov
Dolžina
Odprtina fi
Cena
Količina
+
SKINTOP® GRIP M16
53113180
1 pc.
41 mm
10 mm
10,49 €
*
Rok dobave sporočimo po obdelavi naročila.
+
SKINTOP® GRIP XL M16x1,5
53113185
1 pc.
46 mm
10 mm
10,61 €
*
Rok dobave sporočimo po obdelavi naročila.
+
SKINTOP® GRIP M20
53113200
1 pc.
46 mm
13 mm
8,49 €
*
Rok dobave sporočimo po obdelavi naročila.
+
SKINTOP® GRIP XL M20x1,5
53113205
1 pc.
49.5 mm
13 mm
10,11 €
*
Rok dobave sporočimo po obdelavi naročila.
+
SKINTOP® GRIP M25
53113210
1 pc.
48.5 mm
17 mm
10,44 €
*
Rok dobave sporočimo po obdelavi naročila.
+
SKINTOP® GRIP XL M25x1,5
53113215
1 pc.
52.5 mm
17 mm
11,79 €
*
Rok dobave sporočimo po obdelavi naročila.
+
SKINTOP® GRIP M32
53113220
1 pc.
56.5 mm
21 mm
16,33 €
*
Rok dobave sporočimo po obdelavi naročila.
+
SKINTOP® GRIP XL M32x1,5
53113225
1 pc.
62.6 mm
21 mm
17,38 €
*
Rok dobave sporočimo po obdelavi naročila.

Benefits

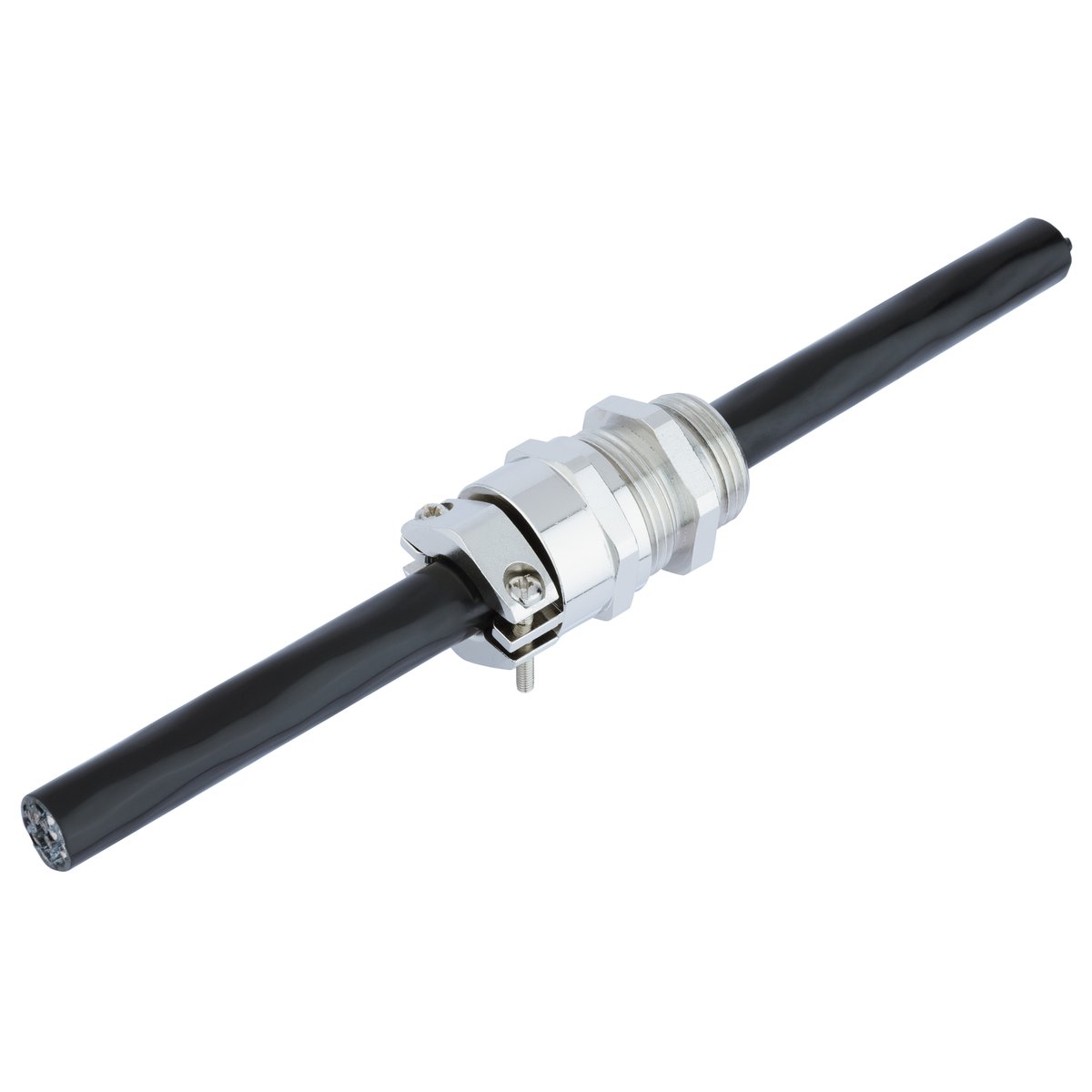

  • Clamping the cable using the double lever above the domed cap nut enables a much higher strain relief than with conventional cable glands, even under mechanical stress.
  • Double clamping ensures reliable bending and anti-kink protection of the cable as the cable is clamped on all sides.
  • Gentle cable clamping due to high elasticity of the sealing insert material.

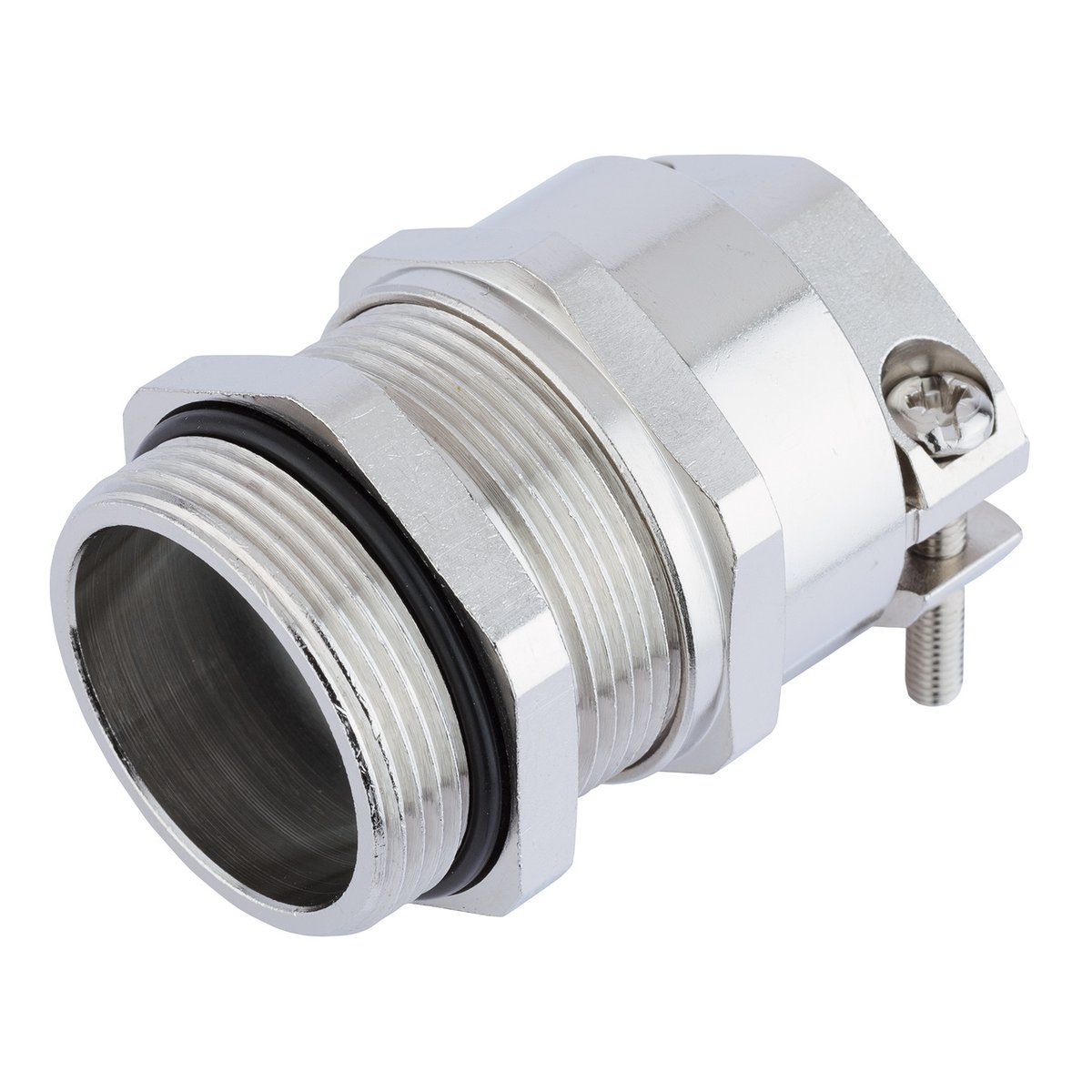

  • Optimum sealing through O-ring and sealing ring enables protection class IP 68 (10 bar) and IP 69.
  • Large, variable clamping range for different cable outer diameters.

Applications

  • Especially for use in mobile equipment where a high strain relief of the clamped cable is required.
  • Can be used in dry, damp and, especially, harsh environments.
  • Withstands high mechanical stress.
  • The "XL" version is particularly suitable for thick-walled housing thanks to the exceptionally long connection thread.

Documentation

Notes

  • * Prices are net prices without VAT and surcharges. Sale to business customers only.
  • Photographs and graphics are not to scale and do not represent detailed images of the respective products.
