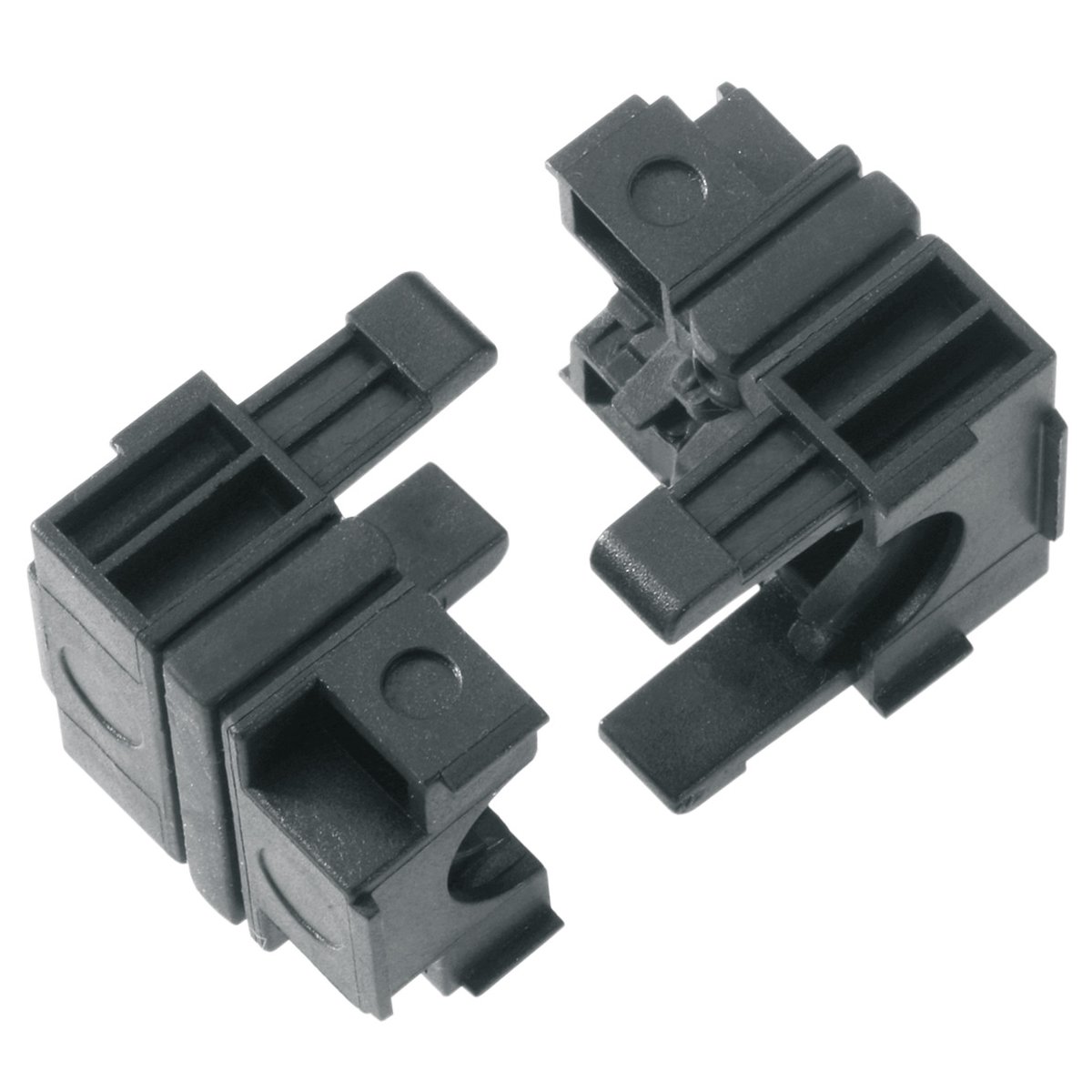

SKINTOP® CUBE MODULE

Bodite prvi in ocenite ta izdelek

Naziv

Koda izdelka

Št. kabelskih vhodov

Dolžina

Širina

Cena

Količina

SKINTOP® CUBE MODULE 20X20 SMALL

52220002

1 pc.

20 mm

0,67 €

Pakiranje *

Na zalogi v tovarni, predviden rok dobave 5-8 delovnih dni.

SKINTOP® CUBE MODULE 20X20 LARGE

52220003

1 pc.

20 mm

0,68 €

Pakiranje *

Ni zaloge, predviden rok dobave: 9. 10. 2023.

SKINTOP® CUBE MODULE 20X20 BLIND

52220004

1 pc.

20 mm

0,78 €

Pakiranje *

Ni zaloge, predviden rok dobave: 5. 11. 2023.

SKINTOP® CUBE MODULE 40X40 SMALL

52220005

1 pc.

40 mm

7,37 €

Pakiranje *

Na zalogi v tovarni, predviden rok dobave 5-8 delovnih dni.

SKINTOP® CUBE MODULE 40X40 LARGE

52220006

1 pc.

40 mm

7,36 €

Pakiranje *

Na zalogi v tovarni, predviden rok dobave 5-8 delovnih dni.

SKINTOP® CUBE MODULE 40X40 BLIND

52220007

1 pc.

40 mm

7,39 €

Pakiranje *

Na zalogi v tovarni, predviden rok dobave 5-8 delovnih dni.

SKINTOP® CUBE MODULE 20X20 ASI BUS

52220040

1 pc.

20 mm

1,53 €

Pakiranje *

Na zalogi v tovarni, predviden rok dobave 5-8 delovnih dni.

Benefits

The modular system simplifies service work as individual cables can be replaced flexibly by removing the quick-locking modules using a screwdriver.
Available in various sizes, with variable clamping ranges for different cable outer diameters and clamping ranges especially for AS-I bus cables.

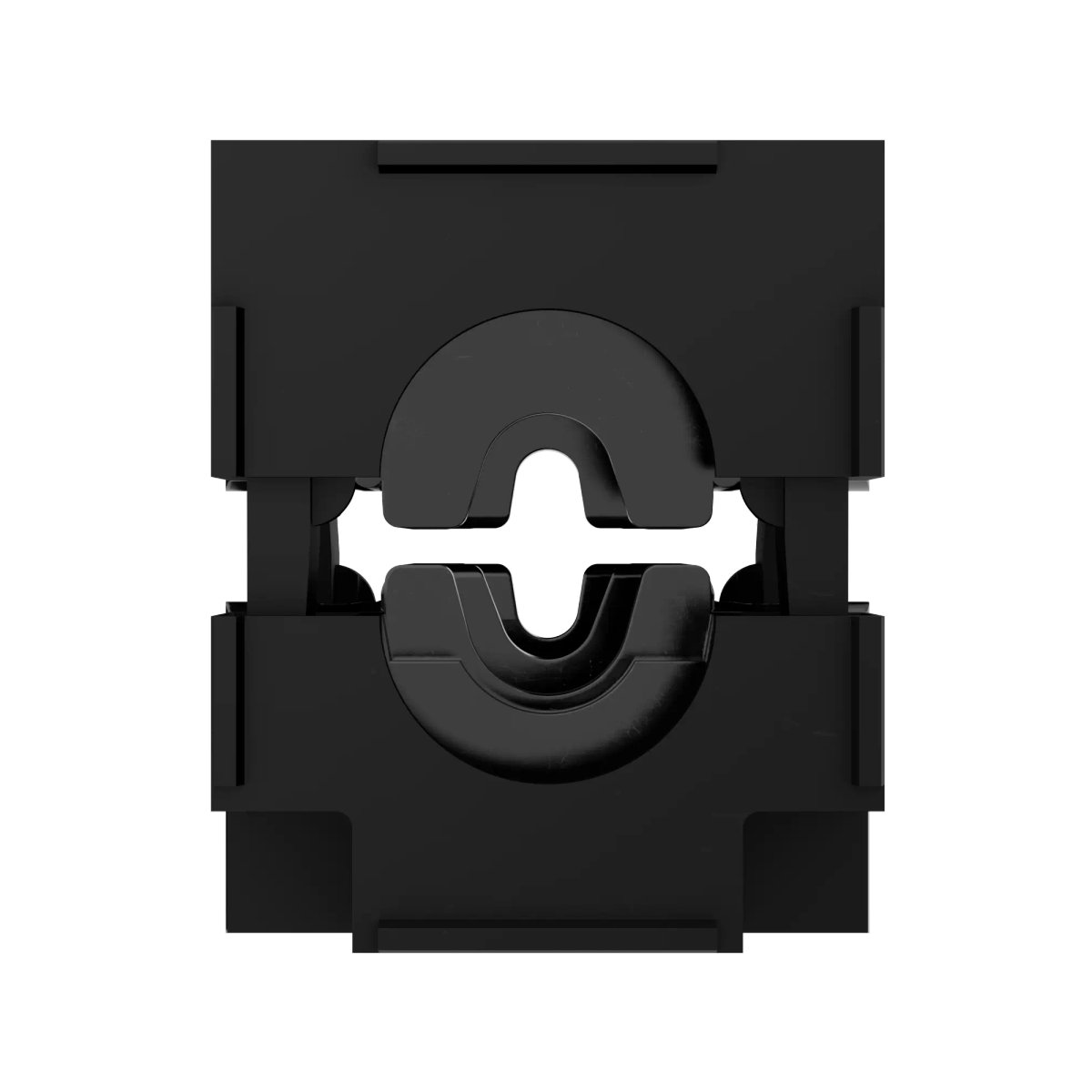

Quick-locking modules can be divisible and can therefore be easily clamped around the assembled cable.
Vibration-proof locking in the appropriate frame.
UL/CSA certification according to technical data enables the product to be used in the North American market.
Patented sealing system enables protection class IP 64.
Variable clamping range
Simplified servicing due to easy assembling and disassembling
Vibration-safe module fixation
Strain relief
Oil resistance
Made of robust polypropylene (flammability class V-0 according to the UL94 testing procedure for the flammability of plastics).

Applications

Can be used in dry, damp and oily environments.
Suitable for outdoor use.
Apparatus and switch cabinet construction

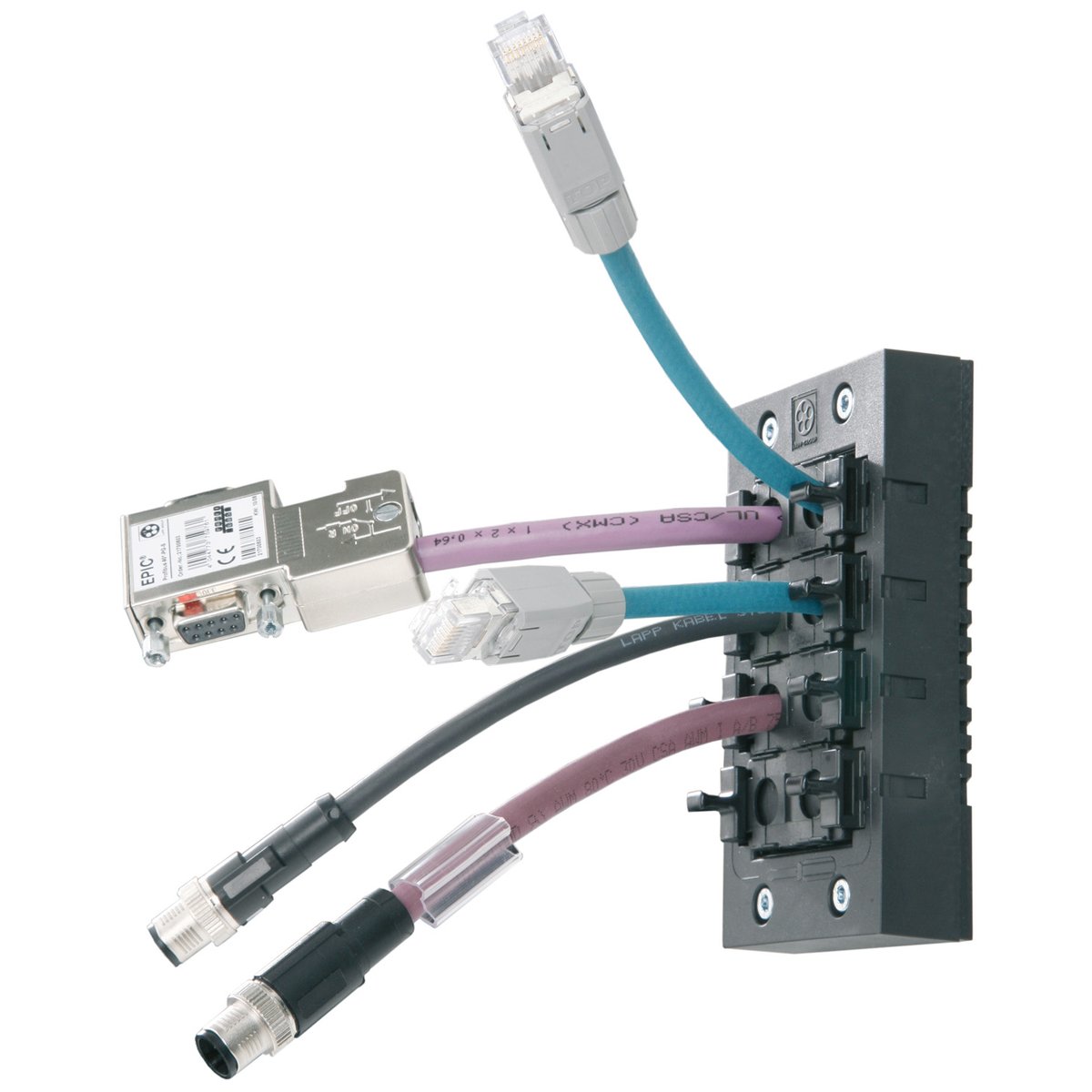

For installation of harnessed cables
Automation technology
Used in areas where a lot of cables and wires need to be inserted into housings with minimum space requirements
Electronic installations
For sealing and strain relieving multi-entry of assembled and unassembled cables through a housing.

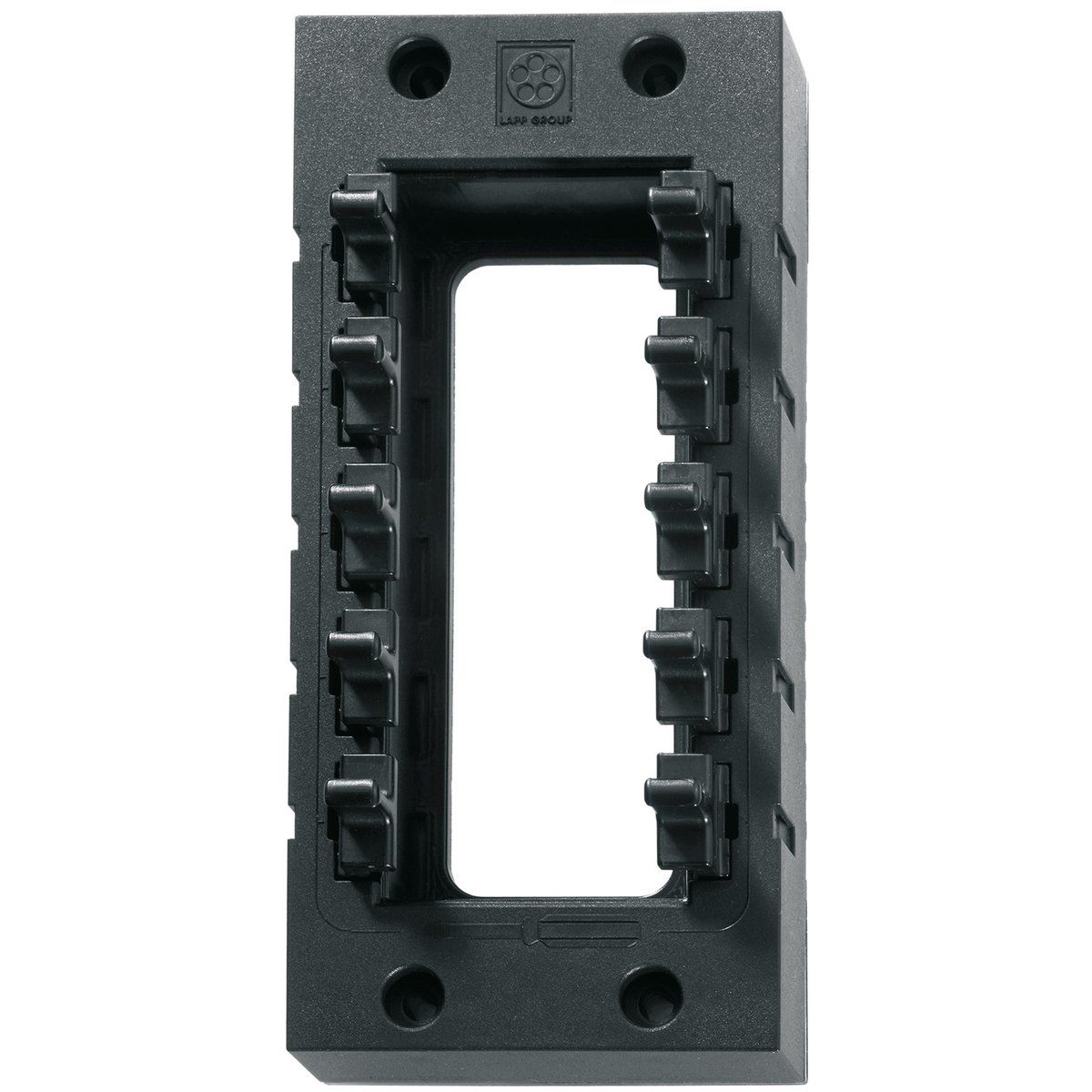

For use with the SKINTOP® CUBE FRAME fixed frame.

Documentation

Notes

If applicable, the prices are solid metal prices without surcharges and VAT. Sales only to business customers.
Photographs and graphics are not to scale and do not represent detailed images of the respective products.
