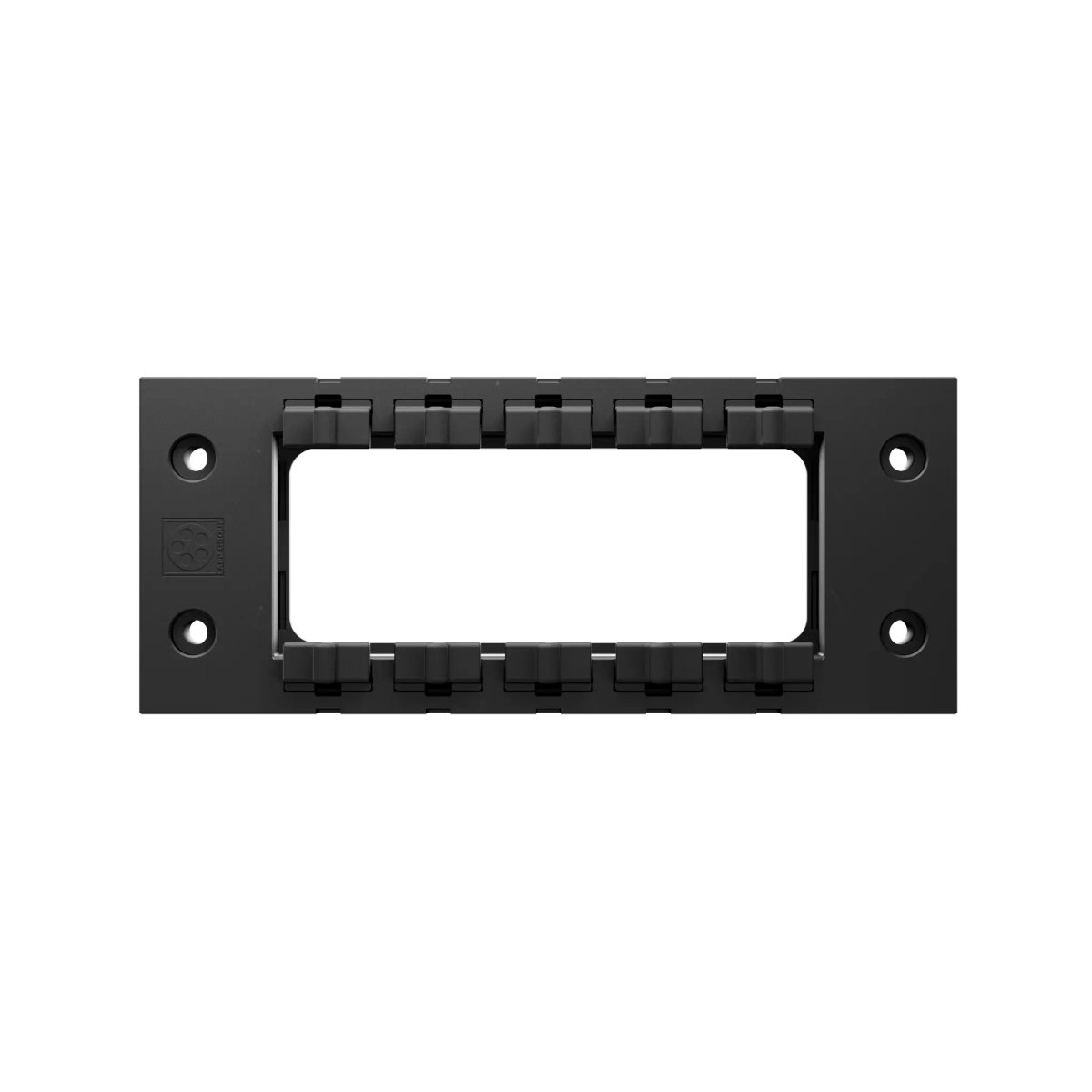

SKINTOP® CUBE FRAME

Naziv
Koda izdelka
Št. kabelskih vhodov
Dolžina
Širina
Cena
Količina
+
SKINTOP® CUBE FRAME 16
52220000
1 pc.
120 mm
67 mm
12,68 €
Na zalogi v tovarni, predviden rok dobave 5-8 delovnih dni.
+
SKINTOP® CUBE FRAME 24
52220001
1 pc.
145 mm
67 mm
14,26 €
Na zalogi v tovarni, predviden rok dobave 5-8 delovnih dni.

Benefits

  • The modular system simplifies service work as individual cables can be replaced flexibly without removing the frame from the housing.
  • Easy assembly with 4 fastening screws.
  • Multi-entry of cables allows a higher packing density (up to 10 cables depending on the variant).
  • Made of robust polyamide (flammability class HB according to the UL94 testing procedure for the flammability of plastics).
  • UL/CSA certification according to technical data enables the product to be used in the North American market.
  • Integrated flat seal enables secure sealing of the housing when filled (protection class IP 64).
  • Available in two sizes for 16 or 24-pin connector mounting openings.
  • Variable clamping range
  • Simplified servicing due to easy assembling and disassembling
  • Vibration-safe module fixation
  • Strain relief
  • Oil resistance

Applications

  • Can be used in dry, damp and oily environments.
  • For use with the SKINTOP® CUBE MODULE quick-locking modules.
  • Suitable for outdoor use.
  • For sealing and strain relieving multi-entry of assembled and unassembled cables through a housing.
  • Apparatus and switch cabinet construction
  • For installation of harnessed cables
  • Automation technology
  • Used in areas where a lot of cables and wires need to be inserted into housings with minimum space requirements
  • Electronic installations

Notes

  • If applicable, the prices are solid metal prices without surcharges and VAT. Sales only to business customers.
  • Photographs and graphics are not to scale and do not represent detailed images of the respective products.
