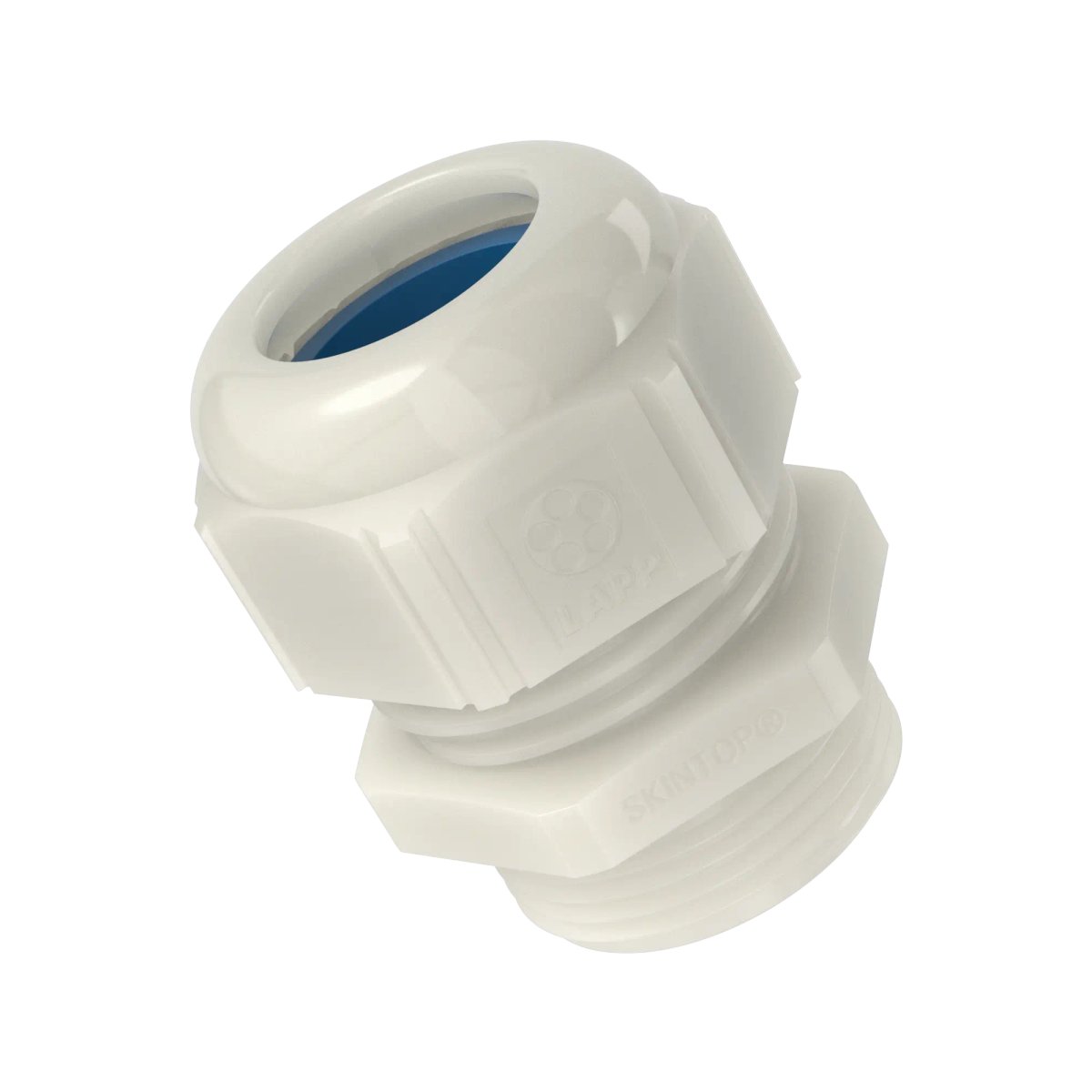

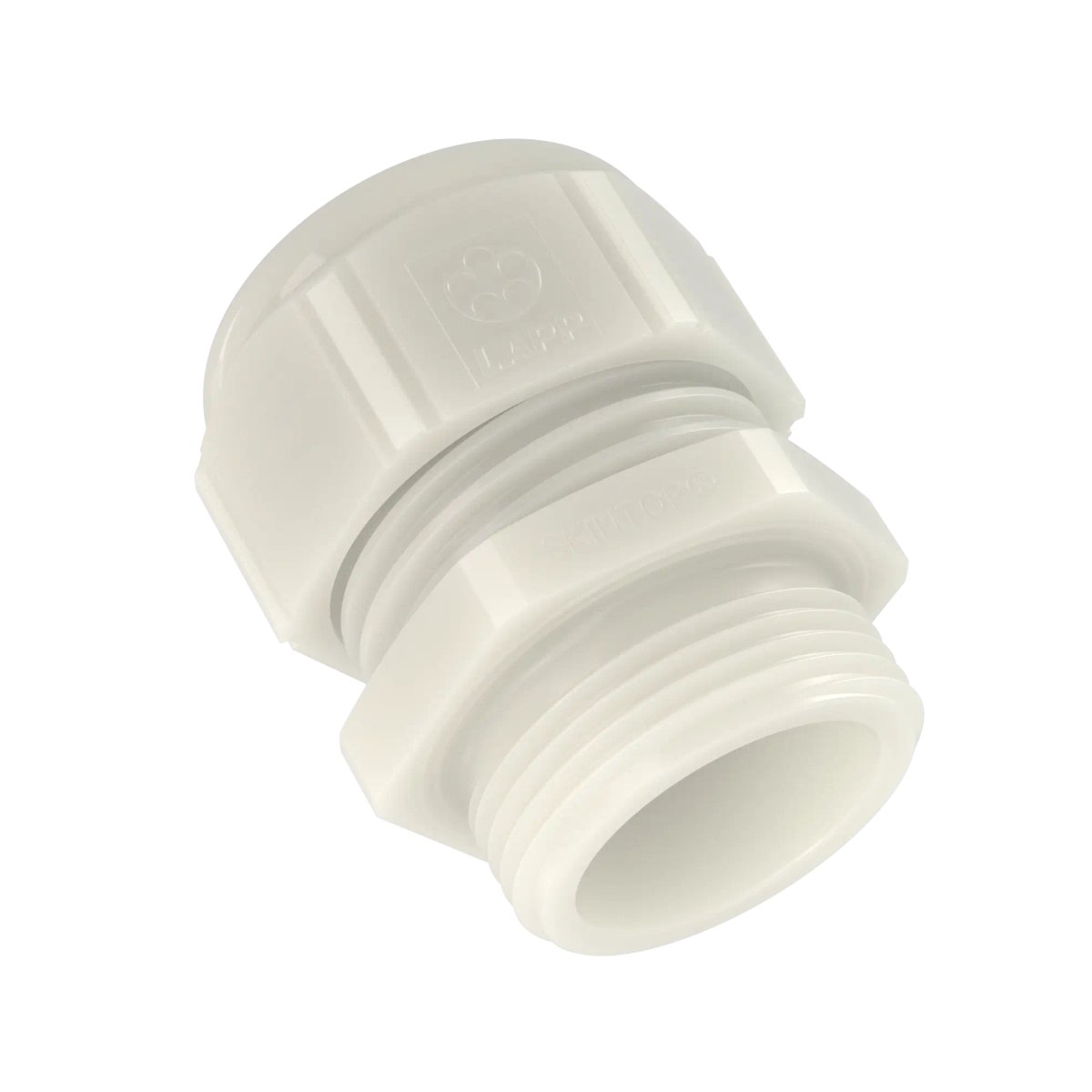

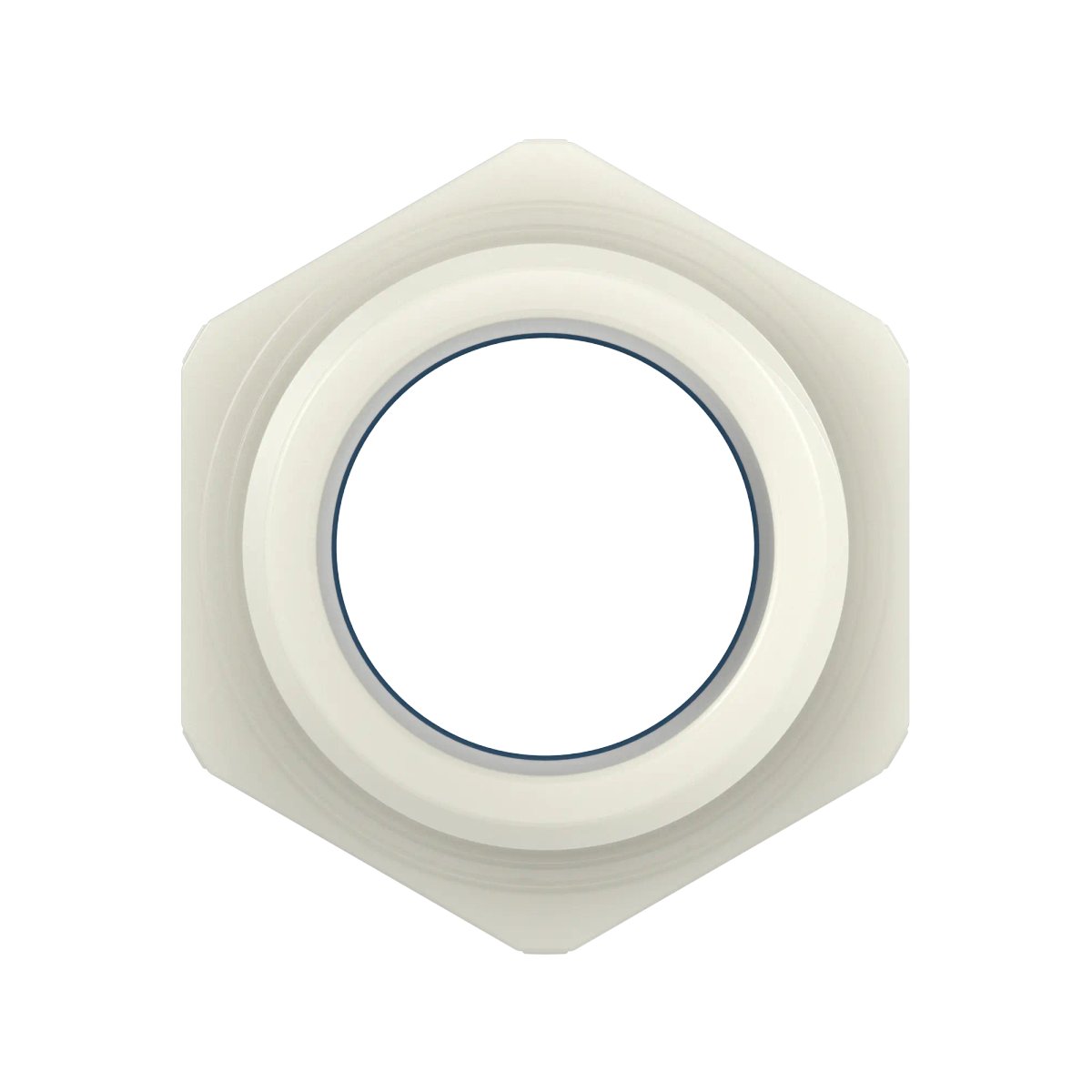

SKINTOP® CLEAN

Naziv
Koda izdelka
Št. kabelskih vhodov
Dolžina navoja
Velikost heksagonalnega roba
Cena
Količina
+
SKINTOP® CLEAN M16X1.5
53110021
1 pc.
8 mm
21.1 mm
1,41 €
Na zalogi, predviden rok dobave 5-8 delovnih dni.
+
SKINTOP® CLEAN M20X1.5
53110022
1 pc.
9 mm
27.6 mm
1,55 €
Rok dobave sporočimo po obdelavi naročila.
+
SKINTOP® CLEAN M12X1.5
53110020
1 pc.
8 mm
16.6 mm
1,26 €
Na zalogi, predviden rok dobave 5-8 delovnih dni.
+
SKINTOP® CLEAN M25X1.5
53110023
1 pc.
10 mm
33.6 mm
1,70 €
Na zalogi, predviden rok dobave 5-8 delovnih dni.
+
SKINTOP® CLEAN M32X1.5
53110024
1 pc.
10 mm
40.3 mm
2,04 €
Na zalogi, predviden rok dobave 5-8 delovnih dni.
+
SKINTOP® CLEAN M40X1.5
53110025
1 pc.
10 mm
51.6 mm
2,74 €
Na zalogi, predviden rok dobave 5-8 delovnih dni.

Benefits

  • The white colour enables quick detection of possible contamination. This allows sources of contamination to be identified at an early stage.
  • Permanent vibration protection prevents the domed cap nut from opening during vibrations.
  • Large, variable clamping range for different cable outer diameters.
  • Tested for low particle emission in accordance with EN ISO 14644-14 and therefore suitable for use in cleanrooms up to ISO class 1 in accordance with EN ISO 14644-1. This supports a high level of process reliability in sensitive environments.
  • The material is resistant to bacterial growth in accordance with DIN EN ISO 846, method C. This protects the material from microbial degradation and supports compliance with hygiene standards in demanding areas of application.
  • Highly stable when being turned and closes quickly thanks to its multi-course, flattened trapezoidal thread.
  • The best possible sealing enables protection class IP 66 and IP 68 (5 bar).

Applications

  • Typical areas of application are clean rooms, drying rooms or the food and beverage industry.
  • For sealing and strain relieving cable insertion into a housing.

Notes

  • If applicable, the prices are solid metal prices without surcharges and VAT. Sales only to business customers.
  • Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.
  • Photographs and graphics are not to scale and do not represent detailed images of the respective products.
