Slika SKINTOP® BS-SC-M METALL / SKINTOP® BSR-SC-M METALL
Slika SKINTOP® BS-SC-M METALL / SKINTOP® BSR-SC-M METALL Slika SKINTOP® BS-SC-M METALL / SKINTOP® BSR-SC-M METALL Slika SKINTOP® BS-SC-M METALL / SKINTOP® BSR-SC-M METALL Slika SKINTOP® BS-SC-M METALL / SKINTOP® BSR-SC-M METALL Slika SKINTOP® BS-SC-M METALL / SKINTOP® BSR-SC-M METALL Slika SKINTOP® BS-SC-M METALL / SKINTOP® BSR-SC-M METALL

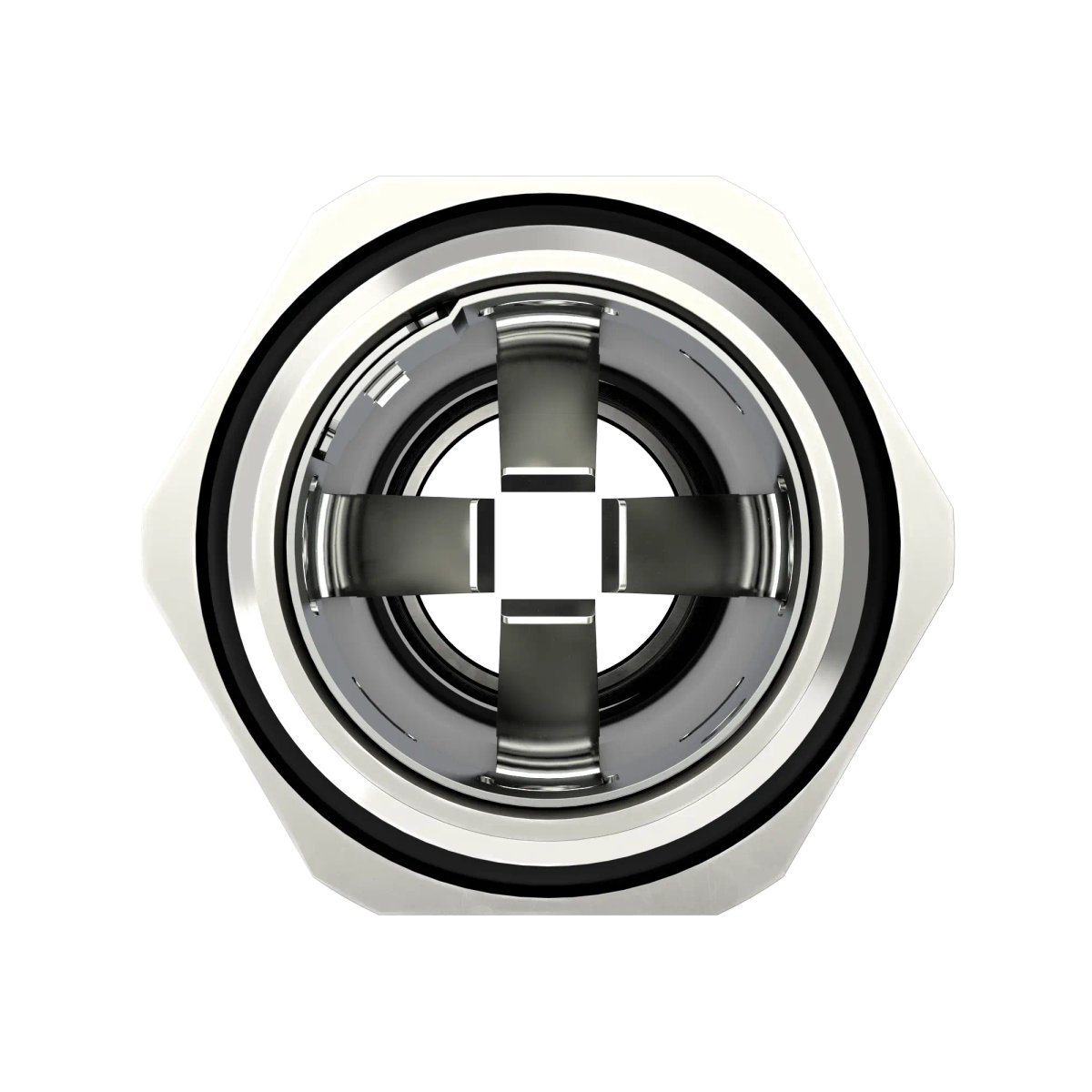

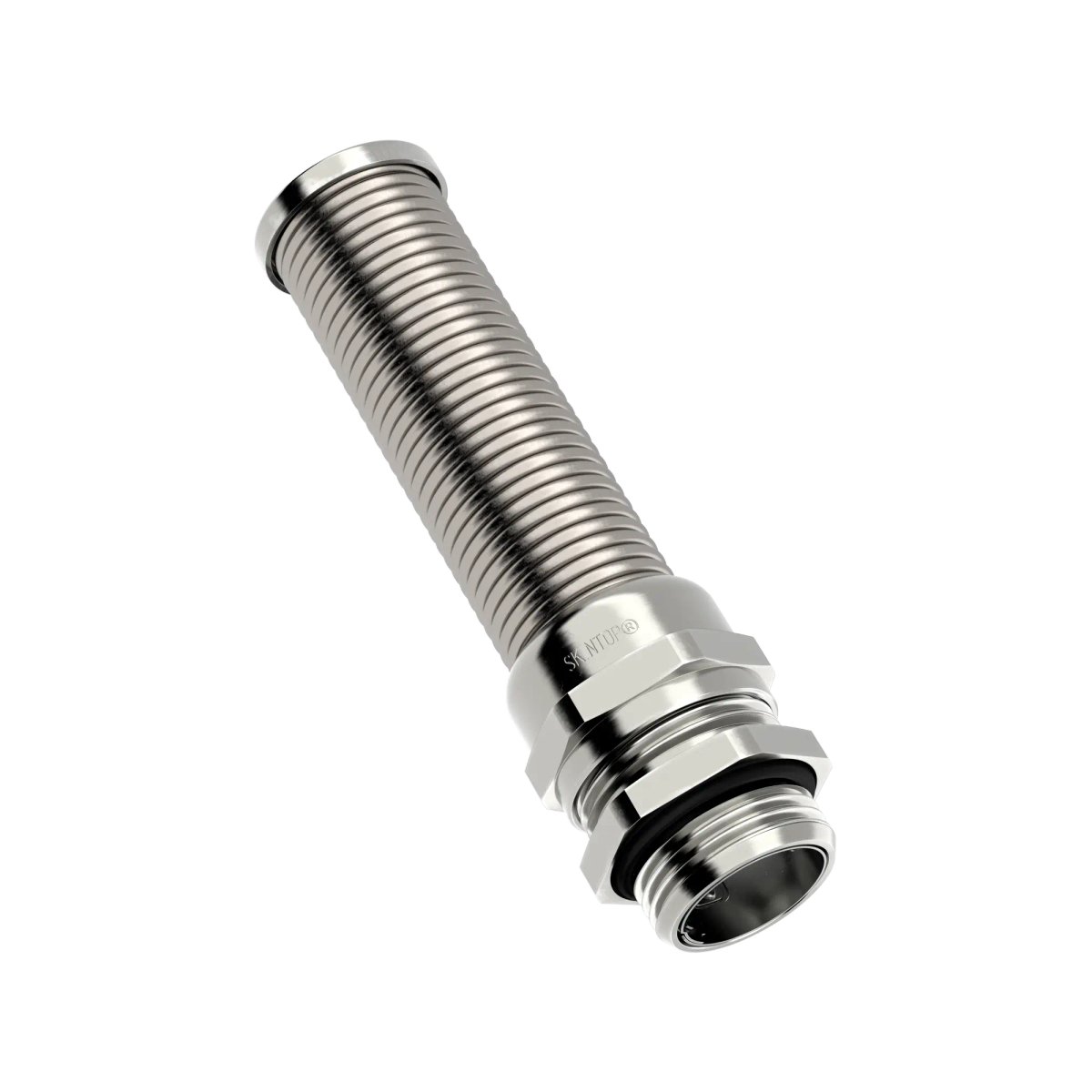

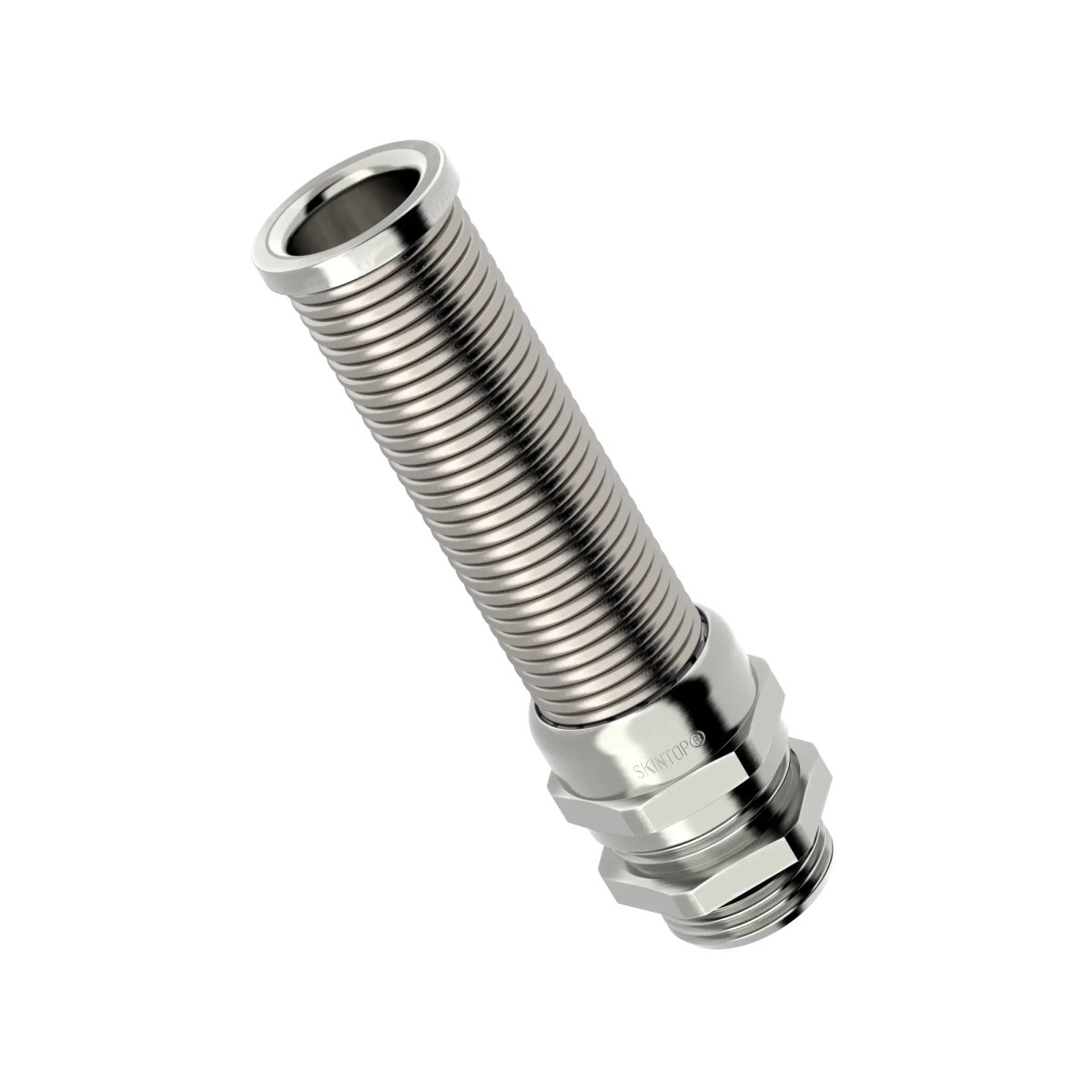

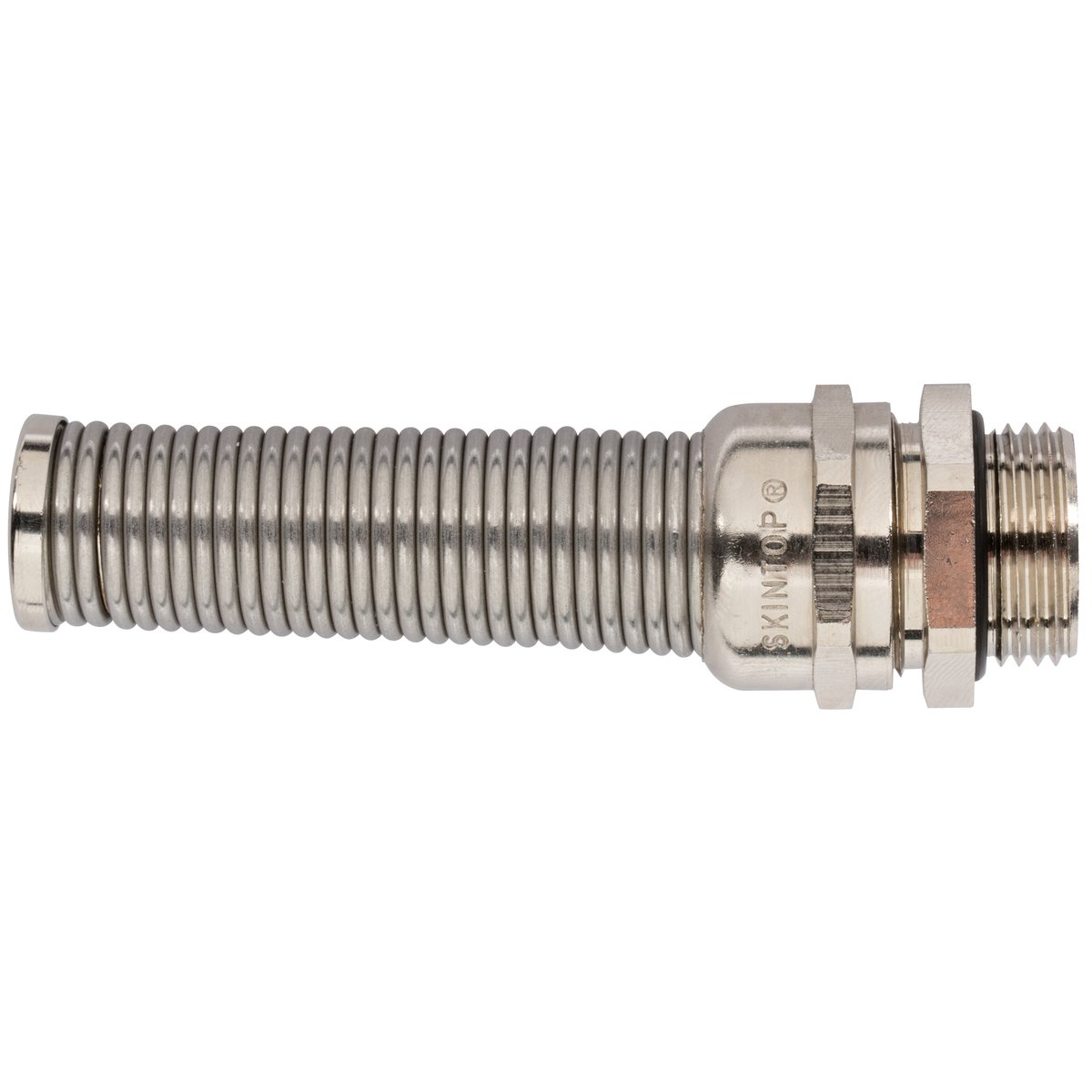

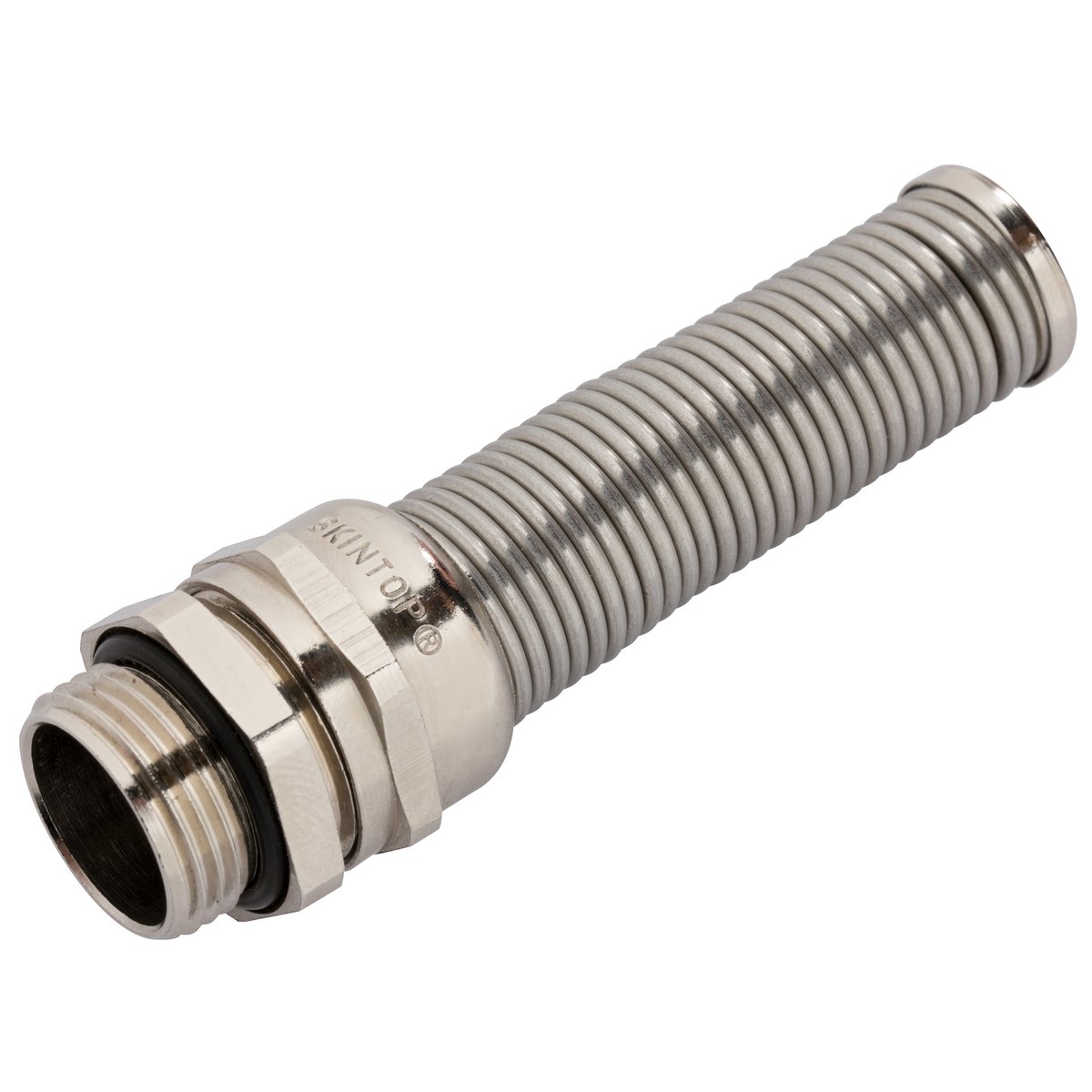

SKINTOP® BS-SC-M METALL / SKINTOP® BSR-SC-M METALL

Bodite prvi in ​​ocenite ta izdelek
Naziv
Koda izdelka
Št. kabelskih vhodov
Dolžina
Odprtina fi
Cena
Količina
+
SKINTOP® BS-SC-M METAL M20X1,5
53806827
1 pc.
95 mm
13 mm
11,56 €
*
Na zalogi, predviden rok dobave 5-8 delovnih dni.
+
SKINTOP® BS-SC-M METAL M16X1,5
53806826
1 pc.
79 mm
10 mm
11,56 €
*
Na zalogi, predviden rok dobave 5-8 delovnih dni.
+
SKINTOP® BS-SC-M METAL M12X1,5
53806825
1 pc.
65 mm
7 mm
15,86 €
*
Na zalogi, predviden rok dobave 5-8 delovnih dni.
+
SKINTOP® BSR-SC-M METAL M16X1,5
53806830
1 pc.
79 mm
7 mm
11,57 €
*
Na zalogi, predviden rok dobave 5-8 delovnih dni.
+
SKINTOP® BSR-SC-M METAL M20X1,5
53806831
1 pc.
95 mm
10 mm
11,60 €
*
Rok dobave sporočimo po obdelavi naročila.
+
SKINTOP® BS-SC-M METAL M25X1,5
53806828
1 pc.
109 mm
17 mm
18,67 €
*
Na zalogi, predviden rok dobave 5-8 delovnih dni.
+
SKINTOP® BSR-SC-M METAL M12X1,5
53806829
1 pc.
65 mm
5 mm
15,88 €
*
Na zalogi, predviden rok dobave 5-8 delovnih dni.
+
SKINTOP® BSR-SC-M METAL M25X1,5
53806832
1 pc.
109 mm
13 mm
18,69 €
*
Na zalogi, predviden rok dobave 5-8 delovnih dni.

Benefits

  • Optimum sealing through O-ring and sealing ring enables protection class IP 68 (10 bar) and IP 69.
  • Optimum EMC protection thanks to integrated, highly conductive and flexible contact spring, which creates a low-resistance transition between the copper braided screening and the gland.
  • Variant "R" with reducing sealing insert for sealing cables with smaller diameters.
  • Large, variable clamping range for different cable outer diameters.
  • The special design of the stainless steel spiral enables a high number of bending cycles.
  • Anti-kink protection spiral prevents excessive bending and kinking of the connected cable.

Applications

  • Suitable for outdoor use.
  • Especially for moving machine parts.
  • Withstands high mechanical stress.
  • For EMC-compliant insertion of copper-shielded cables.

Documentation

Notes

  • If applicable, the prices are solid metal prices without surcharges and VAT. Sales only to business customers.
  • Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.
  • Photographs and graphics are not to scale and do not represent detailed images of the respective products.
