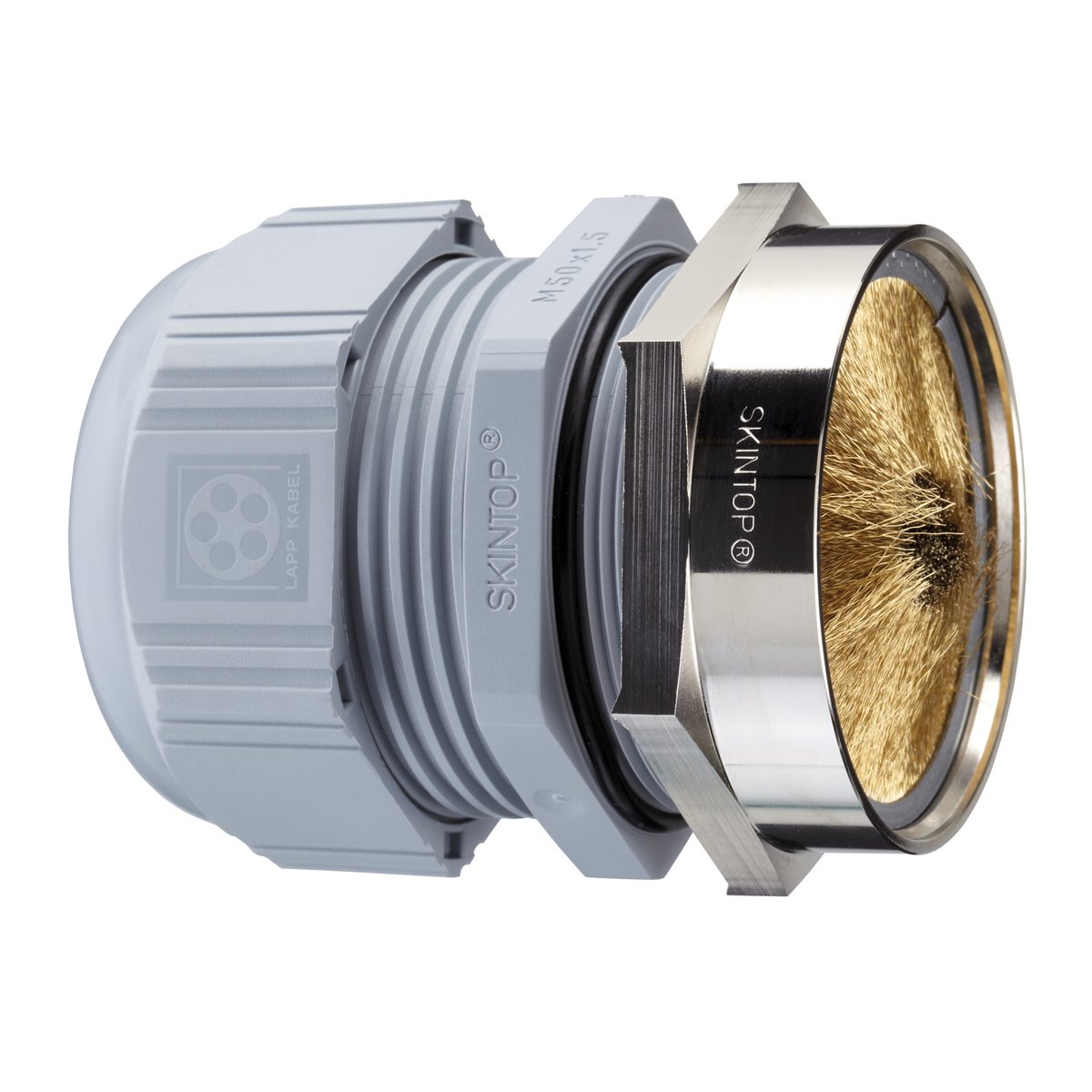

Slika SKINTOP® BRUSH ADD-ON
Slika SKINTOP® BRUSH ADD-ON Slika SKINTOP® BRUSH ADD-ON Slika SKINTOP® BRUSH ADD-ON Slika SKINTOP® BRUSH ADD-ON Slika SKINTOP® BRUSH ADD-ON Slika SKINTOP® BRUSH ADD-ON Slika SKINTOP® BRUSH ADD-ON Slika SKINTOP® BRUSH ADD-ON Slika SKINTOP® BRUSH ADD-ON

SKINTOP® BRUSH ADD-ON

Bodite prvi in ​​ocenite ta izdelek
Naziv
Koda izdelka
Višina
Dolžina navoja
Velikost ključa 1
Cena
Količina
+
SKINTOP® BRUSH ADD-ON M12
54110839
16.3 mm
10.3 mm
24 mm
4,73 €
*
Na zalogi, predviden rok dobave 5-8 delovnih dni.
+
SKINTOP® BRUSH ADD-ON M16
54110840
16.3 mm
10.3 mm
24 mm
4,36 €
*
Na zalogi, predviden rok dobave 5-8 delovnih dni.
+
SKINTOP® BRUSH ADD-ON M20
54110841
16.3 mm
10.3 mm
24 mm
4,14 €
*
Na zalogi, predviden rok dobave 5-8 delovnih dni.
+
SKINTOP® BRUSH ADD-ON M25
54110842
16.3 mm
10.3 mm
30 mm
4,98 €
*
Na zalogi, predviden rok dobave 5-8 delovnih dni.
+
SKINTOP® BRUSH ADD-ON M32
54110843
16.3 mm
12.5 mm
39 mm
6,27 €
*
Na zalogi, predviden rok dobave 5-8 delovnih dni.
+
SKINTOP® BRUSH ADD-ON M40
54110844
16.3 mm
11.5 mm
47 mm
7,97 €
*
Na zalogi, predviden rok dobave 5-8 delovnih dni.
+
SKINTOP® BRUSH ADD-ON M50
54110845
16.3 mm
11.7 mm
56 mm
11,81 €
*
Na zalogi, predviden rok dobave 5-8 delovnih dni.
+
SKINTOP® BRUSH ADD-ON M63
54110846
16.3 mm
13 mm
63 mm
22,49 €
Na zalogi, predviden rok dobave 5-8 delovnih dni.

Benefits

  • Visible, large-scale screen contact
  • Optimum, low-resistance 360° screen contact
  • Easy disassembling
  • Uncomplicated and reliable
  • Cutting edges cut through the insulating layer of the housing or switch cabinets, thus guaranteeing an optimum EMC contact

Applications

  • For EMC-compliant earthing of the copper braiding
  • Automation systems
  • For EMC-contact at through bore-holes
  • Control cabinet manufacturing
  • Conveyor and transport systems

Documentation

Notes

  • Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.
  • If applicable, the prices are solid metal prices without surcharges and VAT. Sales only to business customers.
  • Photographs and graphics are not to scale and do not represent detailed images of the respective products.
