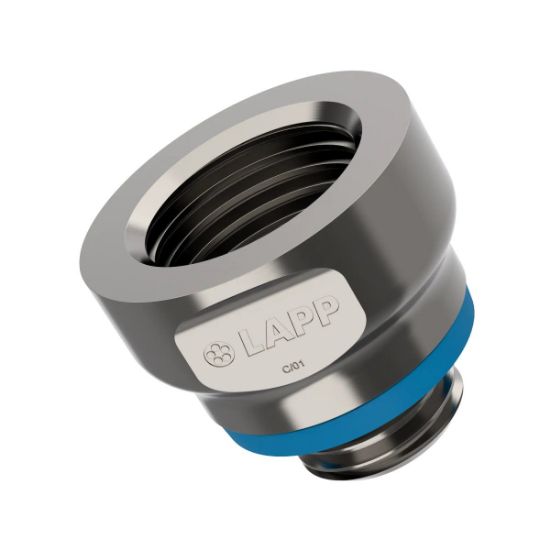

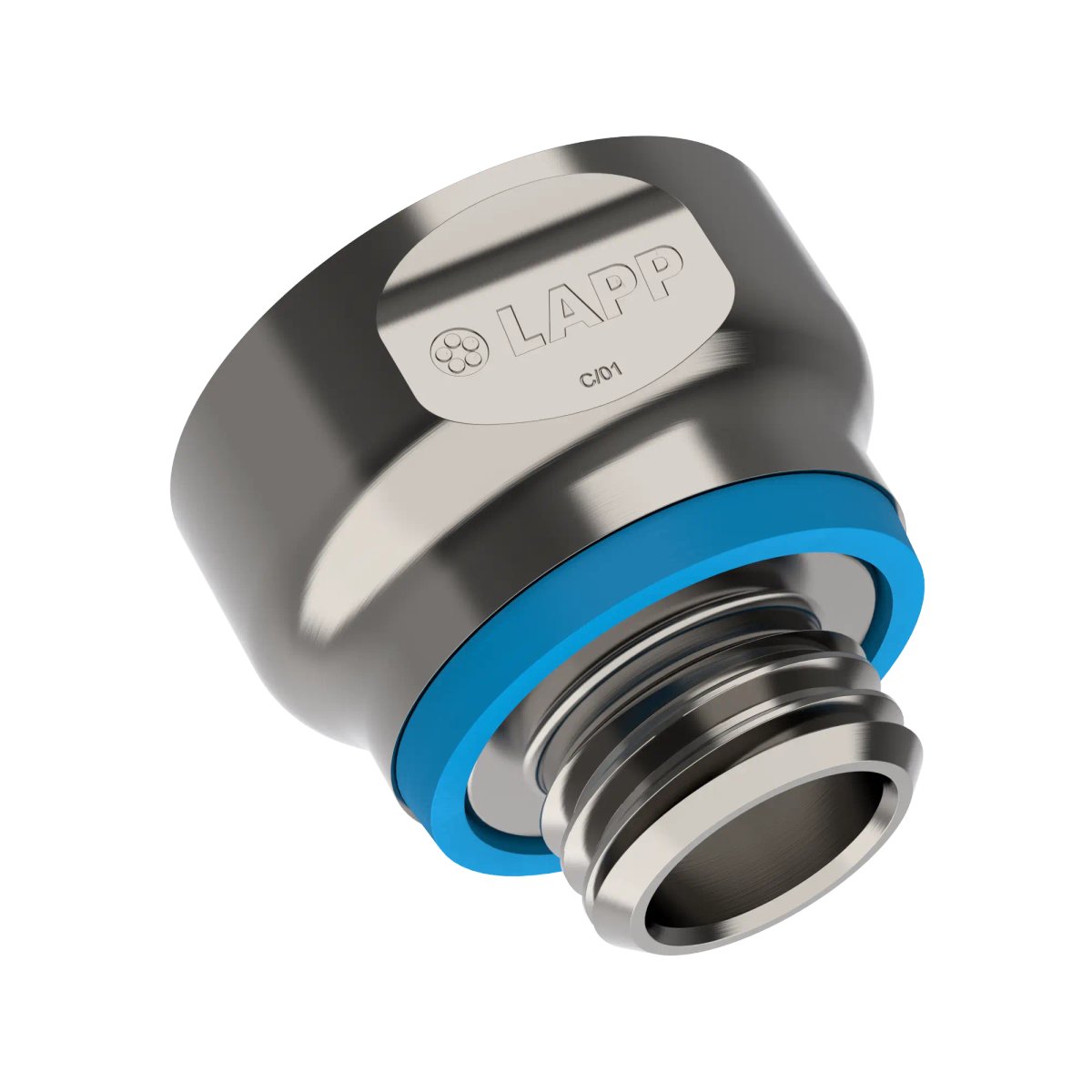

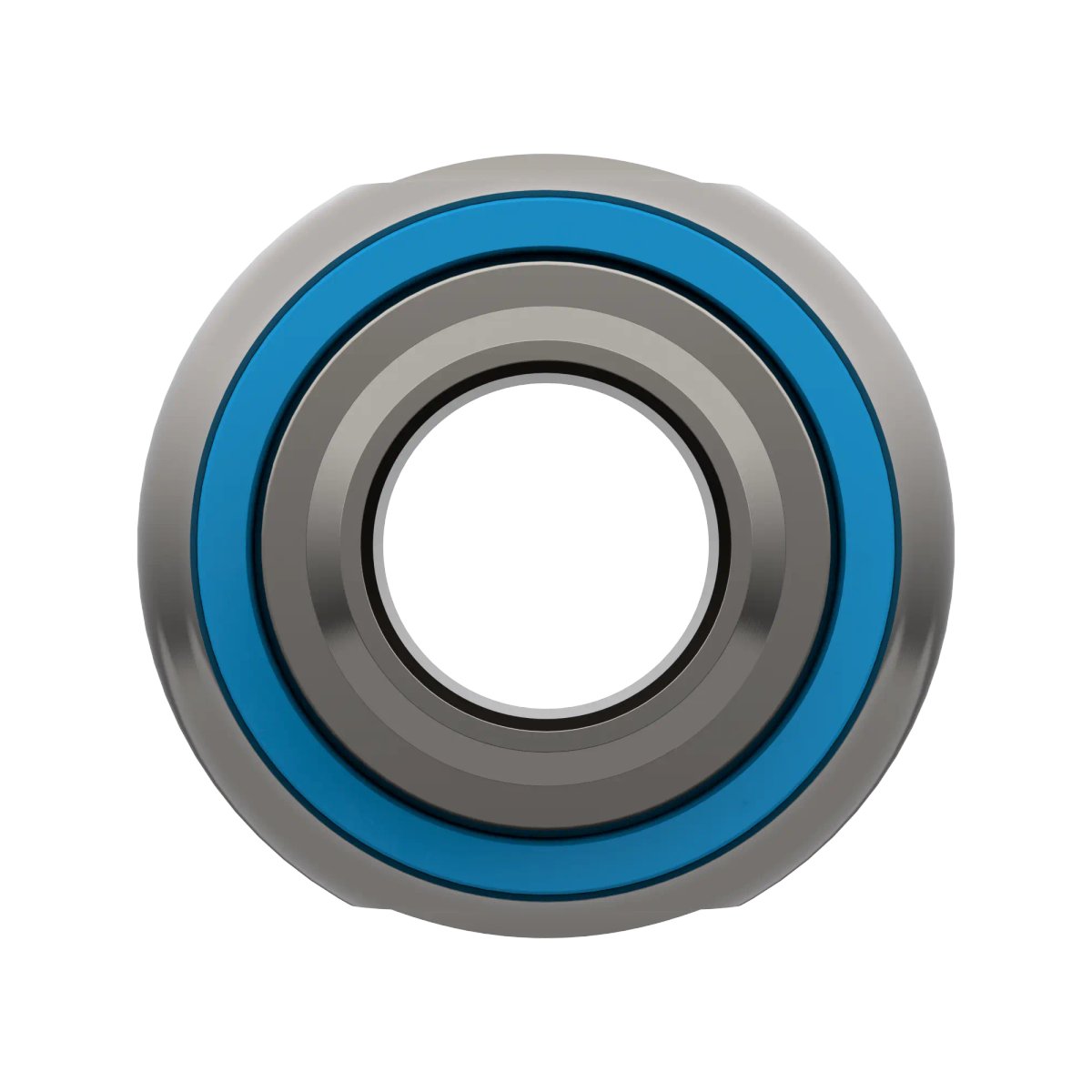

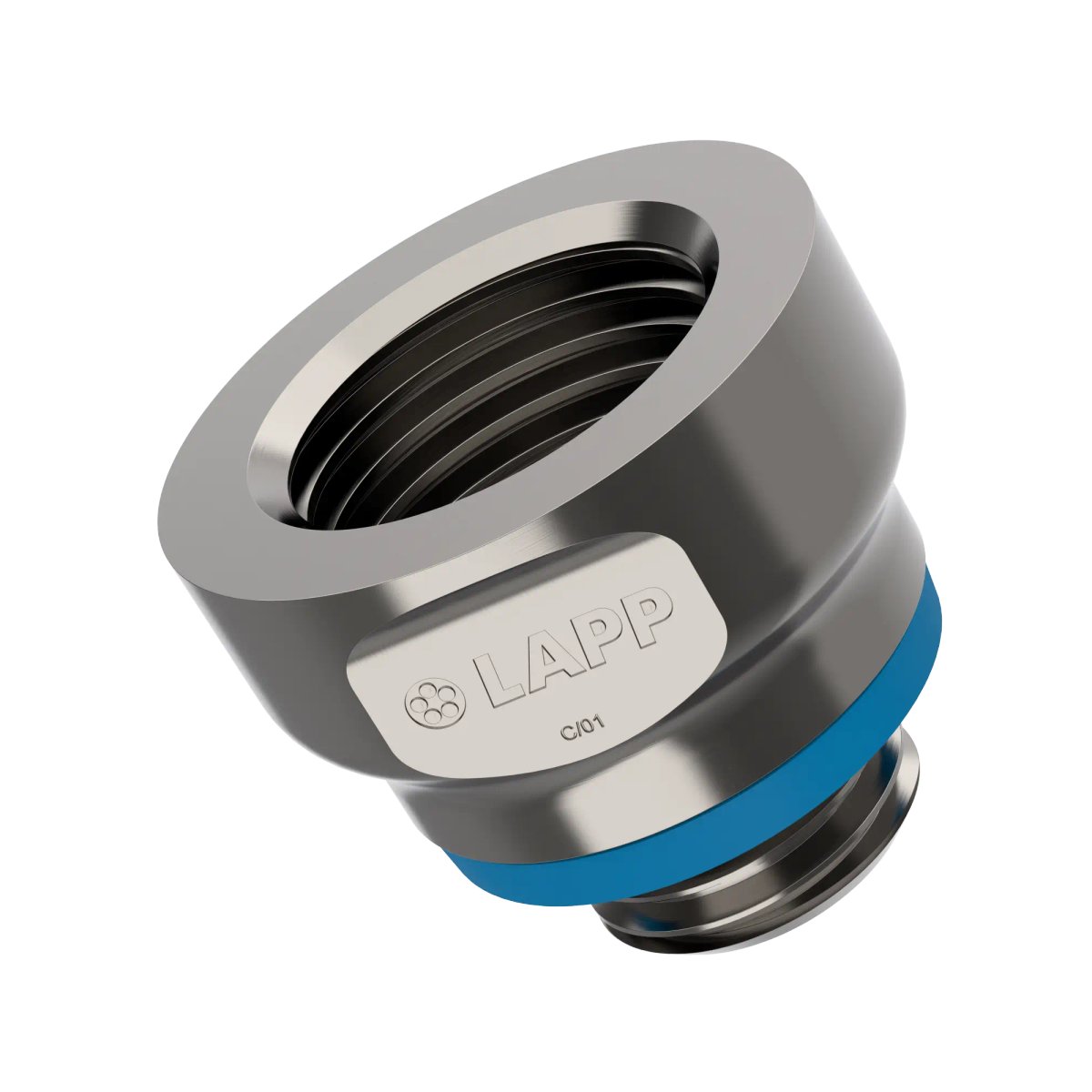

SKINDICHT® HYGIENIC E-M

Naziv
Koda izdelka
Zunanji premer
Dolžina
Širina
Cena
Količina
+
SKINDICHT® HYGIENIC E-M12/16
52103591
22.8 mm
20.5 mm
22.8 mm
27,53 €
*
Min. količina za naročanje: 5
Na zalogi, predviden rok dobave 5-8 delovnih dni.
+
SKINDICHT® HYGIENIC E-M 20/25
52103593
31.8 mm
24.0 mm
31.8 mm
34,73 €
*
Min. količina za naročanje: 5
Rok dobave sporočimo po obdelavi naročila.
+
SKINDICHT® HYGIENIC E-M 25/32
52103594
39.6 mm
26.5 mm
39.6 mm
40,06 €
*
Min. količina za naročanje: 5
Na zalogi, predviden rok dobave 5-8 delovnih dni.

Benefits

  • The best possible sealing enables protection classes IP 68 (10 bar) and IP 69.
  • Sealing material in blue to easily distinguish the cable glands used in the food industry.
  • Corrects the size difference between the connection thread of a cable gland and the threaded hole in a housing.
  • Flexibility in selecting a cable gland, as the selection is independent of the threaded holes in the housing.
  • Multiple food and beverage certifications for Europe and North America.
  • Sealing material compliant with FDA 21 CFR 177.2600, specifically for the food and beverage industry in North America.
  • Certified according to NSF/ANSI 169 for use in hygiene-critical areas in North America (Standard: Special Purpose Food Equipment and Devices/for Use in Food Zone Non Contact).
  • Tested resistance to ECOLAB® disinfectants and cleaning agents.
  • Hygienic design with smooth surfaces and contours without corners and edges prevents residues such as liquids and micro-organisms from accumulating and posing a risk of contamination for food processing machinery. This facilitates simple, frequent and safe product cleaning.

Applications

  • Withstands high chemical and mechanical stress.
  • For use with metric SKINTOP® HYGIENIC/SKINTOP® INOX M cable glands with a bigger connection thread than the existing threaded borehole.
  • Also suitable for use in hygiene-critical areas of the pharmaceutical and chemical industry.
  • Especially for hygiene-critical areas of the food industry, where the product needs to be installed in the product zone or in the direct food production environment.

Notes

  • If applicable, the prices are solid metal prices without surcharges and VAT. Sales only to business customers.
  • Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.
  • Photographs and graphics are not to scale and do not represent detailed images of the respective products.
