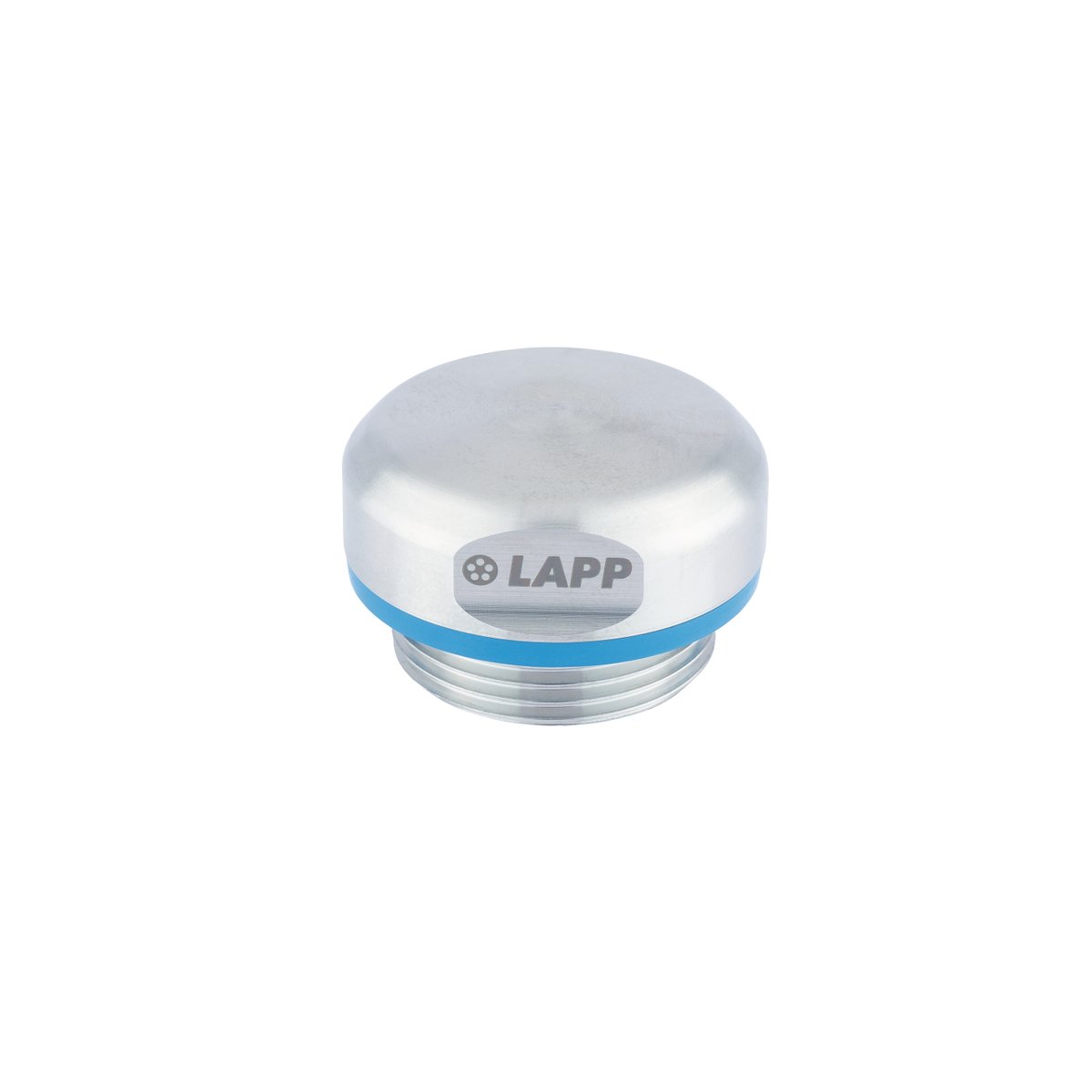

SKINDICHT® HYGIENIC BL-NPT

Naziv
Koda izdelka
Širina
Višina
Dolžina navoja
Cena
Količina
+
SKINDICHT® HYGIENIC BL-NPT 1''
52103498
39.6 mm
23.5 mm
10 mm
64,27 €
*
Rok dobave sporočimo po obdelavi naročila.
+
SKINDICHT® HYGIENIC BL-NPT 1-1/4''
52103499
49.0 mm
24.7 mm
10.2 mm
72,43 €
*
Rok dobave sporočimo po obdelavi naročila.
+
SKINDICHT® HYGIENIC BL-NPT 1/4''
52103494
18.8 mm
17.4 mm
7.2 mm
24,11 €
*
Rok dobave sporočimo po obdelavi naročila.
+
SKINDICHT® HYGIENIC BL-NPT 3/8''
52103495
22.8 mm
18.7 mm
7.8 mm
25,70 €
*
Rok dobave sporočimo po obdelavi naročila.
+
SKINDICHT® HYGIENIC BL-NPT 1/2''
52103496
26.8 mm
20.3 mm
8.4 mm
24,09 €
*
Rok dobave sporočimo po obdelavi naročila.
+
SKINDICHT® HYGIENIC BL-NPT 3/4''
52103497
31.8 mm
21.5 mm
8.8 mm
29,42 €
*
Rok dobave sporočimo po obdelavi naročila.

Benefits

  • The best possible sealing enables protection class IP 68 (10 bar).
  • Easy assembly with a spanner.
  • Hygienic design with smooth surfaces and contours without corners and edges prevents residues such as liquids and micro-organisms from accumulating and posing a risk of contamination for food processing machinery. This facilitates simple, frequent and safe product cleaning.
  • Multiple food and beverage certifications for Europe and North America.
  • Tested resistance to ECOLAB disinfectant and cleaning agents.
  • Sealing material in blue to easily distinguish the cable glands used in the food industry.
  • Sealing material compliant with FDA 21 CFR 177.2600, specifically for the food and beverage industry in North America.
  • Certified according to NSF/ANSI 169 for use in hygiene-critical areas in North America (Standard: Special Purpose Food Equipment and Devices/for Use in Food Zone Non Contact).
  • Certified according to EHEDG for use in hygienic areas in Europe (certification type EL, certification class I AUX) while observing the hygienic design principles (guideline "Design criteria for hygienic machinery, appliances and components").

Applications

  • For closing an unoccupied NPT threaded borehole on the housing.
  • Especially for hygiene-critical areas of the food industry, where the product needs to be installed in the product zone or in the direct food production environment.
  • Also suitable for use in hygiene-critical areas of the pharmaceutical and chemical industry.
  • Withstands high chemical and mechanical stress.

Documentation

Notes

  • * Prices are net prices without VAT and surcharges. Sale to business customers only.
  • Photographs and graphics are not to scale and do not represent detailed images of the respective products.
