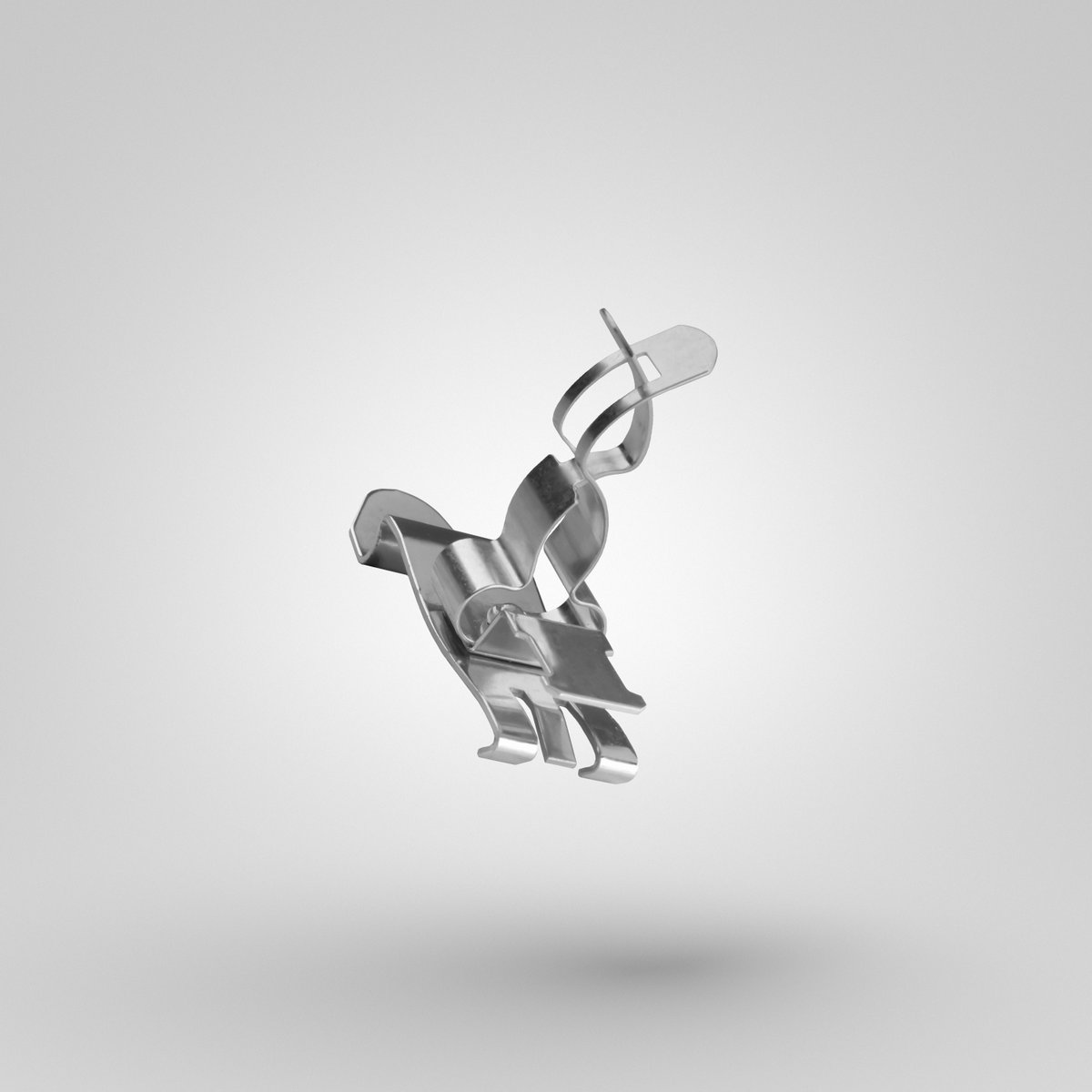

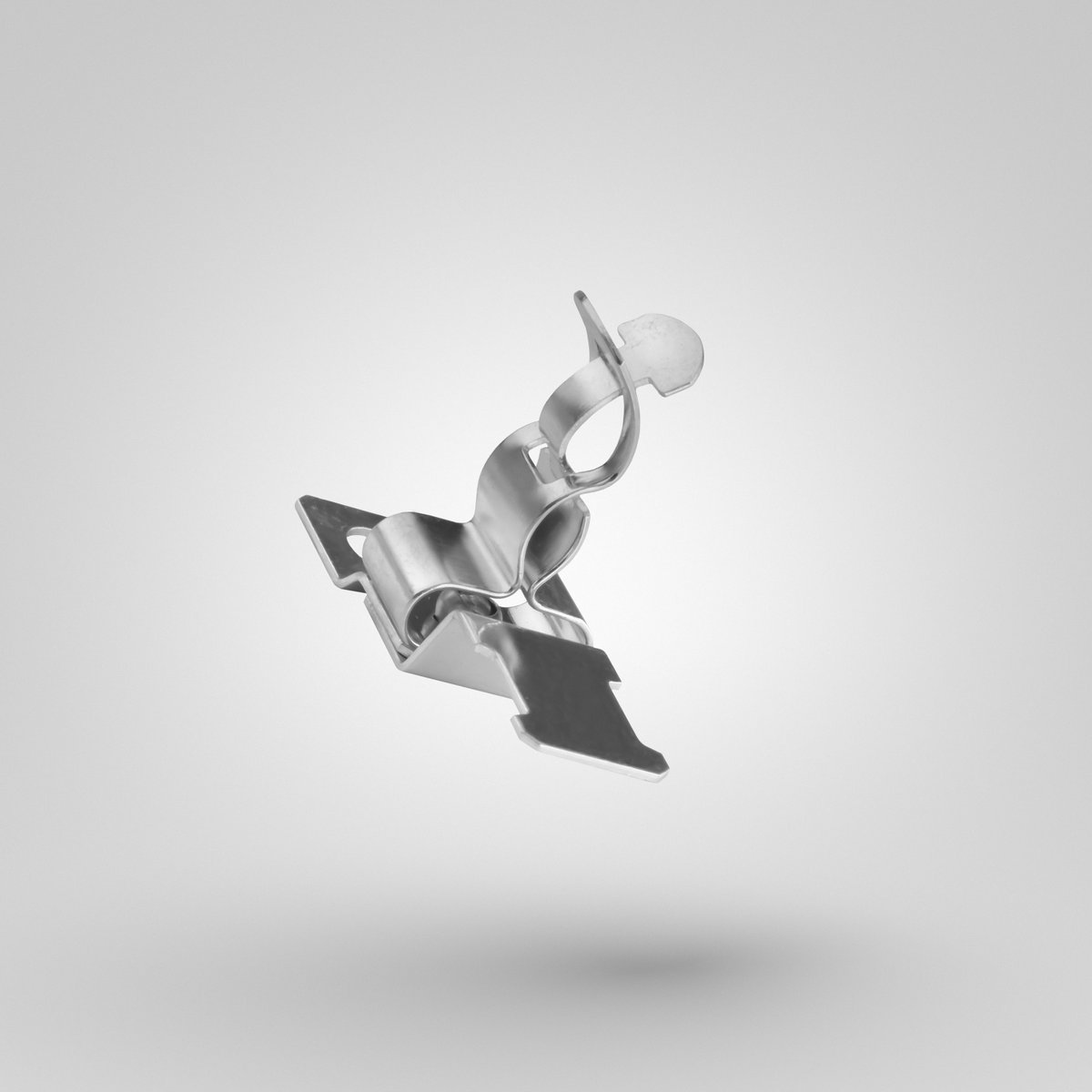

Shield clamp EMC-Guard

Benefits

• Compact dimensions enable easy integration into the machine concept.
• The "DINrail" version with detachable mounting bracket for 35 mm top-hat rails can be mounted without tools.
• Optimum strain relief via strain relief clamp, which is attached to the cable outer sheath with cable ties.
• The electrically conductive coating on the galvanised surface and the large-scale shield contact ensure a low-resistance transition between the copper stranded shielding and the shield terminal, thereby safely deflecting high-frequency interference (EMC).
• Available with different clamping ranges for individual, space-saving assembly.
• "MOUNT" version for direct mounting on installation sheet / sheet metal constructions, e.g. using M4 screws.
• The "DINrail" version with detachable mounting bracket for 35 mm top-hat rails can be mounted without tools.
• Available with different clamping ranges for individual, space-saving assembly.
• Compact dimensions enable easy integration into the machine concept.
• Rounded material without sharp edges for optimum protection of the cable.
• Optimum strain relief via strain relief clamp, which is attached to the cable outer sheath with cable ties.
• The electrically conductive coating on the galvanised surface and the large-scale shield contacting ensure a low-resistance transition between the braided shield of the cable and the shield terminal, thereby safely deflecting high-frequency interference (EMC).
• The strong spring effect ensures consistent shielding contact and constant conductivity.
• Allows the stripped, shielded cable to be pressed down quickly and without any tools.
• "MOUNT" version for direct mounting on installation sheet / sheet metal constructions, e.g. using M4 screws.
• Rounded material without sharp edges for optimum protection of the cable.
