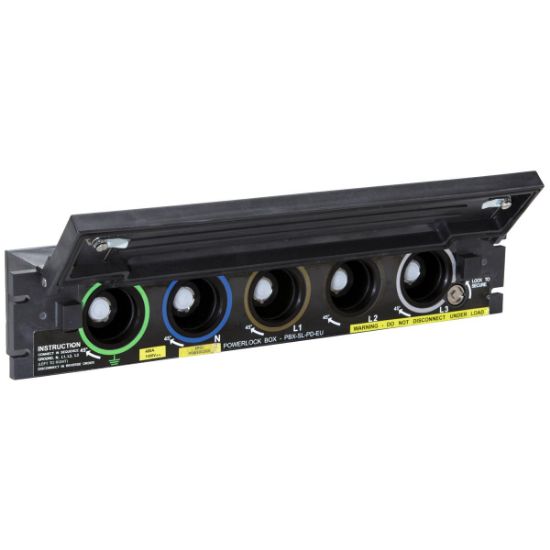

POWERLOCK BOX S*

Naziv
Koda izdelka
Min. presek povezovalnega vodnika (mm2)
Maks. presek povezovalnega vodnika (mm2)
Min. delovna temperatura
Cena
Količina
+
POWERLOCK BOX A1 S (1)
44420282
50 mm2
120 mm2
-20 °C
1.018,17 €
Na zalogi, predviden rok dobave 5-8 delovnih dni.
+
POWERLOCK BOX A1 SD (1)
44420283
50 mm2
120 mm2
-20 °C
1.124,80 €
Ni zaloge, predviden rok dobave: 20. 07. 2024.
+
POWERLOCK BOX A6 S (1)
44420286
50 mm2
120 mm2
-20 °C
990,40 €
Ni zaloge, predviden rok dobave: 9. 06. 2024.
+
POWERLOCK BOX A6 SD (1)
44420287
50 mm2
120 mm2
-20 °C
1.092,67 €
Ni zaloge, predviden rok dobave: 1. 07. 2024.

Benefits

  • Mechanical coding and colour-identification of the housing entries prevent incorrect connection of the connectors.
  • Connectors can only be plugged in sequence and in the correct order (PE, N, L1, L2, L3). The connector locks audibly by turning it 45° clockwise.
  • Unauthorised disconnection of the safe connection can be prevented by closing the safety lock with a square spanner. The connection is maintained until the lock is unlocked.
  • For conductor cross-sections up to 120 mm2.
  • With integrated microswitch for optional remote query (e.g. for load disconnector or alarm cable). The connector for connecting the micro switch is included.
  • Protection class IP 20 (finger-proof); IP 65 when plugged in. Made of robust, high-temperature-resistant thermoplastic.
  • Easy fastening using 4 fastening screws in standard 19" frames.
  • The power supply connection is made using tube cable lugs at the rear of the box via the integrated M12 threaded post contacts.
  • VDE-tested quality.
  • Available in versions with or without a safety cover. Safety cover provides additional protection against environmental influences when not in place.

Applications

  • Can be used for mobile and stationary power supply or emergency power supply via generators or battery storage systems.
  • Suitable for electric motors and cooling units.
  • Suitable for three-phase and direct current applications up to 400 A.
  • For connecting single-pin EPIC® POWERLOCK circular connectors.
  • For use with unshielded single cores.
  • Withstands moderate mechanical stress.
  • Suitable for outdoor use.

Notes

  • * Trade product, not a LAPP product.
  • Photographs and graphics are not to scale and do not represent detailed images of the respective products.
  • If applicable, the prices are solid metal prices without surcharges and VAT. Sales only to business customers.
