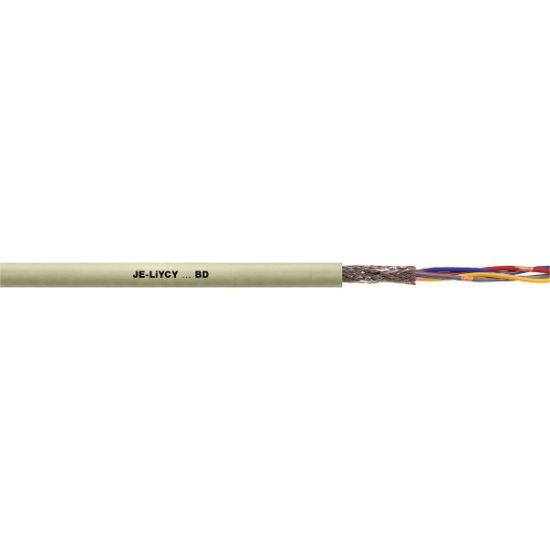

JE-LiYCY...BD

Bodite prvi in ocenite ta izdelek

Naziv

Koda izdelka

test voltage conductor/conductor

Testna napetost vodnika/opleta

Max. conductor resistance at 20 °C

Cena

Količina

JE-LiYCY...BD 2x2x0,5

0034200

0.5 kV

2 kV

39 ?/km

1,57 €

Dolžina *
Poljubna dolžina * Naročilu bo dodan strošek manipulacije in reza 15€ na rez

Na zalogi, predviden rok dobave 5-8 delovnih dni.

JE-LiYCY...BD 4x2x0,5

0034201

0.5 kV

2 kV

39 ?/km

2,50 €

Dolžina *
Poljubna dolžina * Naročilu bo dodan strošek manipulacije in reza 15€ na rez

Na zalogi, predviden rok dobave 5-8 delovnih dni.

JE-LiYCY...BD 8x2x0,5

0034202

0.5 kV

2 kV

39 ?/km

4,16 €

Dolžina *
Poljubna dolžina * Naročilu bo dodan strošek manipulacije in reza 15€ na rez

Ni zaloge, predviden rok dobave: 29. 06. 2026.

JE-LiYCY...BD 16x2x0,5

0034203

0.5 kV

2 kV

39 ?/km

7,19 €

Dolžina *
Poljubna dolžina * Naročilu bo dodan strošek manipulacije in reza 15€ na rez

Na zalogi, predviden rok dobave 5-8 delovnih dni.

JE-LiYCY...BD 24x2x0,5

0034204

0.5 kV

2 kV

39 ?/km

9,89 €

Dolžina *
Poljubna dolžina * Naročilu bo dodan strošek manipulacije in reza 15€ na rez

Na zalogi, predviden rok dobave 5-8 delovnih dni.

JE-LiYCY...BD 12x2x0,5

0034208

0.5 kV

2 kV

39 ?/km

5,62 €

Dolžina *
Poljubna dolžina * Naročilu bo dodan strošek manipulacije in reza 15€ na rez

Na zalogi, predviden rok dobave 5-8 delovnih dni.

JE-LiYCY...BD 20x2x0,5

0034210

0.5 kV

2 kV

39 ?/km

8,52 €

Dolžina *
Poljubna dolžina * Naročilu bo dodan strošek manipulacije in reza 15€ na rez

Na zalogi, predviden rok dobave 5-8 delovnih dni.

JE-LiYCY...BD 32x2x0,5

0034212

0.5 kV

2 kV

39 ?/km

13,04 €

Dolžina *
Poljubna dolžina * Naročilu bo dodan strošek manipulacije in reza 15€ na rez

Na zalogi, predviden rok dobave 5-8 delovnih dni.

Benefits

Ideal protection against electromagnetic interference thanks to copper stranded shielding with a high degree of coverage.
Classified fire behaviour according to EU Directive 305/2011 (BauPVO/CPR) with article number selection on the LAPP website.
The conductor circuits are well decoupled thanks to the twin cabling (TP, Twisted Pair) with short lay lengths.
Overall braid minimises electrical interference
Decoupling of circuits by means of twisted-pair (TP) design (crosstalk effects)

Applications

Can be used in dry and damp rooms.
Especially for environments where electromagnetic compatibility (EMC) is required.
For use as an installation cable for telecommunications and information processing systems in accordance with DIN VDE 0815.
For fixed and protected installation in an electrical installation pipe on or under plaster.
For use in control, regulation and measurement circuits.
Connection cable for use in electronics and in measurement, control and signal applications
This cable is also used as a pulse and data transmission cable
JE-LiYCY...BD has also proved to be an efficient connection cable for telephone systems, e.g. paging and intercom systems.
For fixed installation on and under plaster, in dry and damp rooms

Documentation

Notes

Please find our standard lengths at: www.lappkabel.de/kabel-standardlaengen.
If applicable, the prices are solid metal prices without surcharges and VAT. Sales only to business customers.
Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.
Photographs and graphics are not to scale and do not represent detailed images of the respective products.
Trade product, not a LAPP product.
