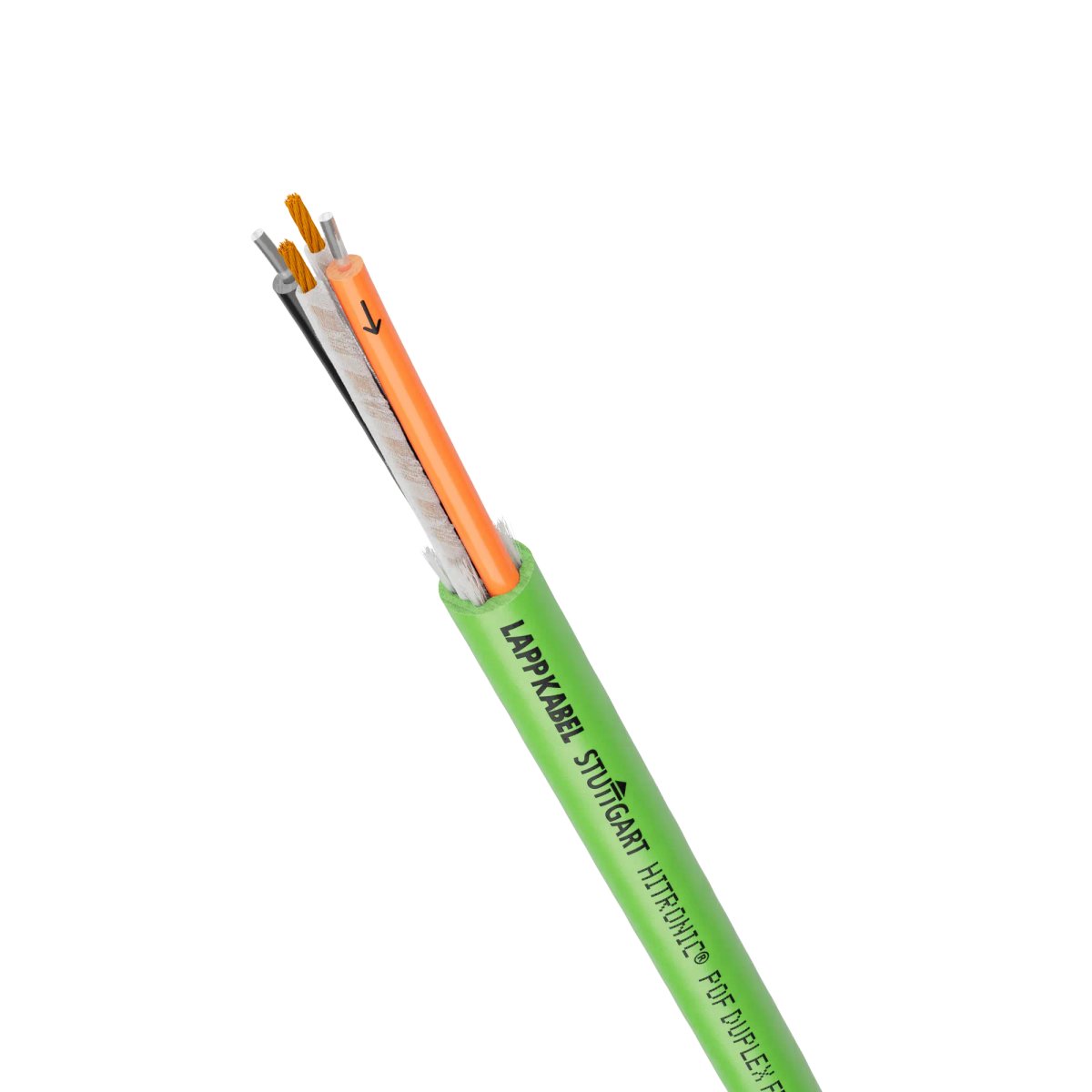

HITRONIC® POF cables for PROFINET applications

Bodite prvi in ocenite ta izdelek

Naziv

Koda izdelka

Nazivni premer jedra

Nazivni zunanji premer

Diameter fibre core

Cena

Količina

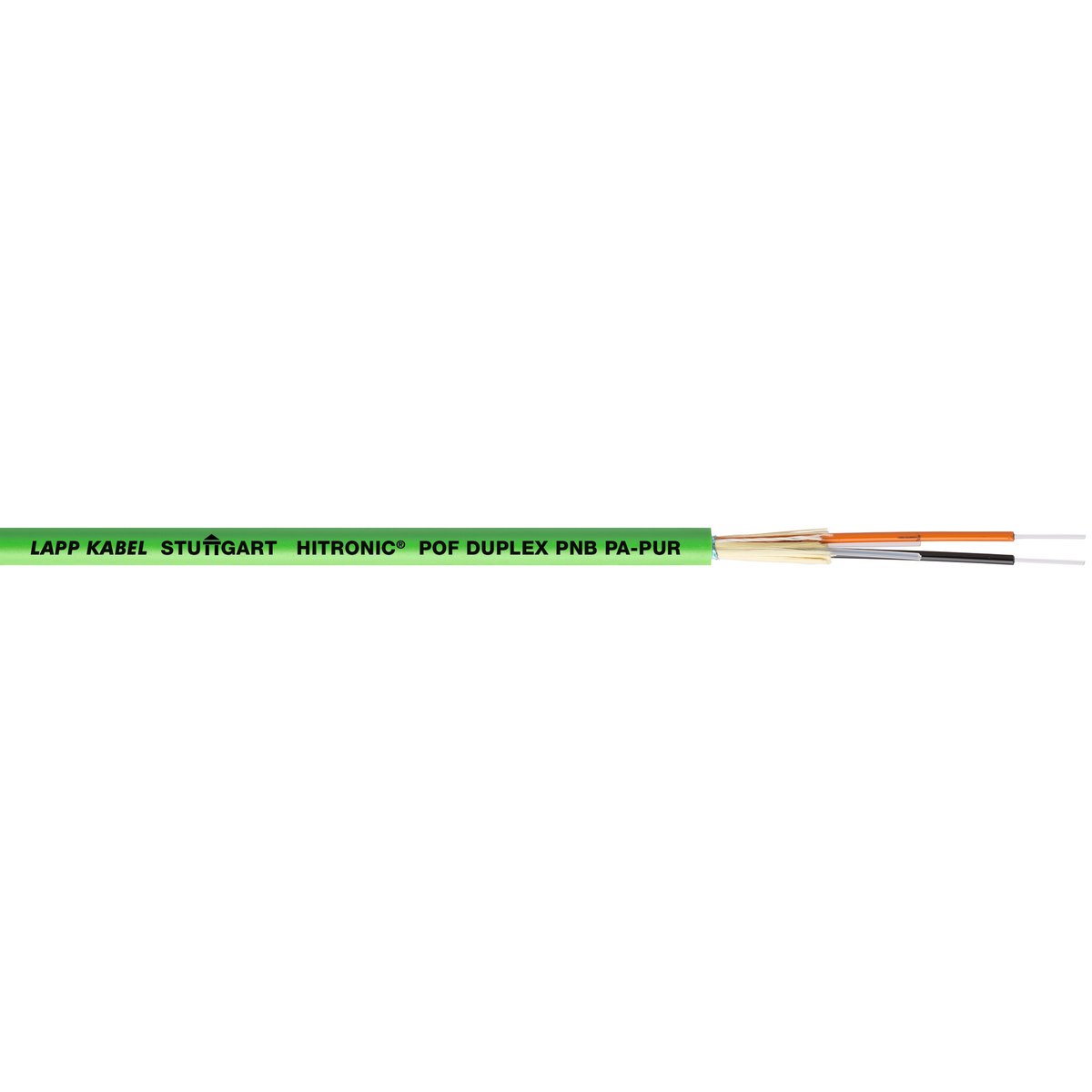

HITRONIC® POF DUPLEX PNB PA-PUR

28051002

2.2 mm

8.0 mm

980 µm

6,36 €

Dolžina *
Poljubna dolžina * Naročilu bo dodan strošek manipulacije in reza 15€ na rez

Informativni dobavni rok: 5-8 delovnih dni. Predviden dobavni rok za izbrano količino prosimo preverite v košarici.

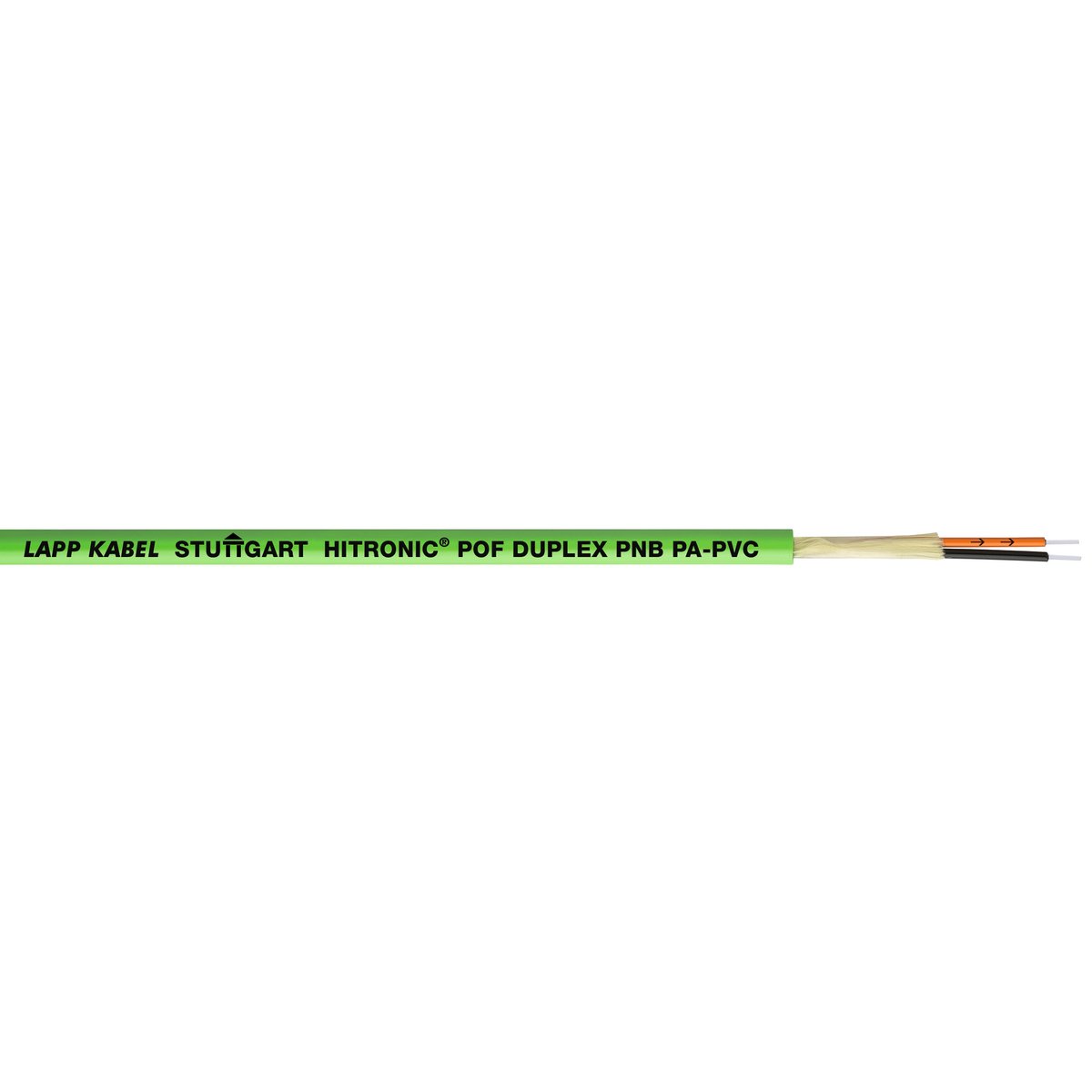

HITRONIC® POF DUPLEX PNB PA-PVC

28052002

2.2 mm

7.8 mm

980 µm

6,09 €

Dolžina *
Poljubna dolžina * Naročilu bo dodan strošek manipulacije in reza 15€ na rez

Min. količina za naročanje: 5000

Rok dobave sporočimo po obdelavi naročila.

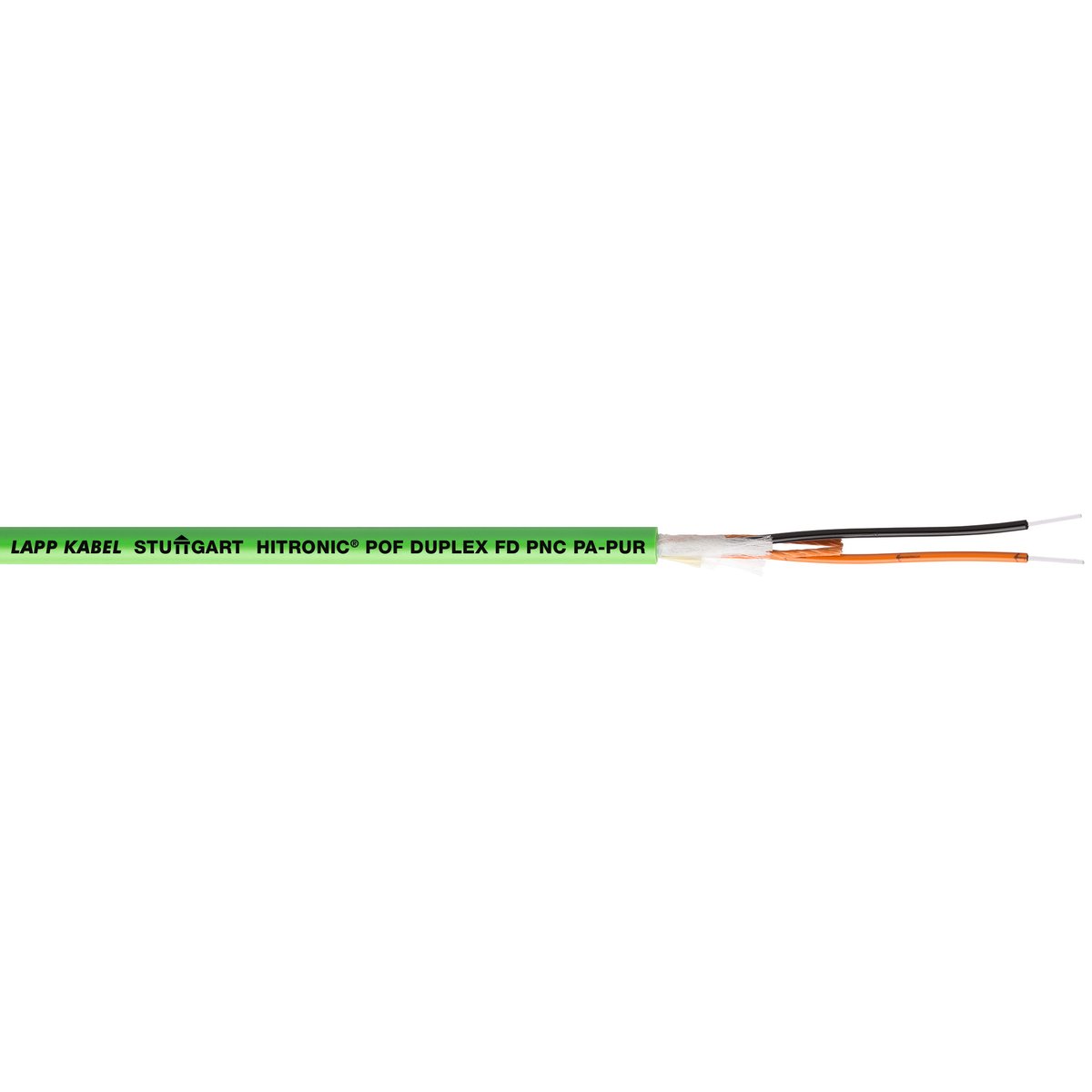

HITRONIC® POF DUPLEX FD PNC PA-PUR

28351002

2.2 mm

8.0 mm

980 µm

6,46 €

Dolžina *
Poljubna dolžina * Naročilu bo dodan strošek manipulacije in reza 15€ na rez

Informativni dobavni rok: 5-8 delovnih dni. Predviden dobavni rok za izbrano količino prosimo preverite v košarici.

Benefits

Plastic optical fibres (POF, Polymer Optical Fibre) are lightweight, easy to work with and fault-tolerant during assembly, and are designed for short transmission distances.

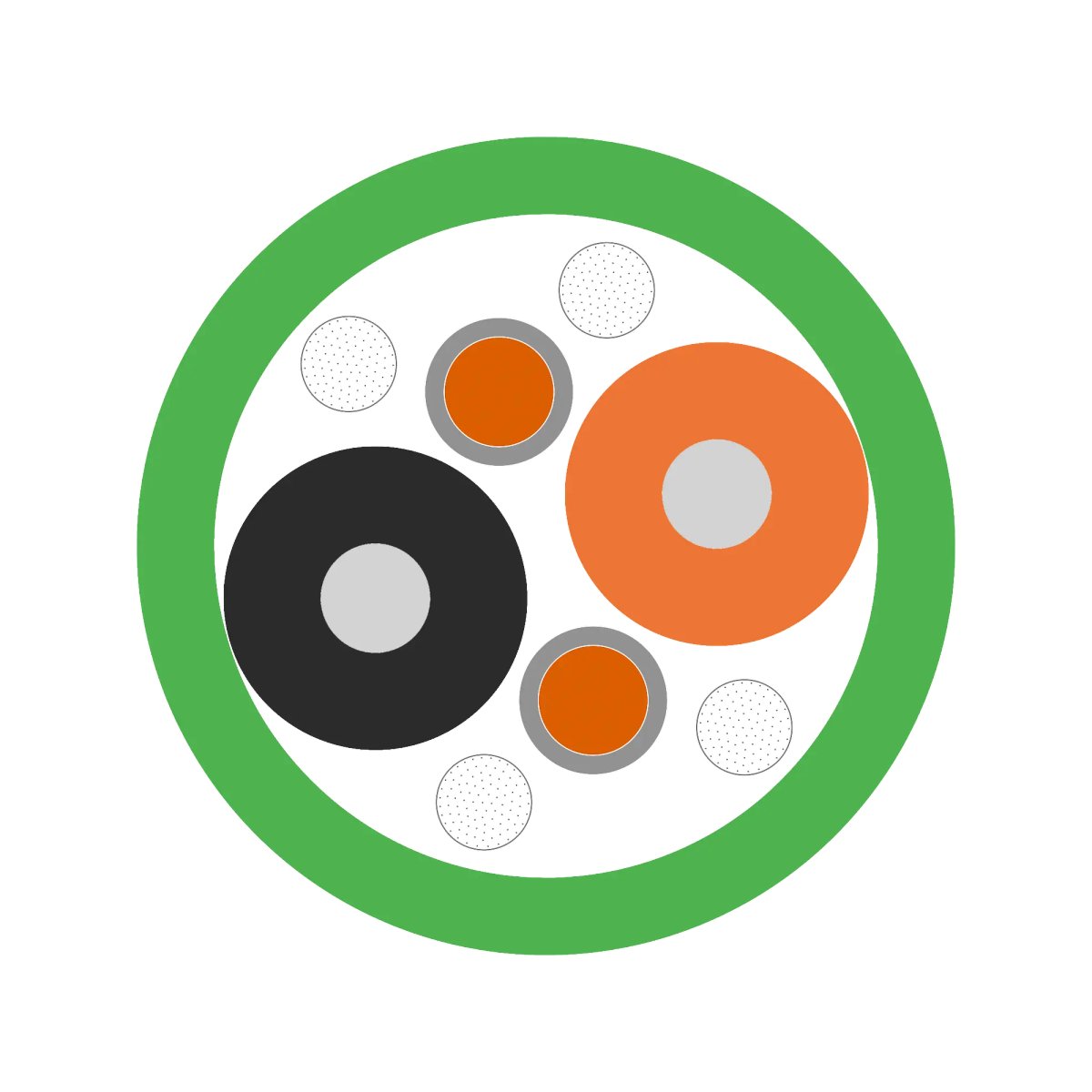

Duplex version for parallel routing of two fibres and space-saving implementation of bidirectional connections.
Halogen free product that generates no harmful gases in the event of a fire.
Available with robust PVC or abrasion-resistant PU outer sheath.
No electromagnetic interference from non-metallic materials is generated inside the cable.
No grounding problems
No intereference by external fields
Easy to handle
Suitable for direct connector assembly
Optical data transmisson up to 70m

Applications

PROFINET type C:for flexible applications (power chains)
Articles with "PNB" in their product name are designed for conditionally flexible use in a PROFINET Type B network. They are suitable for permanent and protected installation in pipes and installation ducts.
For optical signal transmission up to 50 m.
Articles with "PNC" in their article name are designed for flexible use in a PROFINET Type C network. They are suitable for continuous motion in moving machine parts and in cable chains.
PROFINET type B:for fixed laying
At 100 Mbit/s: max 50 m cable length
PROFINET / Industrial Ethernet
For optical signal transmission in industrial applications

Documentation

Notes

Please find our standard lengths at: www.lappkabel.de/kabel-standardlaengen.
If applicable, the prices are solid metal prices without surcharges and VAT. Sales only to business customers.
Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.
Photographs and graphics are not to scale and do not represent detailed images of the respective products.
LAPP Kabel is a member of the PROFIBUS user organisation (PNO).
