HITRONIC® PCF cables for PROFINET applications

Name: HITRONIC® PCF cables for PROFINET applications
Price: 13.17 EUR
Availability: OutOfStock

Naziv

Koda izdelka

Nazivni premer jedra

Min. zunanji premer

Nazivni zunanji premer

Cena

Količina

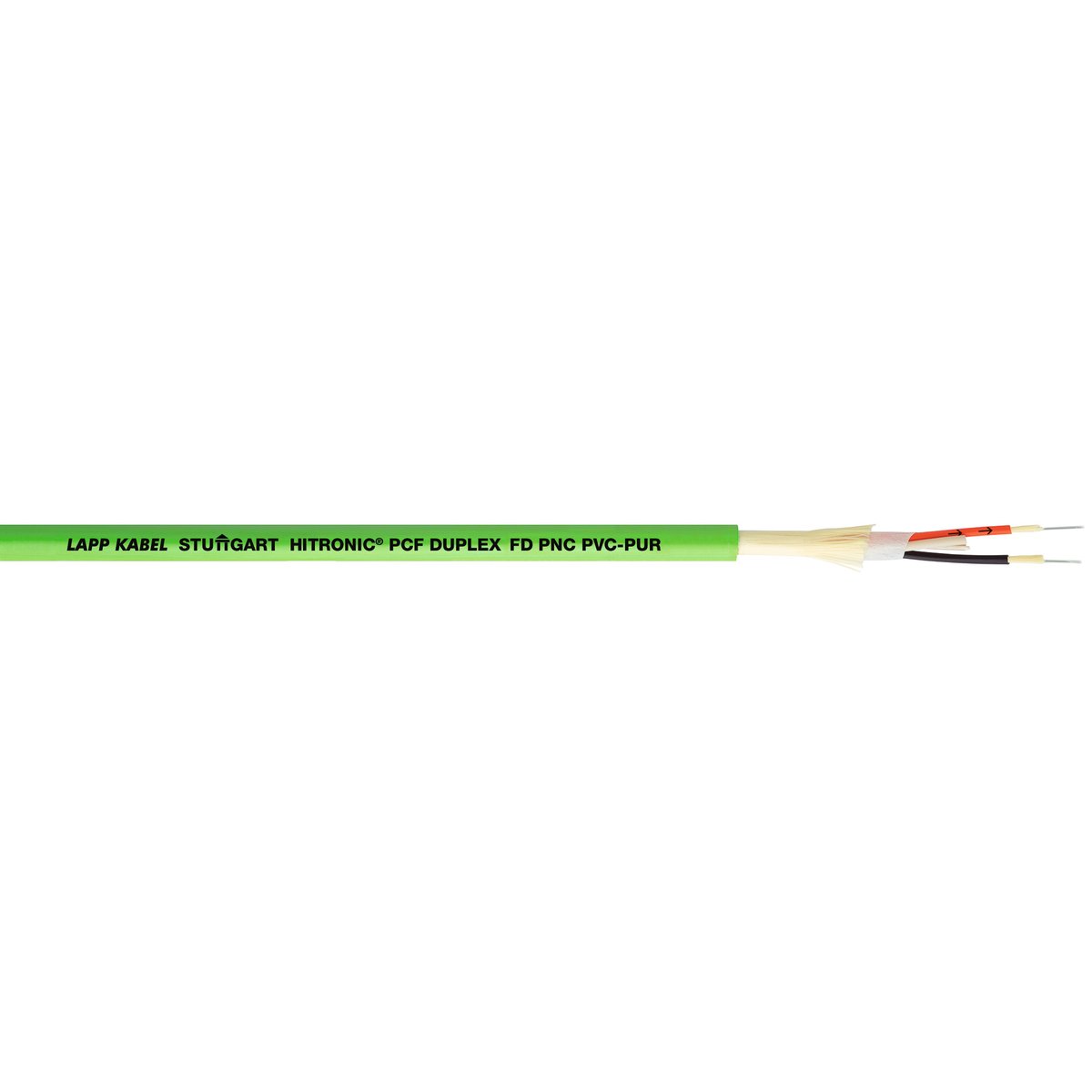

HITRONIC® PCF DUPLEX FD PNC PVC-PUR

28351702

2.2 mm

8.5 mm

8.8 mm

13,17 €

Dolžina *
Poljubna dolžina * Naročilu bo dodan strošek manipulacije in reza 15€ na rez

Informativni dobavni rok: 5-8 delovnih dni. Predviden dobavni rok za izbrano količino prosimo preverite v košarici.

Benefits

Fibre optic cables with a polymer-clad glass core (PCF, Polymer-Cladded Fibre) are break-resistant, flexible and easy to assemble.
Duplex version for parallel routing of two fibres and space-saving implementation of bidirectional connections.
Optical data transmisson up to 500m
Easy to handle
Suitable for direct connector assembly
No intereference by external fields
No grounding problems
No electromagnetic interference from non-metallic materials is generated inside the cable.
Available with robust PVC or abrasion-resistant PU outer sheath.

Articles with "PNB" in their product name are designed for conditionally flexible use in a PROFINET Type B network. They are suitable for permanent and protected installation in pipes and installation ducts.
PCF DUPLEX cabels for optical signal transmission in industrial applications
PROFINET / Industrial Ethernet
At 100 Mbit/s: max 100 m cable length
PROFINET type B:for fixed laying
PROFINET type C:for flexible applications (power chains)
For optical signal transmission up to 100 m at 100 Mbit/s.
Articles with "PNC" in their article name are designed for flexible use in a PROFINET Type C network. They are suitable for continuous motion in moving machine parts and in cable chains.

LAPP Kabel is a member of the PROFIBUS user organisation (PNO).
If applicable, the prices are solid metal prices without surcharges and VAT. Sales only to business customers.
Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.
Photographs and graphics are not to scale and do not represent detailed images of the respective products.
