HITRONIC® BxK

Naziv
Koda izdelka
Nazivni zunanji premer
Minimalni radij upogiba v mm, nepremično
Min. temperatura polaganja
Cena
Količina
+

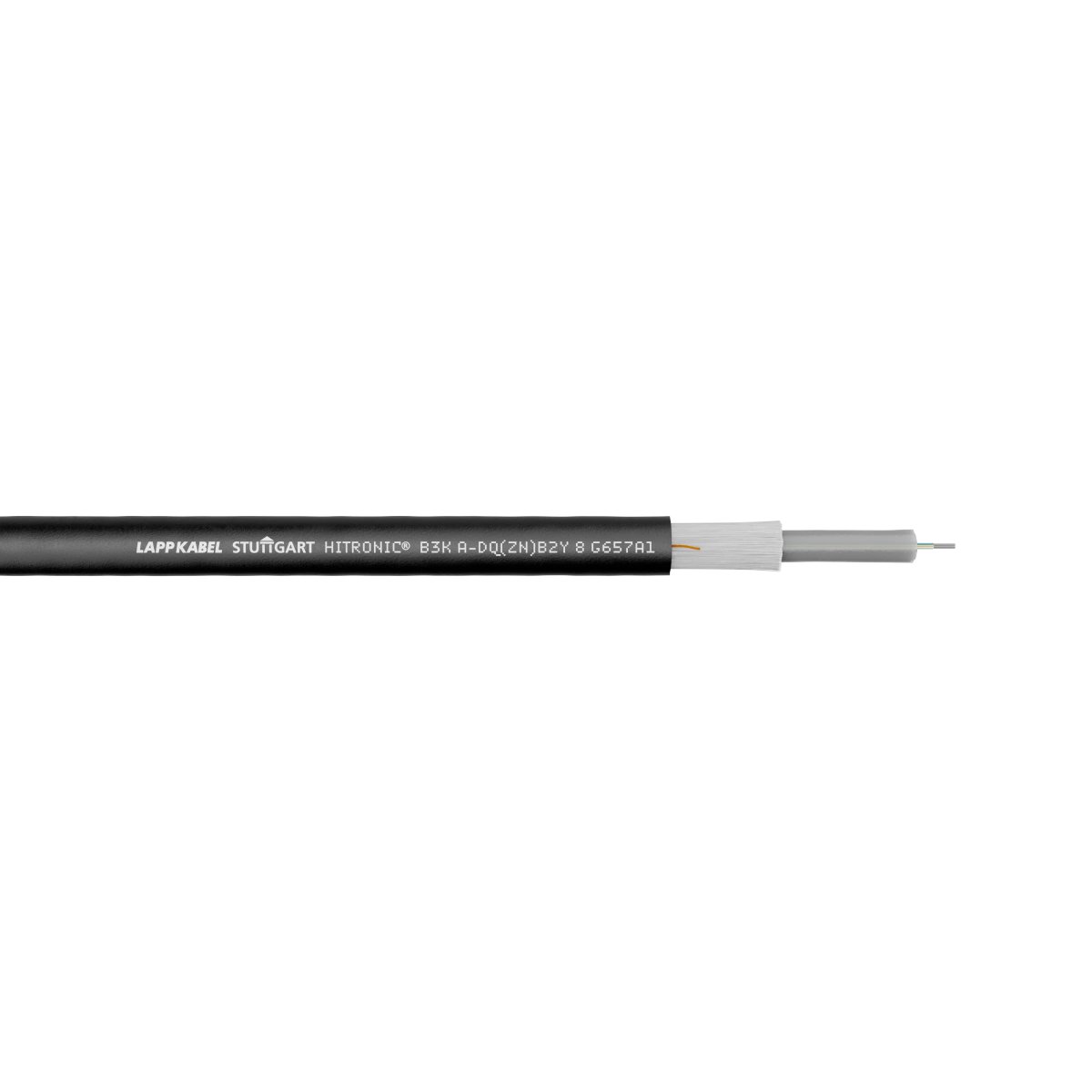

HITRONIC® B3K A-DQ(ZN)B2Y 8 G657A1
26800908
7.8 mm
78.0 mm
-20 °C
0,95 €
*
Rok dobave sporočimo po obdelavi naročila.
+
HITRONIC® B3K A-DQ(ZN)B2Y 12 G657A1
26800912
7.8 mm
78.0 mm
-20 °C
1,12 €
*
Informativni dobavni rok: 5-8 delovnih dni. Predviden dobavni rok za izbrano količino prosimo preverite v košarici.
+
HITRONIC® B3K A-DQ(ZN)B2Y 24 G657A1
26800924
7.8 mm
78.0 mm
-20 °C
1,66 €
*
Informativni dobavni rok: 5-8 delovnih dni. Predviden dobavni rok za izbrano količino prosimo preverite v košarici.
+

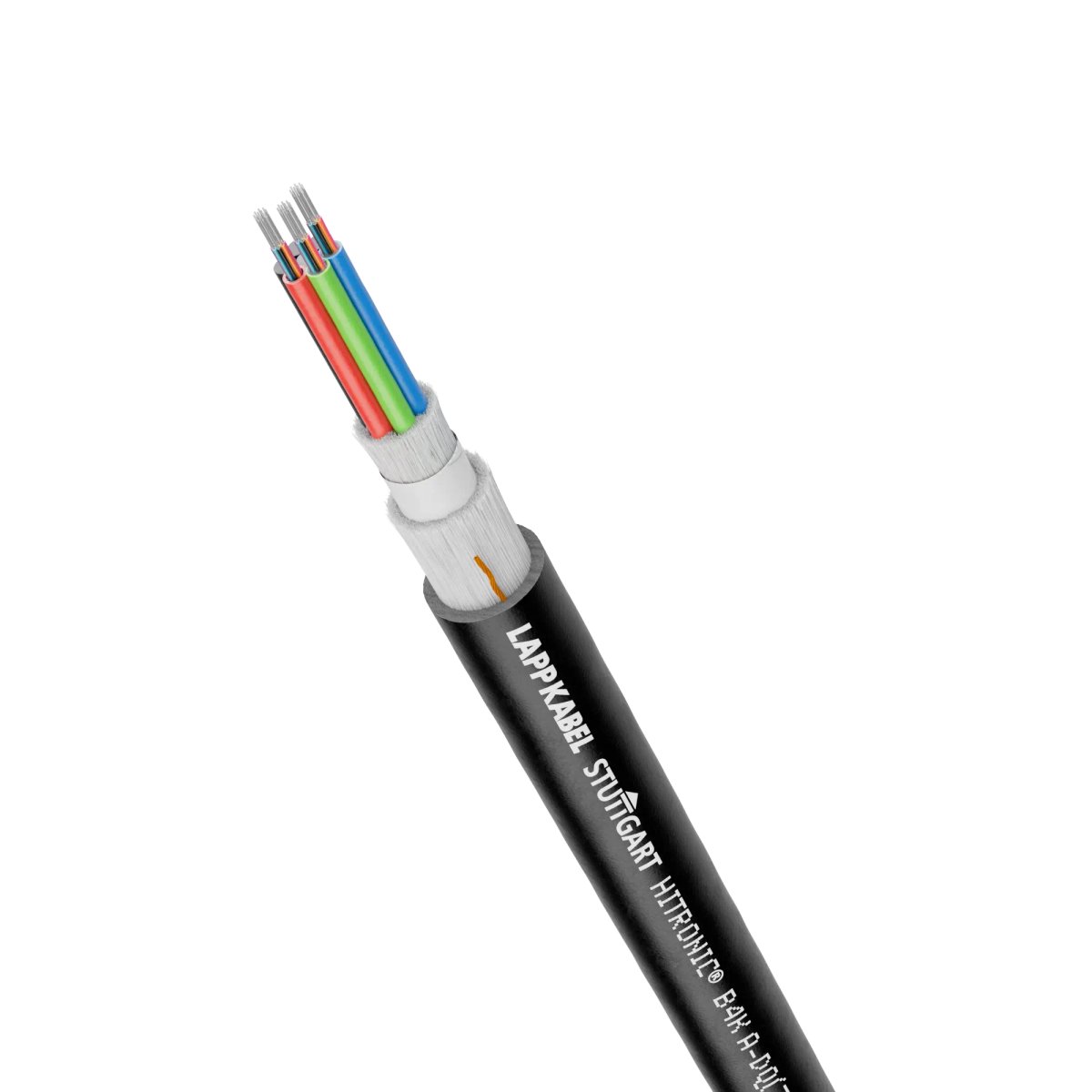

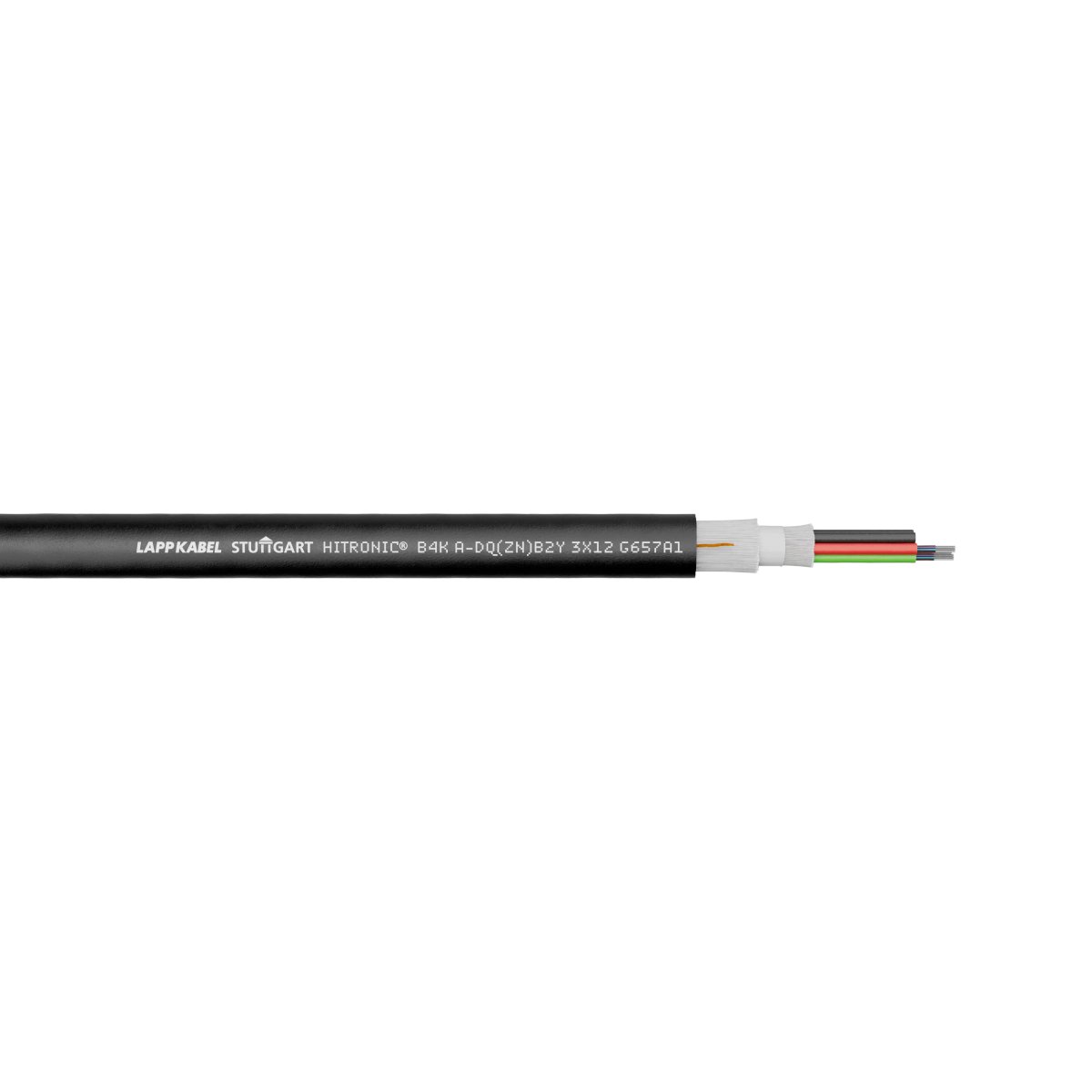

HITRONIC® B4K A-DQ(ZN)B2Y 3X12 G657A1
26801936
9.5 mm
95.0 mm
-20 °C
2,24 €
*
*

Naročilu bo dodan strošek manipulacije in reza 15€ na rez

Rok dobave sporočimo po obdelavi naročila.
+
HITRONIC® B4K A-DQ(ZN)B2Y 4X12 G657A1
26801948
9.5 mm
95.0 mm
-20 °C
2,77 €
*
*

Naročilu bo dodan strošek manipulacije in reza 15€ na rez

Rok dobave sporočimo po obdelavi naročila.
+
HITRONIC® B4K A-DQ(ZN)B2Y 2X12 G657A1
26801924
9.5 mm
95.0 mm
-20 °C
1,70 €
*
*

Naročilu bo dodan strošek manipulacije in reza 15€ na rez

Informativni dobavni rok: 5-8 delovnih dni. Predviden dobavni rok za izbrano količino prosimo preverite v košarici.

Benefits

  • Gel-filled central loose tube ensures longitudinal and transversal watertightness and thus optimum fibre protection.
  • With reinforced glass yarn for strain relief and rodent protection.
  • Due to their high bending insensitivity, single-mode fibres (OS2) in accordance with ITU-T G.657.A1 are ideal where space is limited. They allow tight bends without signal loss and simplify installation.
  • No electromagnetic interference from non-metallic materials is generated inside the cable.
  • Low-friction outer sheath and small bending radii allow cable to be installed by blowing air.
  • Easy to handle thanks to flexible and compact design.
  • Fibre optic cables (GOF) for high data rates and long transmission distances.

Applications

  • Especially for outdoor use.
  • Can be used in dry, wet and harsh environments.
  • For open installation on cable trays.
  • Typical areas of application include solar and wind farms.
  • For fixed installation in pipes and closed installation ducts.
  • Suitable for medium mechanical stress.
  • Suitable for direct underground installation.
  • The PE outer sheath is highly resistant to acids and alkaline solutions.
  • Suitable for WAN networks.

Notes

  • If applicable, the prices are solid metal prices without surcharges and VAT. Sales only to business customers.
  • Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.
  • Photographs and graphics are not to scale and do not represent detailed images of the respective products.
