HITRONIC® BTxK

Bodite prvi in ocenite ta izdelek

Naziv

Koda izdelka

Nazivni zunanji premer

Minimalni radij upogiba v mm, nepremično

Min. temperatura polaganja

Cena

Količina

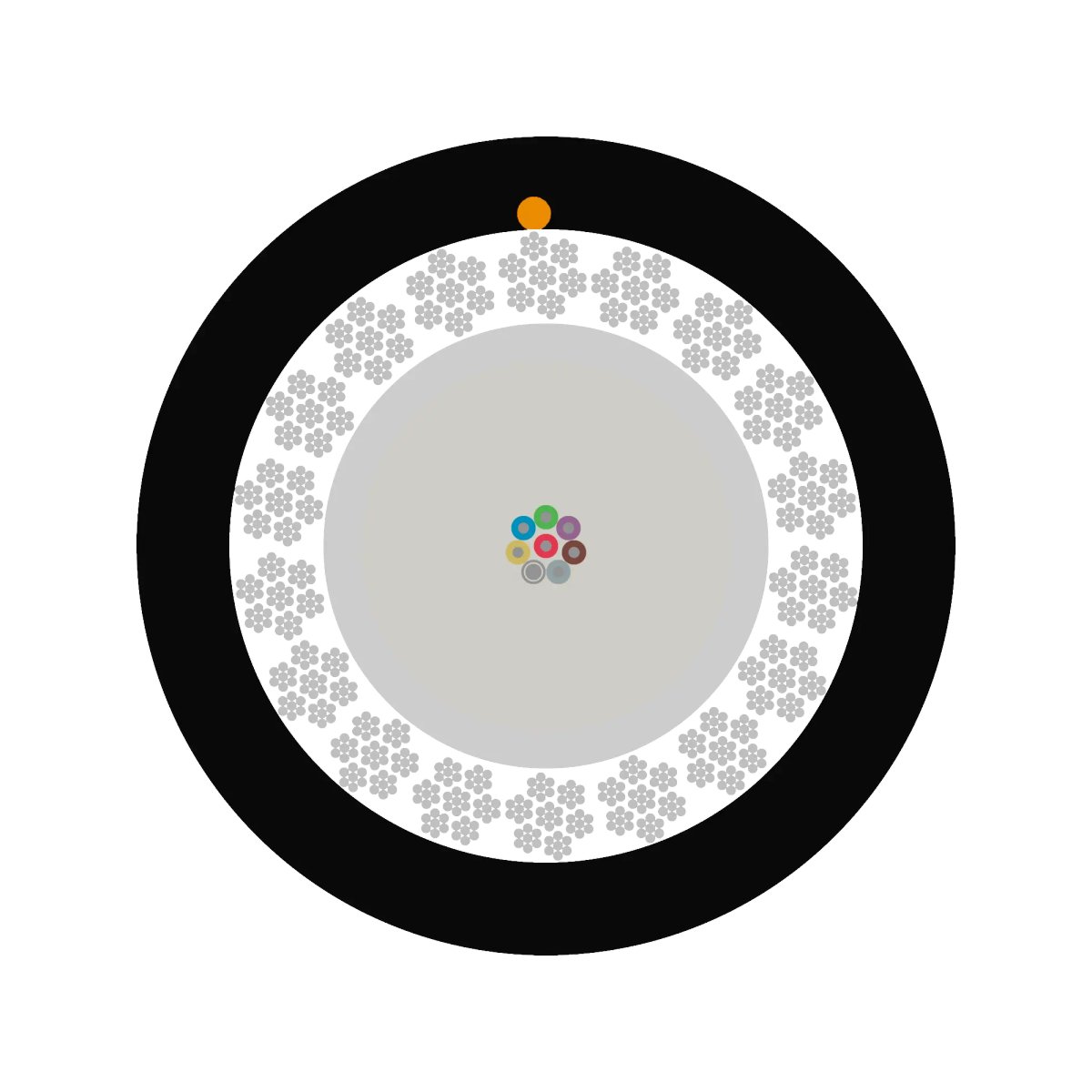

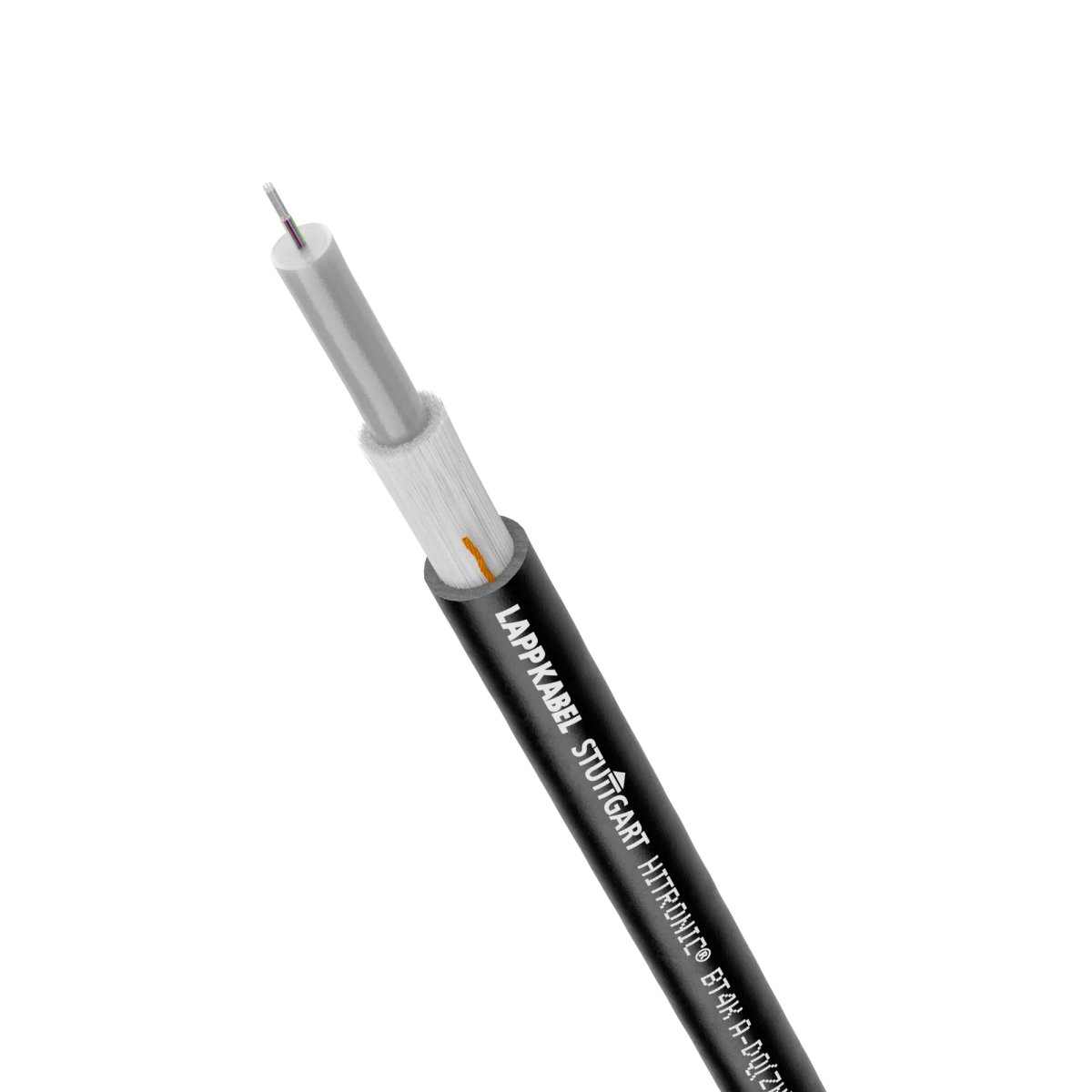

HITRONIC® BT4K A-DQ(ZN)B2Y 12 G657A1

26810912

8.7 mm

87.0 mm

-20 °C

0,87 €

Ni zaloge, predviden rok dobave: 6. 02. 2026.

HITRONIC® BT4K A-DQ(ZN)B2Y 24 G657A1

26810924

8.7 mm

87.0 mm

-20 °C

1,01 €

Ni zaloge, predviden rok dobave: 6. 02. 2026.

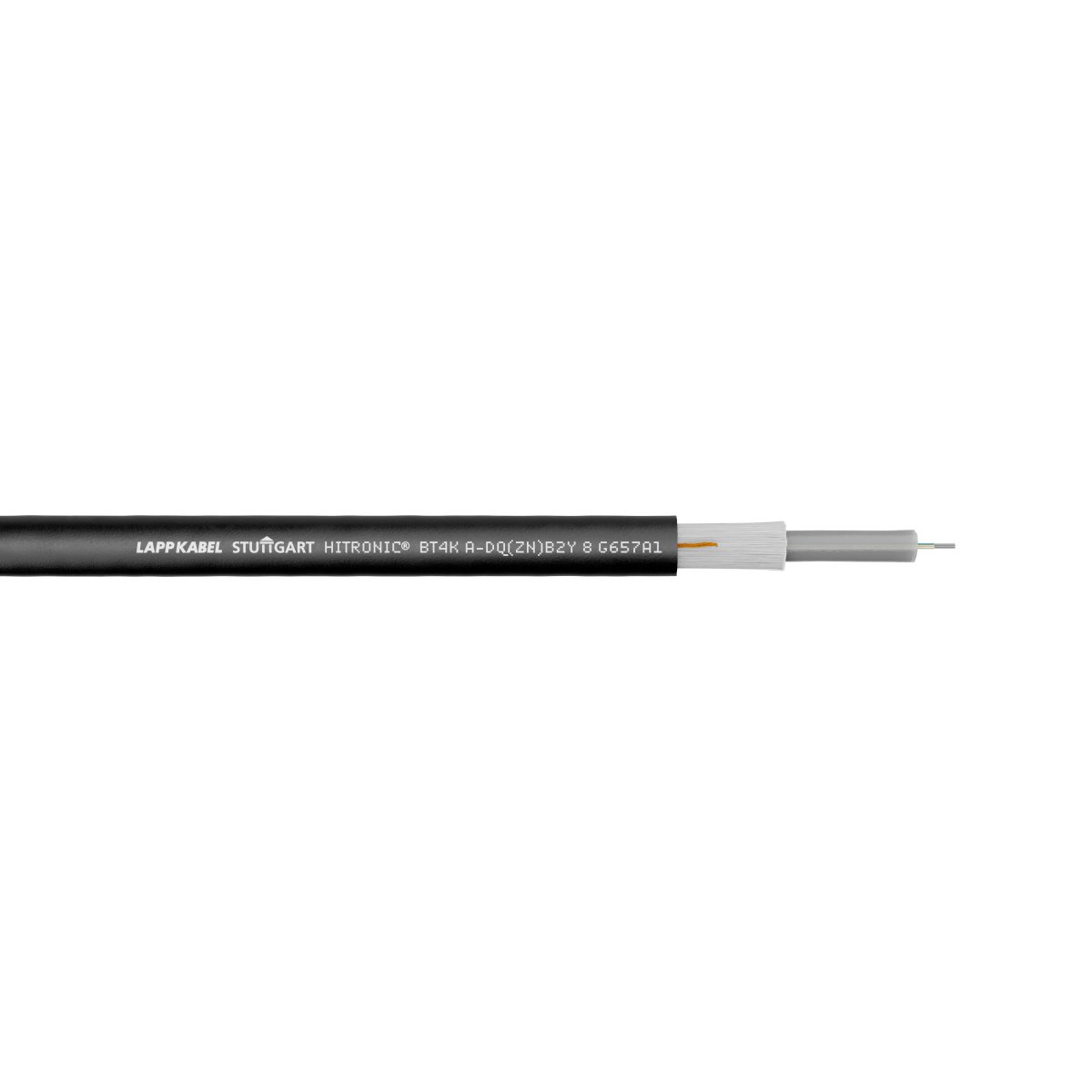

HITRONIC® BT4K A-DQ(ZN)B2Y 8 G657A1

26810908

8.7 mm

87.0 mm

-20 °C

0,82 €

Ni zaloge, predviden rok dobave: 6. 02. 2026.

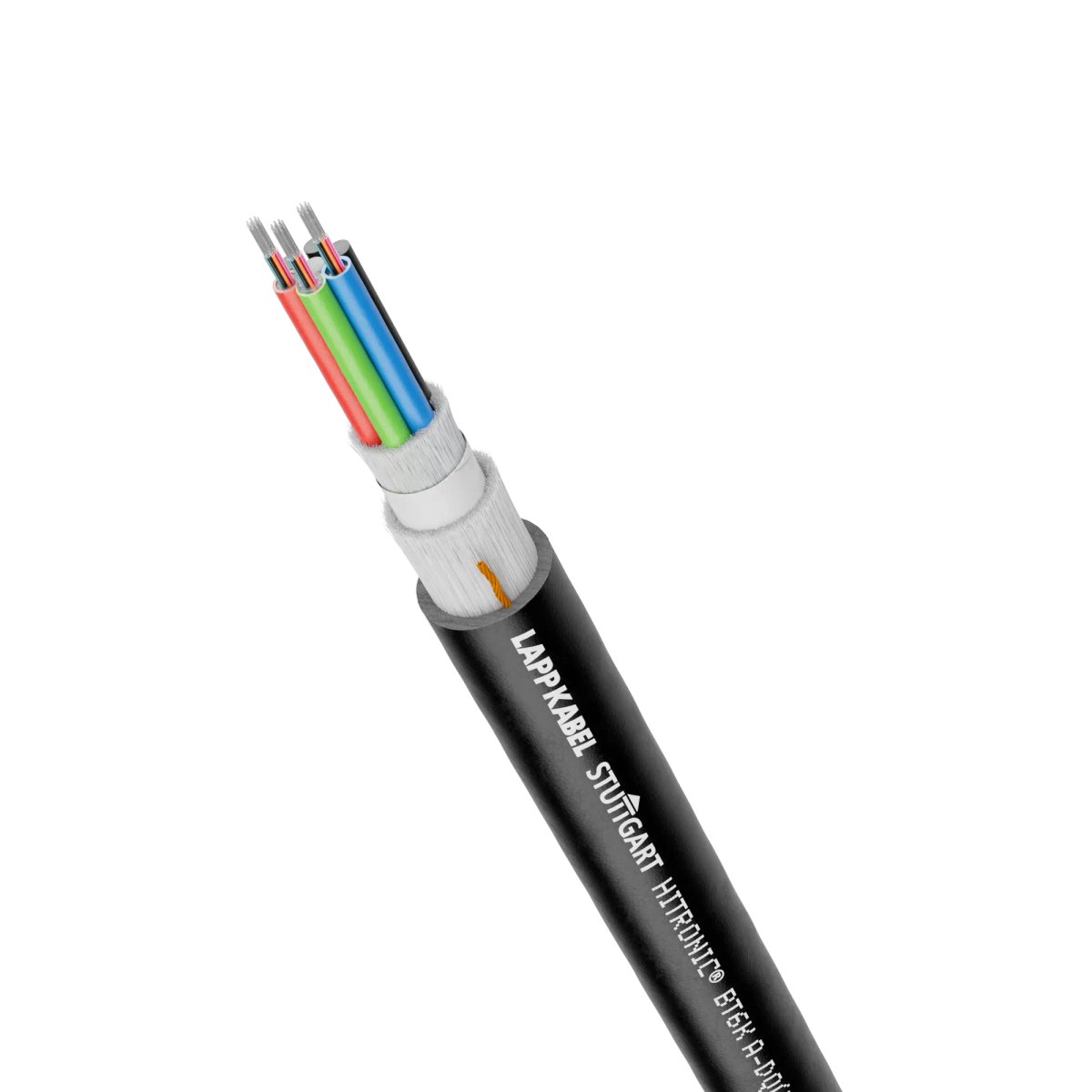

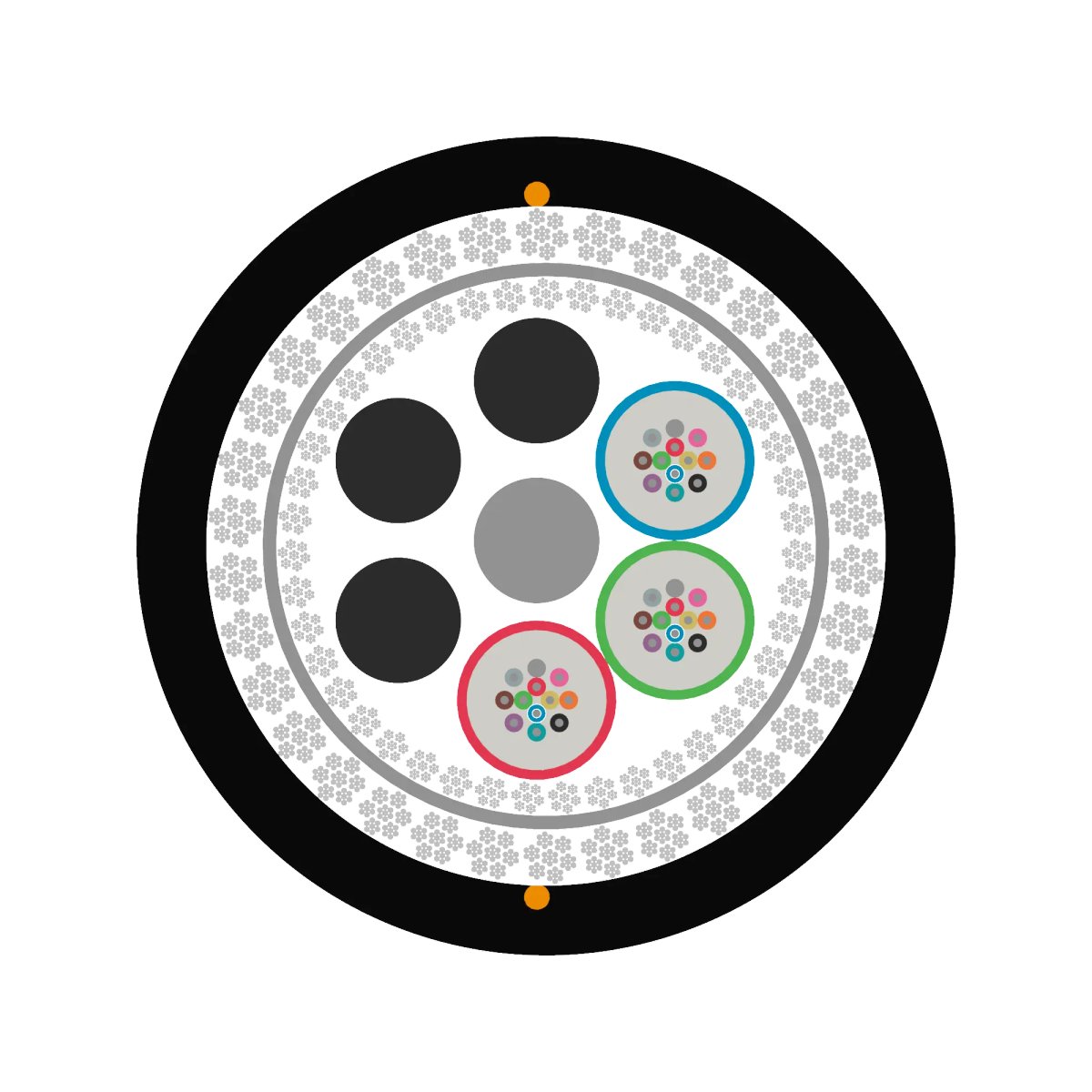

HITRONIC® BT6K A-DQ(ZN)B2Y 2X12 G657A1

26811924

11.5 mm

115.0 mm

-20 °C

0,79 €

Rok dobave sporočimo po obdelavi naročila.

HITRONIC® BT6K A-DQ(ZN)B2Y 4X12 G657A1

26811948

11.5 mm

115.0 mm

-20 °C

1,01 €

Rok dobave sporočimo po obdelavi naročila.

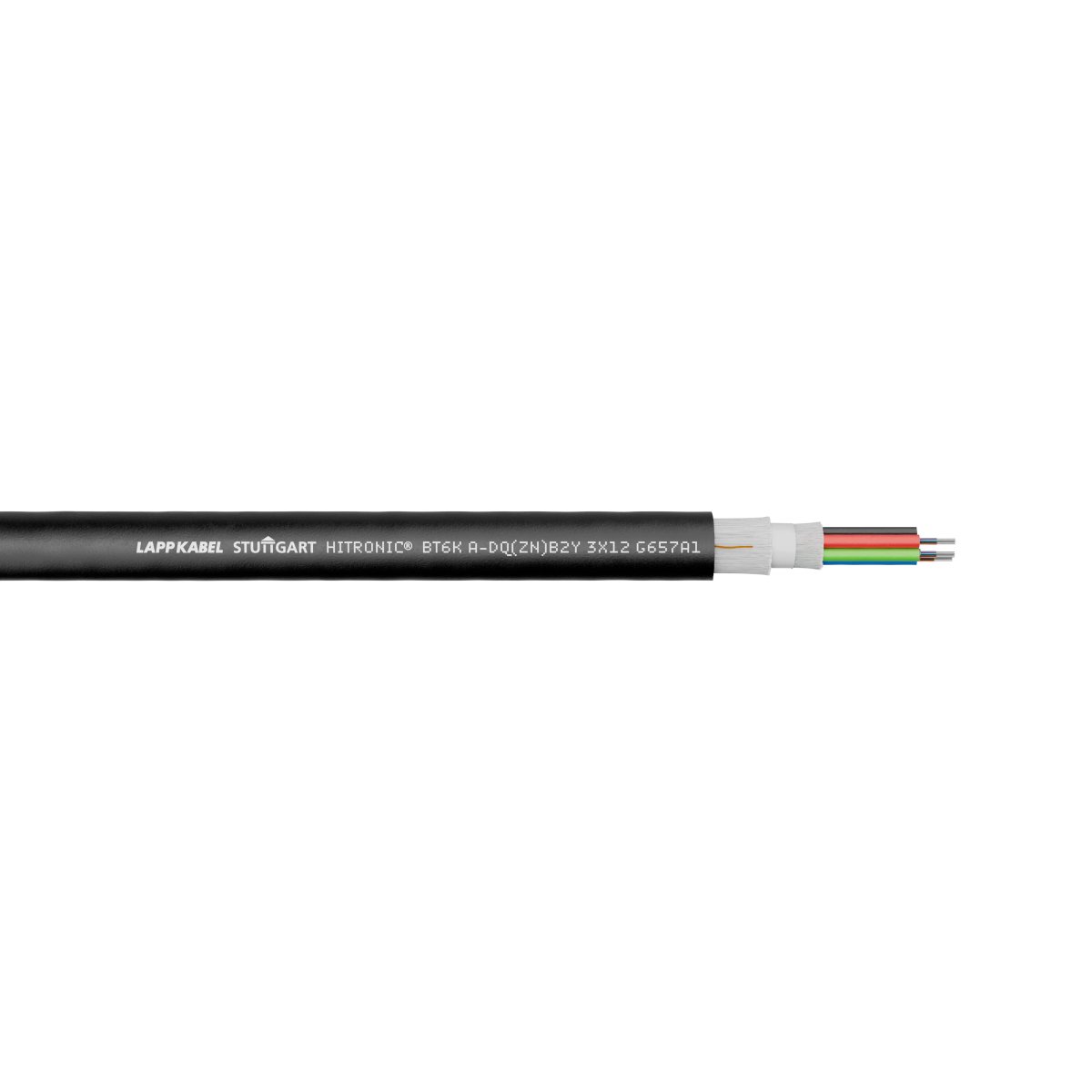

HITRONIC® BT6K A-DQ(ZN)B2Y 3X12 G657A1

26811936

11.5 mm

115.0 mm

-20 °C

0,90 €

Rok dobave sporočimo po obdelavi naročila.

Benefits

Fibre optic cables with glass optical fibre (GOF) have a high data transmission rate and range.
Robust during installation and operation thanks to robust outer sheath. With additional water transport protection in the longitudinal direction after mechanical damage.
Gel-filled central loose tube ensures longitudinal and transversal watertightness and thus optimum fibre protection.
Easy to handle thanks to flexible and compact design.
Due to their high bending insensitivity, single-mode fibres (OS2) in accordance with ITU-T G.657.A1 are ideal where space is limited. They allow tight bends without signal loss and simplify installation.
Very high strain relief due to reinforced glass yarns.
Low-friction outer sheath and small bending radii allow cable to be installed by blowing air.

Applications

Suitable for direct underground installation.
Especially for outdoor use.
For fixed installation in pipes and closed installation ducts.
Can be used in dry, wet and harsh environments.
Suitable for WAN networks.
For open installation on cable trays.
The PE outer sheath is highly resistant to acids and alkaline solutions.
Withstands high mechanical stress.
Typical areas of application include solar and wind farms.

Documentation

Notes

Photographs and graphics are not to scale and do not represent detailed images of the respective products.
If applicable, the prices are solid metal prices without surcharges and VAT. Sales only to business customers.
Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.
