  • Helix AC Charging cable Mode 3 Type 2
Slika Helix AC Charging cable Mode 3 Type 2
Slika Helix AC Charging cable Mode 3 Type 2 Slika Helix AC Charging cable Mode 3 Type 2 Slika Helix AC Charging cable Mode 3 Type 2 Slika Helix AC Charging cable Mode 3 Type 2 Slika Helix AC Charging cable Mode 3 Type 2 Slika Helix AC Charging cable Mode 3 Type 2 Slika Helix AC Charging cable Mode 3 Type 2 Slika Helix AC Charging cable Mode 3 Type 2 Slika Helix AC Charging cable Mode 3 Type 2 Slika Helix AC Charging cable Mode 3 Type 2 Slika Helix AC Charging cable Mode 3 Type 2 Slika Helix AC Charging cable Mode 3 Type 2 Slika Helix AC Charging cable Mode 3 Type 2

Helix AC Charging cable Mode 3 Type 2

Bodite prvi in ​​ocenite ta izdelek
Naziv
Koda izdelka
Dolžina konfekcioniranega kabla
Product type
Charging power
Cena
Količina
+
M32-T2Pm-T2Cm-orsw-H-32A3P-3000-or
5555934042
3 m
Pre-assembled EV charging cable
22
202,30 €
Rok dobave sporočimo po obdelavi naročila.
+
M32-T2Pm-T2Cm-orsw-H-20A3P-5000-or
5555935013
5 m
Pre-assembled EV charging cable
11
185,07 €
Na zalogi, predviden rok dobave 5-8 delovnih dni.
+
M32-T2Pm-T2Cm-orsw-H-32A3P-5000-or
5555935015
5 m
Pre-assembled EV charging cable
22
238,11 €
Na zalogi, predviden rok dobave 5-8 delovnih dni.
+
M32-T2Pm-T2Cm-orsw-H-20A3P-3000-or
5555934048
3 m
Pre-assembled EV charging cable
11
162,66 €
Rok dobave sporočimo po obdelavi naročila.
+
M32-T2Pm-T2Cm-swsw-H-32A3P-5000-sw
5555935003
5 m
Pre-assembled EV charging cable
22
238,11 €
Na zalogi, predviden rok dobave 5-8 delovnih dni.
+
M32-T2Pm-T2Cm-swsw-H-32A1P-5000-sw
5555935002
5 m
Pre-assembled EV charging cable
7.4
190,89 €
Rok dobave sporočimo po obdelavi naročila.
+
M32-T2Pm-T2Cm-swsw-H-32A3P-3000-sw
5555934039
3 m
Pre-assembled EV charging cable
22
202,30 €
Rok dobave sporočimo po obdelavi naročila.
+
M32-T2Pm-T2Cm-orsw-H-32A1P-5000-or
5555935014
5 m
Pre-assembled EV charging cable
7.4
373,48 €
Rok dobave sporočimo po obdelavi naročila.
+
M32-T2Pm-T2Cm-swsw-H-20A3P-5000-sw
5555935001
5 m
Pre-assembled EV charging cable
11
185,07 €
Na zalogi, predviden rok dobave 5-8 delovnih dni.

Benefits

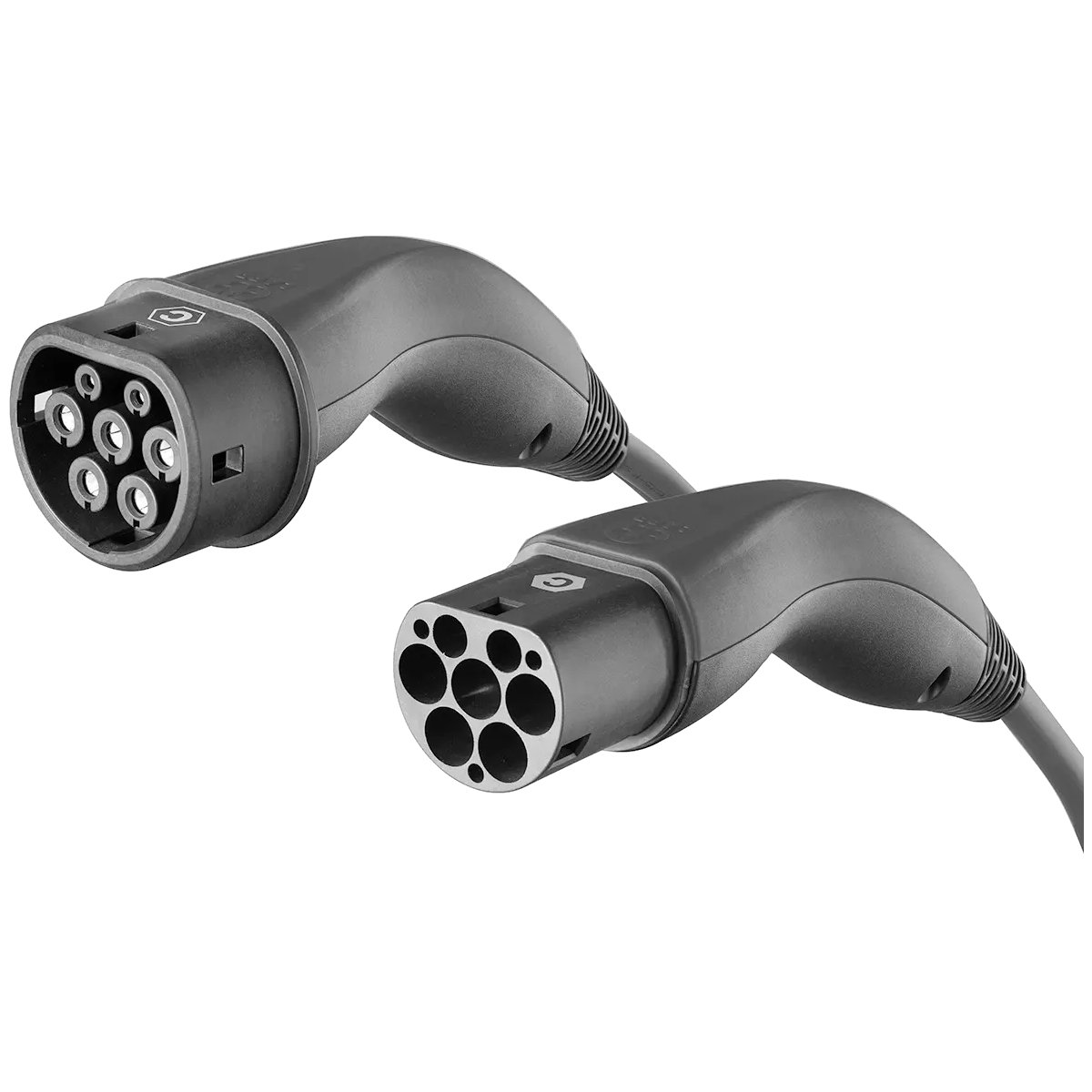

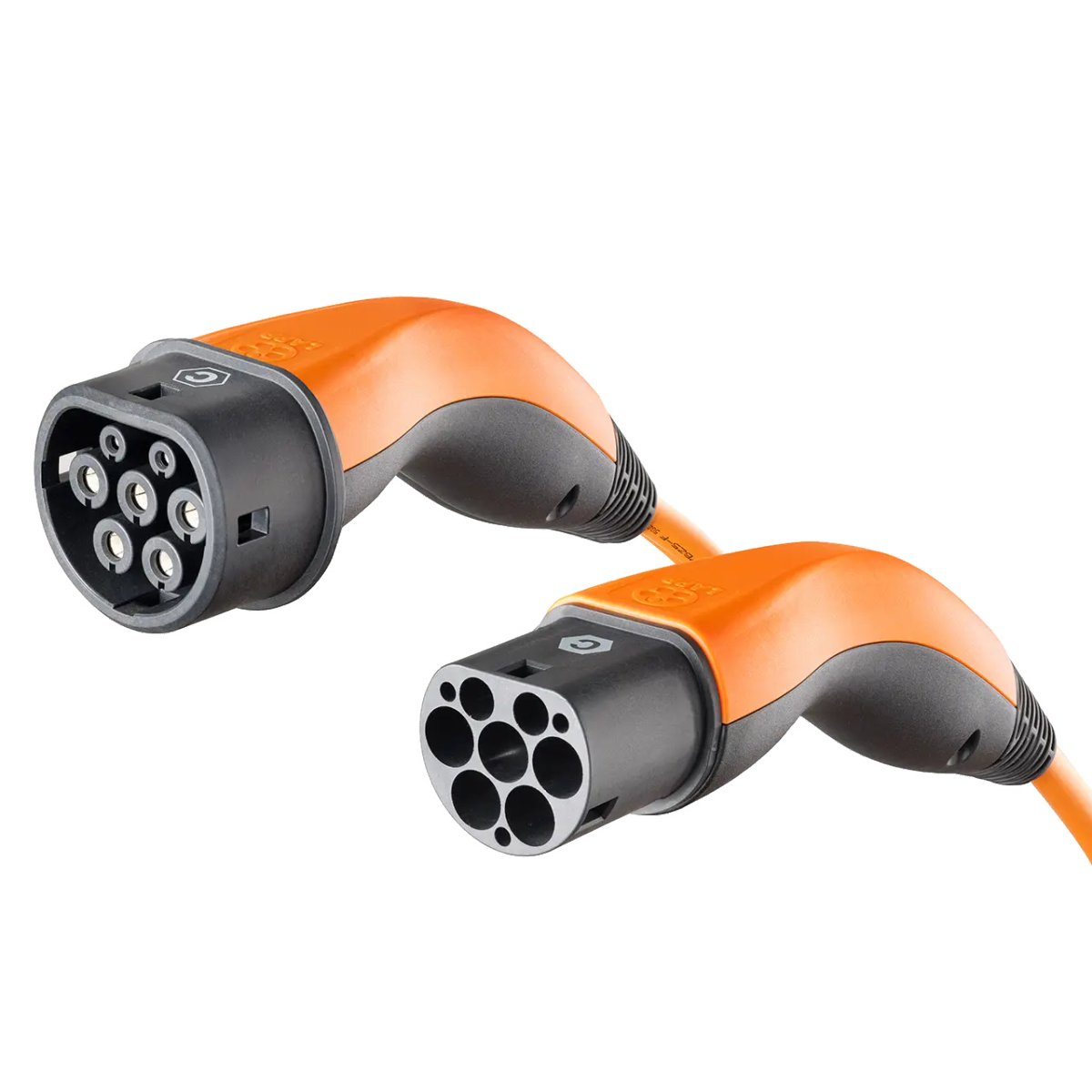

  • Equipped with ergonomic and robust, standardised type 2 plugs on both sides.

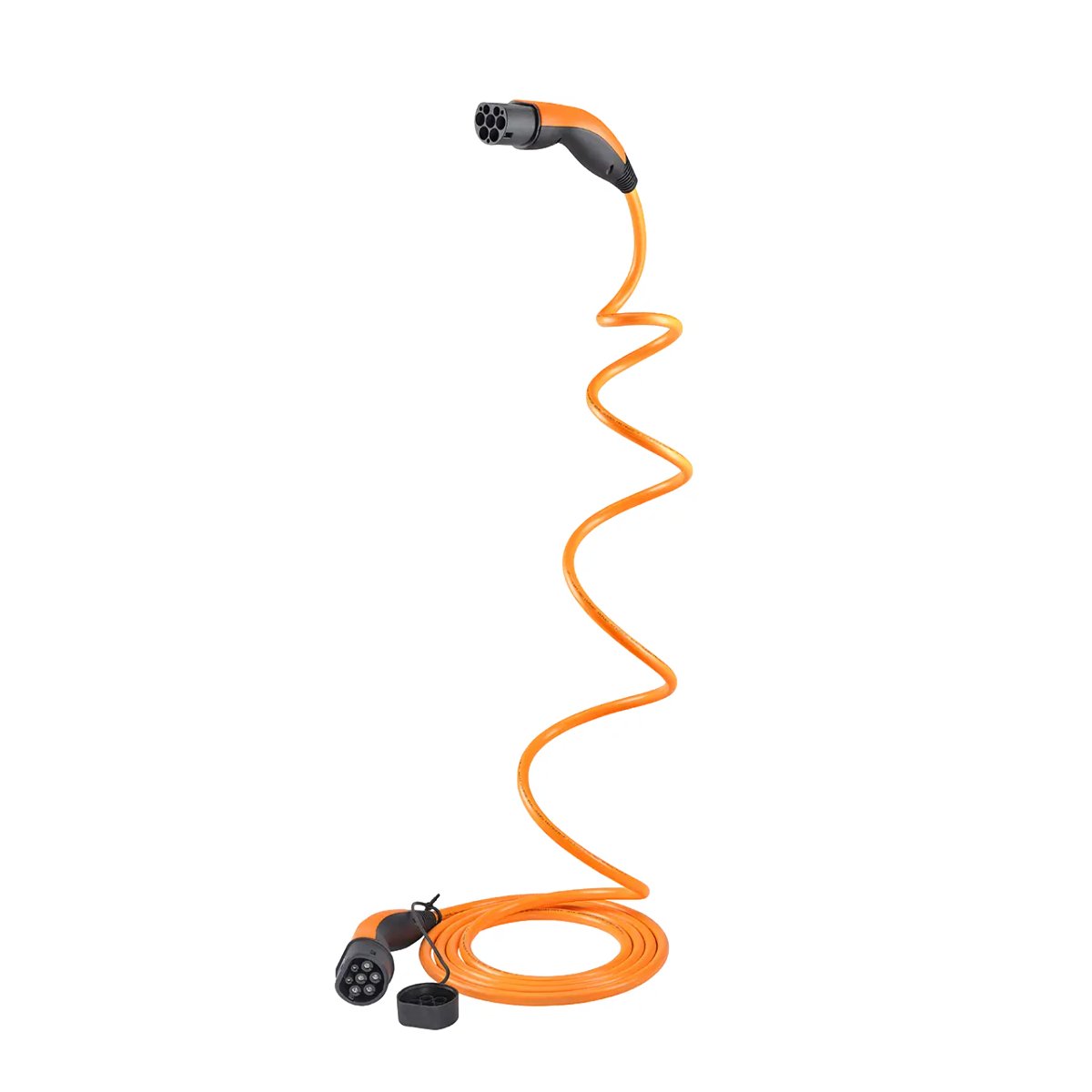

  • Available in black or orange signal colour.

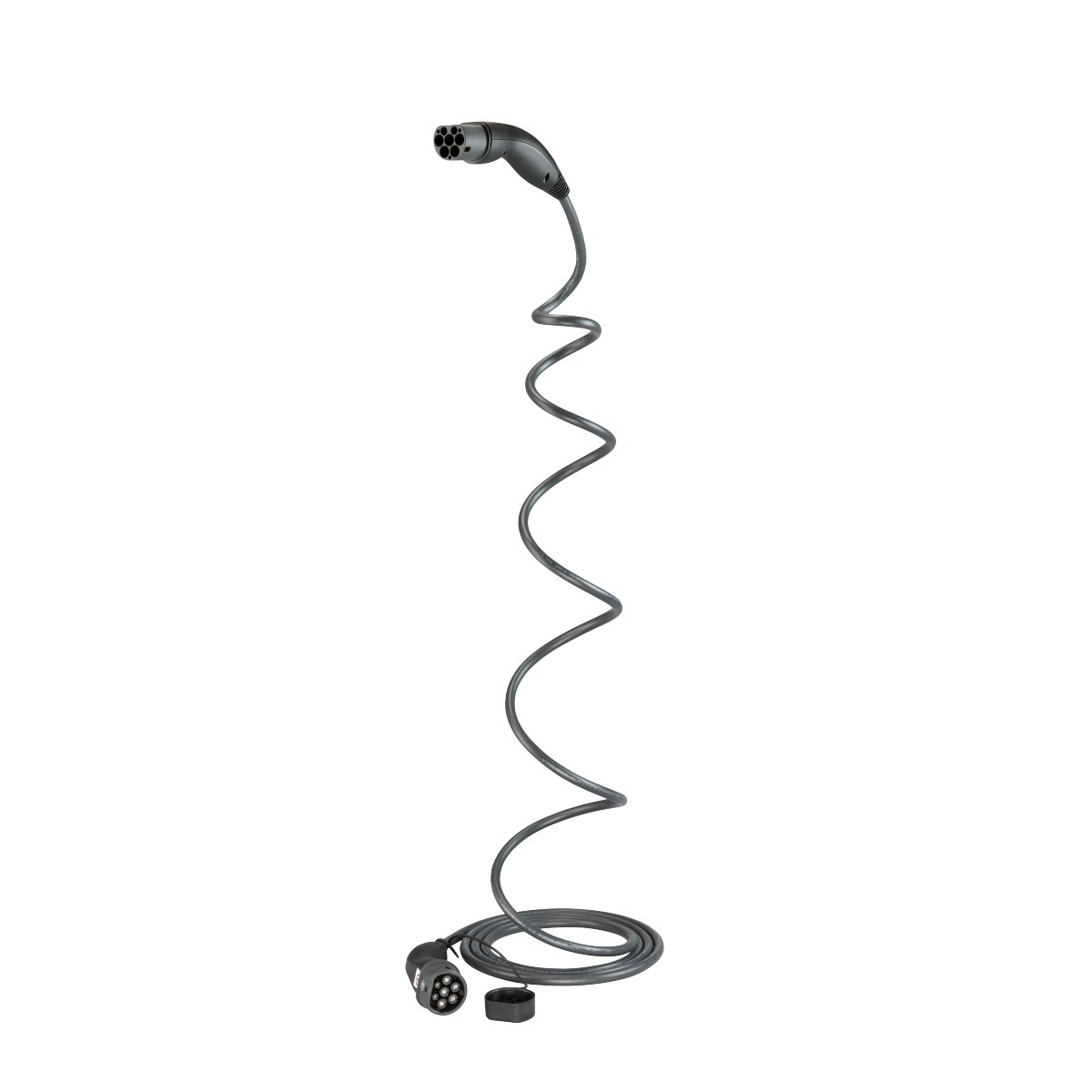

  • Space-saving and handy: The patented Helix cable is a self-winding charging cable with shape memory that automatically returns to its original shape after charging.
  • Silver-plated contact surface for low contact resistances and minimum heat generation at the contact.
  • Excellent moisture protection thanks to water jet-tight design (protection class IP 55) and additional longitudinal watertightness.
  • Available in a wide range of variants: from 3.7 kW to 22 kW, 1-phase or 3-phase.
  • Fulfils all relevant IEC and EN product requirements.

Applications

  • Suitable for use at temperatures up to -40°C.

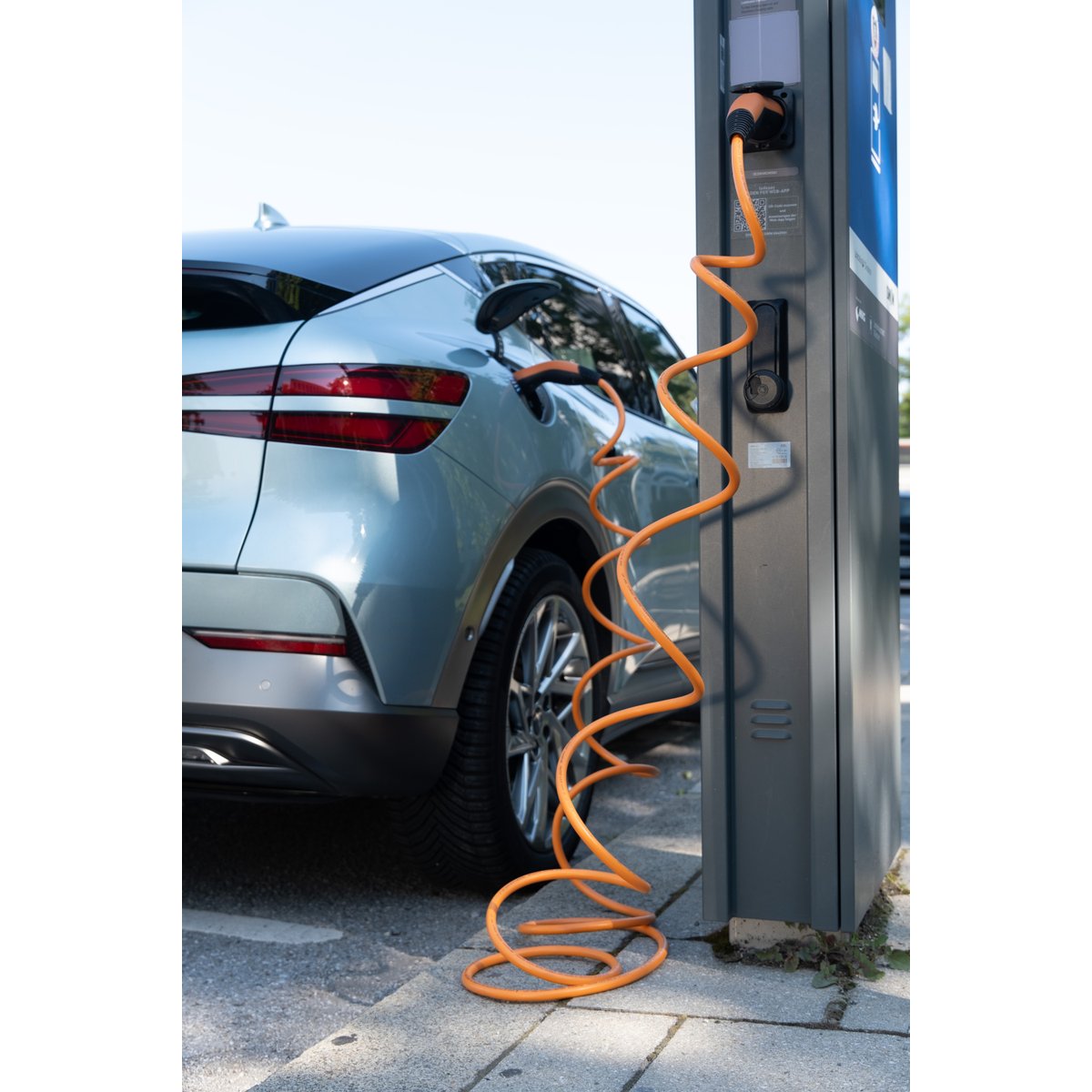

  • For charging electric and plug-in hybrid cars with a Type 2 vehicle socket.

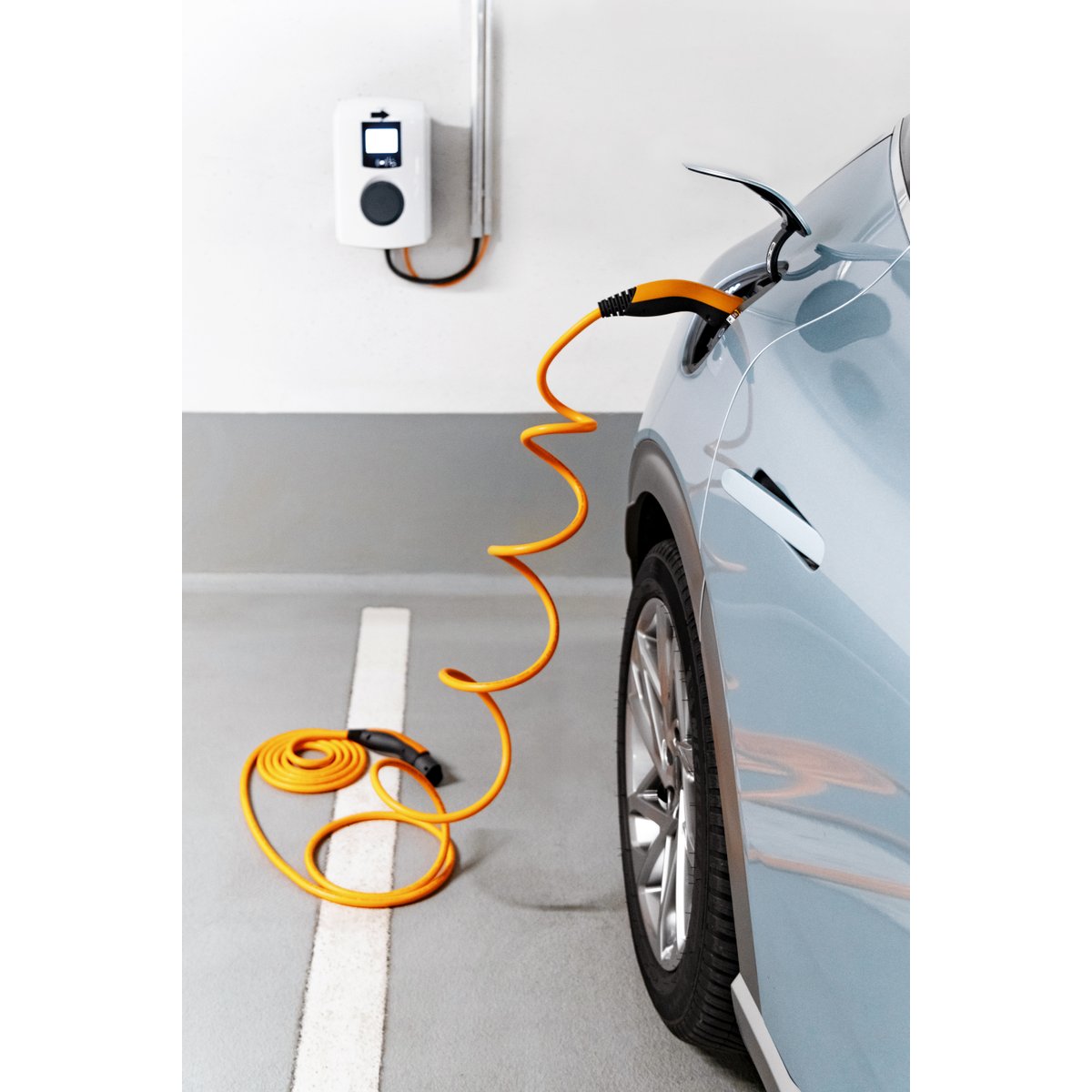

  • For charging at private wall boxes or public charging stations with AC power supply.
  • The PU outer sheath is resistant to mineral oil-based lubricants and is highly chemical resistant.
  • The PU outer sheath withstands high mechanical loads.
  • Suitable for outdoor use, subject to the temperature range.

Notes

  • Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.
  • If applicable, the prices are solid metal prices without surcharges and VAT. Sales only to business customers.
  • Photographs and graphics are not to scale and do not represent detailed images of the respective products.
