H1Z2Z2-K, optimized version

Naziv
Koda izdelka
Nazivni presek vodnika (mm)
Nazivni zunanji premer
Minimalni radij upogiba v mm, nepremično
Cena
Količina
+

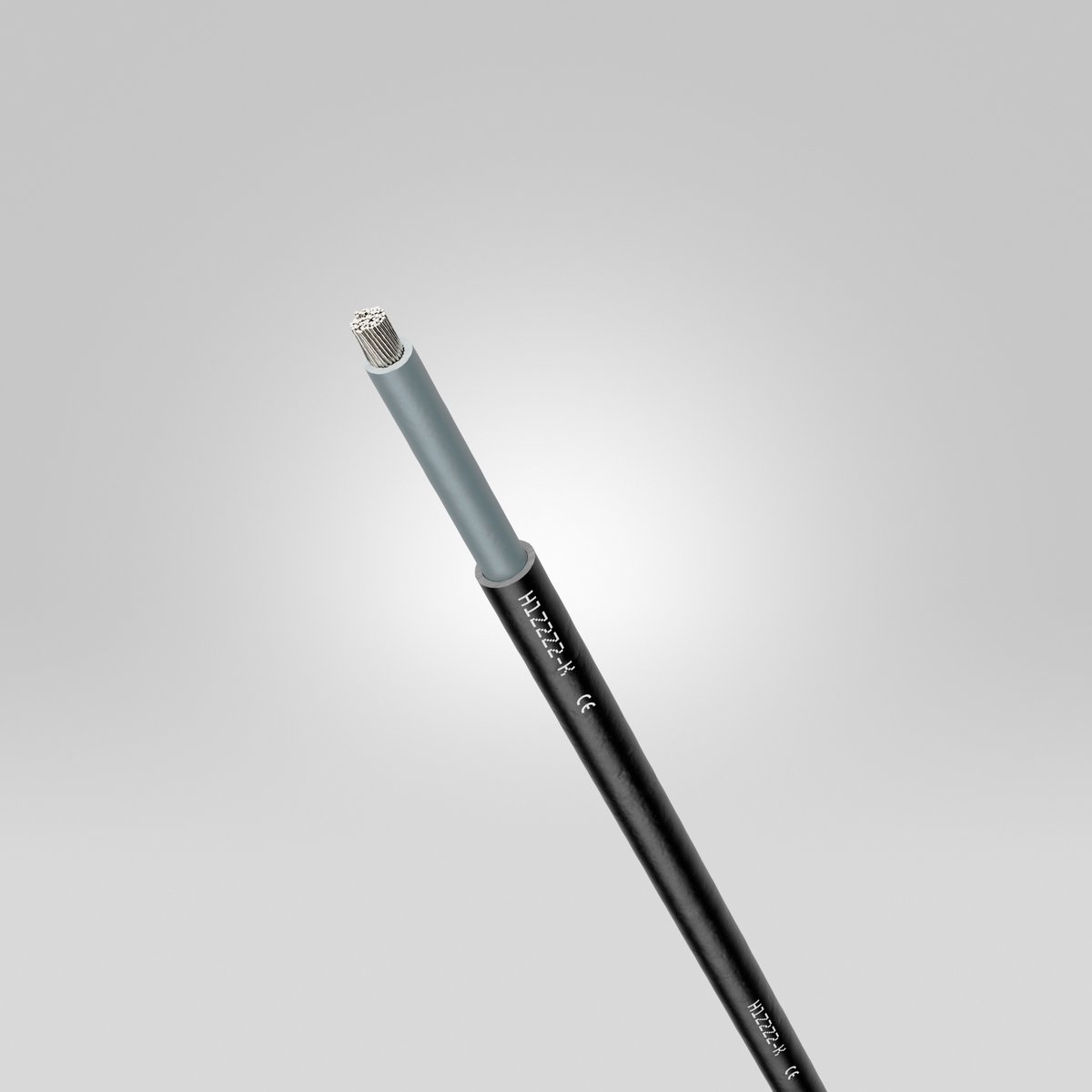

H1Z2Z2-K, OPTIMIZED VERSION 1X10 BK
1023761
10 mm2
7.1 mm
28.4 mm
2,43 €
*
*

Naročilu bo dodan strošek manipulacije in reza 15€ na rez

Rok dobave sporočimo po obdelavi naročila.
+

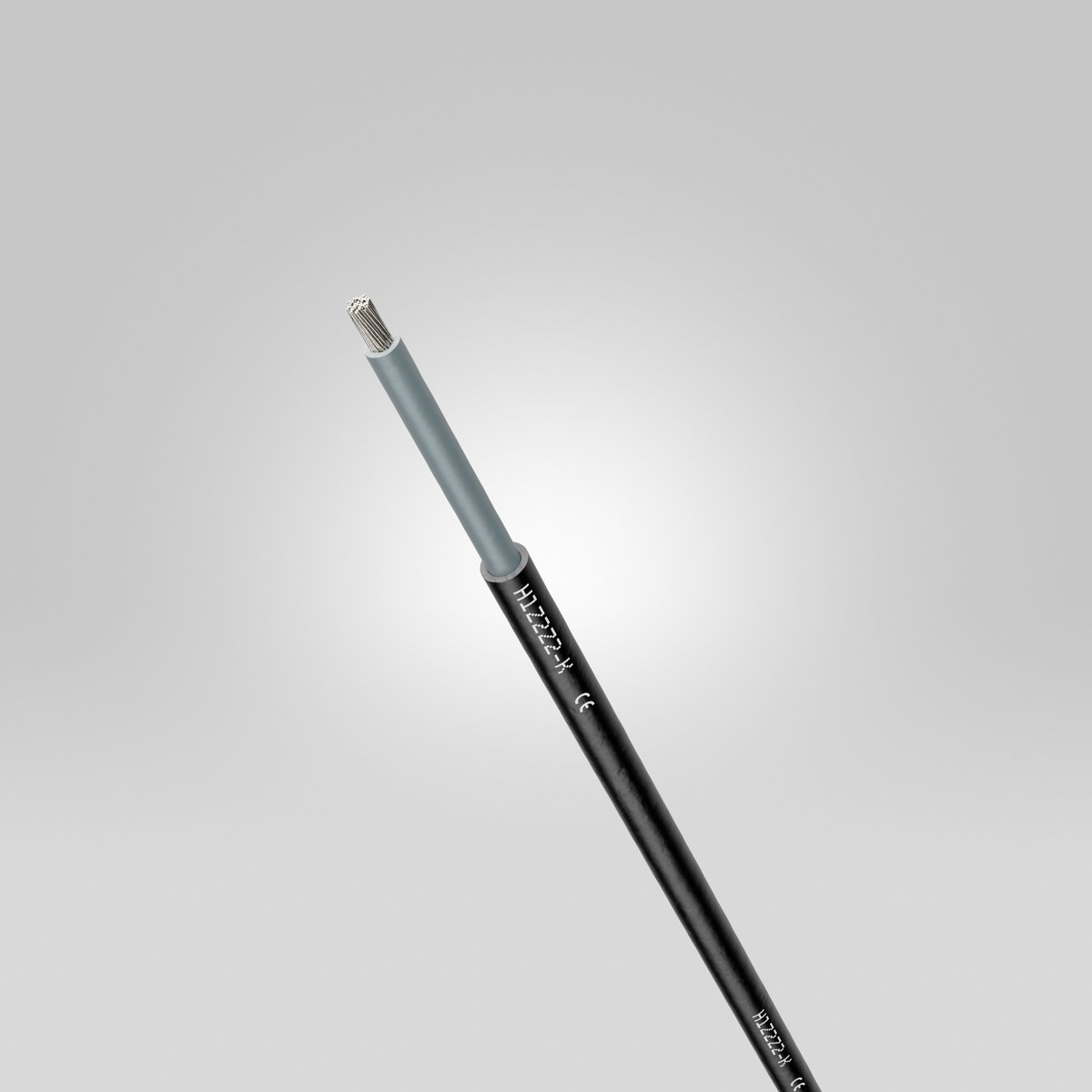

H1Z2Z2-K, OPTIMIZED VERSION 1X6 BK
1023760
6 mm2
6 mm
24.0 mm
1,40 €
*
*

Naročilu bo dodan strošek manipulacije in reza 15€ na rez

Rok dobave sporočimo po obdelavi naročila.
+

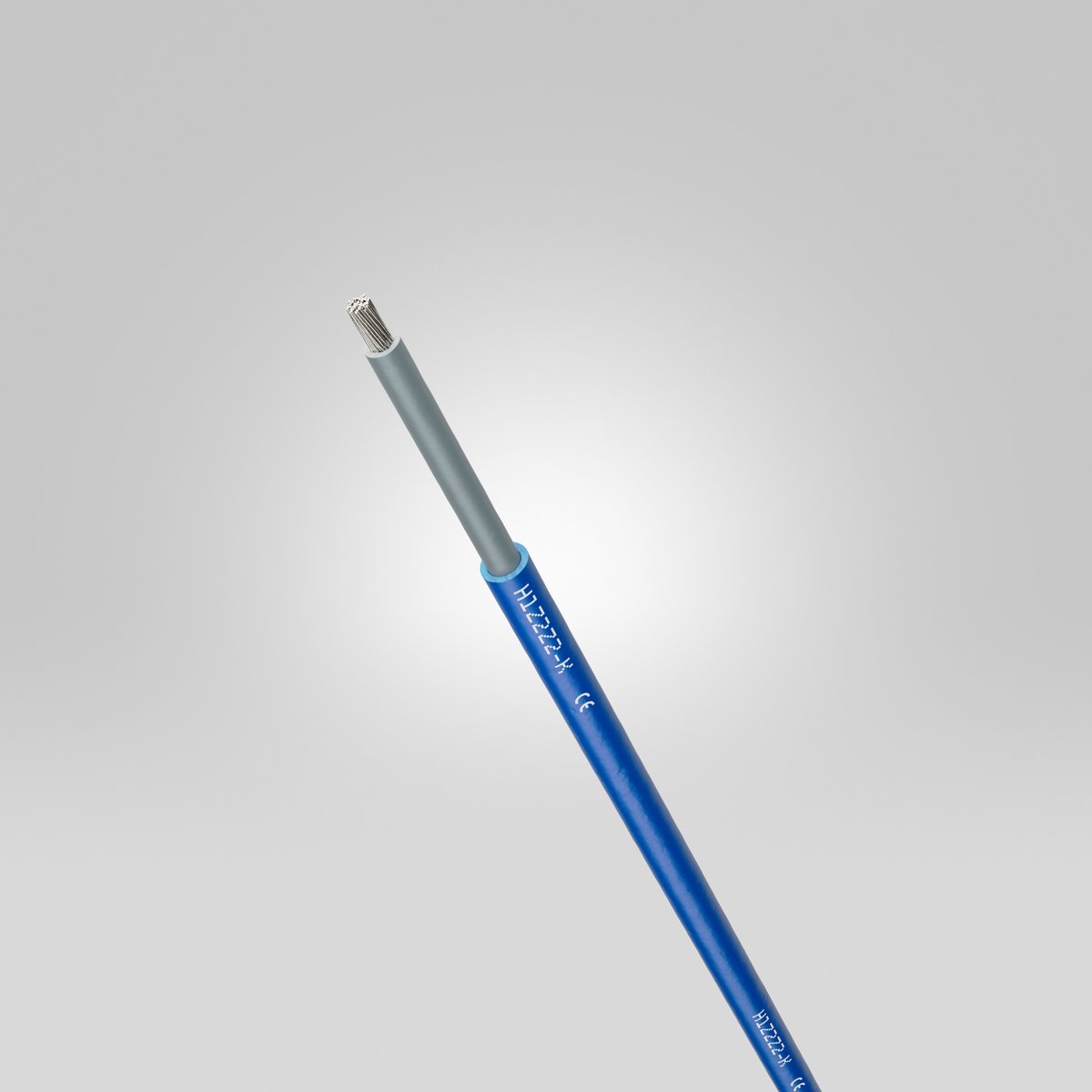

H1Z2Z2-K, OPTIMIZED VERSION 1X4 BU
1023789
4 mm2
5.5 mm
22.0 mm
1,01 €
*
*

Naročilu bo dodan strošek manipulacije in reza 15€ na rez

Rok dobave sporočimo po obdelavi naročila.
+

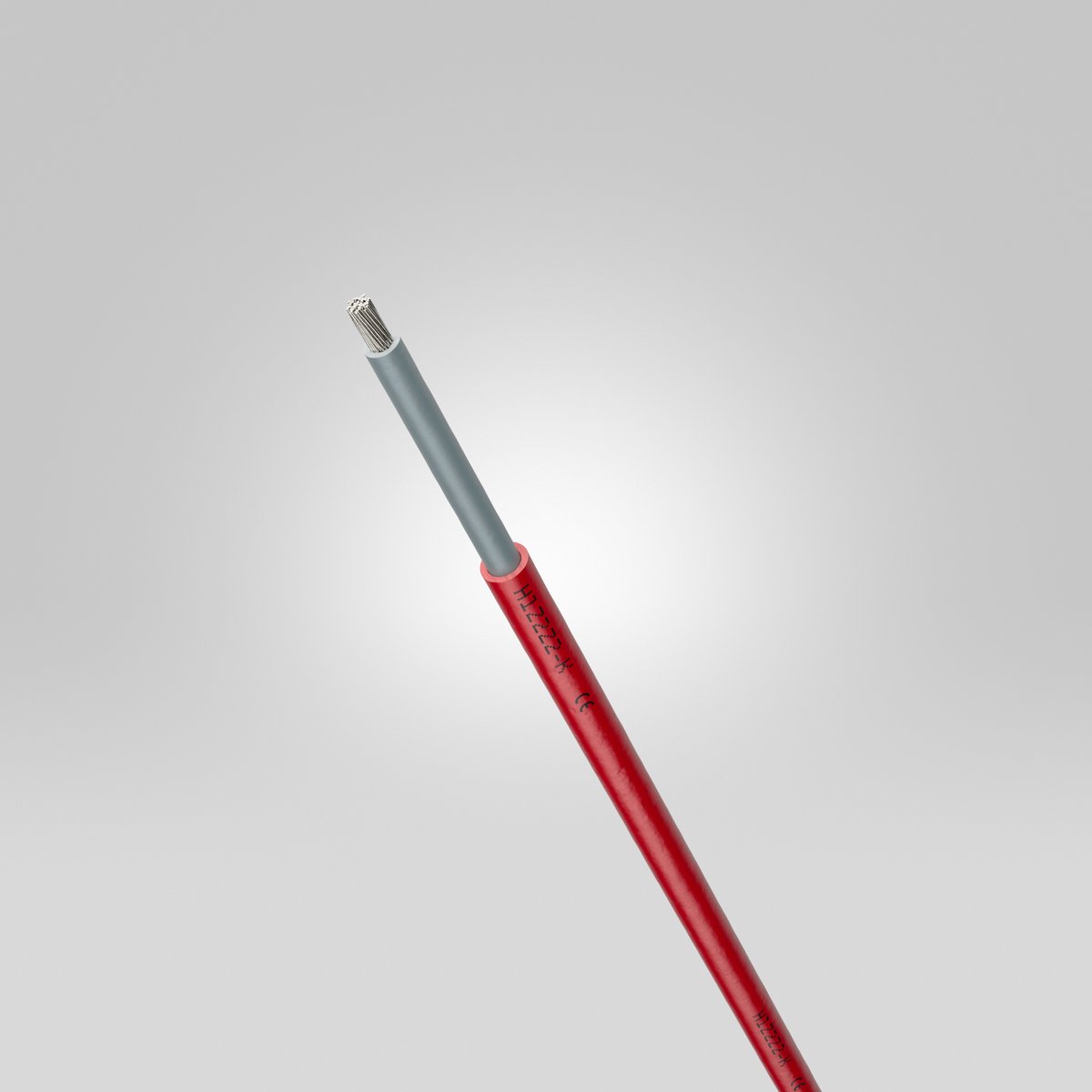

H1Z2Z2-K, OPTIMIZED VERSION 1X10 RD
1023776
10 mm2
7.1 mm
28.4 mm
2,43 €
*
*

Naročilu bo dodan strošek manipulacije in reza 15€ na rez

Rok dobave sporočimo po obdelavi naročila.
+
H1Z2Z2-K, OPTIMIZED VERSION 1X4 RD
1023774
4 mm2
5.5 mm
22.0 mm
1,01 €
*
*

Naročilu bo dodan strošek manipulacije in reza 15€ na rez

Rok dobave sporočimo po obdelavi naročila.
+
H1Z2Z2-K, OPTIMIZED VERSION 1X4 BK
1023759
4 mm2
5.5 mm
22.0 mm
1,01 €
*
*

Naročilu bo dodan strošek manipulacije in reza 15€ na rez

Rok dobave sporočimo po obdelavi naročila.
+
H1Z2Z2-K, OPTIMIZED VERSION 1X10 BU
1023791
10 mm2
7.1 mm
28.4 mm
2,43 €
*
*

Naročilu bo dodan strošek manipulacije in reza 15€ na rez

Rok dobave sporočimo po obdelavi naročila.
+
H1Z2Z2-K, OPTIMIZED VERSION 1X6 BU
1023790
6 mm2
6 mm
24.0 mm
1,40 €
*
*

Naročilu bo dodan strošek manipulacije in reza 15€ na rez

Rok dobave sporočimo po obdelavi naročila.
+
H1Z2Z2-K, OPTIMIZED VERSION 1X6 RD
1023775
6 mm2
6 mm
24.0 mm
1,40 €
*
*

Naročilu bo dodan strošek manipulacije in reza 15€ na rez

Rok dobave sporočimo po obdelavi naročila.

Benefits

  • Optimised price compared to LAPP"s predecessor product "H1Z2Z2-K" despite the upgrade of features.
  • Third-party certification according to harmonised European type H1Z2Z2-K (pursuant to EN 50618) for tested safety and quality.
  • Halogen free core insulation and sheath compound, as well as the confirmed low smoke emission in the event of a fire, make the cable suitable for use in public areas.
  • Improved fire properties and adaptation to stricter fire safety requirements within the EU. Classified fire behaviour according to EU Directive 305/2011 (BauPVO/CPR) with article number selection at www.lappkabel.de/cpr.
  • Improved mechanical stability compared to LAPP"s predecessor product "H1Z2Z2-K", tested using the impact resistance test for direct underground installation according to UL 854.
  • Cross-linked insulation and sheath materials promote durability at high temperatures or at high current load, ensure a high dielectric strength and a high maximum short circuit temperature.
  • Available in three different outer sheath colours so that the DC conductor can be identified externally.

Applications

  • For unprotected connection of solar modules and inverters in earthed and non-earthed photovoltaic systems according to EN 50618.
  • For connecting solar modules.
  • For fixed installation and occasional flexing, if necessary freely hanging.
  • Can be installed in closed installation ducts, under plaster and in devices.
  • Underground installation in protective conduits only with drainage of accumulated water.
  • In and on protected devices of protection class II according to EN 50618.
  • For short-circuit-proof and short-to-earth-proof applications according to EN 50618 and HD 60364-5-52.
  • Suitable for medium mechanical stress.

Documentation

Notes

  • Please find our standard lengths at: www.lappkabel.de/kabel-standardlaengen.
  • * Prices are net prices without VAT and surcharges. Sale to business customers only.
  • Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they available and have been released for publication.
  • Photographs and graphics are not to scale and do not represent detailed images of the respective products.
