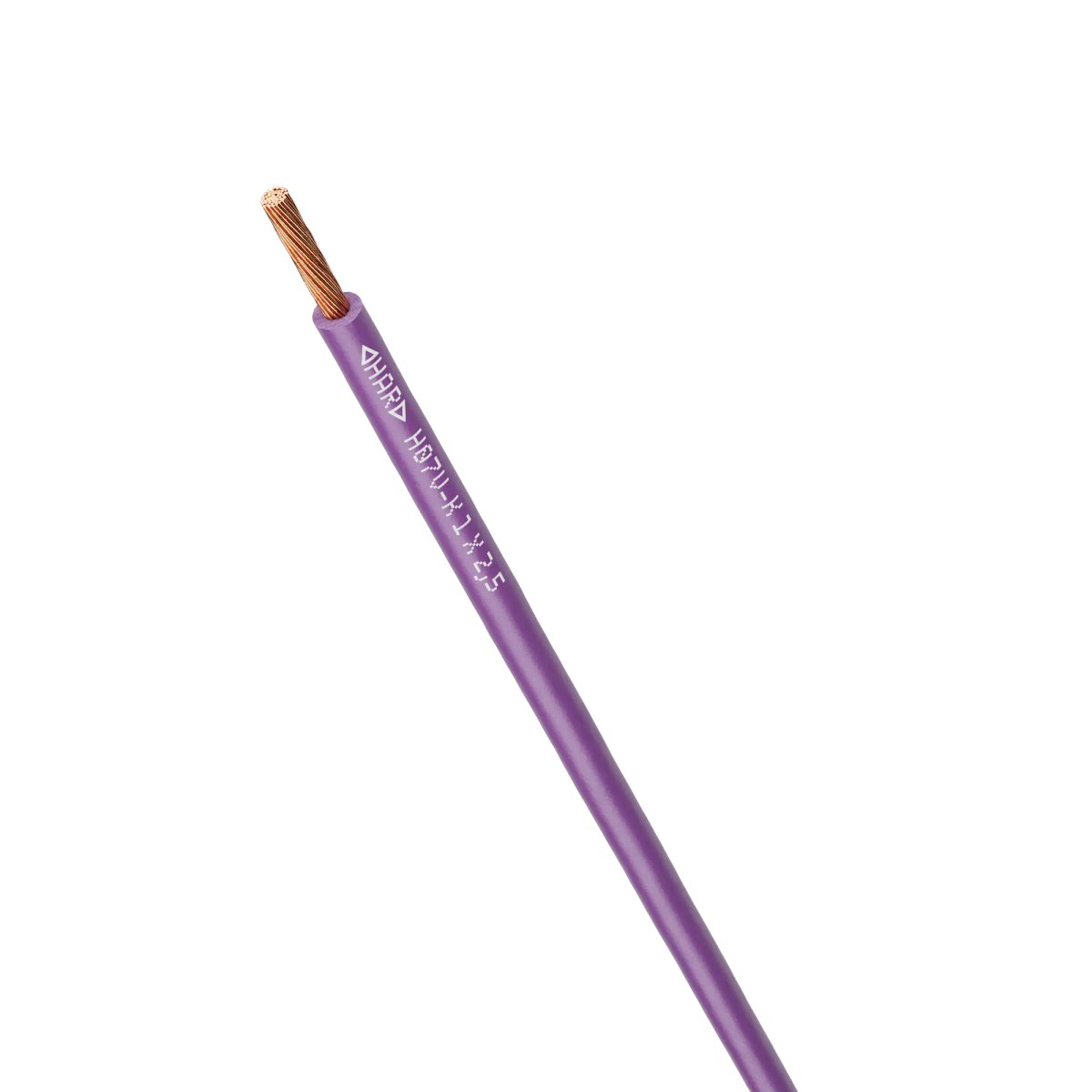

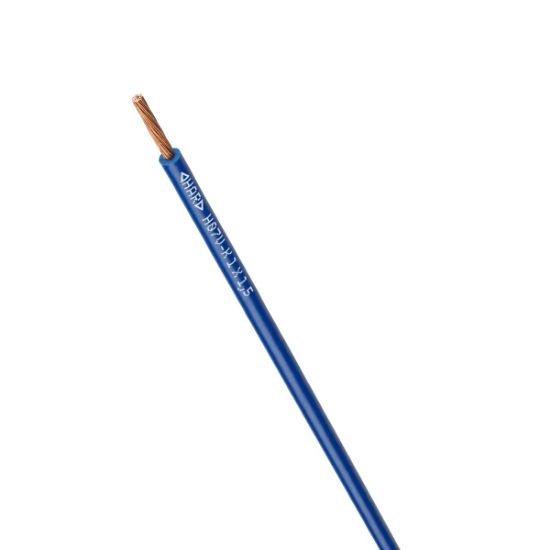

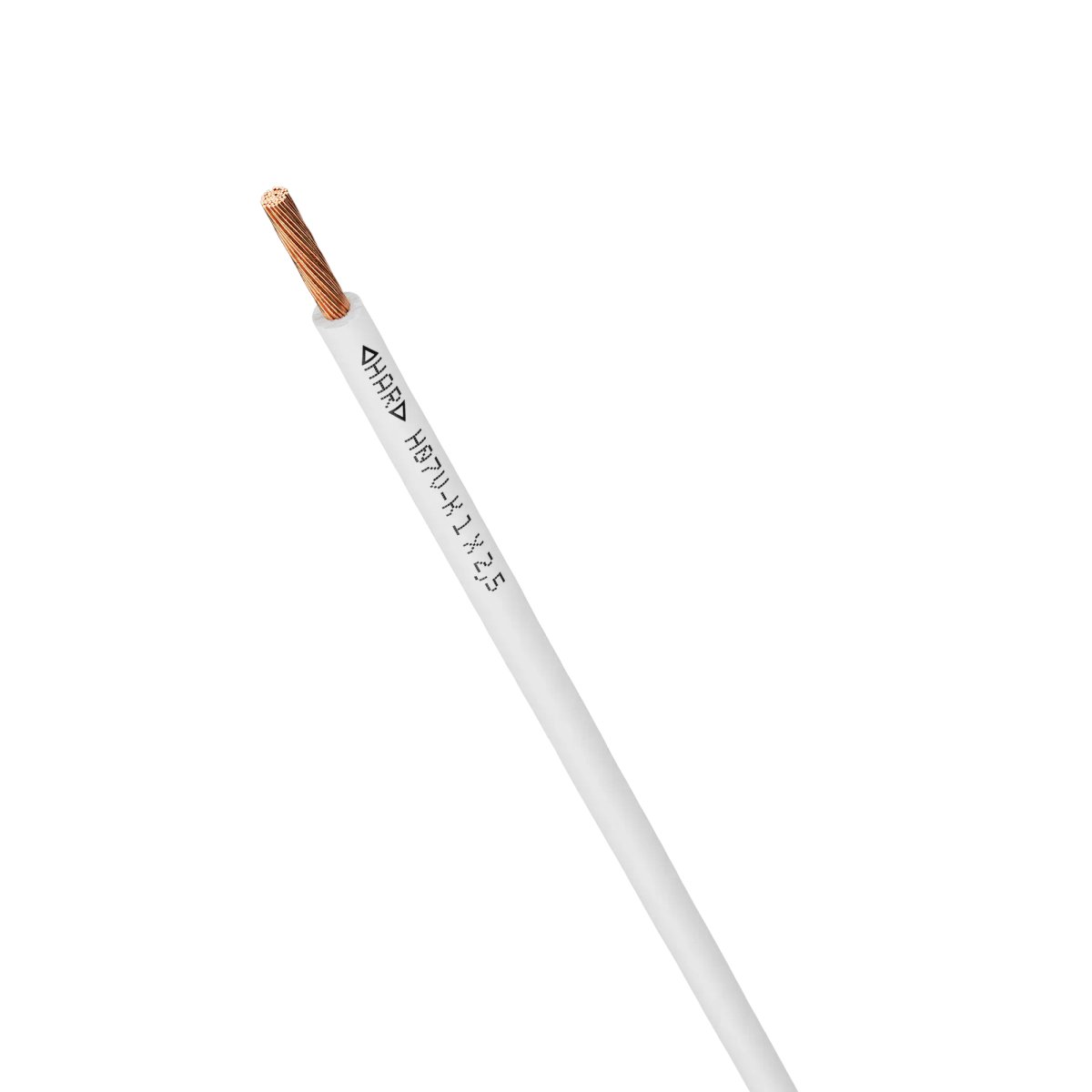

H07V-K in big one-way cardboard box

Bodite prvi in ocenite ta izdelek

Naziv

Koda izdelka

Testna napetost

Nominal cross section conductor (mm2)

Min. premer jedra

Cena

Količina

H07V-K EMBOSS 1X4 GNYE

4520003E

2,5 kV kV

4 mm2

3.9 mm

0,73 €

Rok dobave sporočimo po obdelavi naročila.

H07V-K EMBOSS 1X1,5 WH

4520051E

2,5 kV kV

1.5 mm2

2.8 mm

0,28 €

Rok dobave sporočimo po obdelavi naročila.

H07V-K EMBOSS 1X1,5 GY

4520061E

2,5 kV kV

1.5 mm2

2.8 mm

0,28 €

Rok dobave sporočimo po obdelavi naročila.

H07V-K EMBOSS 1X2,5 GY

4520062E

2,5 kV kV

2.5 mm2

3.4 mm

0,47 €

Rok dobave sporočimo po obdelavi naročila.

X07V-K EMBOSS 1X6 YE

4520114K

2,5 kV kV

6 mm2

4.4 mm

1,08 €

Dolžina *

Rok dobave sporočimo po obdelavi naročila.

X07V-K EMBOSS 1X4 YE

4520113K

2,5 kV kV

4 mm2

3.9 mm

0,74 €

Na zalogi, predviden rok dobave 5-8 delovnih dni.

Benefits

Made according to harmonised European type H07V-K, with ?HAR? testing mark for proven reliability and quality (not applicable for: transparent, green (single colour), yellow (single colour), all double colours (except green/yellow and yellow/green)).
?HAR?-style cables are widely accepted and can be used in Europe.
Different core insulation colours available.
Ideal for automated cable assembly in large volumes.
Embossed cable for individual, permanent reprinting.
Also available as ring or on coils.
Classified fire behaviour according to EU Directive 305/2011 (BauPVO/CPR) with article number selection at www.lappkabel.de/cpr.

Applications

For wiring circuits inside machines.
For wiring lighting.
For fixed and protected installation.
Can be used for open installation into cable conduits for equipotential bonding.
Suitable for use at temperatures up to -40°C.

Notes

Trade product, not a LAPP product.
If applicable, the prices are solid metal prices without surcharges and VAT. Sales only to business customers.
Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.
Photographs and graphics are not to scale and do not represent detailed images of the respective products.
