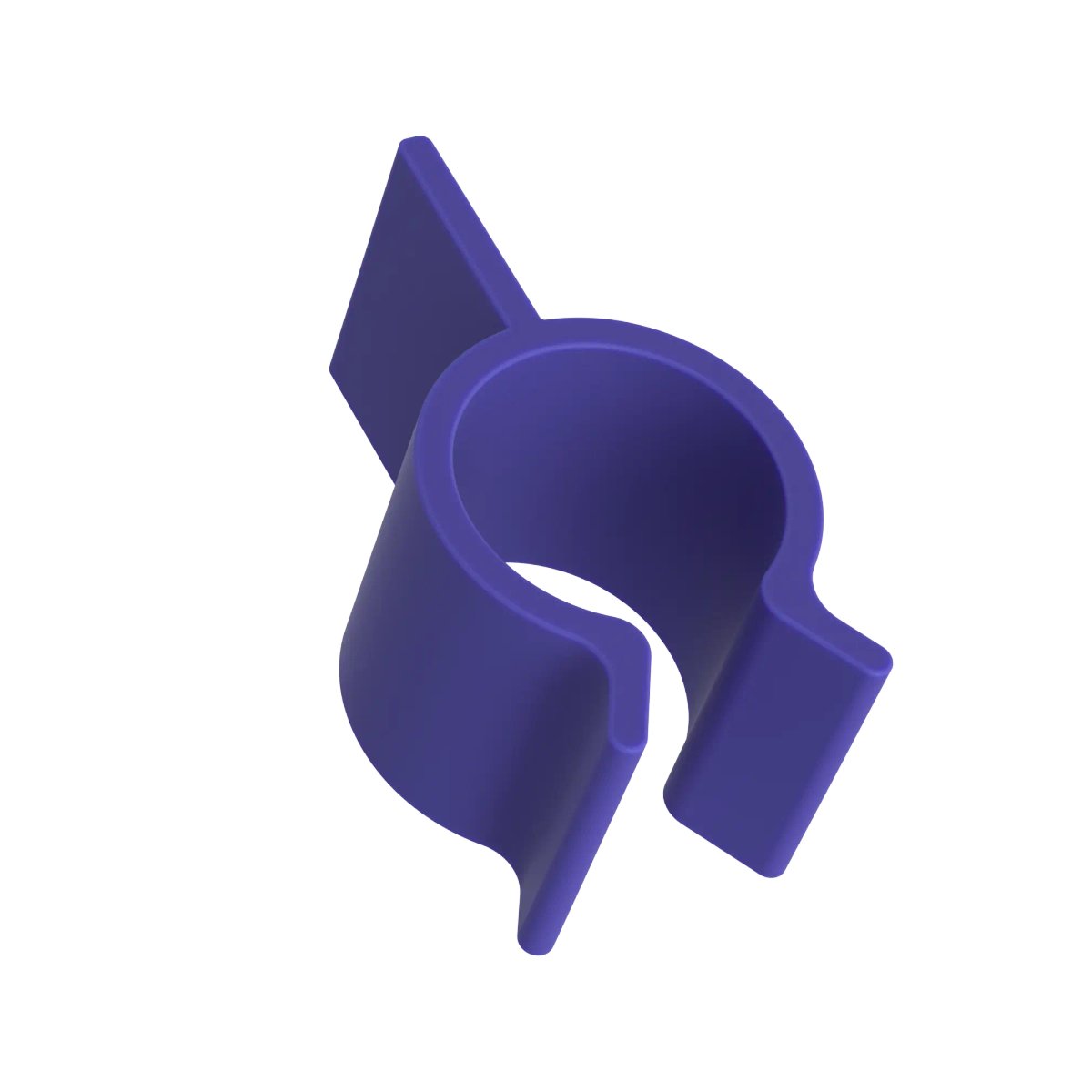

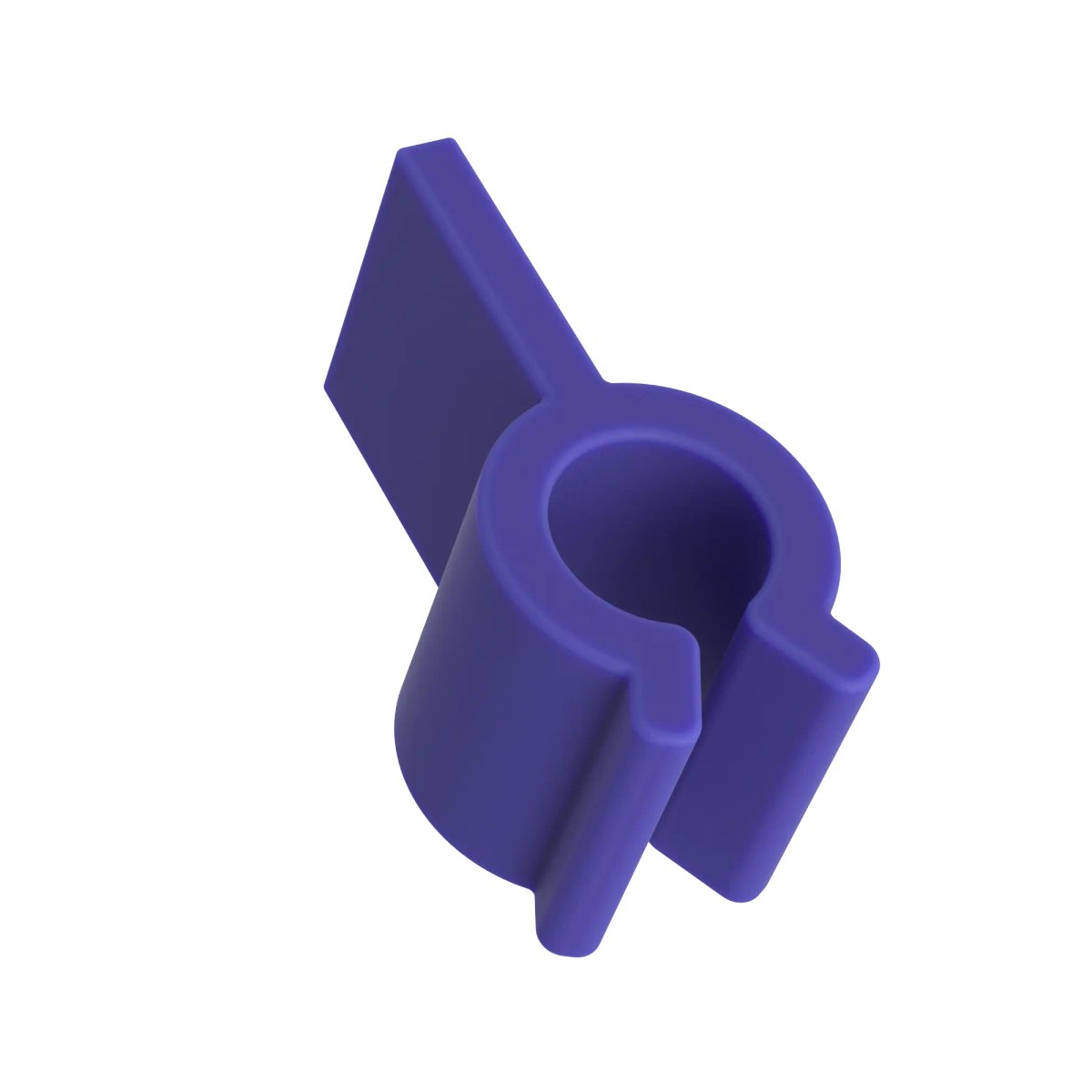

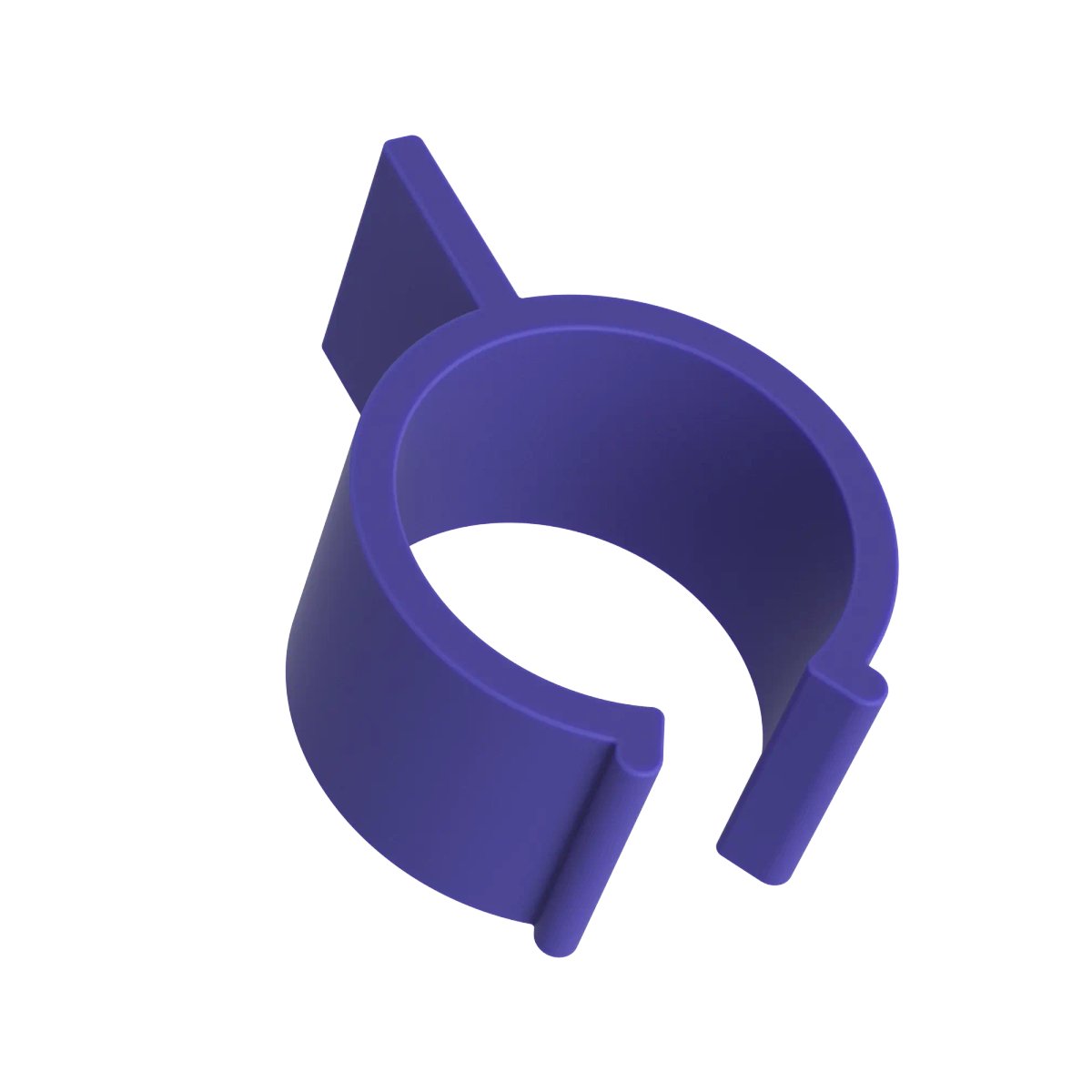

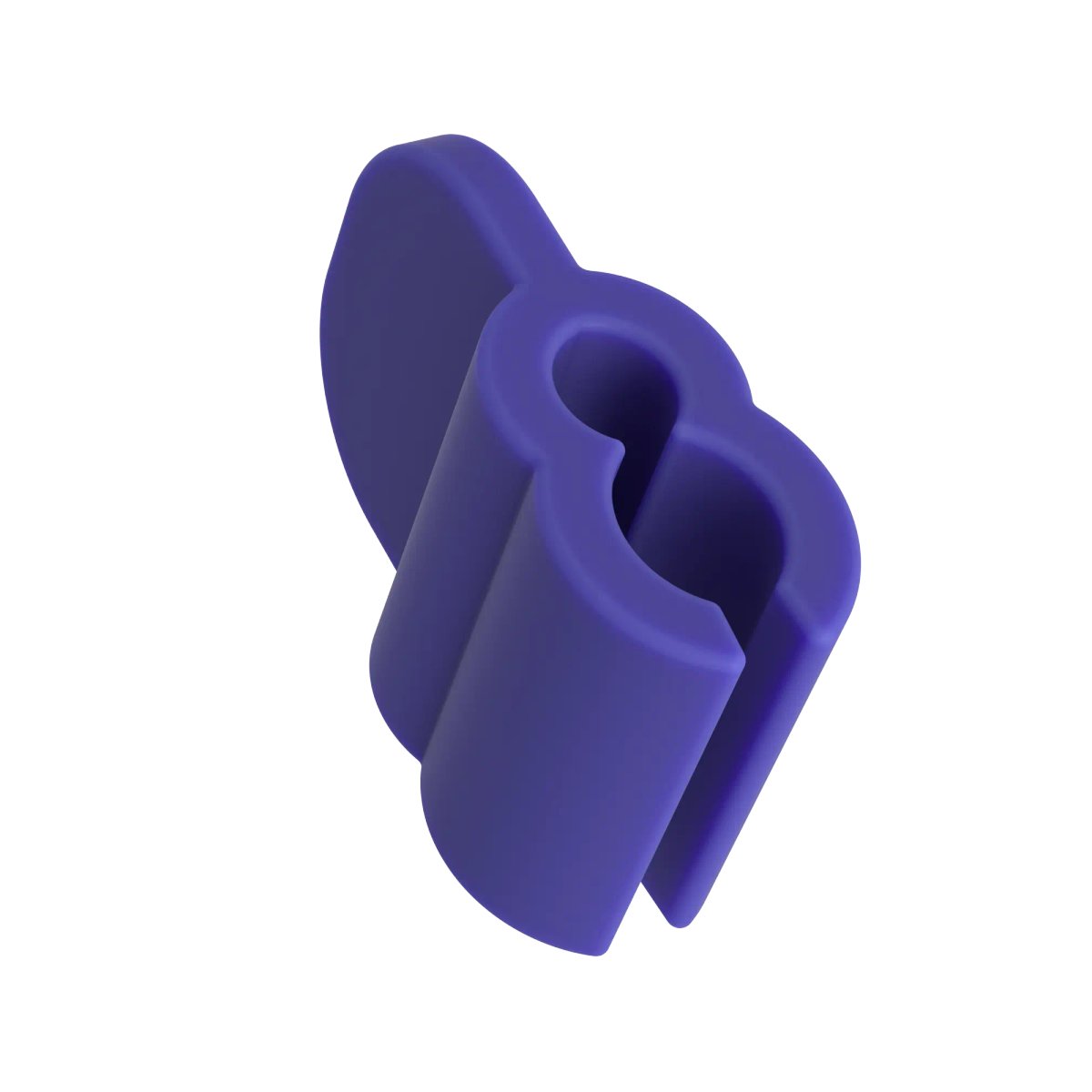

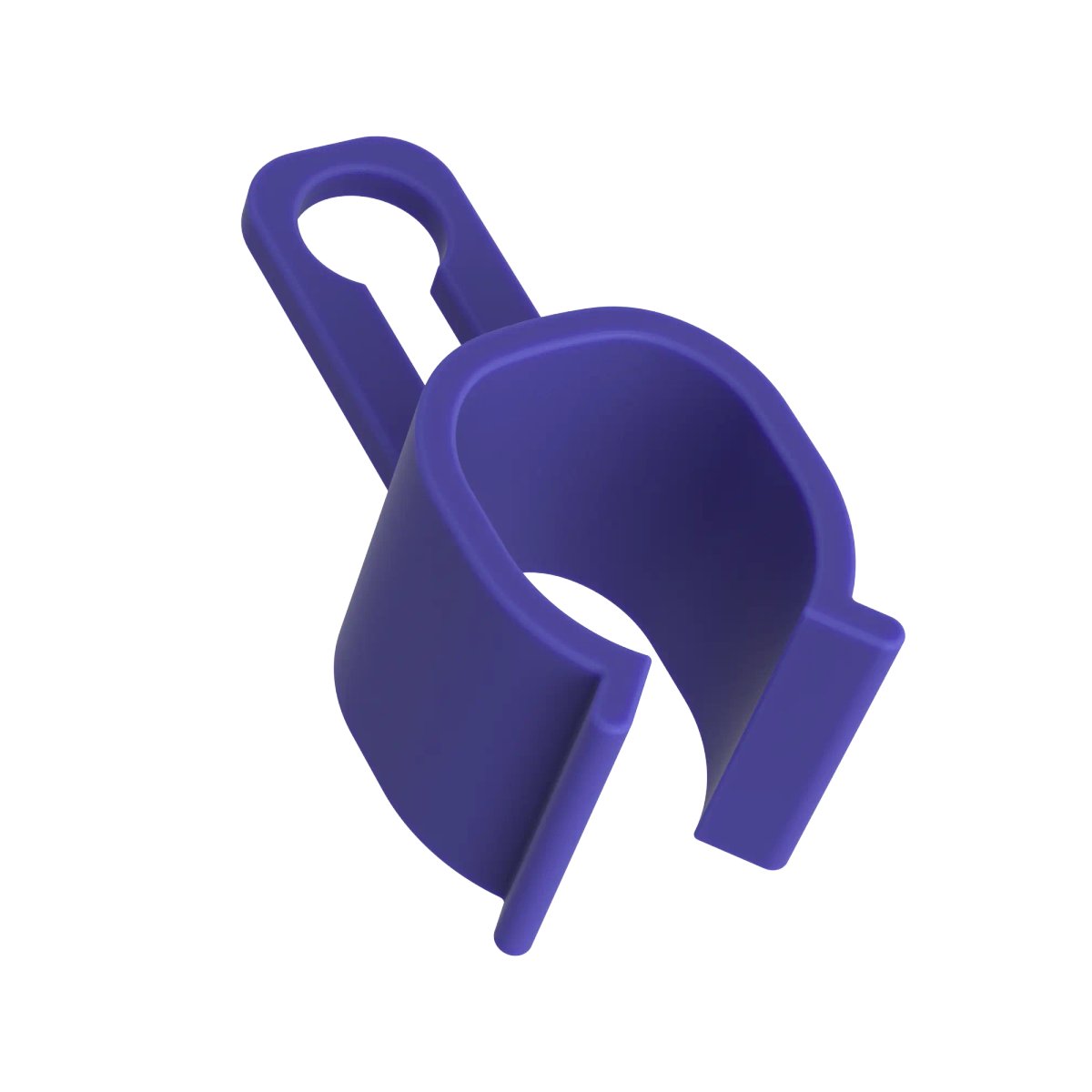

FLEXIMARK® THERMO CLIP

Bodite prvi in ocenite ta izdelek

Naziv

Koda izdelka

Dolžina

Širina

Višina

Cena

Količina

FLEXIMARK® THERMO CLIP H2 70°C -5000

83881105

13.2 mm

6.4 mm

7 mm

0,84 €

Rok dobave sporočimo po obdelavi naročila.

FLEXIMARK® THERMO CLIP H1 70°C -50

83881100

10.8 mm

4.4 mm

7 mm

0,70 €

Rok dobave sporočimo po obdelavi naročila.

FLEXIMARK® THERMO CLIP H1 70°C -5000

83881102

10.8 mm

4.4 mm

7 mm

0,56 €

Rok dobave sporočimo po obdelavi naročila.

FLEXIMARK® THERMO CLIP H1 70°C -1000

83881101

10.8 mm

4.4 mm

7 mm

0,62 €

Rok dobave sporočimo po obdelavi naročila.

FLEXIMARK® THERMO CLIP H2 70°C -50

83881103

13.2 mm

6.4 mm

7 mm

1,05 €

Rok dobave sporočimo po obdelavi naročila.

FLEXIMARK® THERMO CLIP H2 70°C -500

83881104

13.2 mm

6.4 mm

7 mm

0,92 €

Rok dobave sporočimo po obdelavi naročila.

FLEXIMARK® THERMO CLIP H3 70°C -25

83881106

21.2 mm

9.7 mm

10 mm

1,40 €

Rok dobave sporočimo po obdelavi naročila.

FLEXIMARK® THERMO CLIP H3 70°C -250

83881107

21.2 mm

9.7 mm

10 mm

1,23 €

Rok dobave sporočimo po obdelavi naročila.

FLEXIMARK® THERMO CLIP H3 70°C -2000

83881108

21.2 mm

9.7 mm

10 mm

1,12 €

Rok dobave sporočimo po obdelavi naročila.

FLEXIMARK® THERMO CLIP H4 70°C -12

83881109

30 mm

16.9 mm

14 mm

1,75 €

Rok dobave sporočimo po obdelavi naročila.

FLEXIMARK® THERMO CLIP H4 70°C -120

83881110

30 mm

16.9 mm

14 mm

1,54 €

Rok dobave sporočimo po obdelavi naročila.

FLEXIMARK® THERMO CLIP H4 70°C -500

83881111

30 mm

16.9 mm

14 mm

1,40 €

Rok dobave sporočimo po obdelavi naročila.

FLEXIMARK® THERMO CLIP H5 70°C -6

83881112

35 mm

26 mm

14.5 mm

2,18 €

Rok dobave sporočimo po obdelavi naročila.

FLEXIMARK® THERMO CLIP H5 70°C -60

83881113

35 mm

26 mm

14.5 mm

1,92 €

Rok dobave sporočimo po obdelavi naročila.

FLEXIMARK® THERMO CLIP H5 70°C -240

83881114

35 mm

26 mm

14.5 mm

1,75 €

Rok dobave sporočimo po obdelavi naročila.

Benefits

24/7 monitoring and the memory effect make it possible to continuously record temperature exceedance, and can act as an early warning of overheating.
Available in different sizes for cable outer diameters ranging from 2.3 – 31.0 mm.
Quickly identifying overheated electrical components makes rapid cause analysis possible. This allows appropriate countermeasures to be initiated to avoid plant downtimes.
Supplied temperature indicators enable visual inspection of electrical equipment. The colour changes if the temperature is exceeded.
Available in different packaging units.
Halogen free product that generates no harmful gases in the event of a fire.
Safe, fast and uncomplicated installation.

Applications

Irreversible colour change at temperatures from +71 °C.
For indicating temperature exceedances.
Can be used in dry interiors.

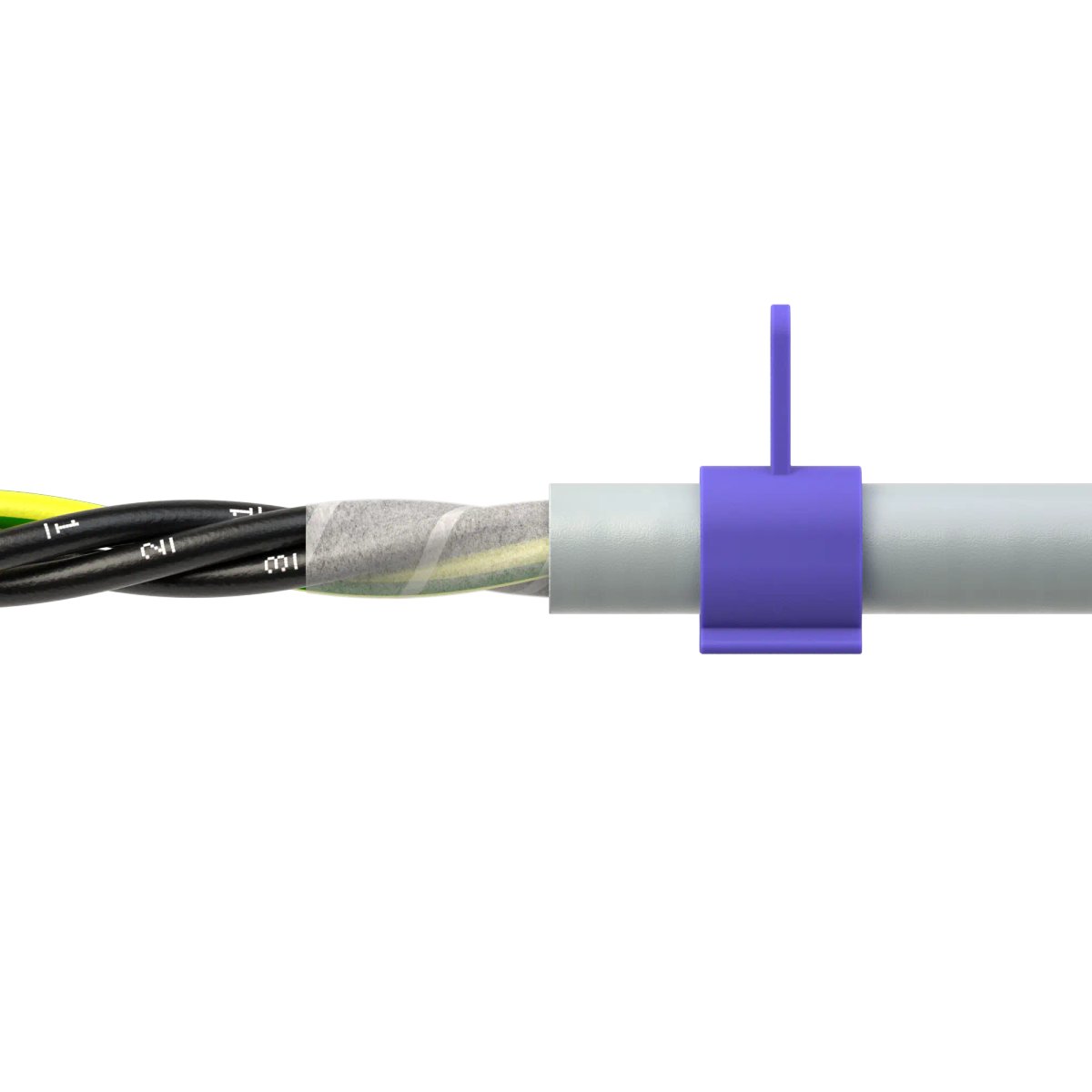

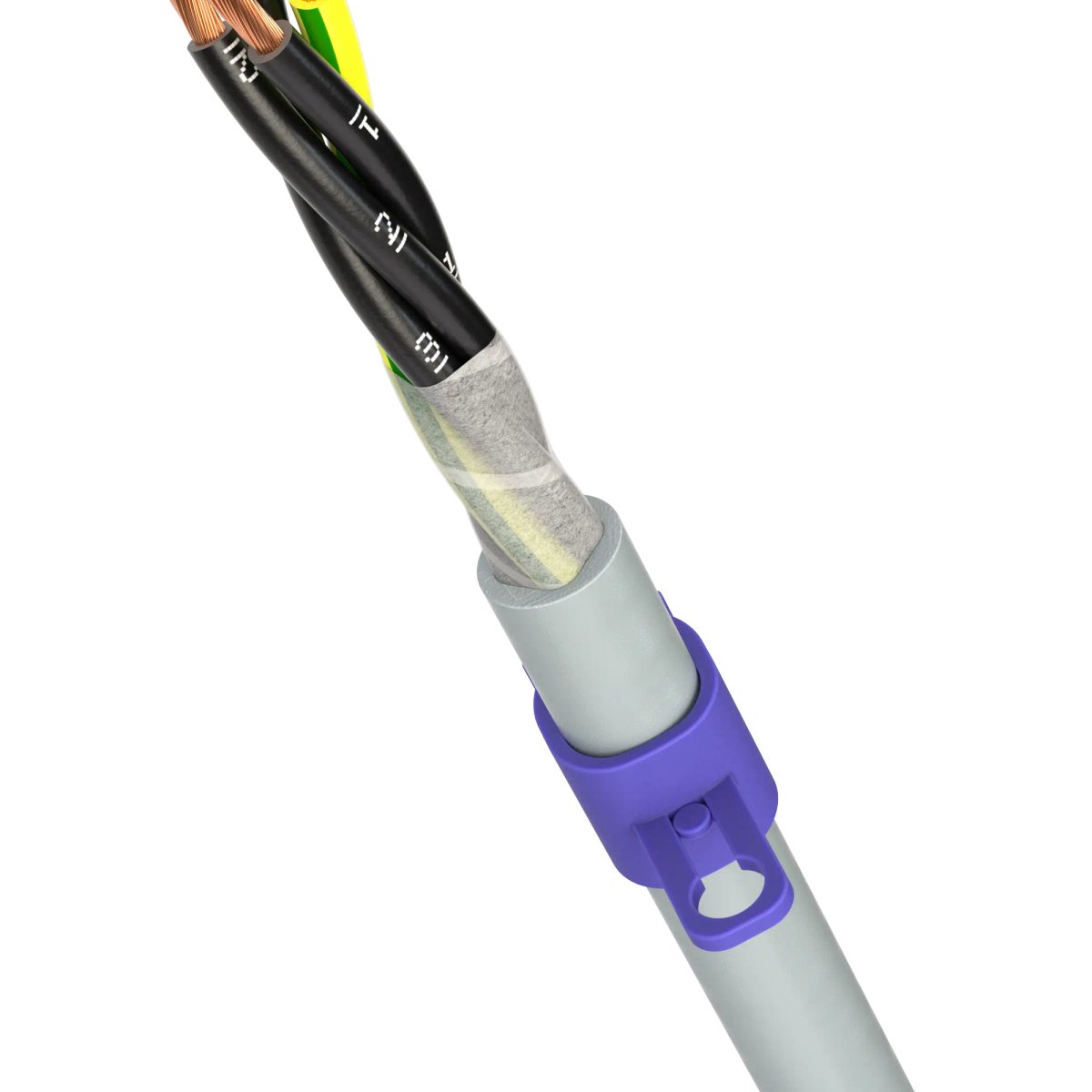

For use with power cables.
Reversible Farbveränderung bei Temperaturen von +53 °C bis +73 °C.

Documentation

Data sheet (PDF)

Notes

Photographs and graphics are not to scale and do not represent detailed images of the respective products.
If applicable, the prices are solid metal prices without surcharges and VAT. Sales only to business customers.
Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.
