ETHERLINE® T1 FLEX

Naziv
Koda izdelka
Maks. najvišja delovna napetost (ne za napajalne aplikacije)
test voltage conductor/conductor
Testna napetost vodnika/opleta
Cena
Količina
+
ETHERLINE® T1 PN FLEX T Y 1x2x22/7AWG
2170922
125 V
2 kV
2 kV
2,07 €
*
*

Naročilu bo dodan strošek manipulacije in reza 15€ na rez

Na zalogi, predviden rok dobave 5-8 delovnih dni.
+
ETHERLINE® T1 PN FLEX Y 1x2x22/7AWG
2170924
125 V
2 kV
2 kV
1,54 €
*
Na zalogi, predviden rok dobave 5-8 delovnih dni.
+
ETHERLINE® T1 FLEX Y 1x2x26/7AWG
2170925
125 V
2 kV
2 kV
1,68 €
*
Na zalogi, predviden rok dobave 5-8 delovnih dni.

Benefits

  • Ethernet networking of the field devices enables real-time data collection and analysis as well as providing a wealth of additional information (big data) for process optimisation (e.g. predictive maintenance).
  • Complete interoperability of field devices and systems from various manufacturers thanks to seamless connection to the Industrial Ethernet network.
  • UL certification according to technical data enables the product to be used on the North American market.
  • Fast information exchange thanks to future-proof Single Pair Ethernet (SPE) technology for a consistent and uniform network infrastructure right up to the field level.
  • For the transmission of analogue and digital signals in the frequency range up to 600 MHz and up to 40 m distance.
  • Single-paired cable design saves weight and space. Small bending radii and outer diameters are essential for connection to the field level.
  • Power over Data Line (PoDL)-capable cable according to IEEE 802.3bu for simultaneous power and data supply of SPE terminal devices with low energy requirements (up to 50 W).

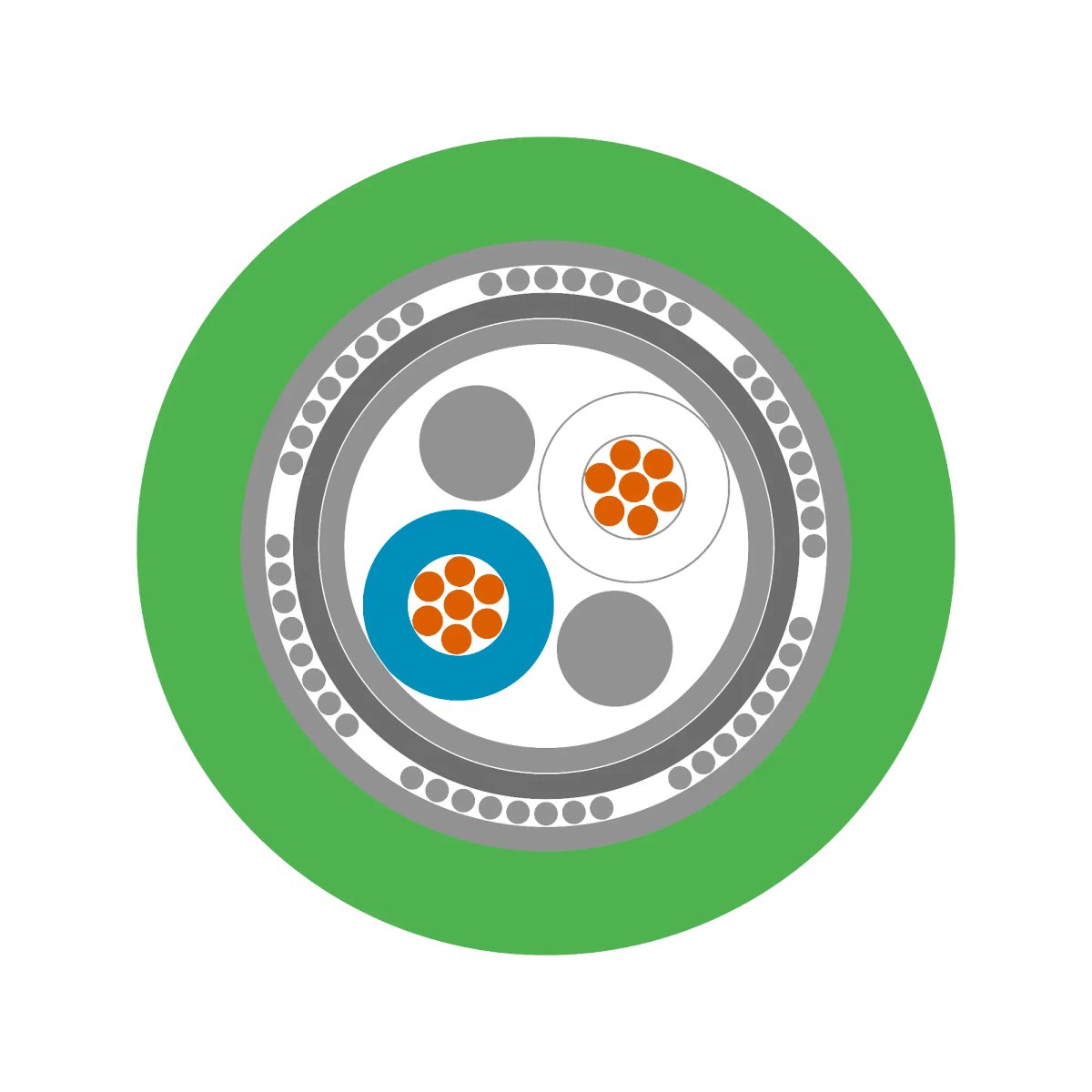

  • Ideal protection against electromagnetic interference thanks to double screening made of aluminium-laminated foil and copper screening braiding with high degree of coverage (SF/UTP).
  • UL/CSA certification according to technical data enables the product to be used in the North American market.

Applications

  • For fixed installation and occasional flexing.
  • Also available as a Power Limited Tray Cable (PLTC) variant listed according to UL for open installation on cable trays.
  • For structured building cabling according to DIN EN 50173 and ISO/IEC 11801.
  • For Single Pair Ethernet (SPE) applications 100Base-T1 according to IEEE 802.3bw and 1000Base-T1 according to IEEE 802.3bp.
  • For flexible use.
  • Can be used in dry and damp rooms.
  • Suitable for medium mechanical stress.
  • The PVC outer sheath is resistant to acids and alkalis and has limited oil resistance.

Notes

  • Please find our standard lengths at: www.lappkabel.de/kabel-standardlaengen.
  • If applicable, the prices are solid metal prices without surcharges and VAT. Sales only to business customers.
  • Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.
  • Photographs and graphics are not to scale and do not represent detailed images of the respective products.
