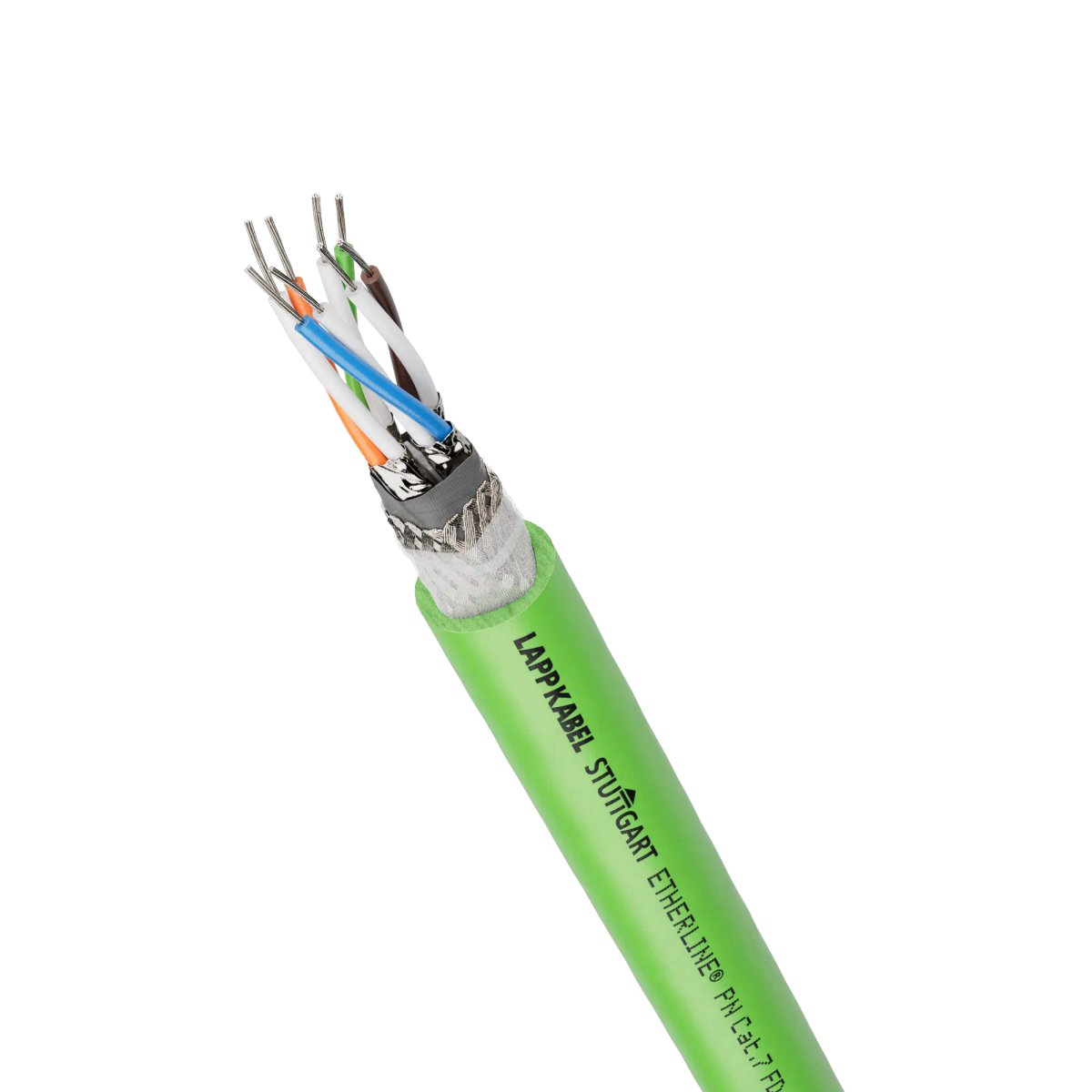

ETHERLINE® PN Cat.7 FD

Naziv
Koda izdelka
Maks. najvišja delovna napetost (ne za napajalne aplikacije)
Testna napetost
test voltage conductor/conductor
Cena
Količina
+
ETHERLINE® PN Cat.7 FD P 4x2x24/7AWG
2170487
100 V
2 kV
2 kV
6,69 €
*
Na zalogi, predviden rok dobave 5-8 delovnih dni.

Benefits

  • For transmission of analogue and digital signals in the frequency range up to 600 MHz.
  • Power over Ethernet-capable cable for simultaneous power and data supply of smaller network components with low energy requirements (e.g. IP cameras, wireless access points).
  • Idealer Schutz vor elektromagnetischer Störung durch Paarschirmung mit Aluverbundfolie und doppelter Gesamtschirmung aus aluminiumkaschierter Folie und Kupferabschirmgeflecht mit hohem Bedeckungsgrad (SF/FTP).
  • Successfully tested for over 3.0 million bending cycles in cable chains.
  • Fast information exchange through Ethernet technology.
  • UL/CSA certification according to technical data enables the product to be used in the North American market.

Applications

  • The PU outer sheath is resistant to mineral oil-based lubricants and is highly chemical resistant.
  • The PU outer sheath withstands high mechanical loads.
  • Can be used in dry and damp environments.
  • For highly flexible, continuously flexing use in moving machine parts and in the cable chain in the PROFINET network (type C).
  • Also suitable for EtherCAT and EtherNET/IP applications.
  • Suitable for outdoor use.

Notes

  • Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.
  • Photographs and graphics are not to scale and do not represent detailed images of the respective products.
  • If applicable, the prices are solid metal prices without surcharges and VAT. Sales only to business customers.
