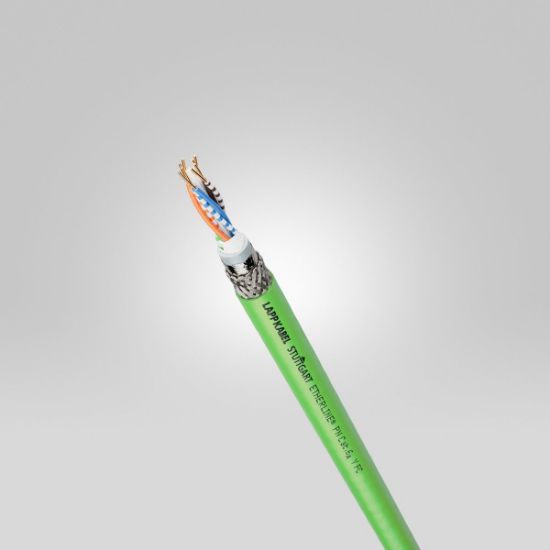

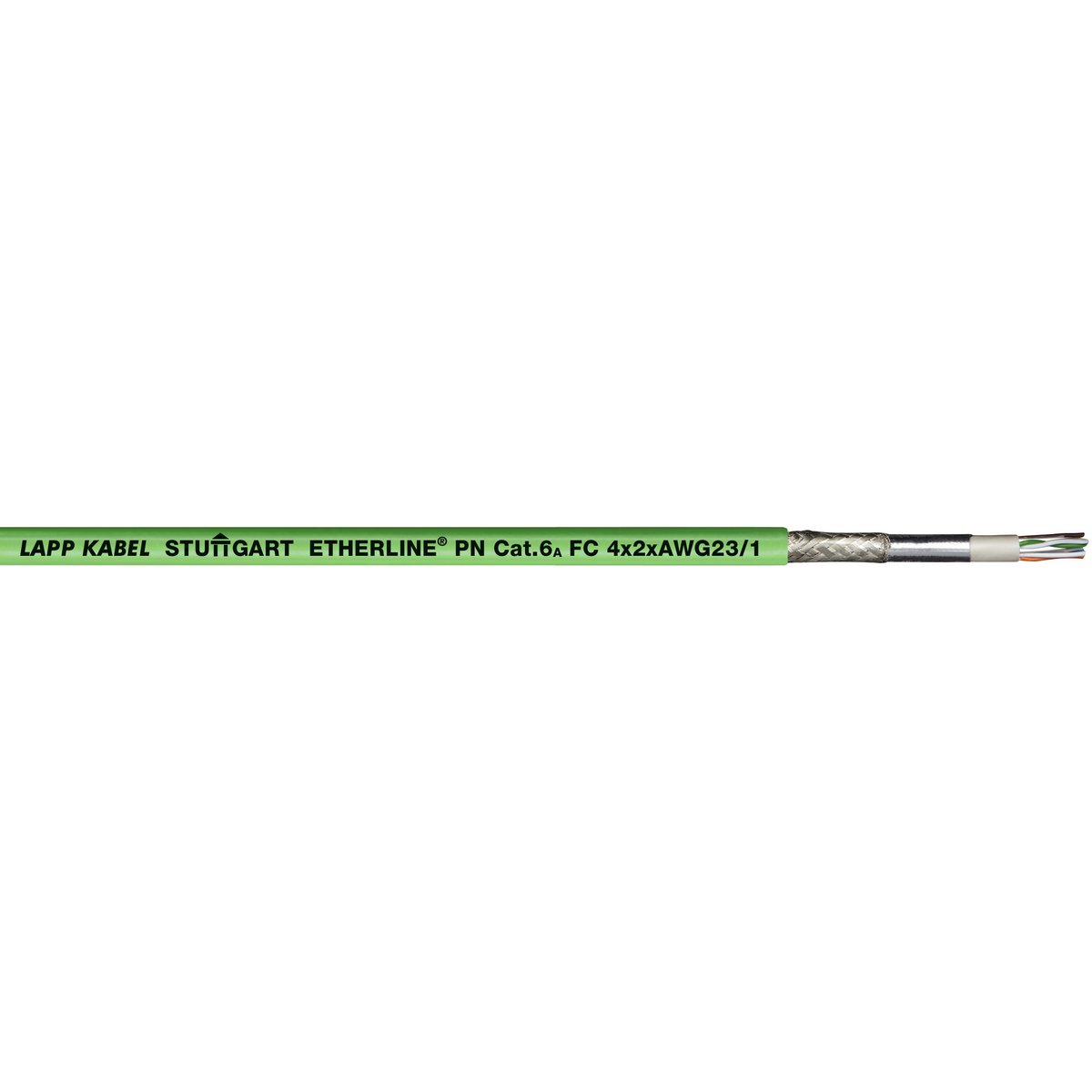

ETHERLINE® PN Cat.6A FC

Naziv
Koda izdelka
Maks. najvišja delovna napetost (ne za napajalne aplikacije)
test voltage conductor/conductor
Testna napetost vodnika/opleta
Cena
Količina
+
ETHERLINE® PN CAT.6A Y FC
2170583
125 V
2 kV
2 kV
4,00 €
*
*

Naročilu bo dodan strošek manipulacije in reza 15€ na rez

Na zalogi, rok dobave 2-4 delovne dni.
+
ETHERLINE® PN CAT.6A FRNC FC
2170584
125 V
2 kV
2 kV
4,32 €
*
*

Naročilu bo dodan strošek manipulacije in reza 15€ na rez

Na zalogi, predviden rok dobave 5-8 delovnih dni.
+

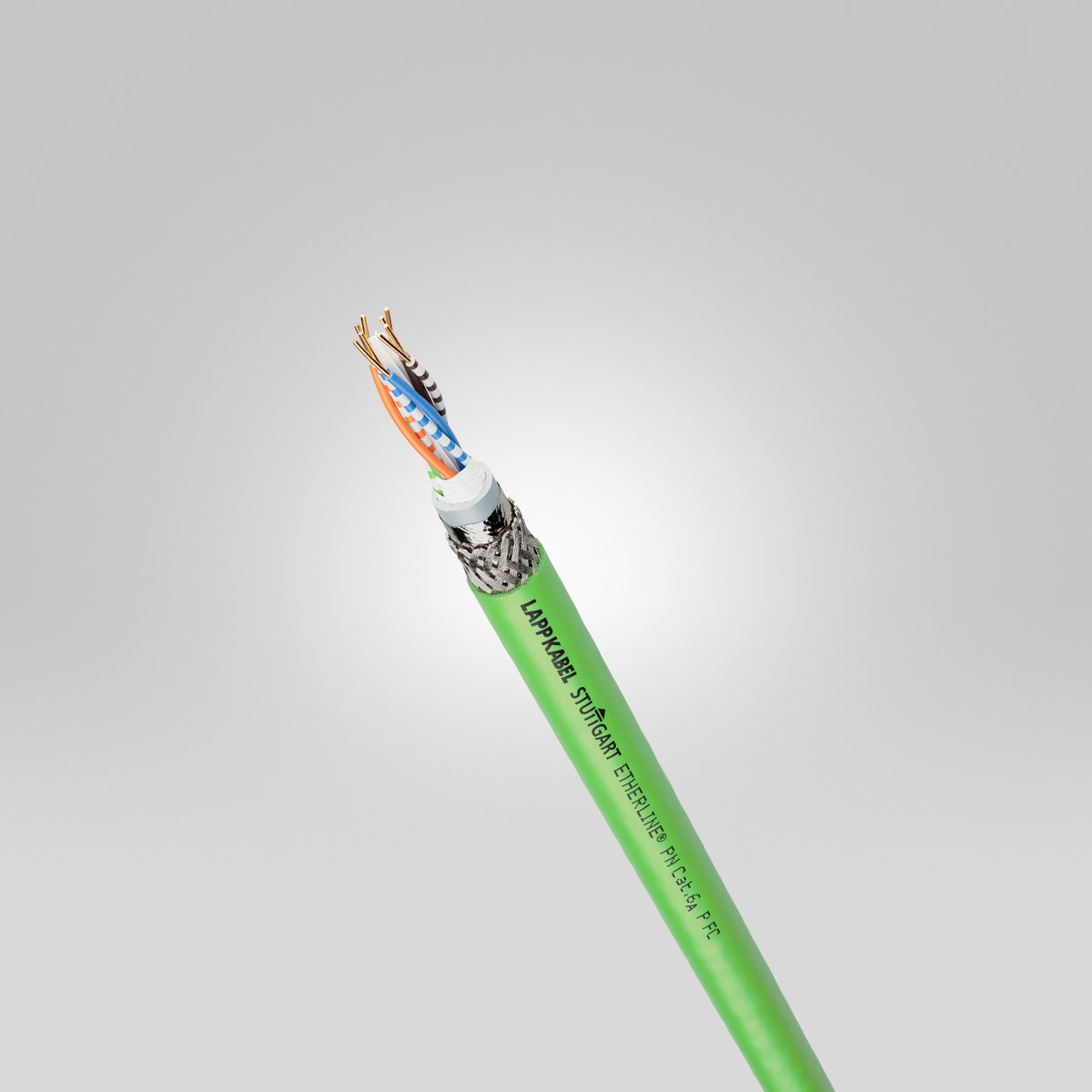

ETHERLINE® PN CAT.6A P FC
2170585
125 V
2 kV
2 kV
4,62 €
*
*

Naročilu bo dodan strošek manipulacije in reza 15€ na rez

Na zalogi, predviden rok dobave 5-8 delovnih dni.

Benefits

  • The "Fast Connect" design, including inner sheath and cross separator, significantly reduces the cable assembly time, by eliminating the time-consuming removal of the pair shielding. It also provides undiminished shielding of the core pairs.
  • Additional protection against electromagnetic interference thanks to double overall screening made of aluminium-laminated foil and high degree of coverage (SF/UTP) copper braiding.
  • Power over Ethernet-capable cable for simultaneous power and data supply of smaller network components with low energy requirements (e.g. IP cameras, wireless access points).
  • UL/CSA certification according to technical data enables the product to be used in the North American market.
  • Fast information exchange through Ethernet technology.
  • Cat. 6A performance up to 10 Gbit/s.
  • For transmission of analogue and digital signals in the frequency range up to 600 MHz.
  • Available with robust PVC outer sheath, abrasion-resistant PU outer sheath or halogen free FRNC outer sheath.

Applications

  • For fixed installation in the PROFINET® network (type A), due to solid conductor design.
  • Also suitable for EtherCAT and EtherNET/IP applications.
  • Can be used in dry, damp or wet environments.
  • Suitable for many applications, depending on the sheath material.

Notes

  • Please find our standard lengths at: www.lappkabel.de/kabel-standardlaengen.
  • If applicable, the prices are solid metal prices without surcharges and VAT. Sales only to business customers.
  • PROFINET® is a registered trademark of PNO (PROFIBUS user organisation).
  • Photographs and graphics are not to scale and do not represent detailed images of the respective products.
