ETHERLINE® LAN 500 Cat.6A

Bodite prvi in ocenite ta izdelek

Naziv

Koda izdelka

Maks. najvišja delovna napetost (ne za napajalne aplikacije)

test voltage conductor/conductor

Testna napetost vodnika/opleta

Cena

Količina

ETHERLINE® LAN Cat.6A S/FTP 4x2xAWG23

2170960

100 V

1 kV

1,16 €

Dolžina *
Poljubna dolžina * Naročilu bo dodan strošek manipulacije in reza 15€ na rez

Informativni dobavni rok: 5-8 delovnih dni. Predviden dobavni rok za izbrano količino prosimo preverite v košarici.

ETHERLINE® LAN Cat.6A F/UTP 4x2xAWG23

2170961

100 V

1 kV

1,10 €

Dolžina *
Poljubna dolžina * Naročilu bo dodan strošek manipulacije in reza 15€ na rez

Informativni dobavni rok: 5-8 delovnih dni. Predviden dobavni rok za izbrano količino prosimo preverite v košarici.

ETHERLINE® LAN Cat.6A F/FTP 4x2xAWG23 LSZ

2170962

100 V

1 kV

1,17 €

Dolžina *
Poljubna dolžina * Naročilu bo dodan strošek manipulacije in reza 15€ na rez

Informativni dobavni rok: 5-8 delovnih dni. Predviden dobavni rok za izbrano količino prosimo preverite v košarici.

ETHERLINE® LAN Cat.6A F/UTP 4x2xAWG23 LSZ

2170963

100 V

1 kV

1,16 €

Dolžina *
Poljubna dolžina * Naročilu bo dodan strošek manipulacije in reza 15€ na rez

Informativni dobavni rok: 5-8 delovnih dni. Predviden dobavni rok za izbrano količino prosimo preverite v košarici.

UNITRONIC® LAN 500 S/FTP Cat.6A

2170143

100 V

0.7 kV

1,06 €

Dolžina *
Poljubna dolžina * Naročilu bo dodan strošek manipulacije in reza 15€ na rez

Informativni dobavni rok: 5-8 delovnih dni. Predviden dobavni rok za izbrano količino prosimo preverite v košarici.

Benefits

LAN cables for structured building cabling according to EN 50173 and ISO/IEC 11801
Classified fire behaviour according to EU Directive 305/2011 (BauPVO/CPR) with article number selection on the LAPP website.
Fast information exchange through Ethernet technology.
Available with robust PVC or halogen free LSZH outer sheath.
For transmission of analogue and digital signals in the frequency range up to 500 MHz.

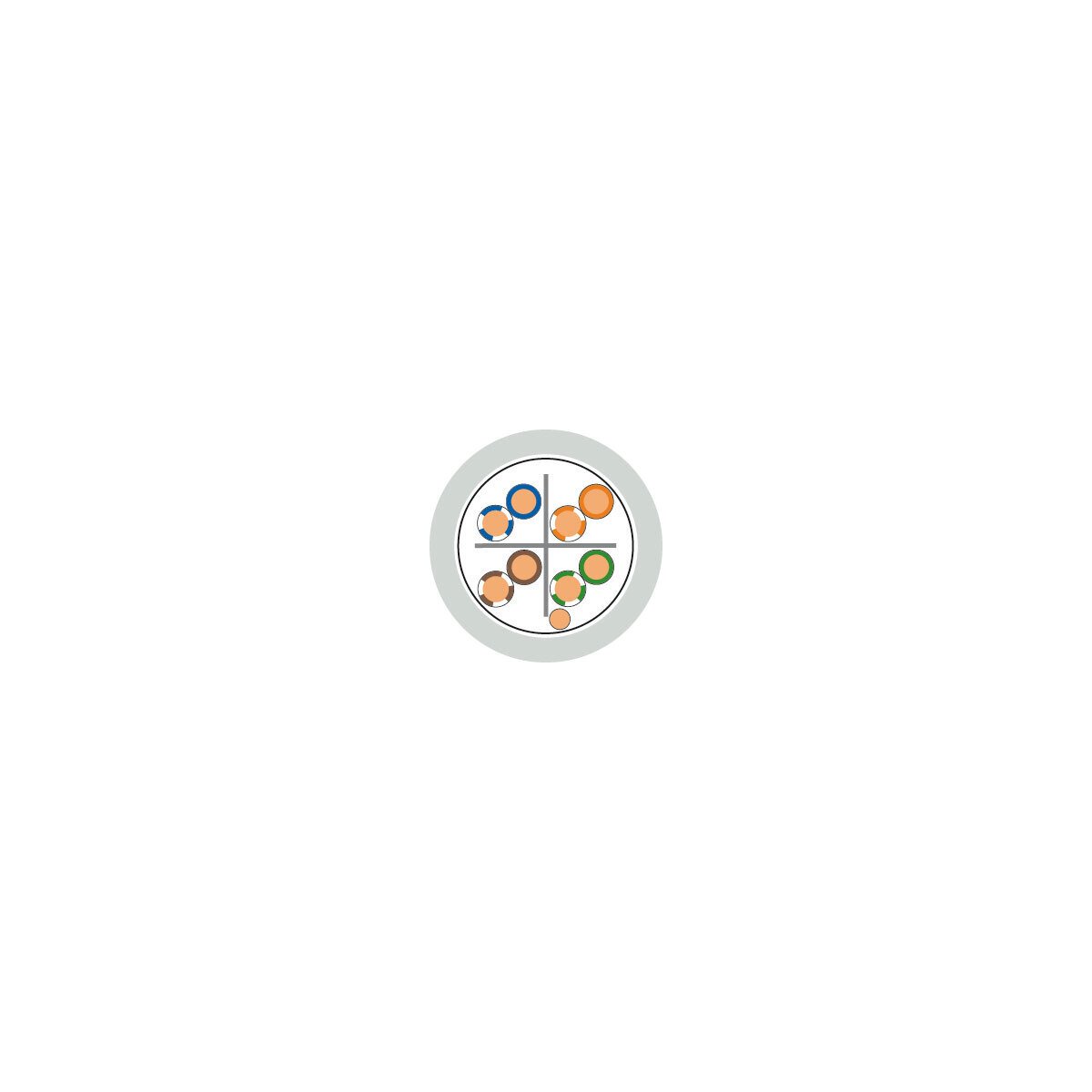

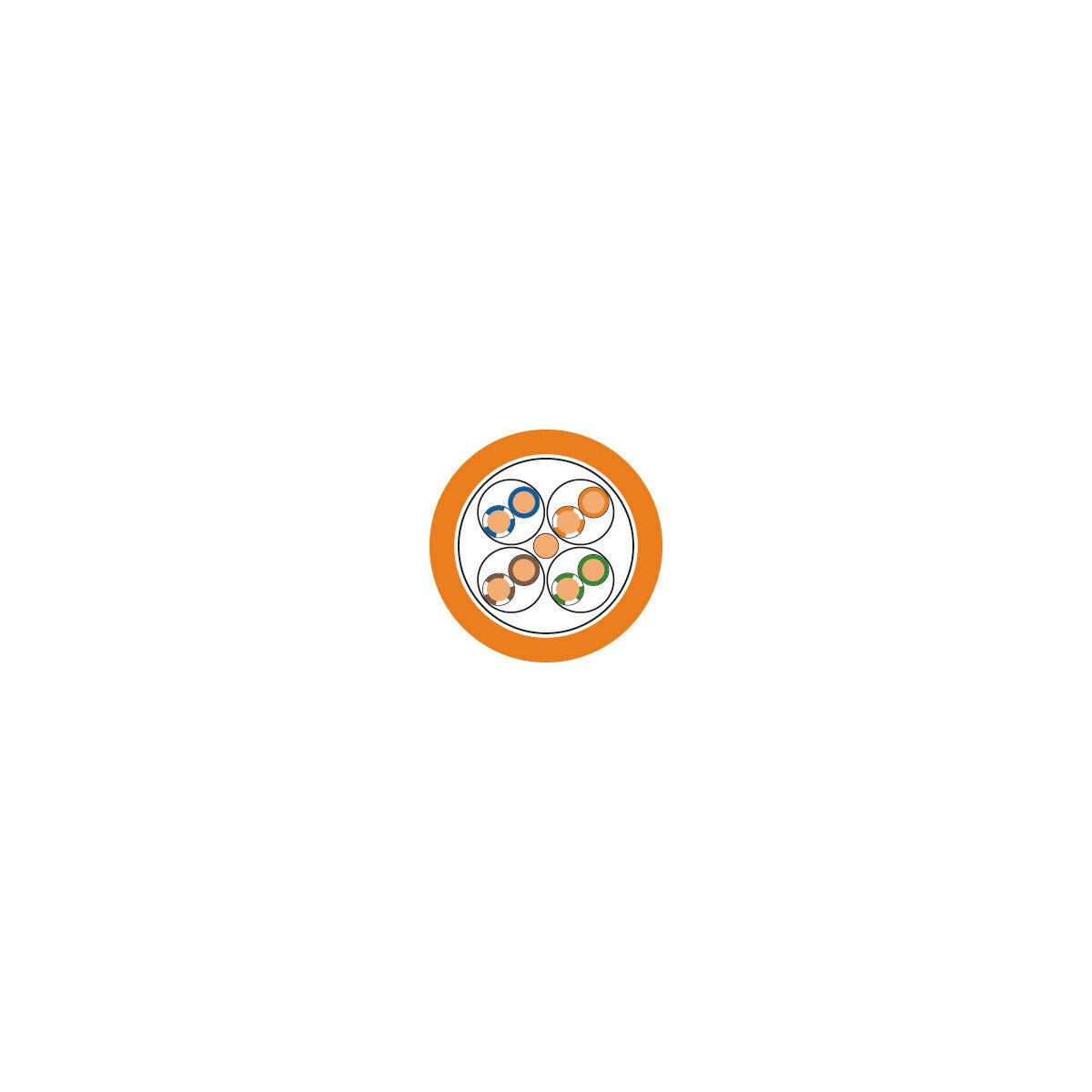

Variants are available with foil shielding made from aluminium-laminated plastic foil (F/UTP), foil shielding and foil-shielded pairs (F/FTP), and braided shielding with foil pair shielding (S/FTP).
Cat. 6A performance up to 10 Gbit/s.

Applications

Cable length in tertiary area (horizontal area, floor) should not exceed a length of 100 m in accordance with the ISO/IEC 11801 and EN 50173 standards (90 m in cable duct + 10 m in working area)
Areas where the end device density is very high
For office wiring, administration and development buildings in the tertiary sector (floor wiring).
For horizontal floor cabling with a max. cable length of 100 m (90 m for installation and 10 m at the workstation).
For fixed installation and structured building cabling according to EN 50173 and ISO/IEC 11801.
Suitable for all LAN networks and Ethernet applications up to 10GBASE-T.

Documentation

Notes

If applicable, the prices are solid metal prices without surcharges and VAT. Sales only to business customers.
Photographs and graphics are not to scale and do not represent detailed images of the respective products.
Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.
