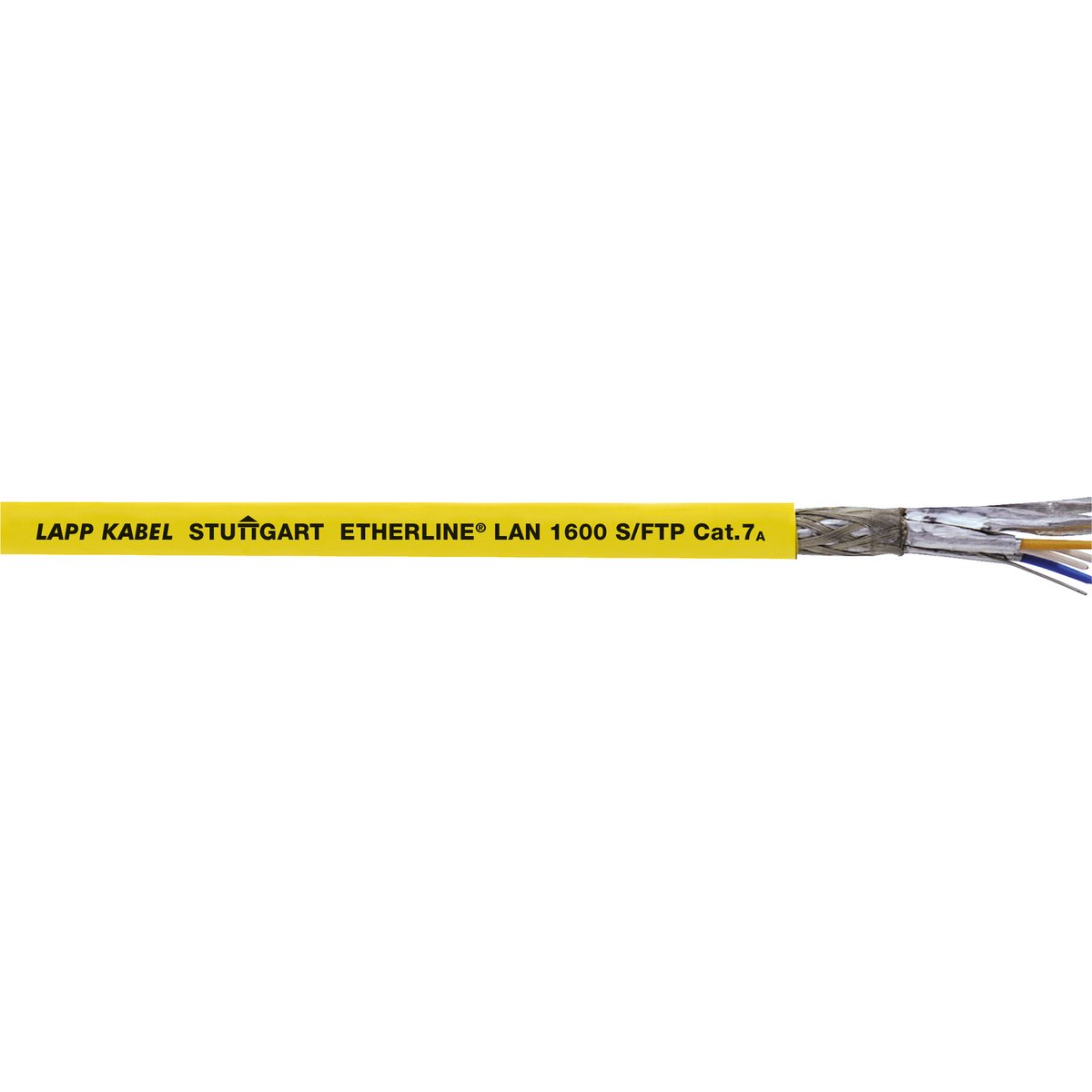

ETHERLINE® LAN 1600 Cat.7A

Naziv

Koda izdelka

Maks. najvišja delovna napetost (ne za napajalne aplikacije)

test voltage conductor/conductor

Testna napetost vodnika/opleta

Cena

Količina

ETHERLINE® LAN Cat.7A S/FTP 4x2xAWG22LSZH

2170976

100 V

1 kV

1,70 €

Dolžina *
Poljubna dolžina * Naročilu bo dodan strošek manipulacije in reza 15€ na rez

Informativni dobavni rok: 5-8 delovnih dni. Predviden dobavni rok za izbrano količino prosimo preverite v košarici.

Benefits

Ideal protection against electromagnetic interference due to aluminium-laminated pair shielding and copper stranded shielding as overall shielding (S/FTP).
Fast information exchange through Ethernet technology.
LAN cables for structured building cabling according to EN 50173 and ISO/IEC 11801
For transmission of analogue and digital signals in the frequency range up to 1600 MHz.
Cat. 7A performance up to 10 Gbit/s.
No flame propagation on the halogen free cable according to IEC 60332-3-25 (flame spread on vertical cable or conductor bunch).

For fixed installation and structured building cabling according to EN 50173 and ISO/IEC 11801.
Highly resistant to acids, alkalis and oils.
Mainly used where the terminal density is very high, e.g. for wiring office, administration and development buildings in the tertiary area (floor wiring).
1500 MHz: Cable length in tertiary area (horizontal area, floor) should not exceed a length of 100 m in accordance with the ISO/IEC 11801 and EN 50173 standards (90 m in cable duct + 10 m in working area)
1600 MHz: at max. 30m length (typical in data centers)
Especially for environments where electromagnetic compatibility (EMC) is required.
Suitable for all LAN networks and Ethernet applications up to 10GBASE-T.
Also suitable for EtherCAT, EtherNet/IP and 4-pair PROFINET applications.

Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.
If applicable, the prices are solid metal prices without surcharges and VAT. Sales only to business customers.
Photographs and graphics are not to scale and do not represent detailed images of the respective products.
