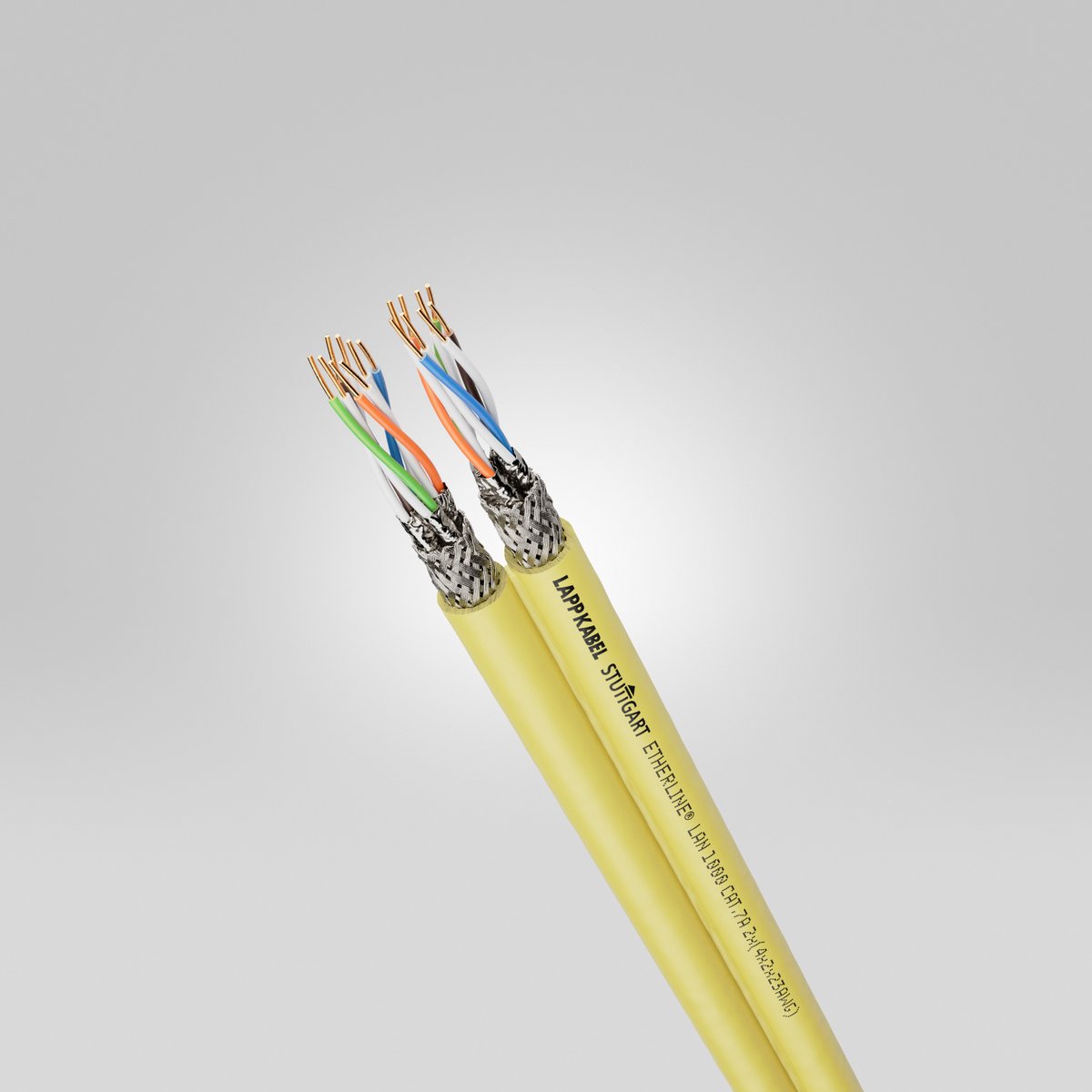

ETHERLINE® LAN 1000 Cat.7A

Naziv
Koda izdelka
Maks. najvišja delovna napetost (ne za napajalne aplikacije)
test voltage conductor/conductor
Nominal characteristic impedance
Cena
Količina
+
ETHERLINE® LAN 1000 Cat.7A 4x2xAWG23 LSZH
2170971
100 V
1 kV
100 ?
1,22 €
*
*

Naročilu bo dodan strošek manipulacije in reza 15€ na rez

Na zalogi, rok dobave 2-4 delovne dni.
+
ETHERLINE® LAN 1000 Cat.7A 2x(4x2xAWG23)
2170972
100 V
1 kV
100 ?
2,48 €
*
*

Naročilu bo dodan strošek manipulacije in reza 15€ na rez

Na zalogi, predviden rok dobave 5-8 delovnih dni.
+
ETHERLINE® LAN 1000 Cat.7A 2x(4x2x23AWG)
2170981
125 V
1 kV
100 ?
2,07 €
*
*

Naročilu bo dodan strošek manipulacije in reza 15€ na rez

Na zalogi, predviden rok dobave 5-8 delovnih dni.
+
ETHERLINE® LAN 1000 Cat.7A 4x2x23AWG
2170980
125 V
1 kV
100 ?
1,02 €
*
*

Naročilu bo dodan strošek manipulacije in reza 15€ na rez

Na zalogi, predviden rok dobave 5-8 delovnih dni.

Benefits

  • Fast information exchange through Ethernet technology.
  • Cat. 7A performance up to 10 Gbit/s.
  • For transmission of analogue and digital signals in the frequency range up to 1,000 MHz.
  • Meets the transmission behaviour requirements as per EIA/TIA-568 and TSB36, as well as ISO/IEC 11801/EN 50173 (link class FA).
  • Ideal protection against electromagnetic interference due to pair shielding with aluminium compound foil and copper braiding as overall shielding (S/FTP).
  • No flame propagation on the halogen free cable according to IEC 60332-3-25 (flame spread on vertical cable or conductor bunch).
  • Available as a 4-pair standard cable or as a duplex cable version for reduced cabling effort.
  • Classified fire behaviour according to EU Directive 305/2011 (BauPVO/CPR) with article number selection at www.lappkabel.de/cpr.

Applications

  • For fixed installation and structured building cabling according to EN 50173 and ISO/IEC 11801.
  • For horizontal floor cabling with a max. cable length of 100 m (90 m for installation and 10 m at the workstation).
  • Suitable for all LAN networks and Ethernet applications up to 10GBASE-T.

Notes

  • If applicable, the prices are solid metal prices without surcharges and VAT. Sales only to business customers.
  • Photographs and graphics are not to scale and do not represent detailed images of the respective products.
