ETHERLINE® FD Cat.6A

Naziv

Koda izdelka

Maks. najvišja delovna napetost (ne za napajalne aplikacije)

test voltage conductor/conductor

Testna napetost vodnika/opleta

Cena

Količina

ETHERLINE® FD P CAT.6A 4X2X24/7AWG

2170484

125 V

0.75 kV

5,94 €

Dolžina *
Poljubna dolžina * Naročilu bo dodan strošek manipulacije in reza 15€ na rez

Informativni dobavni rok: 5-8 delovnih dni. Predviden dobavni rok za izbrano količino prosimo preverite v košarici.

ETHERLINE® FD CAT.6A 4X2X24/7AWG

2170485

125 V

2 kV

5,12 €

Dolžina *
Poljubna dolžina * Naročilu bo dodan strošek manipulacije in reza 15€ na rez

Informativni dobavni rok: 5-8 delovnih dni. Predviden dobavni rok za izbrano količino prosimo preverite v košarici.

Benefits

Power over Ethernet-capable cable for simultaneous power and data supply of smaller network components with low energy requirements (e.g. IP cameras, wireless access points).
Successfully tested for over 2.5 million bending cycles in cable chains.
Variant “P” with PUR outer sheath is halogen-free to comply with special fire protection requirements.
UL/CSA certification according to technical data enables the product to be used in the North American market.
Cat. 6A performance up to 10 Gbit/s.
Available with robust PVC or abrasion-resistant PU outer sheath.

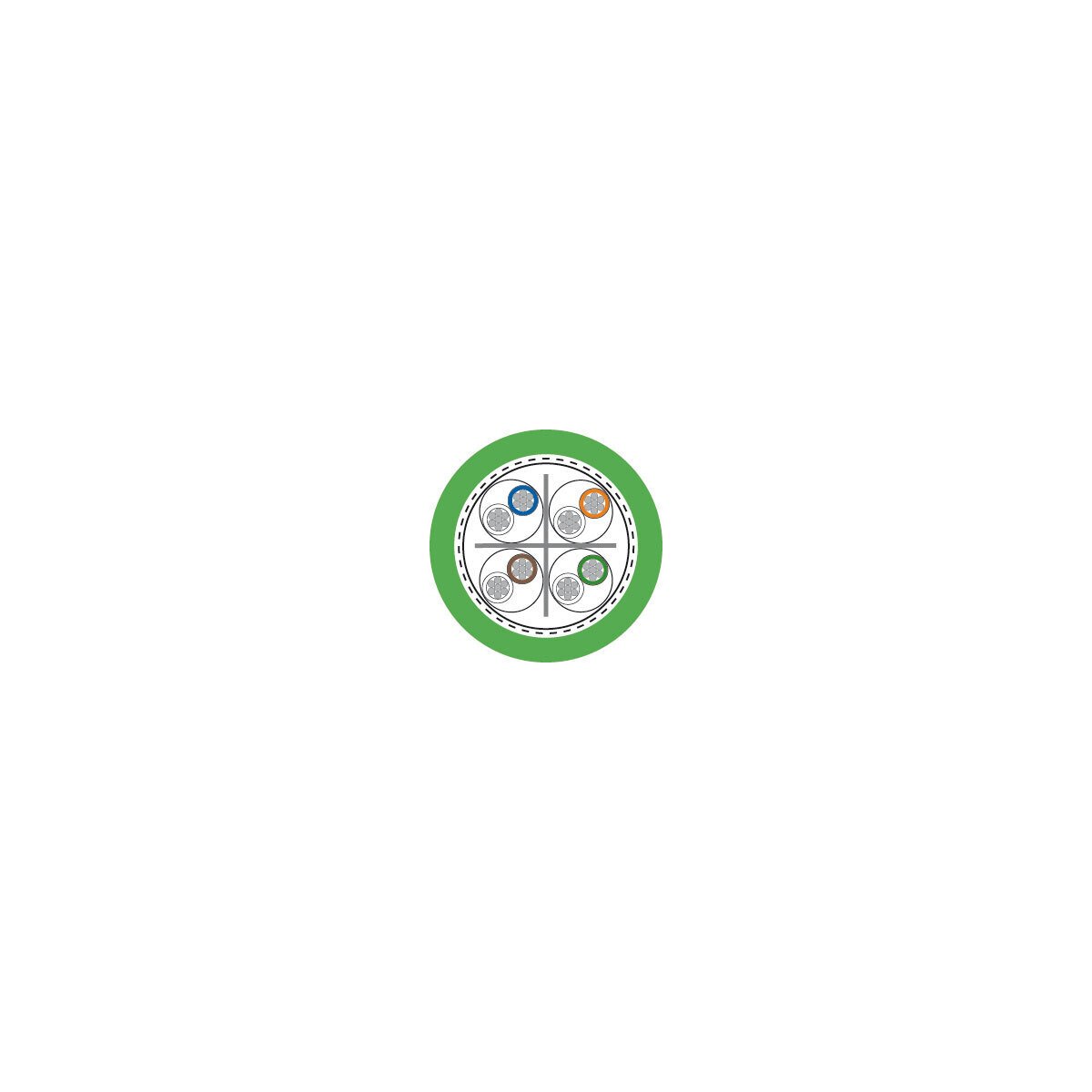

Ideal protection against electromagnetic interference due to aluminium-laminated pair shielding and copper stranded shielding as overall shielding (S/FTP).
Fast information exchange through Ethernet technology.
UL/CSA certification according to technical data enables the product to be used in the North American market.
For transmission of analogue and digital signals in the frequency range up to 500 MHz.

Variant “P” with PUR outer sheath is suitable for outdoor use.
Also suitable for EtherCAT and EtherNET/IP applications.
Can be used in dry and damp environments.
For highly flexible, constantly moving use in moving machine parts and in cable chains in the PROFINET network (type C).
Suitable for all LAN networks and Ethernet applications up to 10GBASE-T.
Also suitable for EtherCAT and EtherNet/IP applications.

If applicable, the prices are solid metal prices without surcharges and VAT. Sales only to business customers.
Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.
PROFINET® is a registered trademark of PNO (PROFIBUS user organisation).
Photographs and graphics are not to scale and do not represent detailed images of the respective products.
