ETHERLINE® Cat.6 FD

Naziv
Koda izdelka
Maks. najvišja delovna napetost (ne za napajalne aplikacije)
test voltage conductor/conductor
Testna napetost vodnika/opleta
Cena
Količina
+
ETHERLINE® FD P CAT.6 4X2XAWG26
2170488
125 V
1.7 kV
1.7 kV
3,20 €
*
*

Naročilu bo dodan strošek manipulacije in reza 15€ na rez

Na zalogi v tovarni, predviden rok dobave 5-8 delovnih dni.

Benefits

  • Fast information exchange through Ethernet technology.
  • Cat. 6 performance up to 1 Gbit/s.

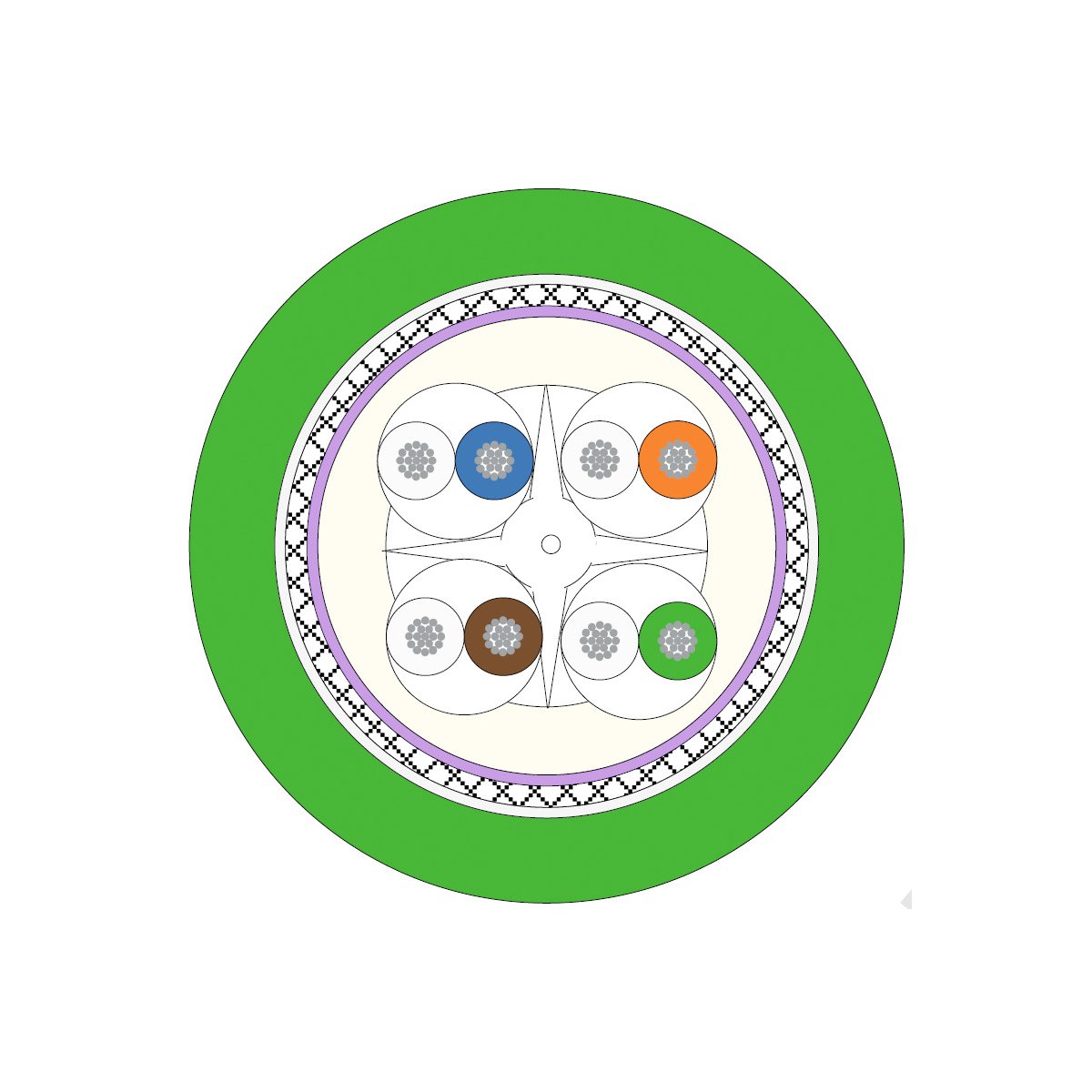

  • Highly flexible cable design with a cross separator to protect the core pairs for maximum mechanical stress.
  • Durable, resistant product thanks to the outer sheath material that is resistant to abrasions, notches and cuts.
  • Ideal protection against electromagnetic interference thanks to double shielding made of aluminium-laminated foil and copper braiding shielding with high degree of coverage (SF/UTP).
  • Successfully tested for over 4 million bending cycles in the cable chain.
  • UL certification according to technical data enables the product to be used on the North American market.

Applications

  • The PU outer sheath is extremely resistant to mineral oil-based lubricants and is highly chemical resistant.
  • Can be used in dry, damp and, especially, harsh and oily environments.
  • The cable design allows flexible, constantly flexing use in moving machine parts and cable chains.
  • Also suitable for EtherCAT and EtherNET/IP applications.
  • The PU outer sheath withstands high mechanical loads.

Notes

  • Please find our standard lengths at: www.lappkabel.de/kabel-standardlaengen.
  • If applicable, the prices are solid metal prices without surcharges and VAT. Sales only to business customers.
  • Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.
  • Photographs and graphics are not to scale and do not represent detailed images of the respective products.
