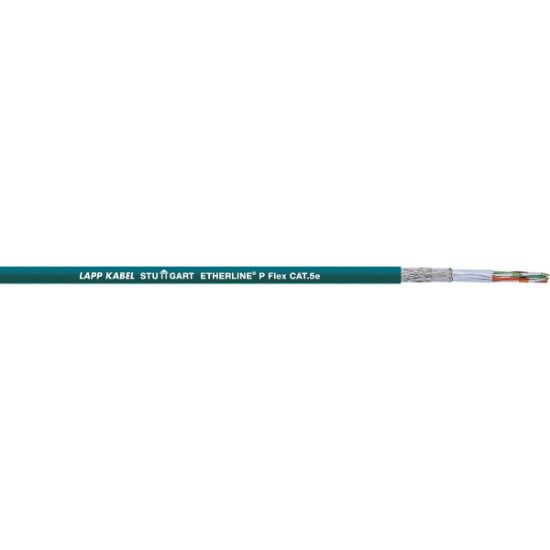

ETHERLINE® Cat.5e FLEX

Bodite prvi in ocenite ta izdelek

Naziv

Koda izdelka

Maks. najvišja delovna napetost (ne za napajalne aplikacije)

test voltage conductor/conductor

Testna napetost vodnika/opleta

Cena

Količina

ETHERLINE® H FLEX CAT. 5e 2x2x26/7AWG

2170283

125 V

1 kV

0.5 kV

1,17 €

Dolžina *
Poljubna dolžina * Naročilu bo dodan strošek manipulacije in reza 15€ na rez

Na zalogi v tovarni, predviden rok dobave 5-8 delovnih dni.

ETHERLINE® P FLEX CAT5E 2X2XAWG26

2170284

125 V

3 kV

1,33 €

Dolžina *
Poljubna dolžina * Naročilu bo dodan strošek manipulacije in reza 15€ na rez

Na zalogi v tovarni, predviden rok dobave 5-8 delovnih dni.

ETHERLINE® H FLEX CAT.5e 4X2XAWG26/7

2170299

125 V

1 kV

0.5 kV

1,25 €

Dolžina *
Poljubna dolžina * Naročilu bo dodan strošek manipulacije in reza 15€ na rez

Na zalogi v tovarni, predviden rok dobave 5-8 delovnih dni.

ETHERLINE® P Flex CAT.5e 4X2XAWG26/7

2170300

125 V

3 kV

1,85 €

Dolžina *
Poljubna dolžina * Naročilu bo dodan strošek manipulacije in reza 15€ na rez

Na zalogi v tovarni, predviden rok dobave 5-8 delovnih dni.

ETHERLINE® Y Flex CAT.5e 4X2XAWG26/7

2170486

125 V

2 kV

1,79 €

Dolžina *
Poljubna dolžina * Naročilu bo dodan strošek manipulacije in reza 15€ na rez

Na zalogi v tovarni, predviden rok dobave 5-8 delovnih dni.

Benefits

Ideal protection against electromagnetic interference thanks to double screening made of aluminium-laminated foil and copper screening braiding with high degree of coverage (SF/UTP).
cables with PUR jacket: 1000 V UL- rating for installation next to power cables
Seamless communication from the sensor/actuator level to the Internet
Screened against interference
Can be used in dry or damp rooms
Can be used for Industrial Ethernet in harsh industrial environments
Available as a 4-pair standard cable or as a duplex cable version for reduced cabling effort.
Fast information exchange through Ethernet technology.

Applications

2pair: 10/100 Mbit/s for Industrial Ethernet
For flexible applications (7-wire stranded conductor)
Only for patch cable applications (max. 60 m)
suitable for EtherCAT and EtherNet/IP applications
4pair: 10/100/1000 Mbit/s for Industrial Ethernet
Can be used in dry, damp or wet interiors.
Suitable for patch cable assembly up to 60 m cable length.

Documentation

Notes

Please find our standard lengths at: www.lappkabel.de/kabel-standardlaengen.
If applicable, the prices are solid metal prices without surcharges and VAT. Sales only to business customers.
Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.
Photographs and graphics are not to scale and do not represent detailed images of the respective products.
