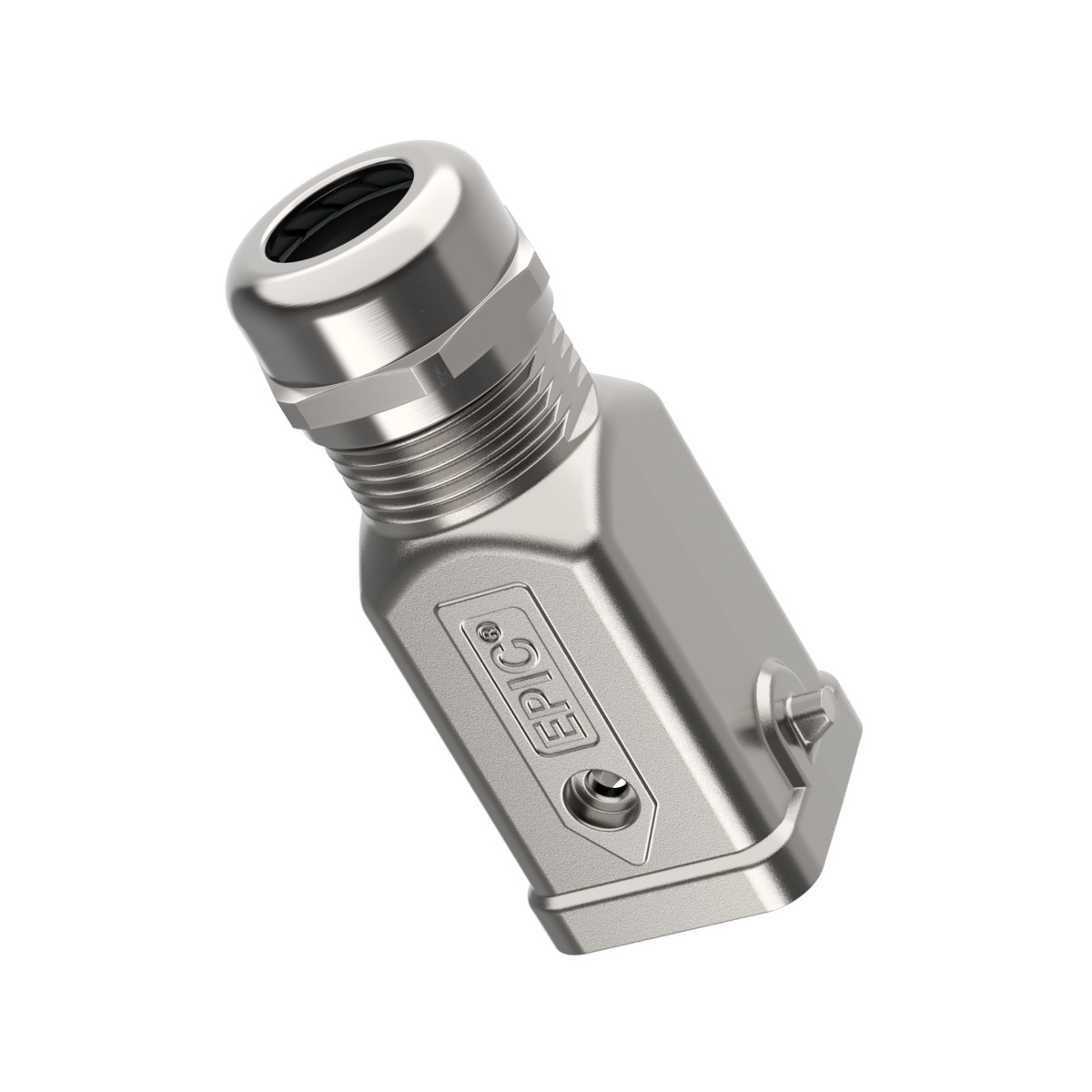

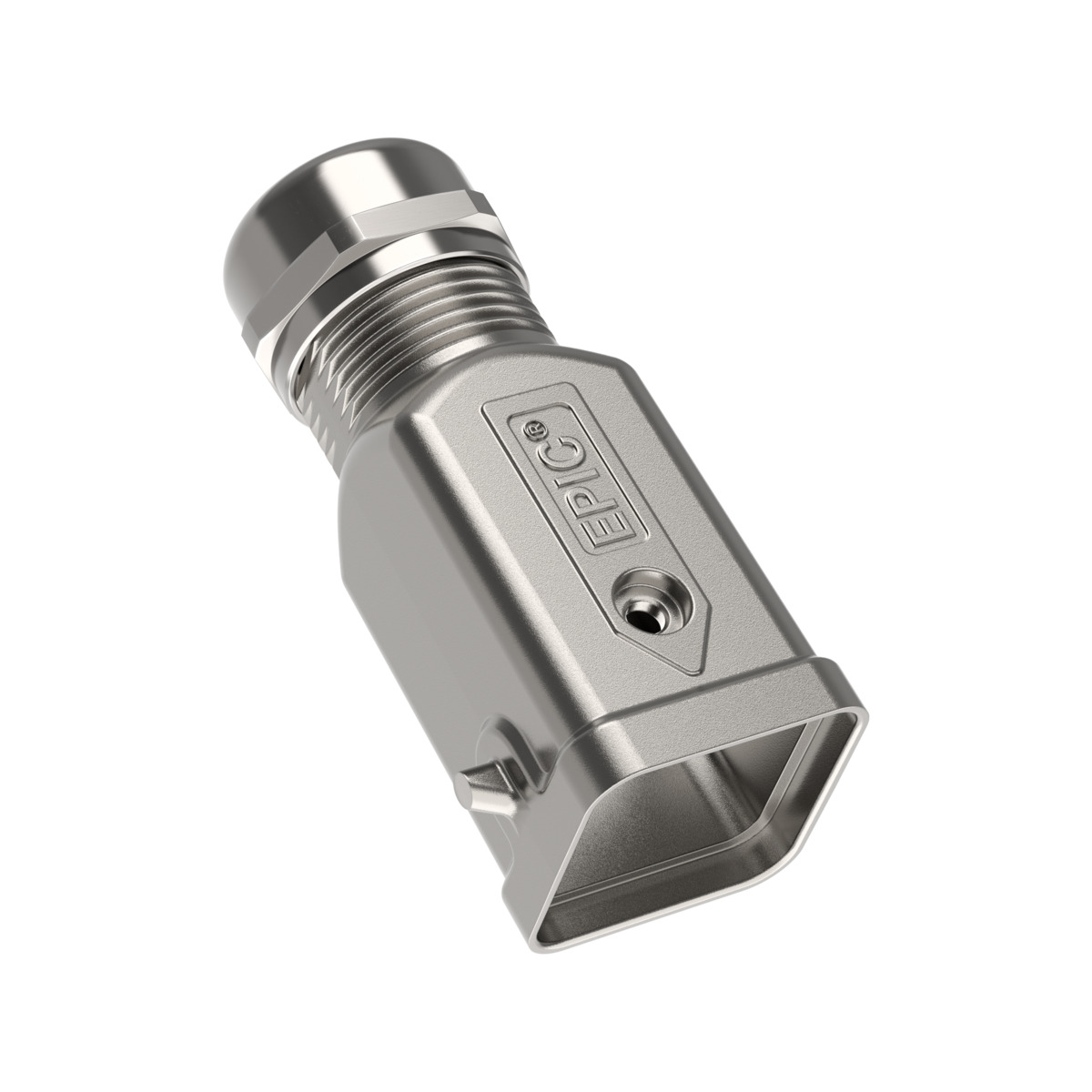

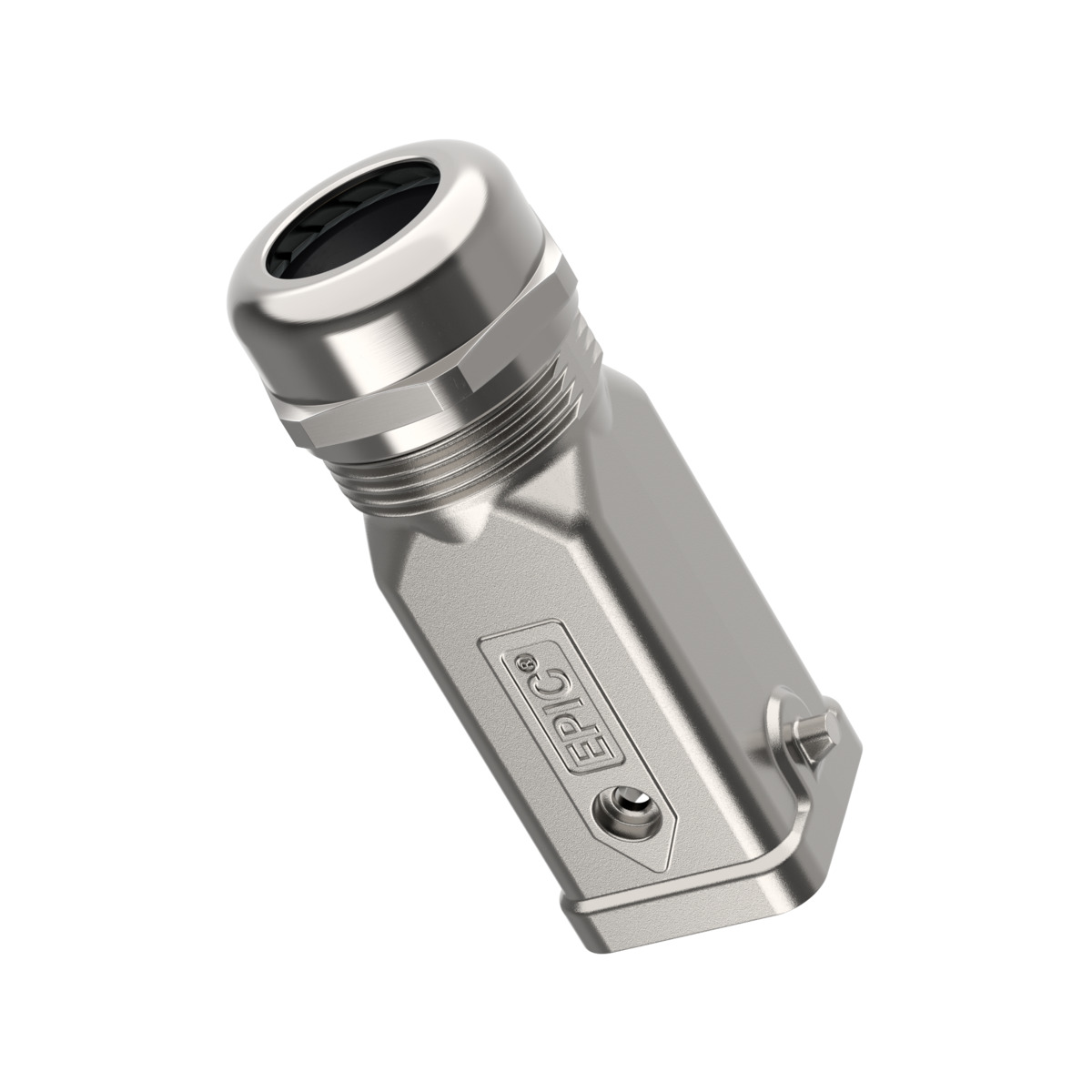

EPIC® ULTRA H-A 3 TGHV

Benefits

• The hood can be connected with many standard housings (mount base, surface-mount base or cable coupler housings).
• The EPIC® ULTRA H-A 3 series covers the smallest EMC housings in the heavy-duty industrial connector field and ensures secure connectors in the smallest possible space.

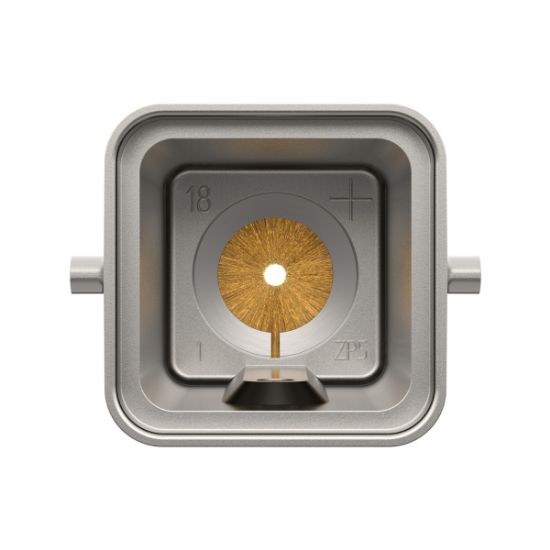

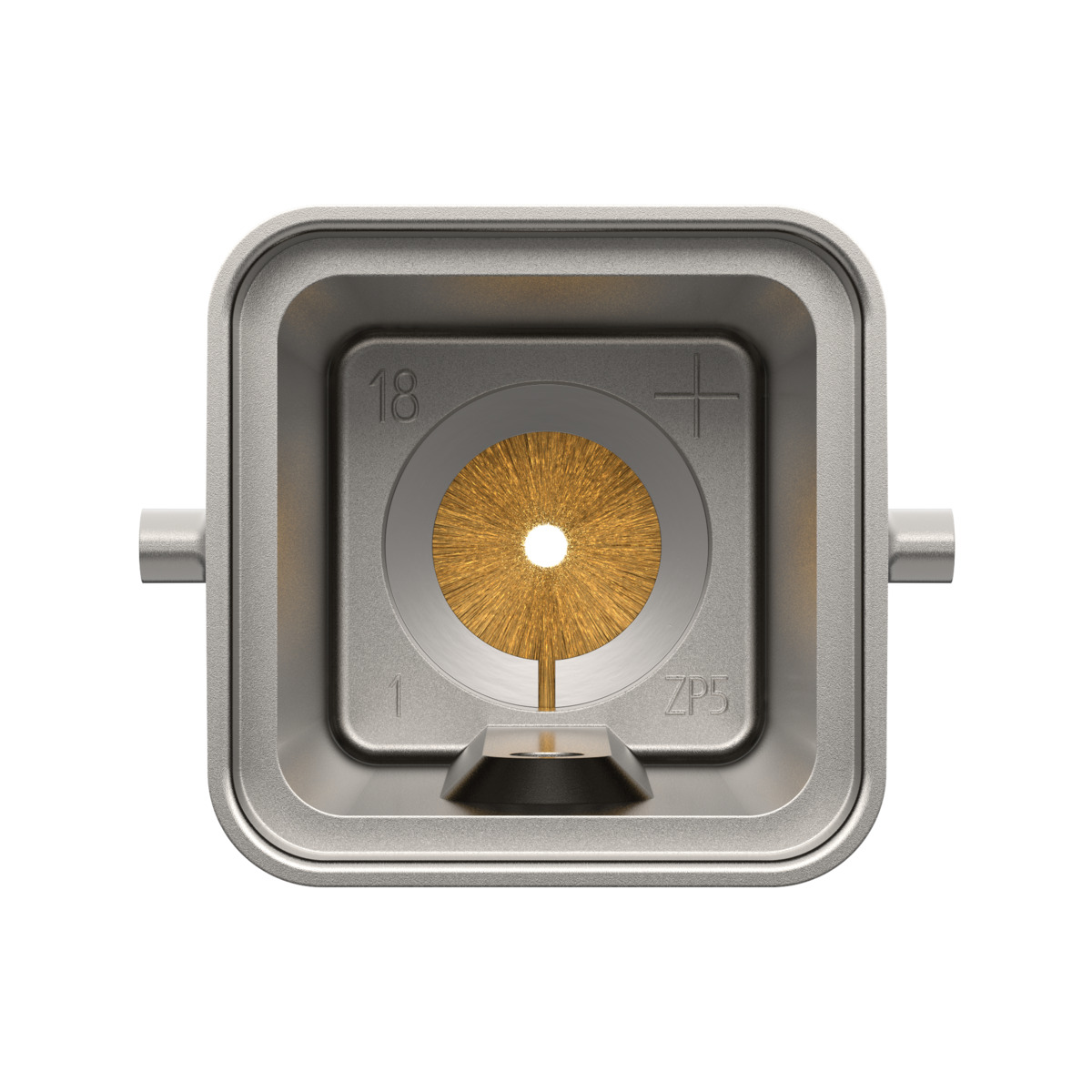

• For article names with the addition “BRUSH”, the integrated cable gland is supplemented by our innovative SKINTOP® BRUSH brass brush, which enables 360° contacting of the copper stranded shielding and thus enables the interference signals to be deflected even more effectively. Brush wires enable easier assembly of the connector and obtain the gap-free 360° coverage of the copper stranded shielding.
• The integrated brass SKINTOP® cable gland is used for sealing and strain relief cable entries. Compared to housings where the cable gland is added separately, the overall size of the housing is more space-saving.
• The arrow is a new design element on the housing surface, making it easy to find and easy to connect in tight spaces and possibly poorly visible areas of application.
• Meets protection class IP 65 when locked.
• Locking is performed using a stainless steel single lever on the counter-housing.
• The high design offers more space, making it suitable for larger inserts or applications that need more space in the housing.
• Protection class classified according to NEMA 250 and tested pursuant to UL50E.
