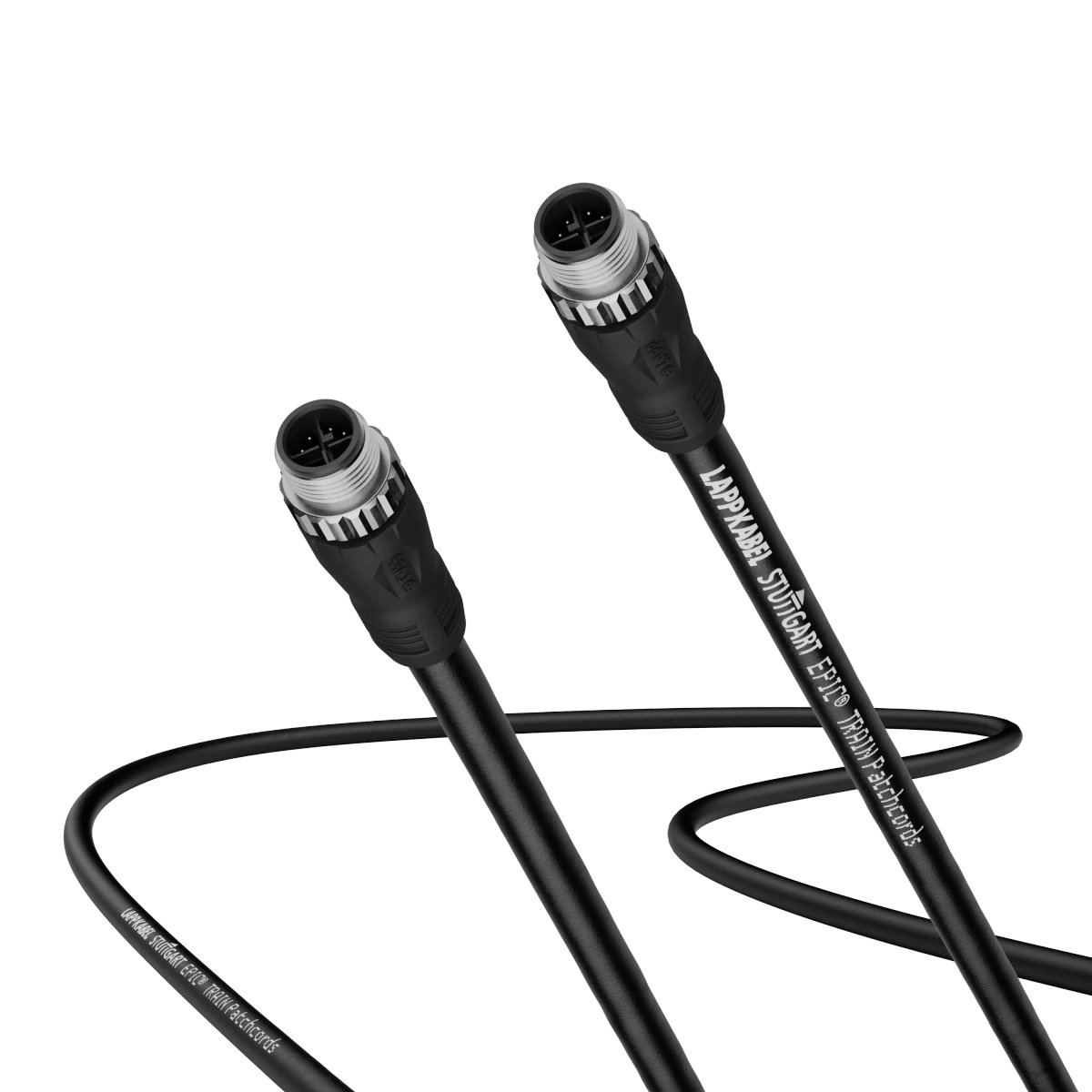

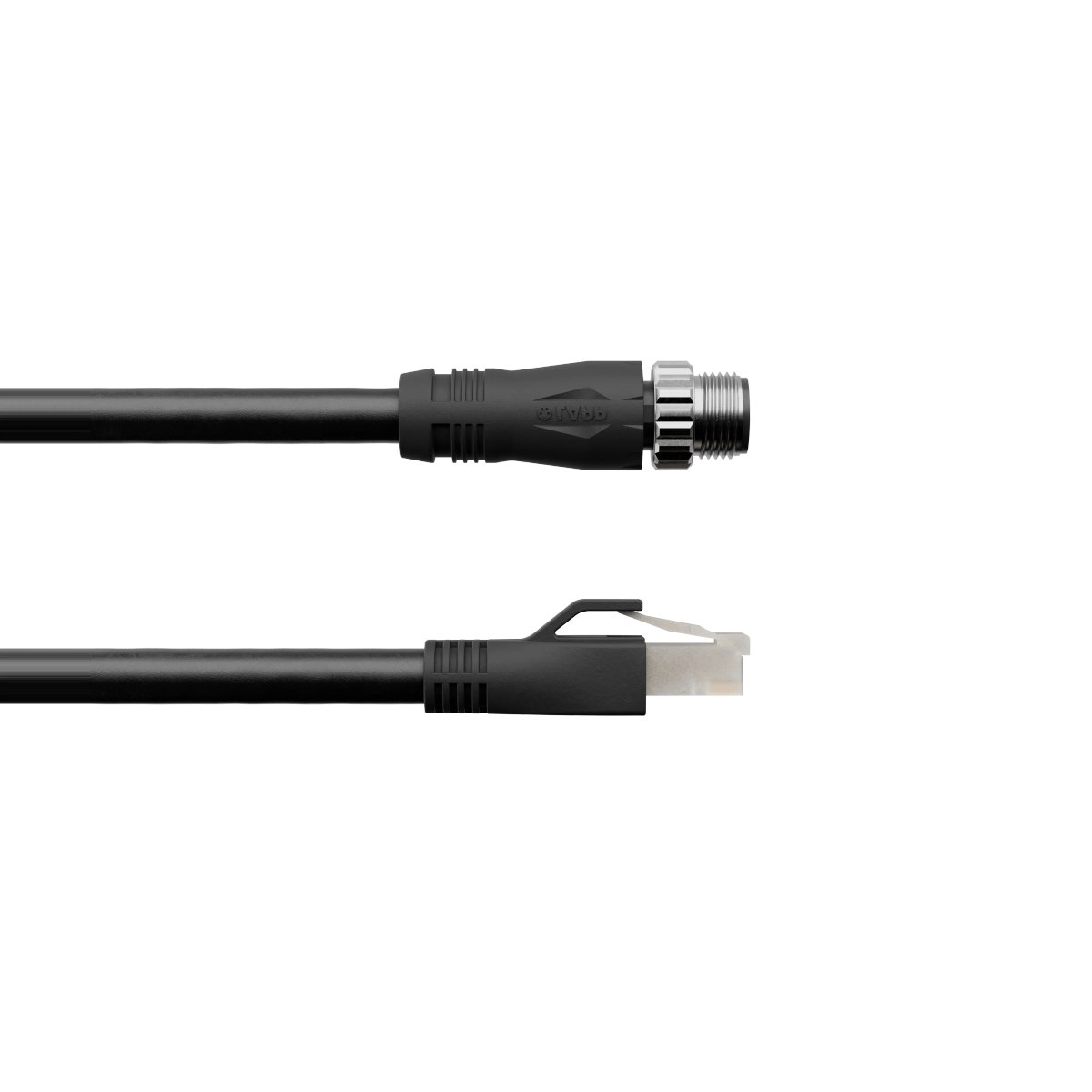

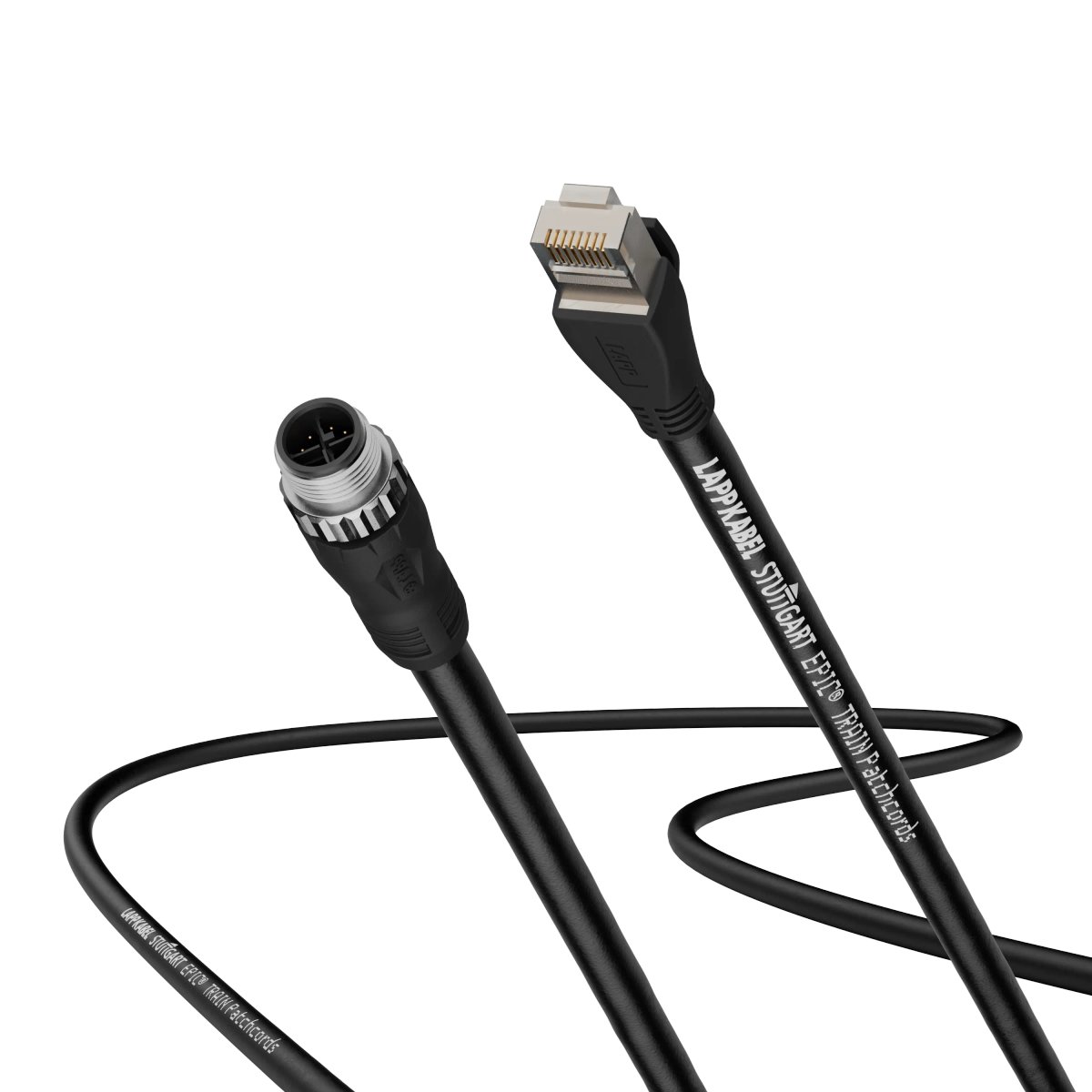

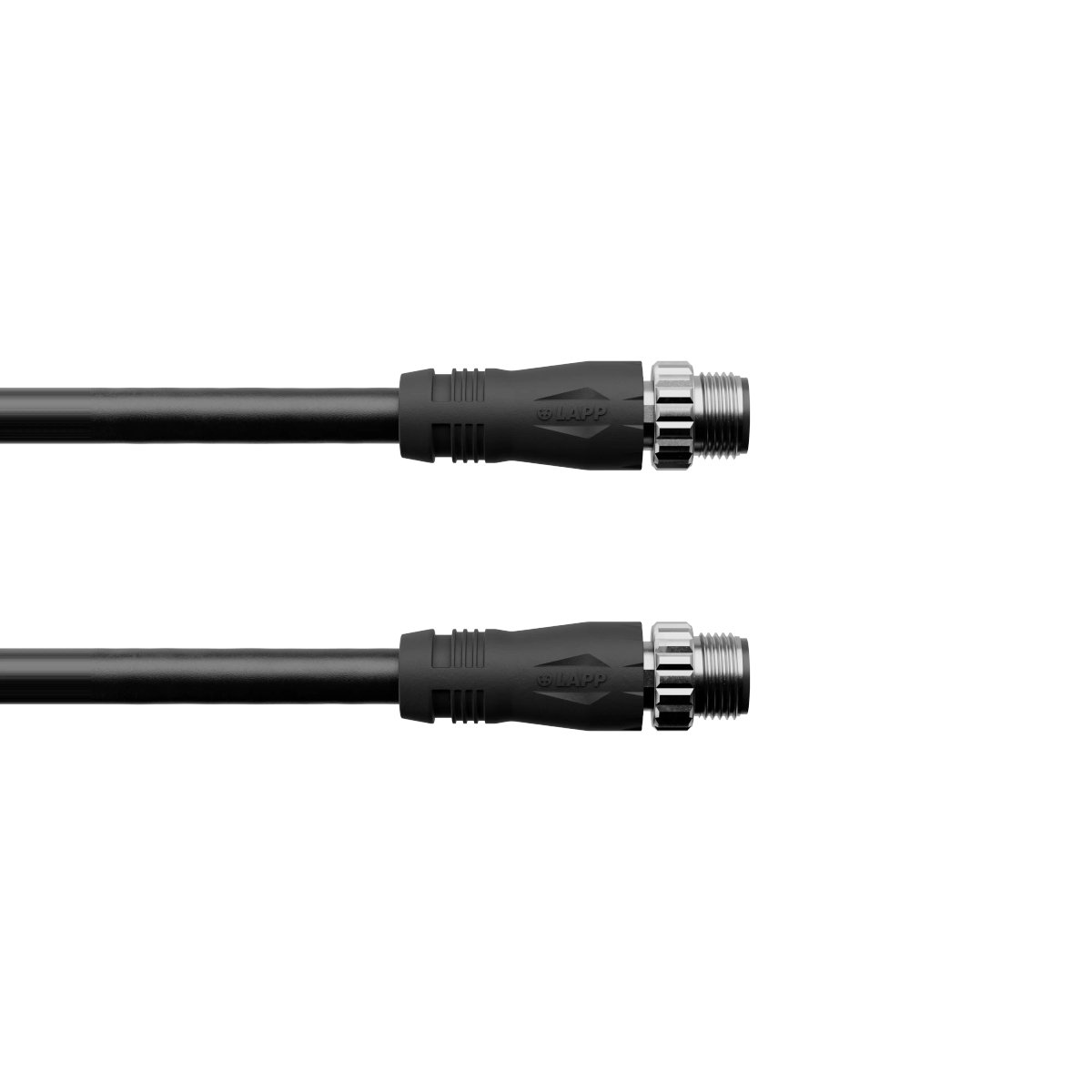

EPIC® TRAIN Cat.6A Patchcords

Bodite prvi in ​​ocenite ta izdelek
Naziv
Koda izdelka
Dolžina konfekcioniranega kabla
Višina
Angle of connector housing
Cena
Količina
+
EPIC® MC08C1LSXSB-MC08C1LSXSB26LK100-R
7433508932
10 m
15 mm
180 °
126,11 €
Informativni dobavni rok: 5-8 delovnih dni. Predviden dobavni rok za izbrano količino prosimo preverite v košarici.
+
EPIC® RJ6AC1-MC08C1LSXSB26LK20-R
7433508927
2 m
15 mm
180 °
39,43 €
Informativni dobavni rok: 5-8 delovnih dni. Predviden dobavni rok za izbrano količino prosimo preverite v košarici.
+
EPIC® RJ6AC1-MC08C1LSXSB26LK50-R
7433508928
5 m
15 mm
180 °
64,30 €
Informativni dobavni rok: 5-8 delovnih dni. Predviden dobavni rok za izbrano količino prosimo preverite v košarici.
+
EPIC® RJ6AC1-MC08C1LSXSB26LK100-R
7433508929
10 m
15 mm
180 °
105,73 €
Informativni dobavni rok: 5-8 delovnih dni. Predviden dobavni rok za izbrano količino prosimo preverite v košarici.
+
EPIC® MC08C1LSXSB-MC08C1LSXSB26LK20-R
7433508930
5 m
15 mm
180 °
59,81 €
Informativni dobavni rok: 5-8 delovnih dni. Predviden dobavni rok za izbrano količino prosimo preverite v košarici.
+
EPIC® MC08C1LSXSB-MC08C1LSXSB26LK50-R
7433508931
5 m
15 mm
180 °
84,68 €
Informativni dobavni rok: 5-8 delovnih dni. Predviden dobavni rok za izbrano količino prosimo preverite v košarici.

Benefits

  • The patch cable assembled on both sides saves time during installation and reduces or eliminates the potential for errors during on-site assembly.
  • Ideal protection against electromagnetic interference due to aluminium-laminated pair shielding and copper stranded shielding as overall shielding (S/FTP).
  • Cat. 6A performance up to 10 Gbit/s.
  • Available with RJ45 or M12 connectors. The slim RJ45 connector enables use in devices with a very high port density, while the integrated vibration protection of the M12 connector is useful in applications with shock and vibrations.
  • Weight and space-saving thanks to reduced outer diameter. A higher installation density can therefore be achieved, especially where space is limited.

Applications

  • Typical applications include passenger information systems, entertainment systems, ticketing systems and door control systems.
  • For use in the Train Communication Network (TCN) of railway vehicles in accordance with IEC 61375.
  • For flexible use.
  • Compliant with standards for use in railway vehicles: fire safety and cable design requirements according to DIN EN 50306-4, type MM; fire behaviour test according to DIN EN 45545-2, hazard levels HL1, HL2 and HL3.
  • Can be used in dry, damp and, especially, harsh and oily environments.
  • Especially for environments where electromagnetic compatibility (EMC) is required.
  • Suitable for outdoor use.

Documentation

Notes

  • Photographs and graphics are not to scale and do not represent detailed images of the respective products.
  • If applicable, the prices are solid metal prices without surcharges and VAT. Sales only to business customers.
  • Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.
