EPIC® TRAIN Cat.5e Patchcords

Bodite prvi in ocenite ta izdelek

Naziv

Koda izdelka

Dolžina konfekcioniranega kabla

Višina

Min. temperatura polaganja

Cena

Količina

EPIC® MC04C5LSDSB-22LK100-R

7433508920

10 m

15 mm

-40 °C

99,72 €

Informativni dobavni rok: 5-8 delovnih dni. Predviden dobavni rok za izbrano količino prosimo preverite v košarici.

EPIC® RJ5EC1-MC04C1LSDSB-22LK20-R

7433508916

2 m

15 mm

-40 °C

27,05 €

Informativni dobavni rok: 5-8 delovnih dni. Predviden dobavni rok za izbrano količino prosimo preverite v košarici.

EPIC® MC04C1LSDSB-MC04C1RSDSB22LK20-R

7433508921

2 m

30.4 mm

-40 °C

35,17 €

Rok dobave sporočimo po obdelavi naročila.

EPIC® MC04C1LSDSB-22LK20-R

7433508910

2 m

15 mm

-40 °C

26,20 €

Informativni dobavni rok: 5-8 delovnih dni. Predviden dobavni rok za izbrano količino prosimo preverite v košarici.

EPIC® MC04C1LSDSB-22LK50-R

7433508911

5 m

15 mm

-40 °C

50,25 €

Informativni dobavni rok: 5-8 delovnih dni. Predviden dobavni rok za izbrano količino prosimo preverite v košarici.

EPIC® RJ5EC1-MC04C1LSDSB-22LK100-R

7433508917

10 m

15 mm

-40 °C

91,20 €

Informativni dobavni rok: 5-8 delovnih dni. Predviden dobavni rok za izbrano količino prosimo preverite v košarici.

EPIC® MC04C5LSDSB-22LK50-R

7433508919

5 m

59,63 €

Informativni dobavni rok: 5-8 delovnih dni. Predviden dobavni rok za izbrano količino prosimo preverite v košarici.

EPIC® MC04C1LSDSB-MC04C1RSDSB22LK50-R

7433508922

5 m

330.4 mm

-40 °C

59,22 €

Rok dobave sporočimo po obdelavi naročila.

EPIC® MC04C2RSDSB22LK20-R

7433508924

2 m

29.3 mm

-40 °C

25,94 €

Rok dobave sporočimo po obdelavi naročila.

EPIC® MC04C2RSDSB22LK50-R

7433508925

5 m

29.3 mm

-40 °C

49,99 €

Rok dobave sporočimo po obdelavi naročila.

EPIC® MC04C2RSDSB22LK100-R

7433508926

10 m

29.3 mm

-40 °C

90,09 €

Rok dobave sporočimo po obdelavi naročila.

EPIC® MC04C1LSDSB-MC04C1RSDSB22LK100-R

7433508923

10 m

30.4 mm

-40 °C

99,32 €

Rok dobave sporočimo po obdelavi naročila.

EPIC® MC04C1RSDSB-22LK100-R

7433508915

10 m

30.4 mm

-40 °C

89,98 €

Rok dobave sporočimo po obdelavi naročila.

EPIC® MC04C1RSDSB-22LK50-R

7433508914

5 m

30.4 mm

-40 °C

49,84 €

Rok dobave sporočimo po obdelavi naročila.

EPIC® MC04C1RSDSB-22LK20-R

7433508913

2 m

30.4 mm

-40 °C

25,79 €

Rok dobave sporočimo po obdelavi naročila.

EPIC® MC04C1LSDSB-22LK100-R

7433508912

10 m

15 mm

-40 °C

90,39 €

Informativni dobavni rok: 5-8 delovnih dni. Predviden dobavni rok za izbrano količino prosimo preverite v košarici.

EPIC® RJ5EC1-MC04C1LSDSB-22LK50-R

7433509036

5 m

51,10 €

Informativni dobavni rok: 5-8 delovnih dni. Predviden dobavni rok za izbrano količino prosimo preverite v košarici.

EPIC® MC04C5LSDSB-22LK20-R

7433509341

2 m

35,58 €

Informativni dobavni rok: 5-8 delovnih dni. Predviden dobavni rok za izbrano količino prosimo preverite v košarici.

Benefits

Weight and space-saving thanks to reduced outer diameter. A higher installation density can therefore be achieved, especially where space is limited.

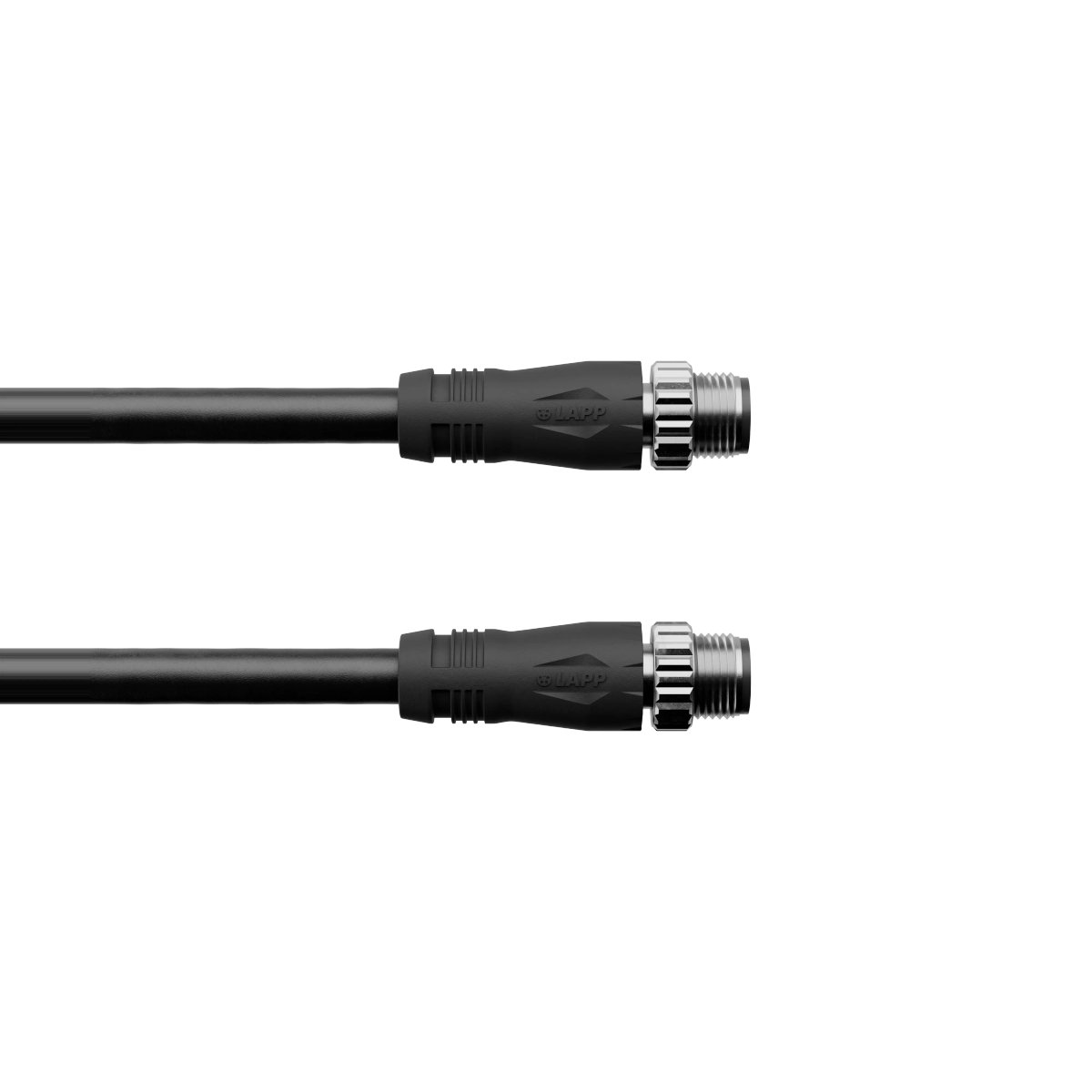

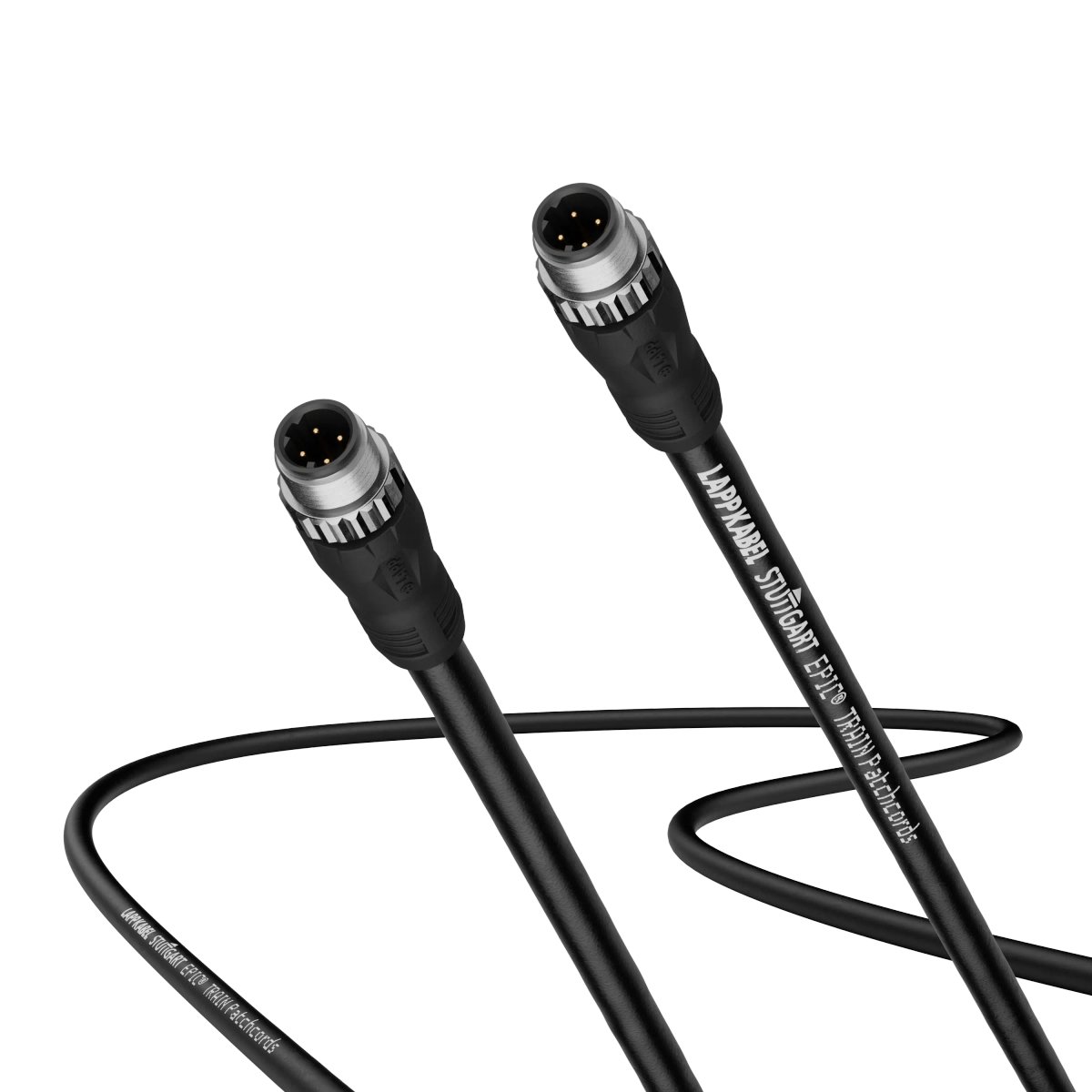

Also available as a cable assembled on both sides to save time during installation.

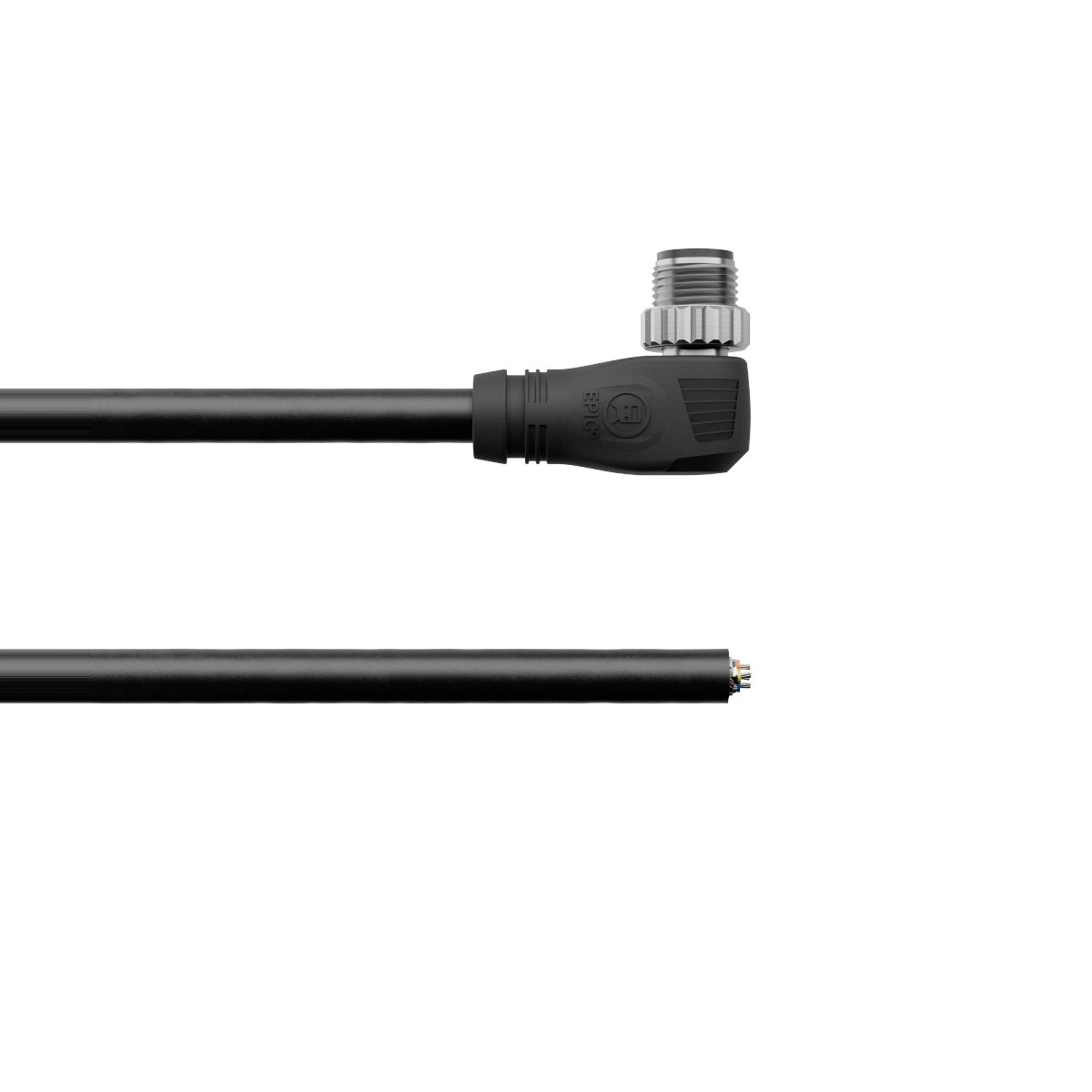

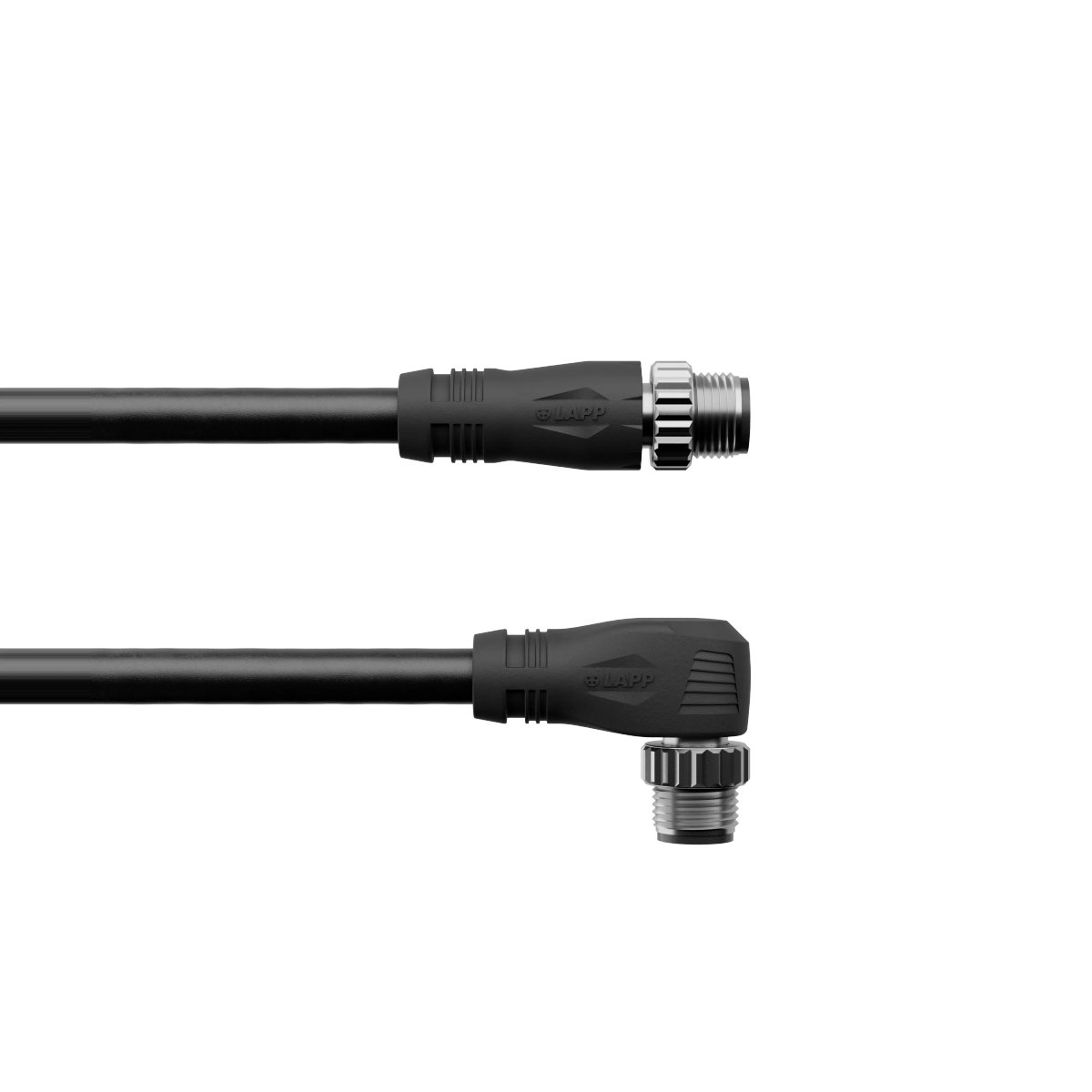

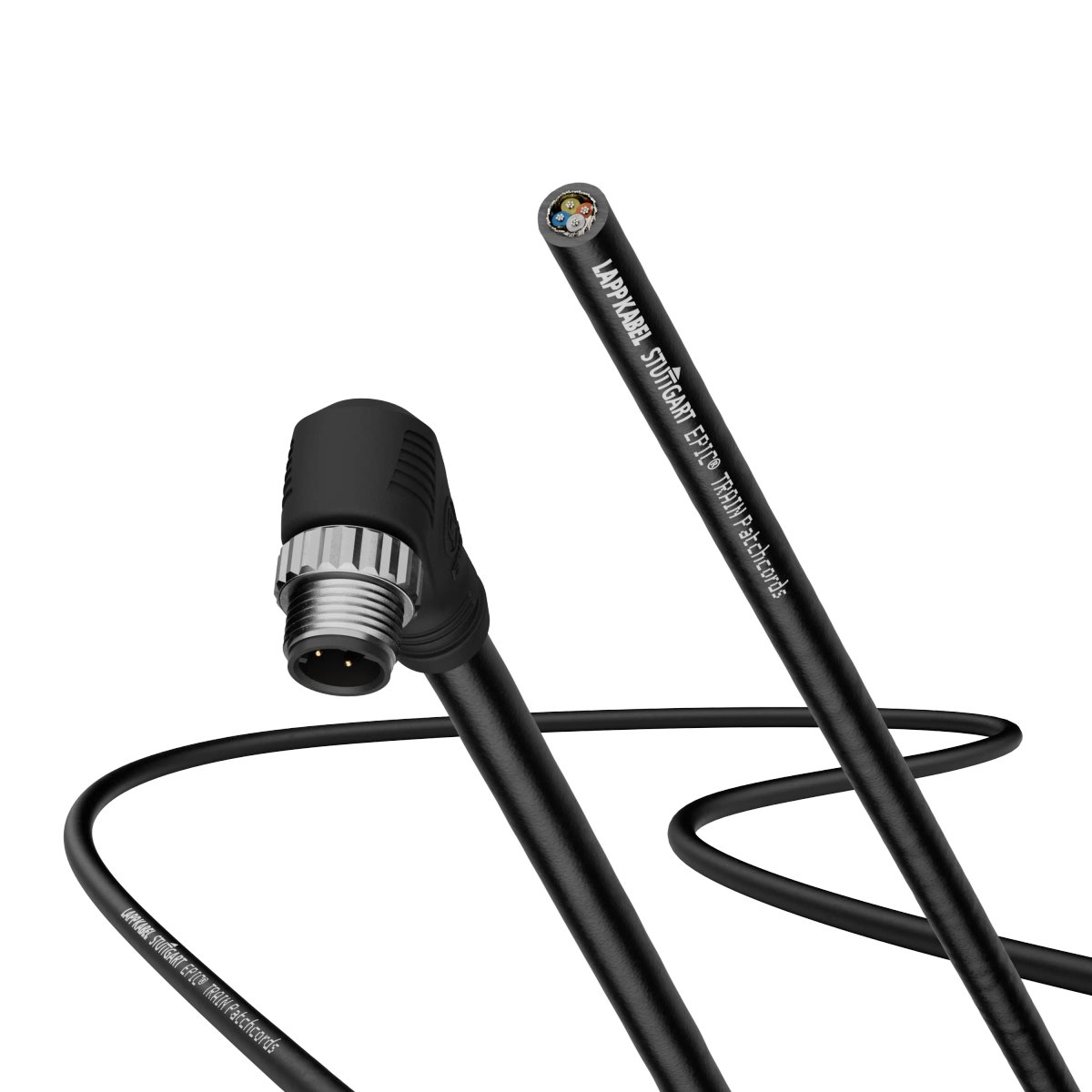

The angled shape of the connector is suitable for a space-saving cable outlet.
Cat. 5e performance up to 1000 Mbit/s.

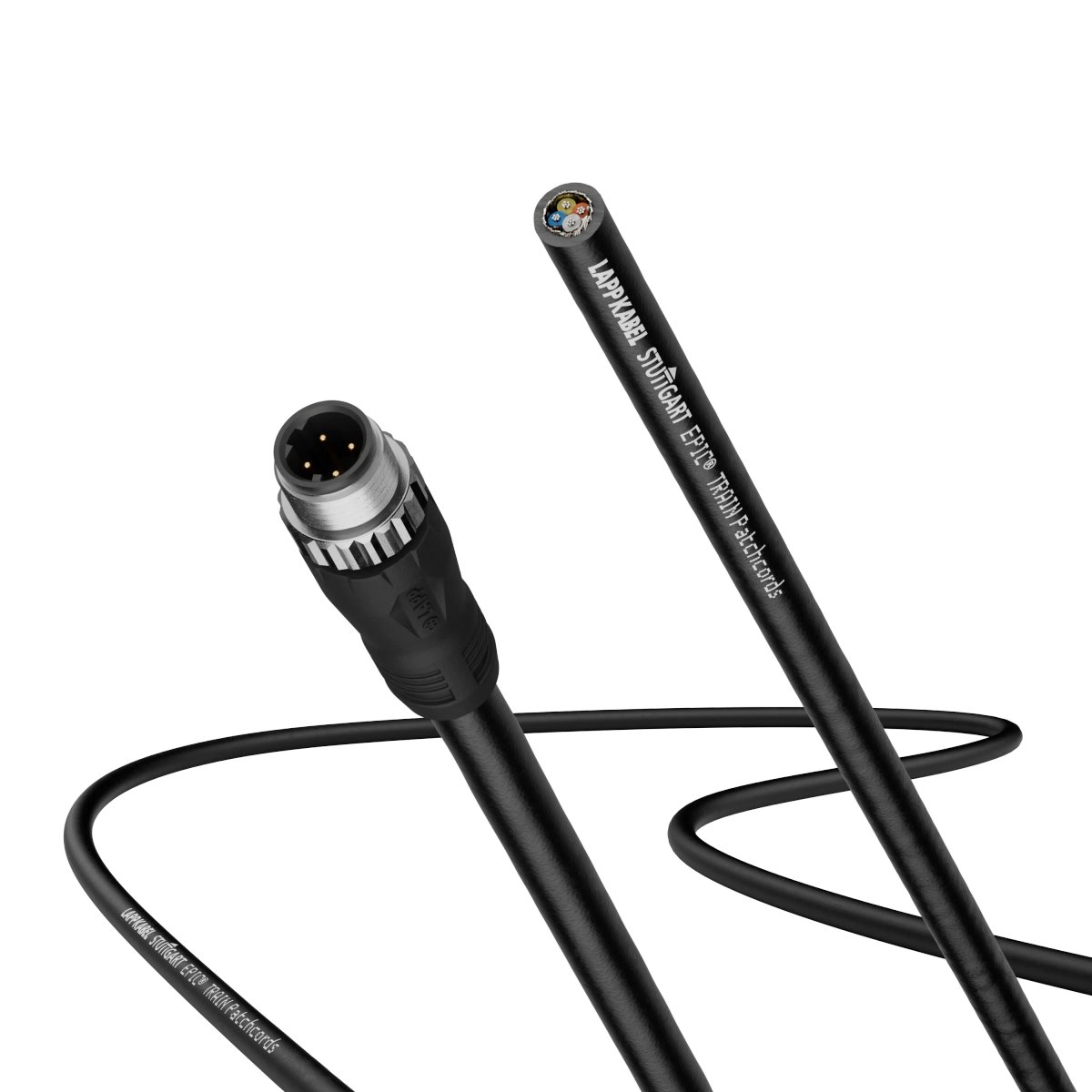

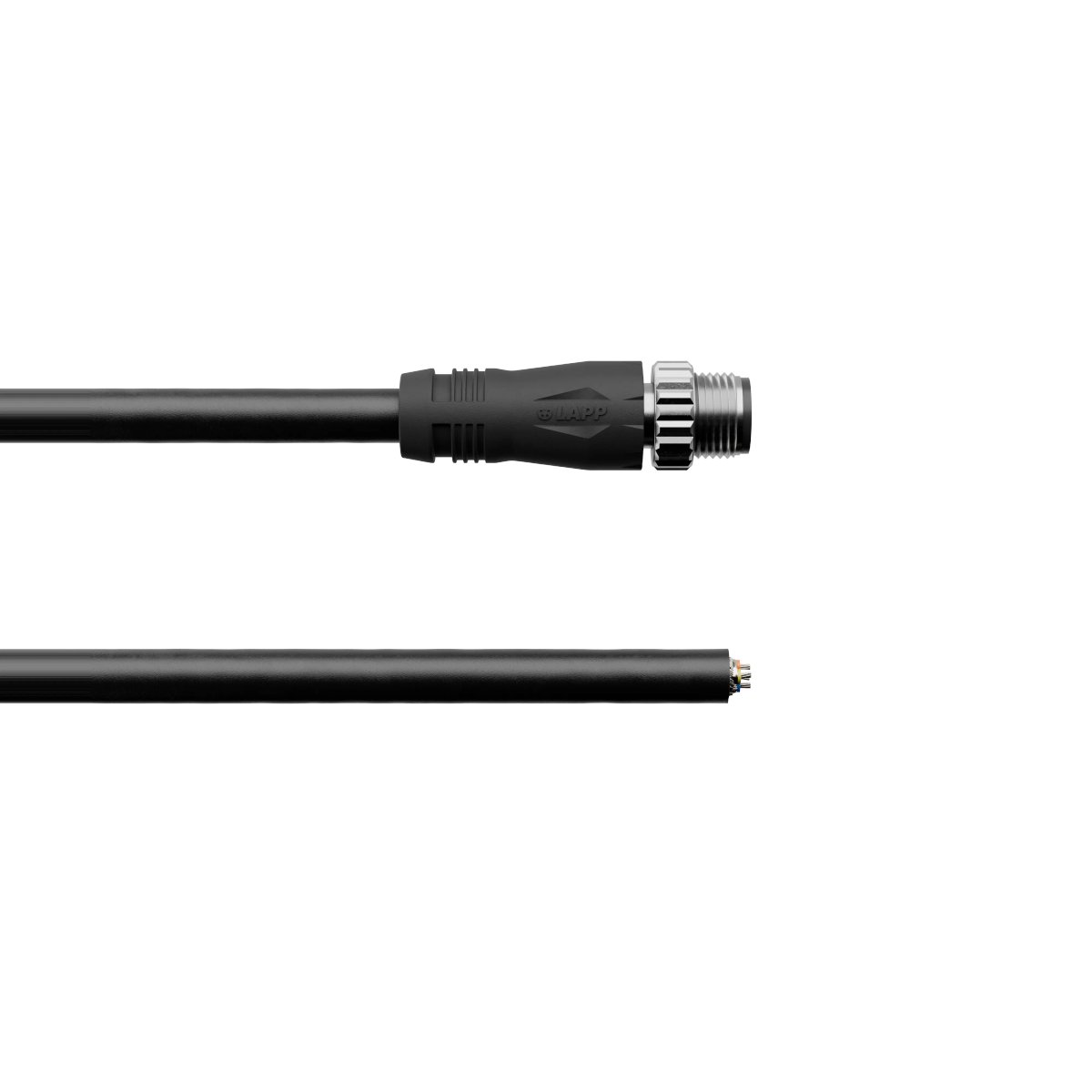

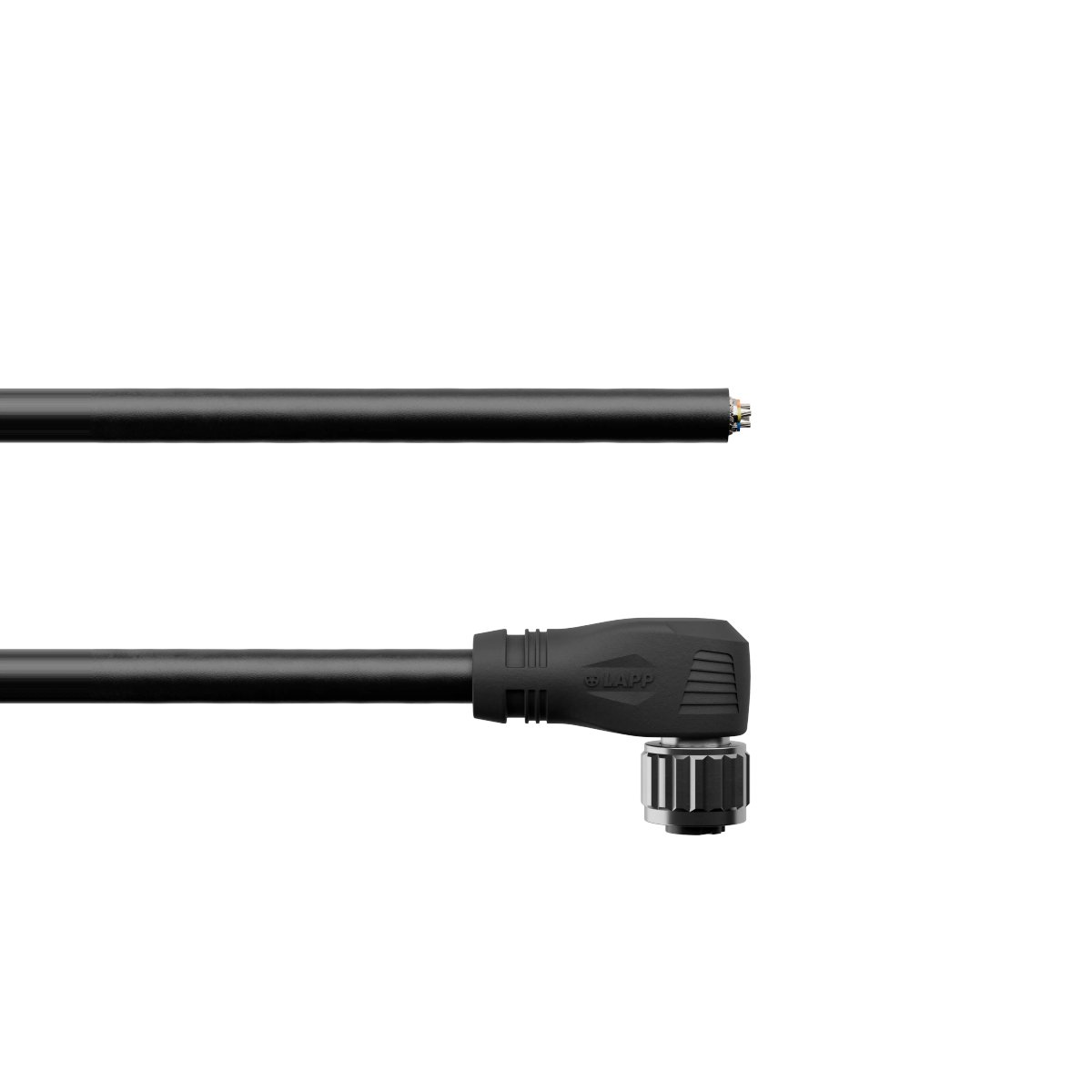

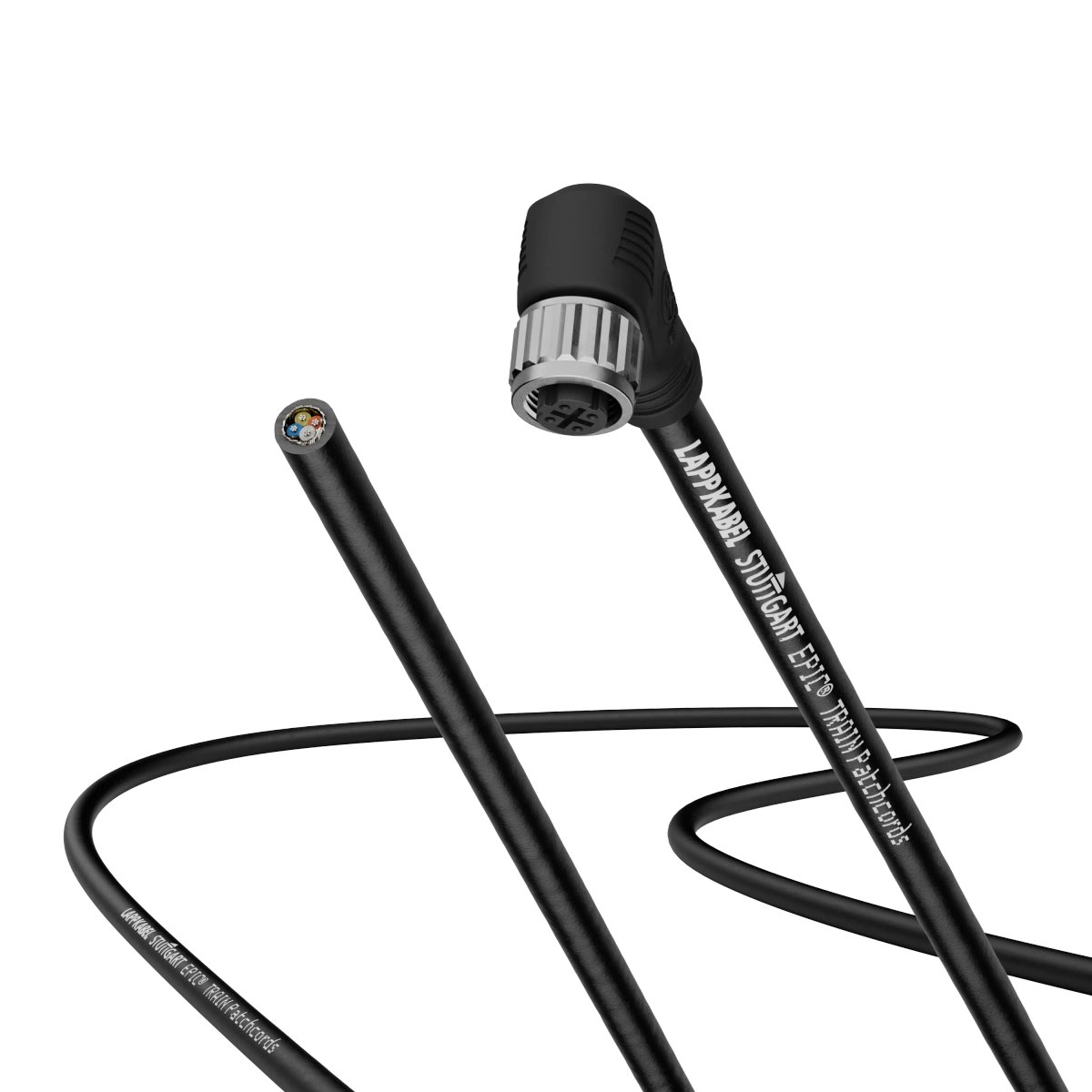

Available as a one-sided assembled cable for flexible selection of the cable length and free choice of further connection.

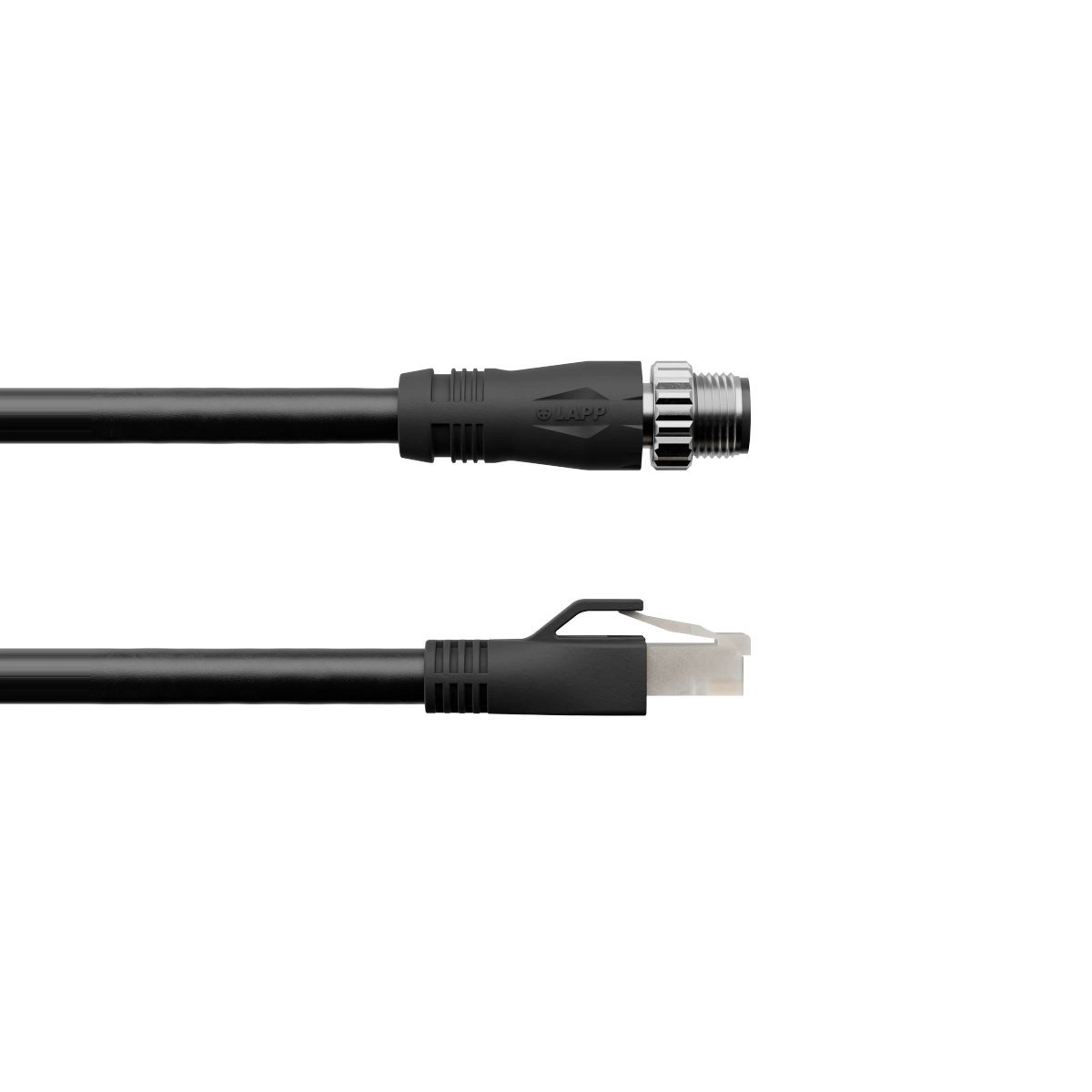

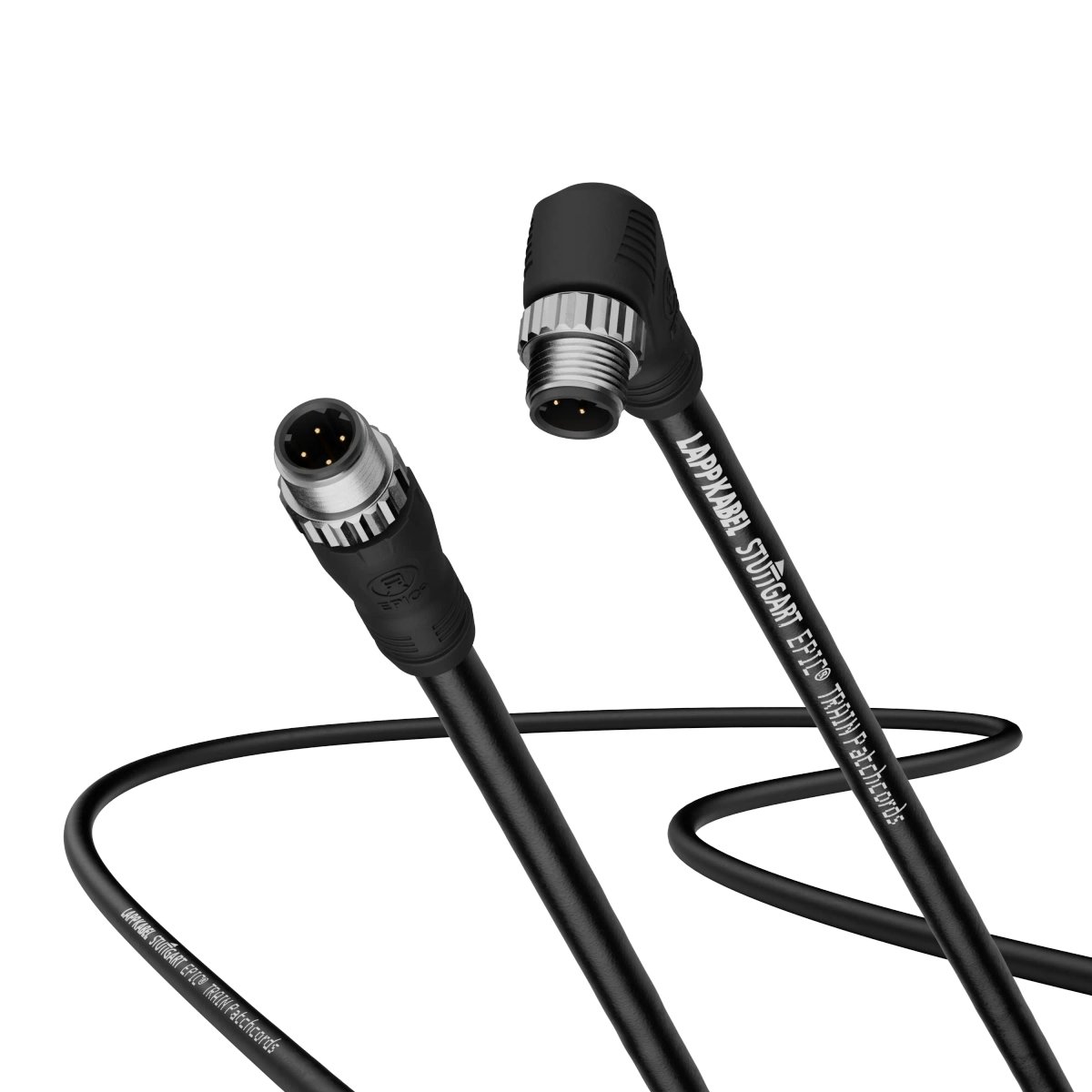

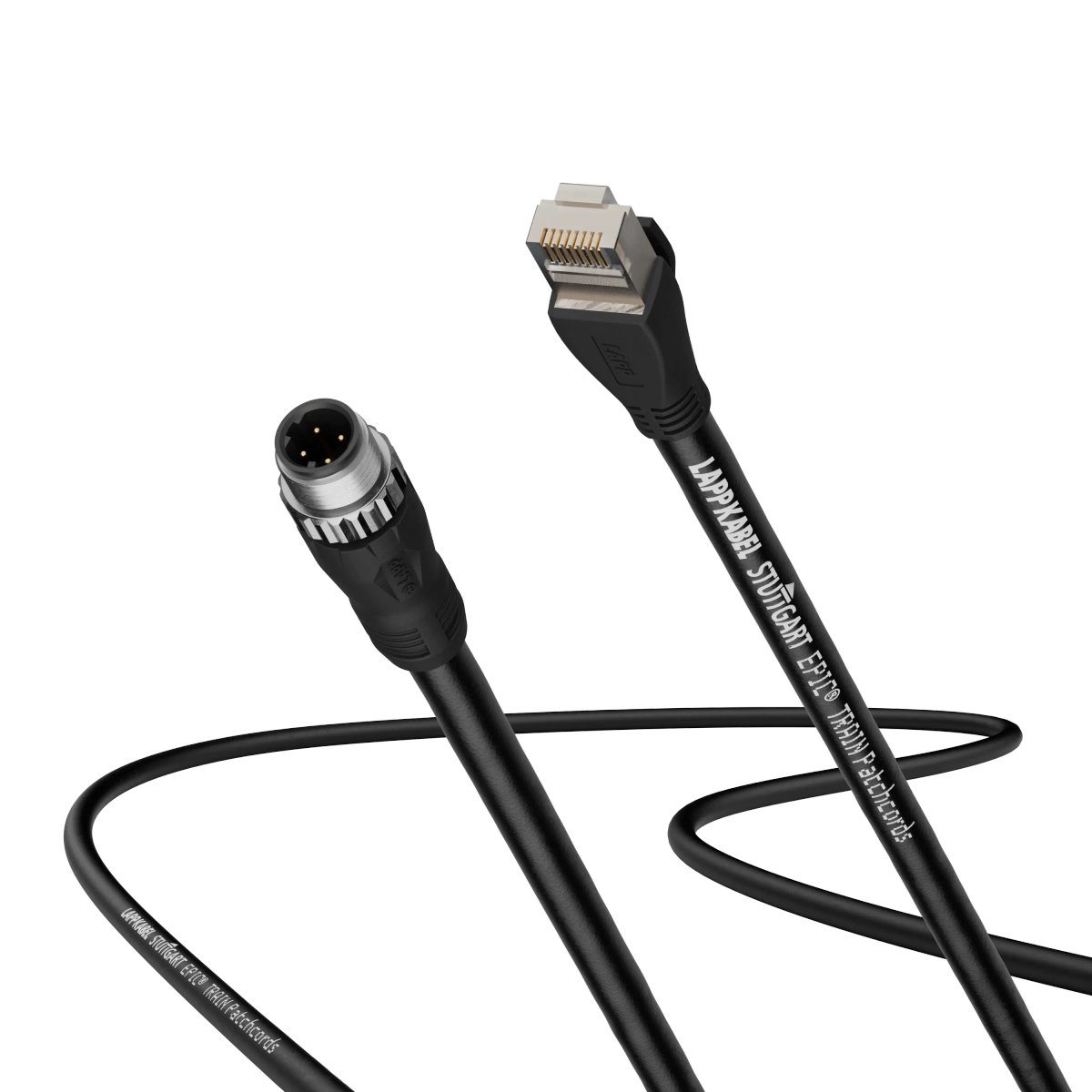

Available with RJ45 or M12 connectors. The slim RJ45 connector enables use in devices with a very high port density, while the integrated vibration protection of the M12 connector is useful in applications with shock and vibrations.
High resistance to electromagnetic interference thanks to star quad stranding as well as double shielding made of aluminium-laminated foil and copper stranded shielding with a high degree of coverage (S/FRQ).

Applications

For use in the Train Communication Network (TCN) of railway vehicles in accordance with IEC 61375.
Compliant with standards for use in railway vehicles: fire safety and cable design requirements according to DIN EN 50306-4, type MM; fire behaviour test according to DIN EN 45545-2, hazard levels HL1, HL2 and HL3.
Typical applications include passenger information systems, entertainment systems, ticketing systems and door control systems.
Especially for environments where electromagnetic compatibility (EMC) is required.
Can be used in dry, damp and, especially, harsh and oily environments.
Suitable for outdoor use.

Documentation

Notes

Photographs and graphics are not to scale and do not represent detailed images of the respective products.
If applicable, the prices are solid metal prices without surcharges and VAT. Sales only to business customers.
Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.
