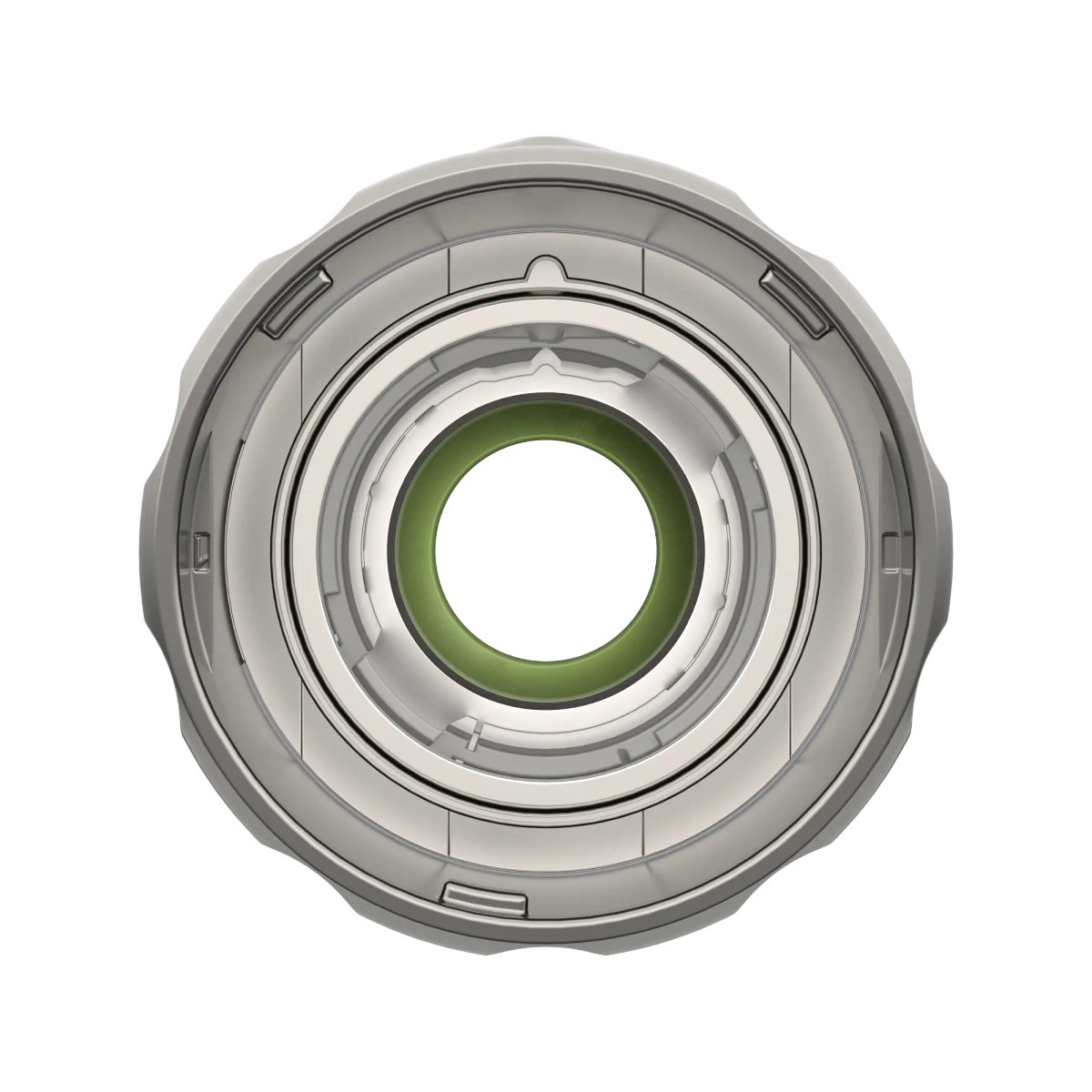

EPIC® SIGNAL M23 D6 TWIST

Bodite prvi in ocenite ta izdelek

Naziv

Koda izdelka

Premer konektorja

Dolžina

Min. območje vpenjanja kabla

Cena

Količina

EPIC® SIGNAL M23 D6 TWIST N 7-10 (1)

381166481

26 mm

58 mm

7 mm

10,29 €

Rok dobave sporočimo po obdelavi naročila.

EPIC® SIGNAL M23 D6 TWIST N 7-10 (20)

381166482

26 mm

58 mm

7 mm

9,26 €

Rok dobave sporočimo po obdelavi naročila.

EPIC® SIGNAL M23 D6 TWIST N 9.5-13.5 (1)

381166483

26 mm

58 mm

9.5 mm

10,06 €

Rok dobave sporočimo po obdelavi naročila.

EPIC® SIGNAL M23 D6 TWIST N 9.5-13.5 (20)

381166484

26 mm

58 mm

9.5 mm

9,02 €

Rok dobave sporočimo po obdelavi naročila.

EPIC® SIGNAL M23 D6 TWIST N 5-7.3 (1)

381166485

26 mm

58 mm

5 mm

9,59 €

Rok dobave sporočimo po obdelavi naročila.

Benefits

Stability thanks to die-cast zinc metal housing.
The housing can be used with an insert for socket or pin contacts (available separately).
Reliable protection against electromagnetic interference thanks to integrated EMC cable gland.
TWIST quick-locking system enables easy connection to the counterpart (locking takes place after a quarter of rotation). TWIST can be connected to market-standard connectors.
Reliable signal transmission, even in harsh environments.

Applications

For transmitting feedback and resolver signals from the servo motor to the frequency converter.
For use in control, regulation and measurement circuits.
Especially for environments where electromagnetic compatibility (EMC) is required.
For use with suitable TWIST counterparts in series EPIC® SIGNAL M23.

Documentation

Data sheet (PDF)

Notes

Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.
Photographs and graphics are not to scale and do not represent detailed images of the respective products.
If applicable, the prices are solid metal prices without surcharges and VAT. Sales only to business customers.
