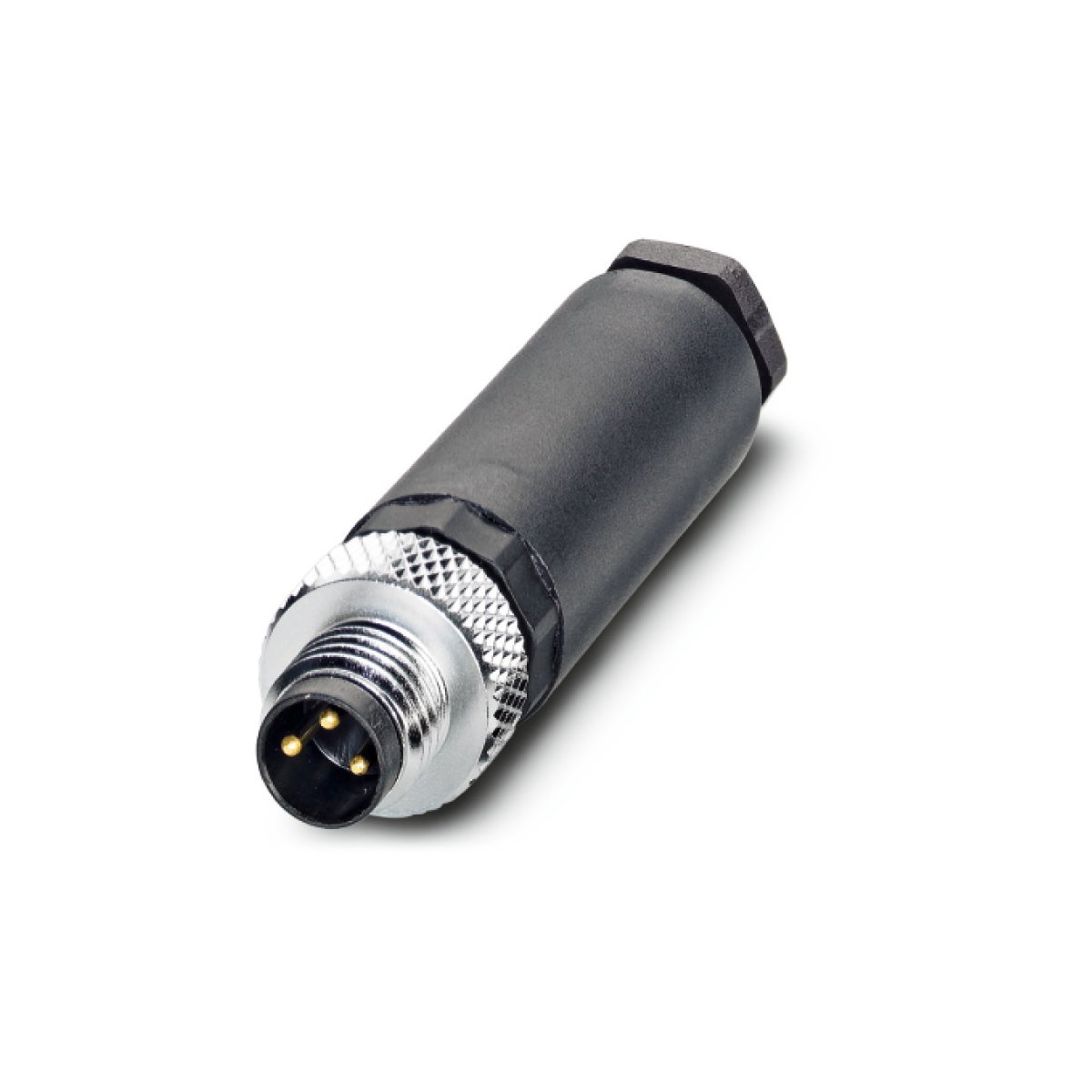

EPIC® SENSOR M8

Bodite prvi in ocenite ta izdelek

Naziv

Koda izdelka

Premer konektorja

Dolžina

Angle of connector housing

Cena

Količina

AB-C4-M8MS-F0,25

22260043

12.5 mm

43 mm

180 °

7,70 €

Na zalogi, predviden rok dobave 5-8 delovnih dni.

AB-C4-M8MS-F0,5

22260044

12.5 mm

43 mm

180 °

7,70 €

Na zalogi, predviden rok dobave 5-8 delovnih dni.

AB-C4-M8FS-F0,25

22260045

12.5 mm

39 mm

180 °

7,37 €

Na zalogi, predviden rok dobave 5-8 delovnih dni.

AB-C4-M8FS-F0,5

22260046

12.5 mm

39 mm

180 °

7,70 €

Na zalogi, predviden rok dobave 5-8 delovnih dni.

AB-C3-M8MS

22260120

12 mm

50 mm

180 °

6,06 €

Na zalogi, predviden rok dobave 5-8 delovnih dni.

AB-C4-M8MS

22260121

12 mm

50 mm

180 °

6,81 €

Na zalogi, predviden rok dobave 5-8 delovnih dni.

AB-C3-M8FS

22260125

12 mm

45 mm

180 °

6,10 €

Na zalogi, predviden rok dobave 5-8 delovnih dni.

AB-C4-M8FS

22260126

12 mm

45 mm

180 °

7,06 €

Na zalogi, predviden rok dobave 5-8 delovnih dni.

AB-C3-M8MS-F0,5

22260985

12.5 mm

43 mm

180 °

6,58 €

Na zalogi, predviden rok dobave 5-8 delovnih dni.

AB-C3-M8FS-F0,5

22260986

12.5 mm

39 mm

180 °

6,68 €

Na zalogi, predviden rok dobave 5-8 delovnih dni.

AB-C3-M8MS-F0,25

22260993

12.5 mm

39 mm

180 °

6,89 €

Na zalogi, predviden rok dobave 5-8 delovnih dni.

AB-C3-M8FS-F0,25

22260994

12.5 mm

39 mm

180 °

6,84 €

Na zalogi, predviden rok dobave 5-8 delovnih dni.

AB-C3-M8MS-M-0,34-SH

22262025

14 mm

55 mm

180 °

12,71 €

Na zalogi, predviden rok dobave 5-8 delovnih dni.

AB-C3-M8FS-M-0,34-SH

22262026

14 mm

49 mm

180 °

12,82 €

Na zalogi, predviden rok dobave 5-8 delovnih dni.

AB-C4-M8MS-M-0,34-SH

22262027

14 mm

55 mm

180 °

13,63 €

Na zalogi, predviden rok dobave 5-8 delovnih dni.

AB-C4-M8FS-M-0,34-SH

22262028

14 mm

49 mm

180 °

13,62 €

Na zalogi, predviden rok dobave 5-8 delovnih dni.

AB-C3-M8MA

22262110

13 mm

46 mm

90 °

8,10 €

Na zalogi, predviden rok dobave 5-8 delovnih dni.

AB-C4-M8MA

22262111

13 mm

46 mm

90 °

8,66 €

Na zalogi, predviden rok dobave 5-8 delovnih dni.

AB-C3-M8FA

22262112

13 mm

42 mm

90 °

8,28 €

Na zalogi, predviden rok dobave 5-8 delovnih dni.

AB-C4-M8FA

22262113

13 mm

42 mm

90 °

8,69 €

Na zalogi, predviden rok dobave 5-8 delovnih dni.

Benefits

Quick and easy on-site assembly
For creating of individual cable lengths
No special tools required for connecting the cables
Time-saving assembly with IDC connection technology
Easy connection with proven srew clamp connection
When connected, protection class IP 67 can be achieved on the M8 side.
Easy cable connection thanks to service-friendly screw connection or insulation displacement technology. Assembly can be carried out without special tools.
The angled shape of the connector is suitable for a space-saving cable outlet.
Connectors with metal housings have an electrically conductive coating. They offer optimum protection against electromagnetic interference (EMC) and dissipate interference signals with low impedance.

Applications

Can be used universally on machine interfaces for many applications in data and signal transmission.
Good oil and chemical resistance.
Typical application areas are sensors and actuators at field level.

Documentation

Notes

If applicable, the prices are solid metal prices without surcharges and VAT. Sales only to business customers.
Photographs and graphics are not to scale and do not represent detailed images of the respective products.
Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.
