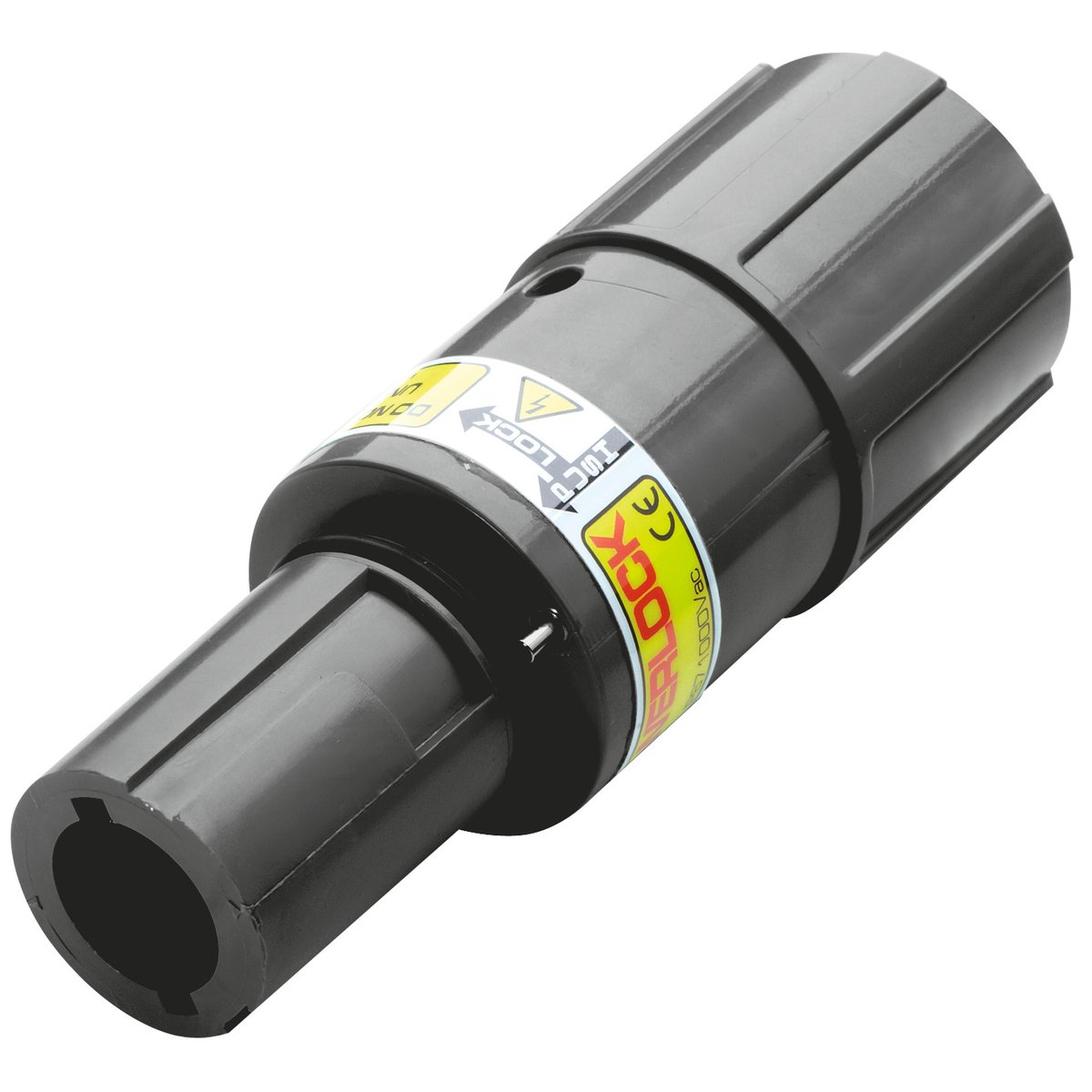

EPIC® POWERLOCK F6 S

Naziv
Koda izdelka
Dolžina snemanja izolacije
Min. presek povezovalnega vodnika (mm2)
Maks. presek povezovalnega vodnika (mm2)
Cena
Količina
+
EPIC® POWERLOCK F6 S PE/GN M40 (1)
44420262
33 mm
50 mm2
120 mm2
18,62 €
Rok dobave sporočimo po obdelavi naročila.
+
EPIC® POWERLOCK F6 S N/BL M40 (1)
44420263
33 mm
50 mm2
120 mm2
18,62 €
Rok dobave sporočimo po obdelavi naročila.
+
EPIC® POWERLOCK F6 S L1/BN M40 (1)
44420264
33 mm
50 mm2
120 mm2
18,62 €
Rok dobave sporočimo po obdelavi naročila.
+
EPIC® POWERLOCK F6 S L2/BK M40 (1)
44420265
33 mm
50 mm2
120 mm2
18,62 €
Rok dobave sporočimo po obdelavi naročila.
+
EPIC® POWERLOCK F6 S L3/GY M40 (1)
44420266
33 mm
50 mm2
120 mm2
18,62 €
Rok dobave sporočimo po obdelavi naročila.
+
EPIC® POWERLOCK F6 S L1/RD M40 (1)
44420301
33 mm
50 mm2
120 mm2
20,02 €
Rok dobave sporočimo po obdelavi naročila.

Benefits

  • Cable connector drain (type F6) for use with a screw contact drain (available separately).
  • Available in harmonised colours according to European standard (colour coding for DC and AC).
  • For conductor cross-sections up to 120 mm2.
  • High stability due to robust PBT plastic.
  • With M40 thread for use with a corresponding cable gland.
  • When connected, protection class IP 67 can be achieved.
  • VDE-tested quality.
  • Compliant with standards for inland navigation (in accordance with DIN VDE 0100-730 Part 7-730 "Electrical land connection for inland navigation vehicles".

Applications

  • Can be used for mobile and stationary power supply or emergency power supply via generators or battery storage systems.
  • Suitable for electric motors and cooling units.
  • Suitable for three-phase and direct current applications up to 400 A.
  • For use with unshielded single cores.
  • Withstands moderate mechanical stress.
  • Suitable for outdoor use.

Documentation

Notes

  • * Prices are net prices without VAT and surcharges. Sale to business customers only.
  • Photographs and graphics are not to scale and do not represent detailed images of the respective products.
