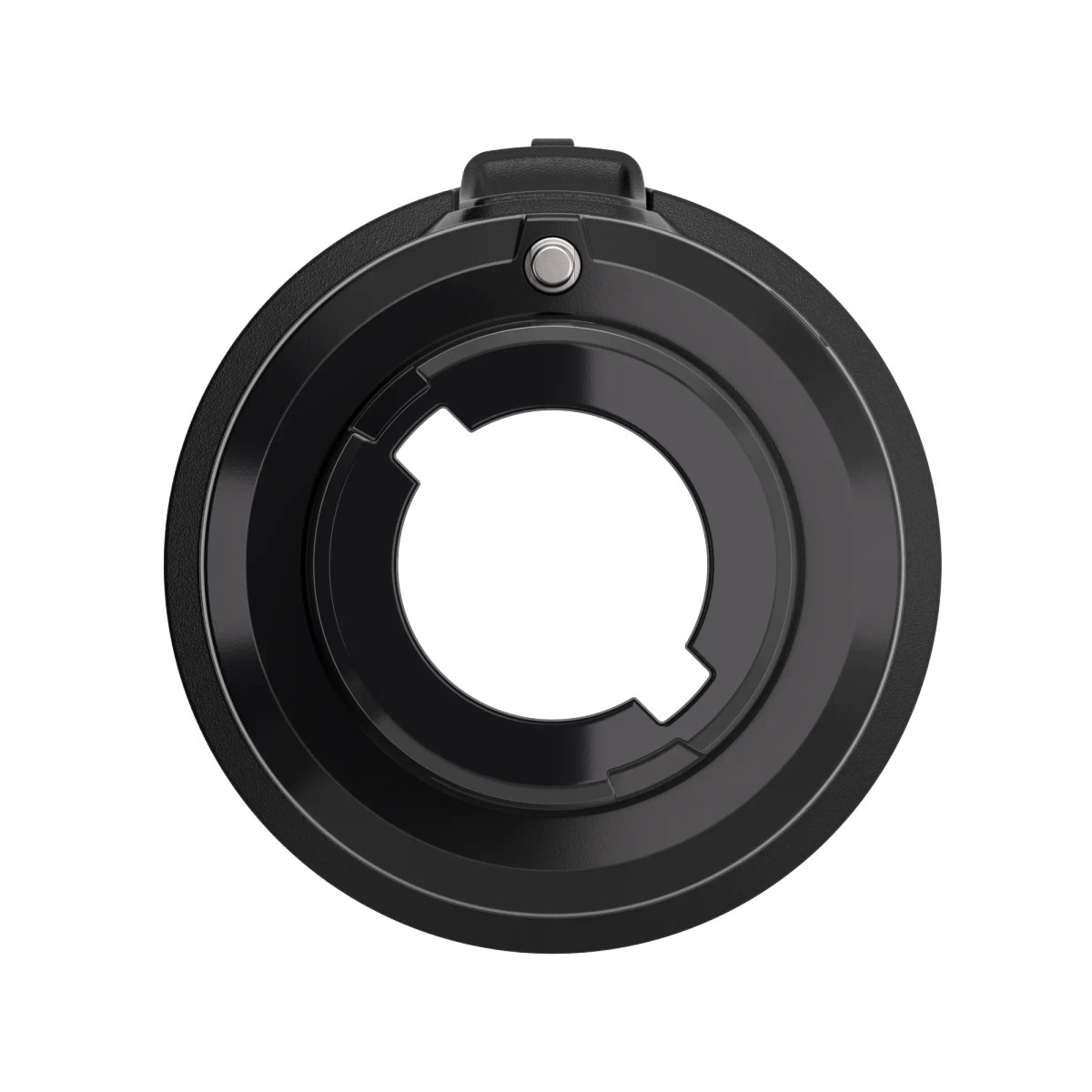

EPIC® POWERLOCK F6

Bodite prvi in ocenite ta izdelek

Naziv

Koda izdelka

Maks. upor kontakta (mOhms)

Min. presek povezovalnega vodnika (mm2)

Maks. presek povezovalnega vodnika (mm2)

Cena

Količina

EPIC® POWERLOCK 2.0 F6 PE GN

381167909

2 m?

35 mm2

240 mm2

15,39 €

Pakiranje *

Rok dobave sporočimo po obdelavi naročila.

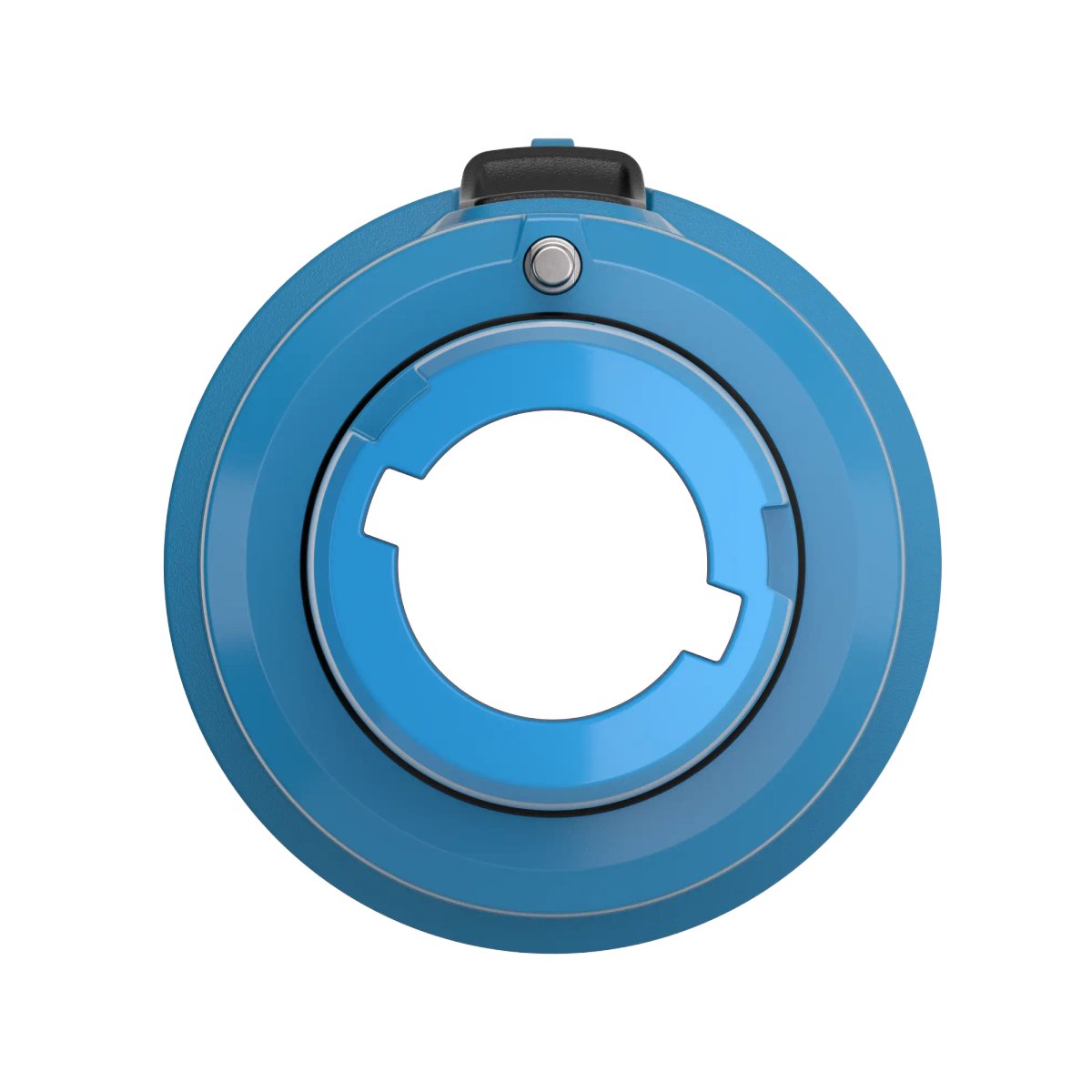

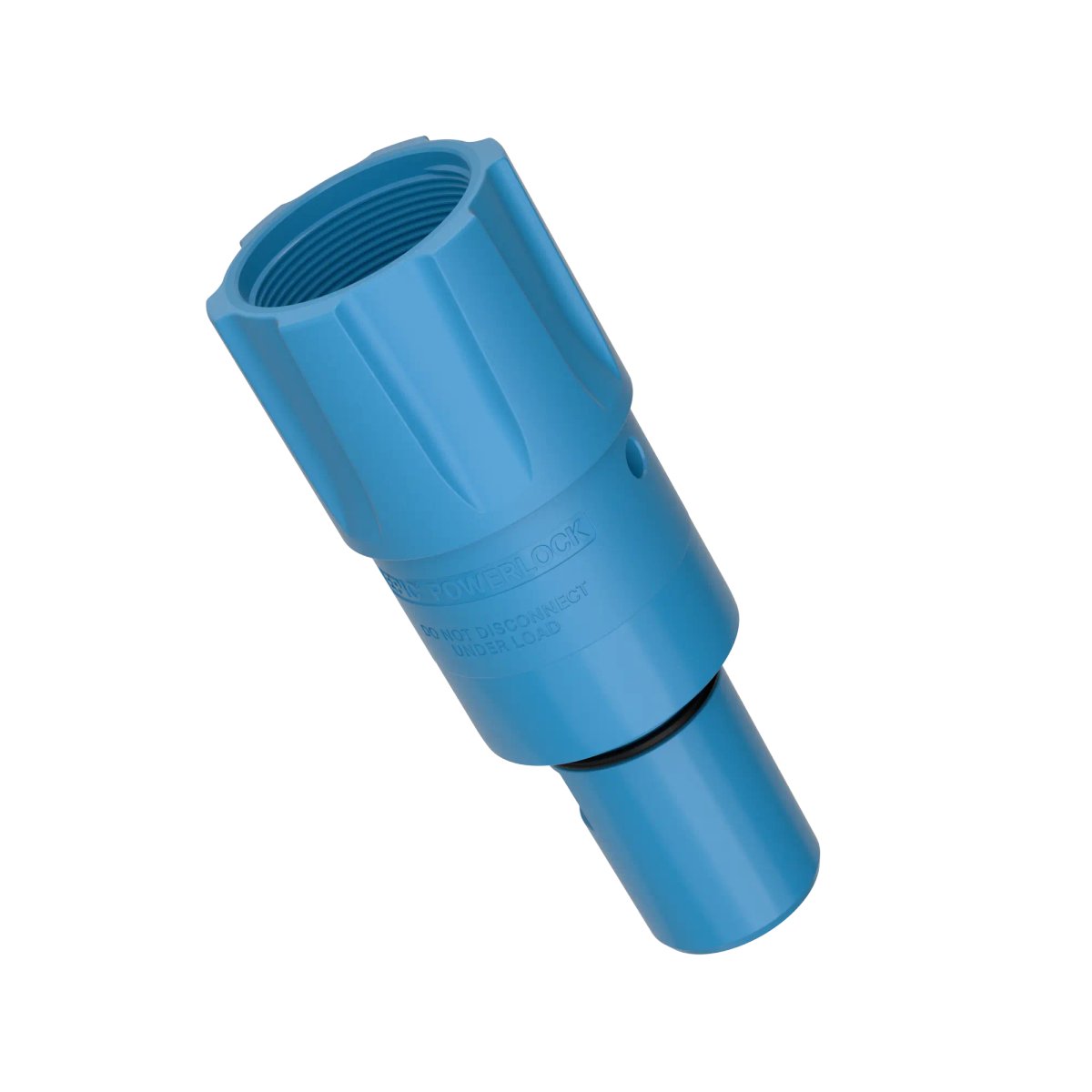

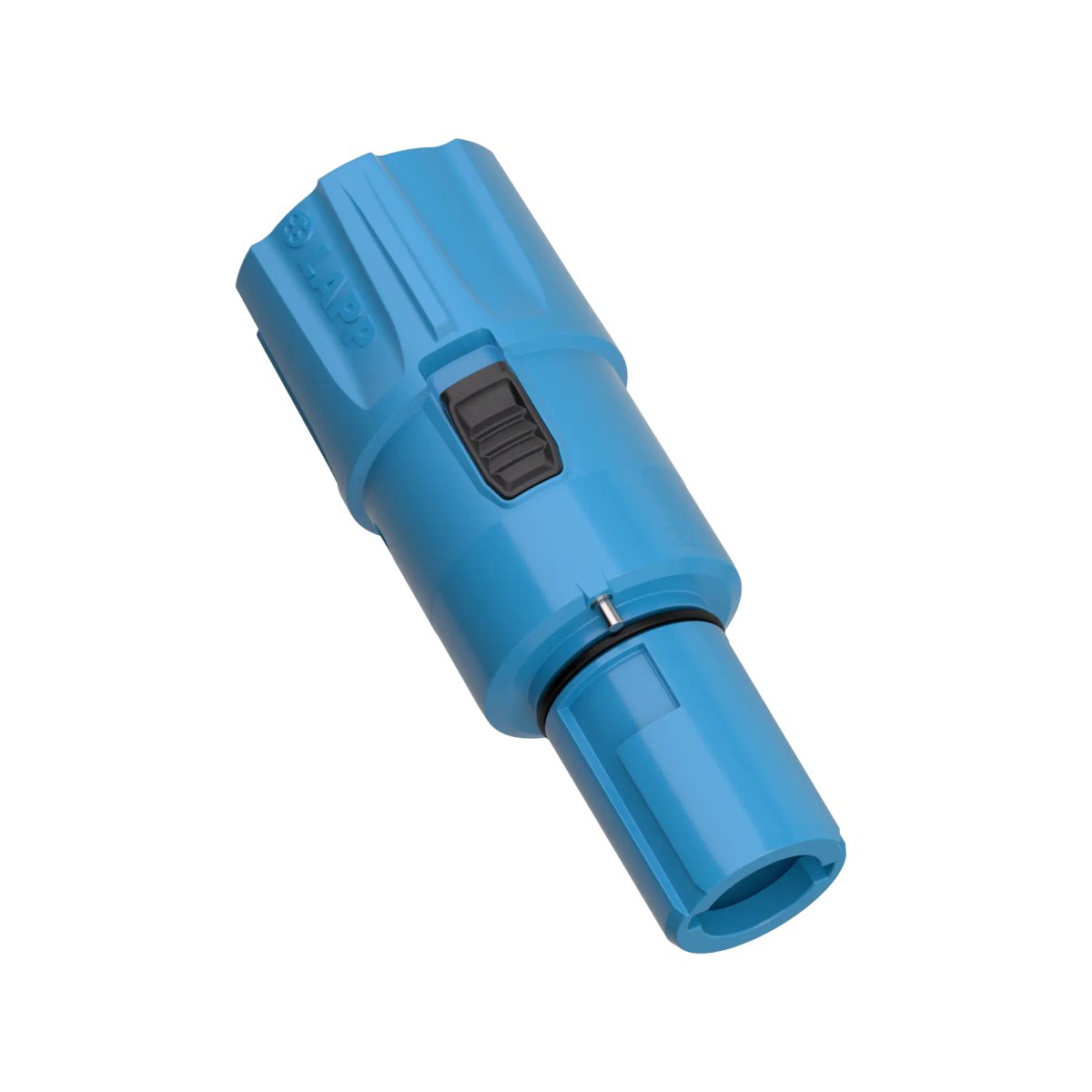

EPIC® POWERLOCK 2.0 F6 N BU

381167910

2 m?

35 mm2

240 mm2

15,39 €

Pakiranje *

Rok dobave sporočimo po obdelavi naročila.

EPIC® POWERLOCK 2.0 F6 L1 BN

381167911

2 m?

35 mm2

240 mm2

15,39 €

Pakiranje *

Rok dobave sporočimo po obdelavi naročila.

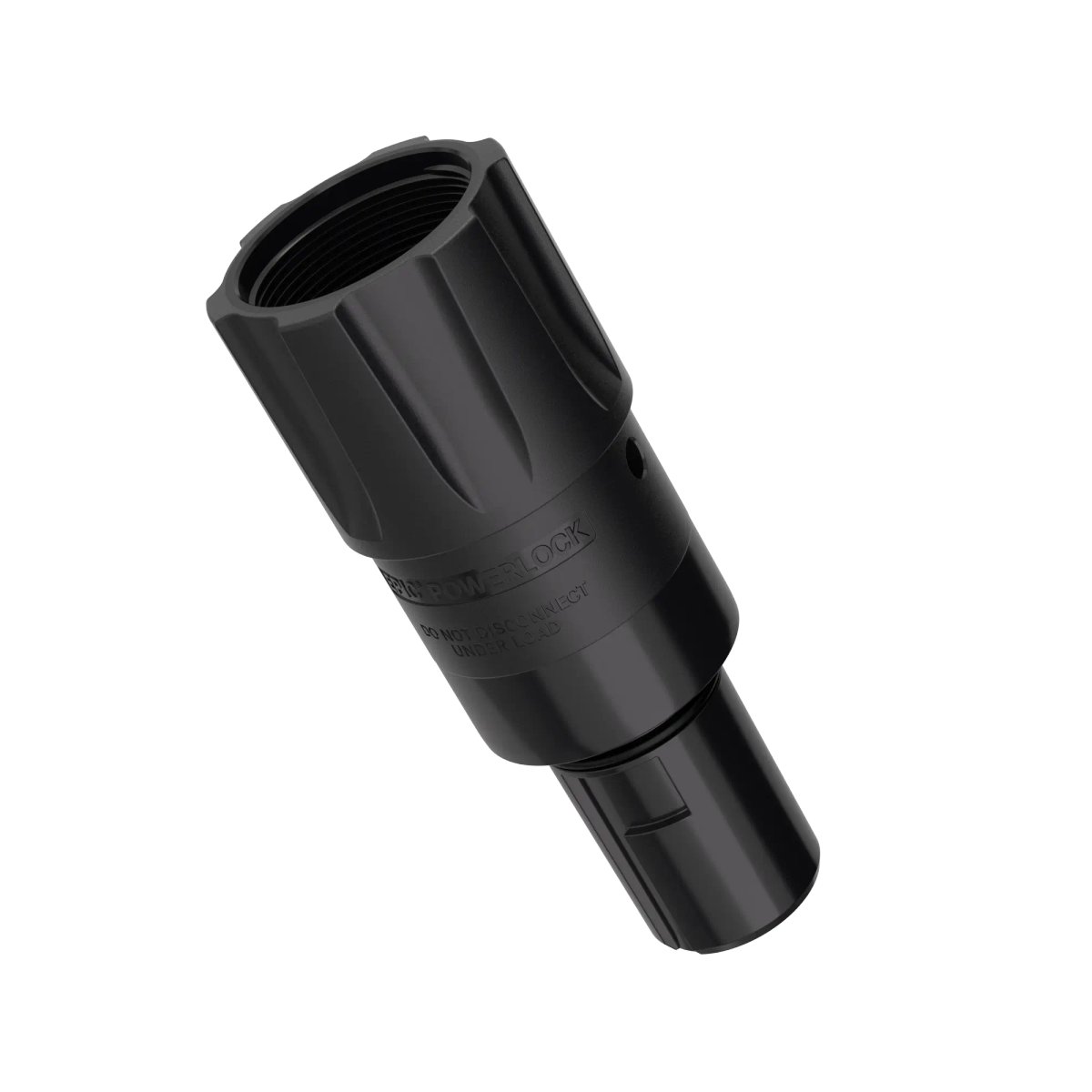

EPIC® POWERLOCK 2.0 F6 L2 BK

381167912

2 m?

35 mm2

240 mm2

15,39 €

Pakiranje *

Rok dobave sporočimo po obdelavi naročila.

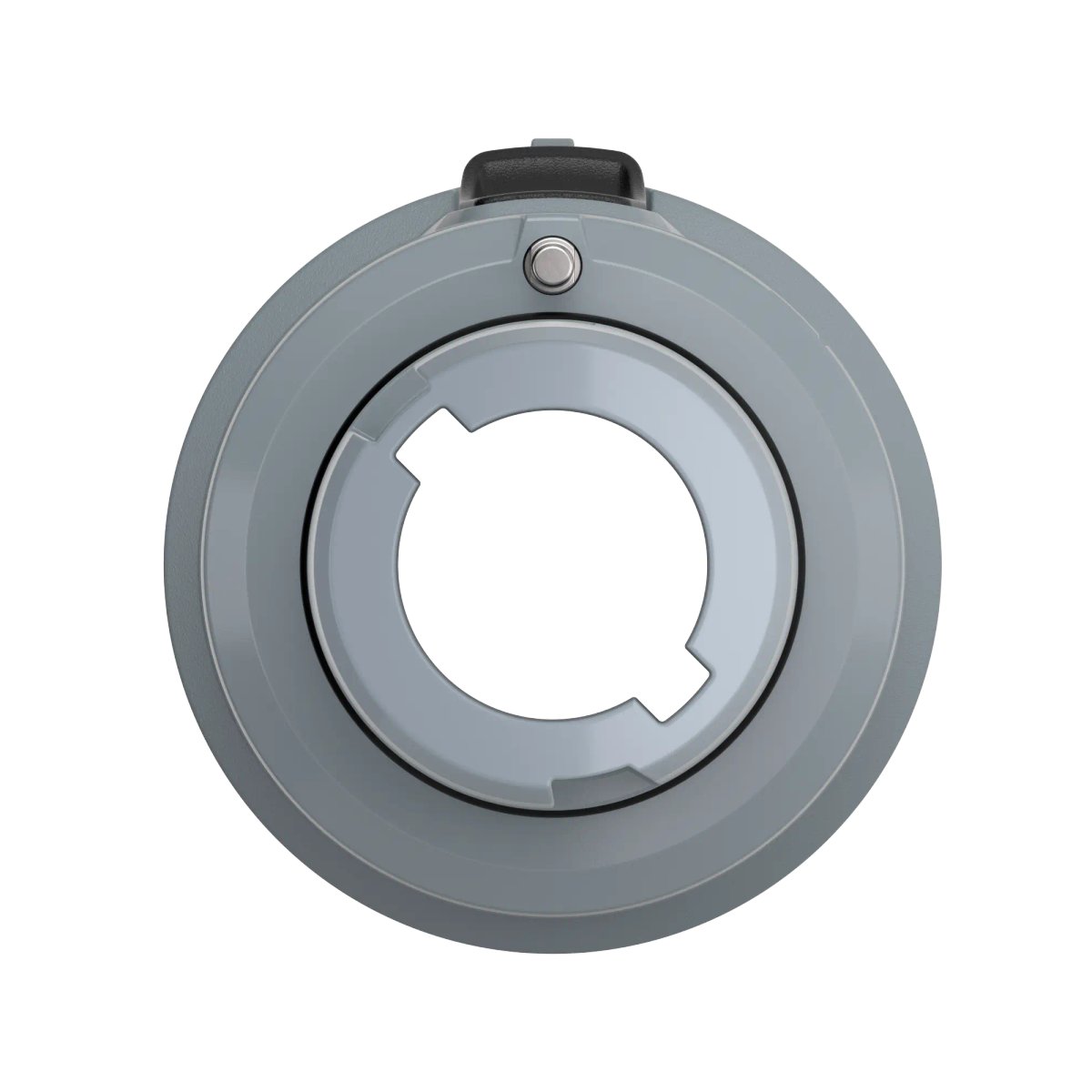

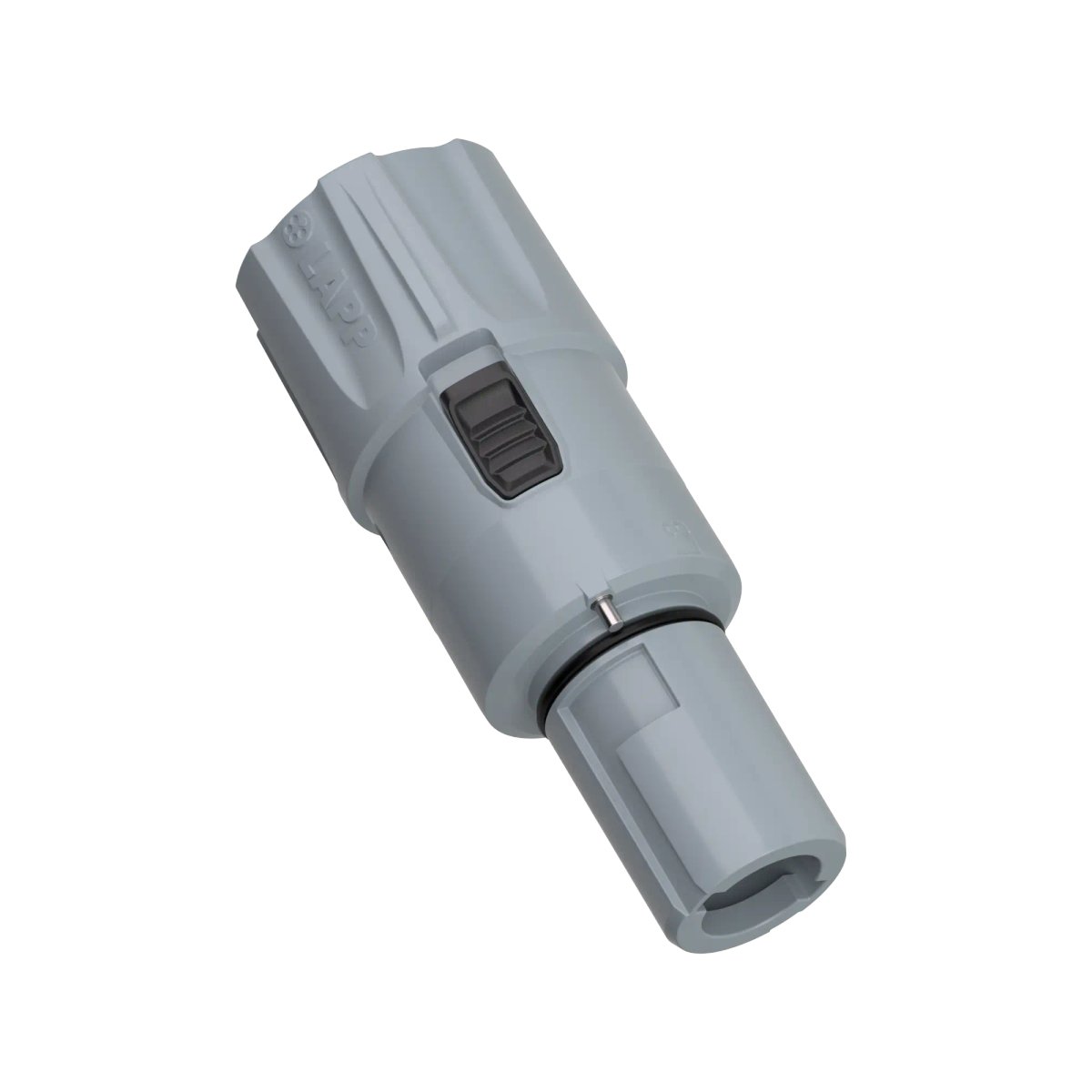

EPIC® POWERLOCK 2.0 F6 L3 GY

381167913

2 m?

35 mm2

240 mm2

15,39 €

Pakiranje *

Rok dobave sporočimo po obdelavi naročila.

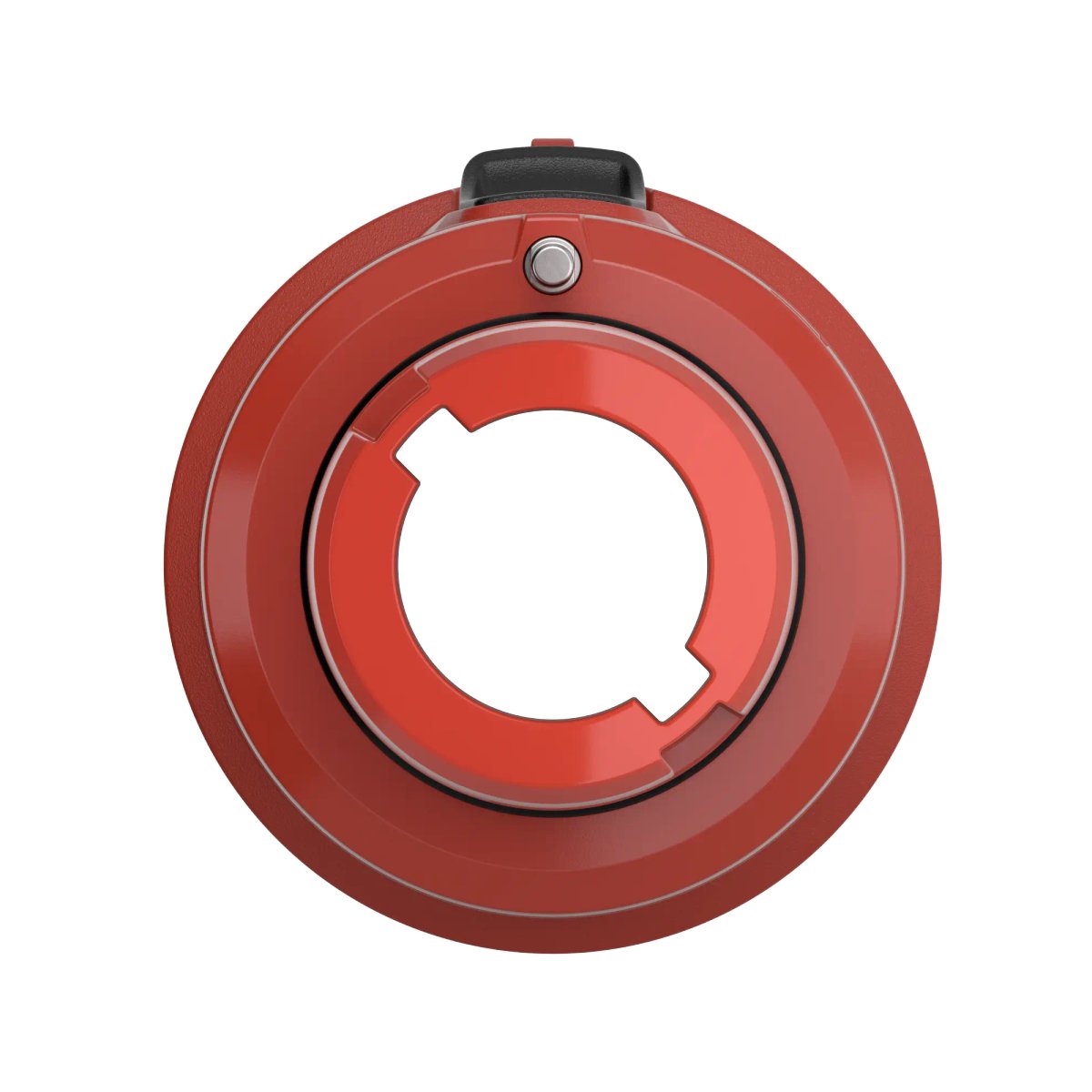

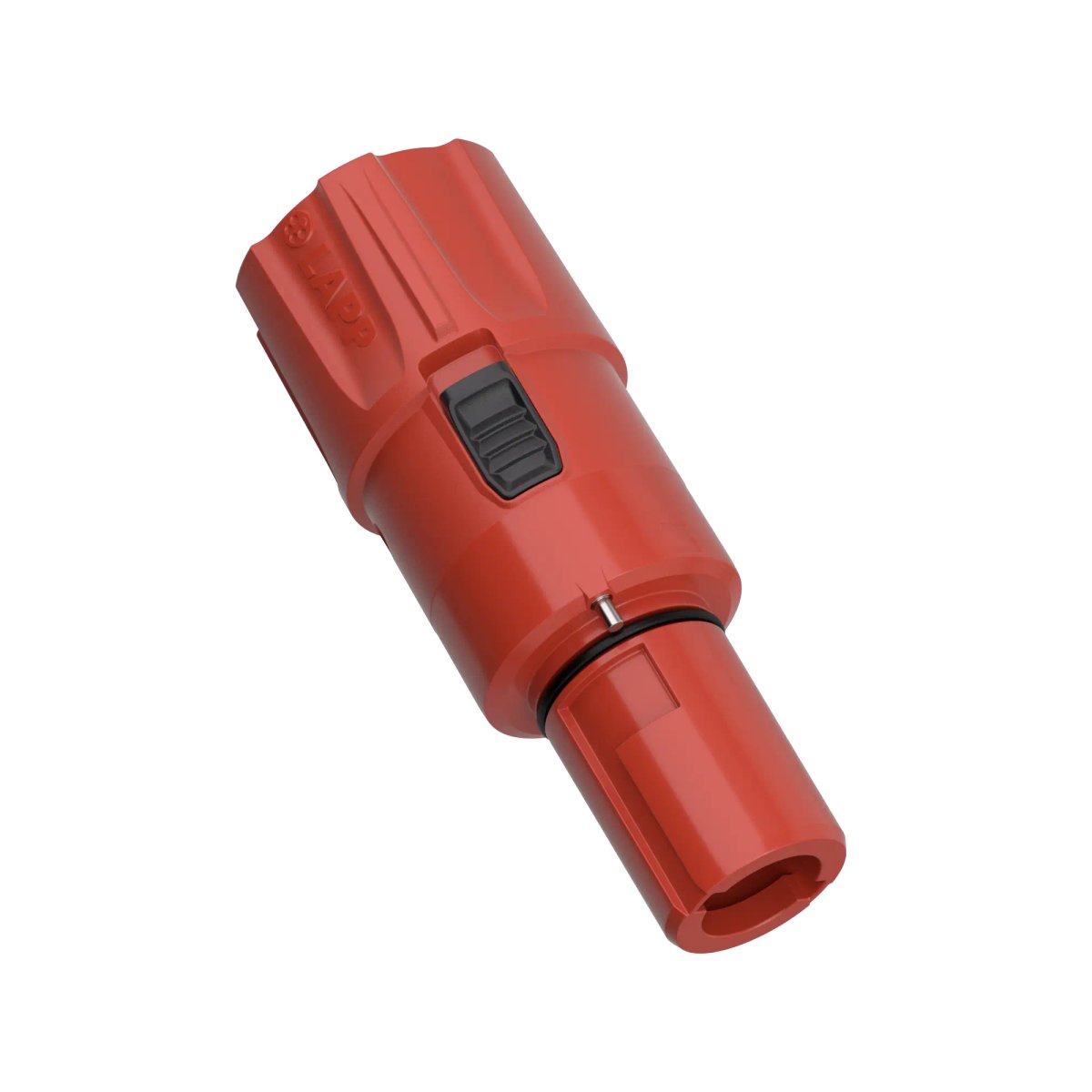

EPIC® POWERLOCK 2.0 F6 L1 RD

381167914

2 m?

35 mm2

240 mm2

15,39 €

Pakiranje *

Rok dobave sporočimo po obdelavi naročila.

Benefits

With M40 thread for use with a corresponding cable gland.
Integrated unlocking function for quick and safe plugging and unplugging without additional tools.
Available in harmonised colours according to European standard (colour coding for DC and AC).
Can be used as an electrical shore connection for inland waterway vehicles.
For conductor cross-sections up to 240 mm2.
Coupling connector drain (type F6) for use with a contact drain (available separately).
VDE-tested quality.
When connected, protection class IP 67 can be achieved.
High stability due to robust PBT plastic.

Applications

Can be used for mobile and stationary power supply or emergency power supply via generators or battery storage systems.
For use with unshielded single cores.
Withstands moderate mechanical stress.
Suitable for outdoor use.
Suitable for electric motors and cooling units.

Documentation

Notes

Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.
If applicable, the prices are solid metal prices without surcharges and VAT. Sales only to business customers.
Photographs and graphics are not to scale and do not represent detailed images of the respective products.
