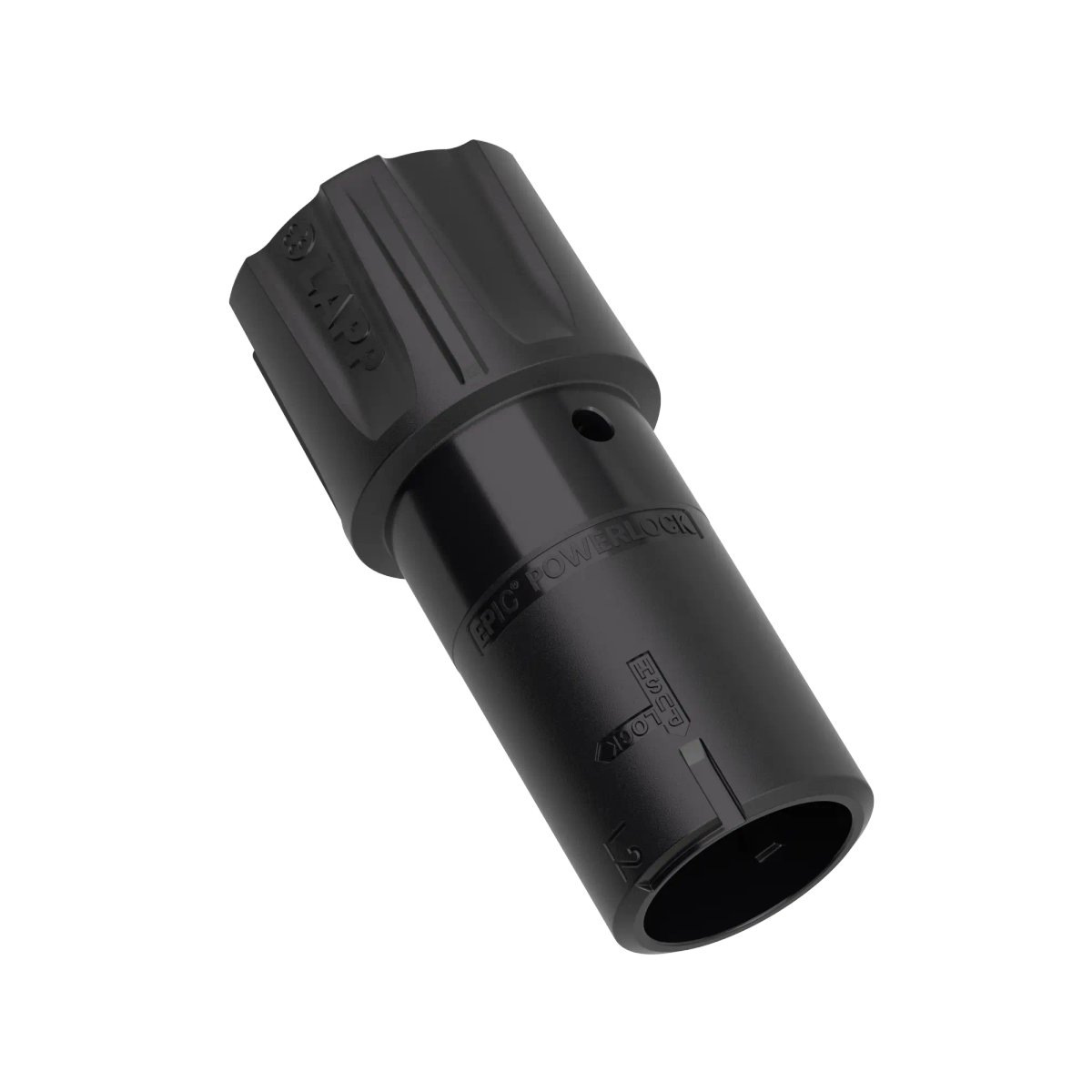

EPIC® POWERLOCK D6

Bodite prvi in ocenite ta izdelek

Naziv

Koda izdelka

Maks. upor kontakta (mOhms)

Min. presek povezovalnega vodnika (mm2)

Maks. presek povezovalnega vodnika (mm2)

Cena

Količina

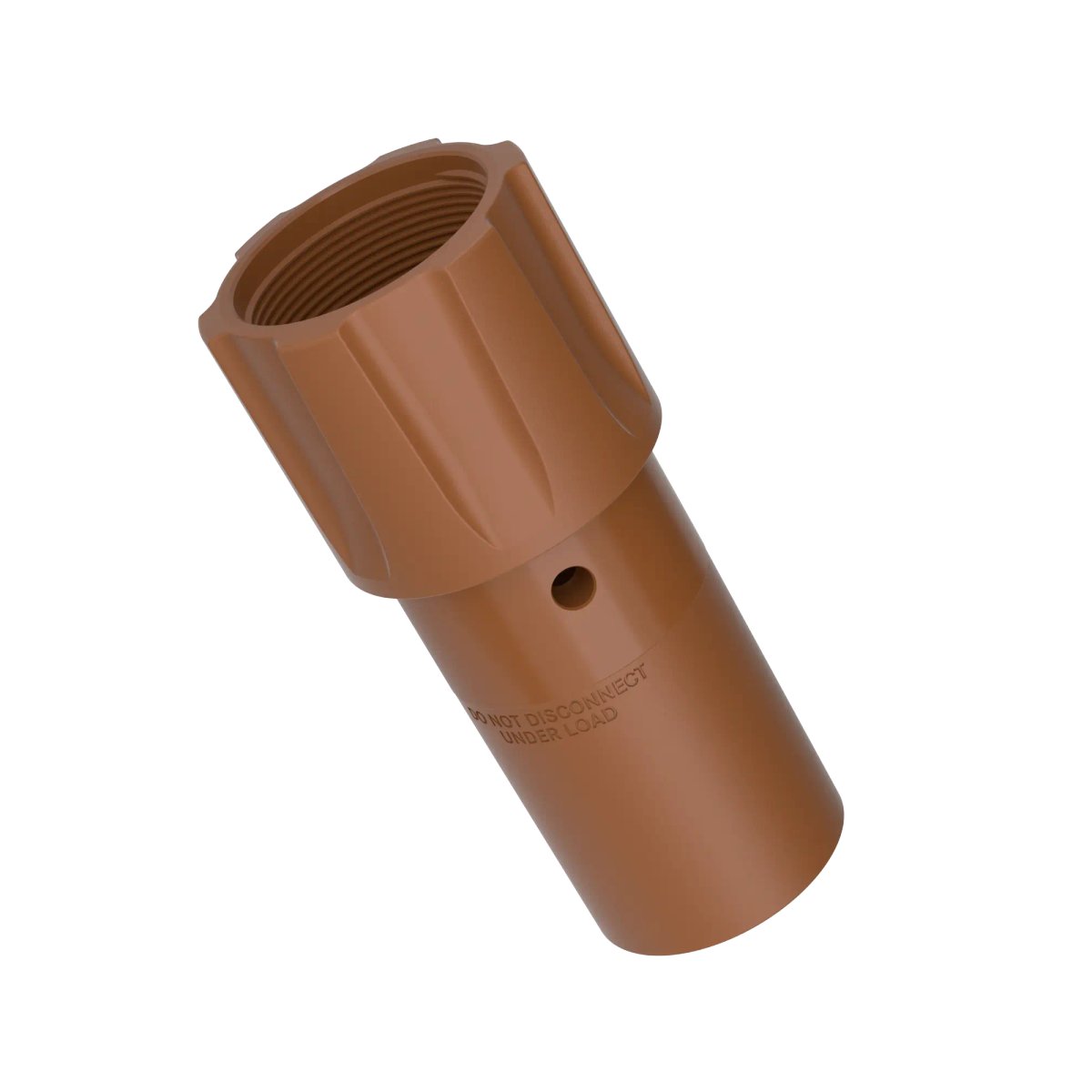

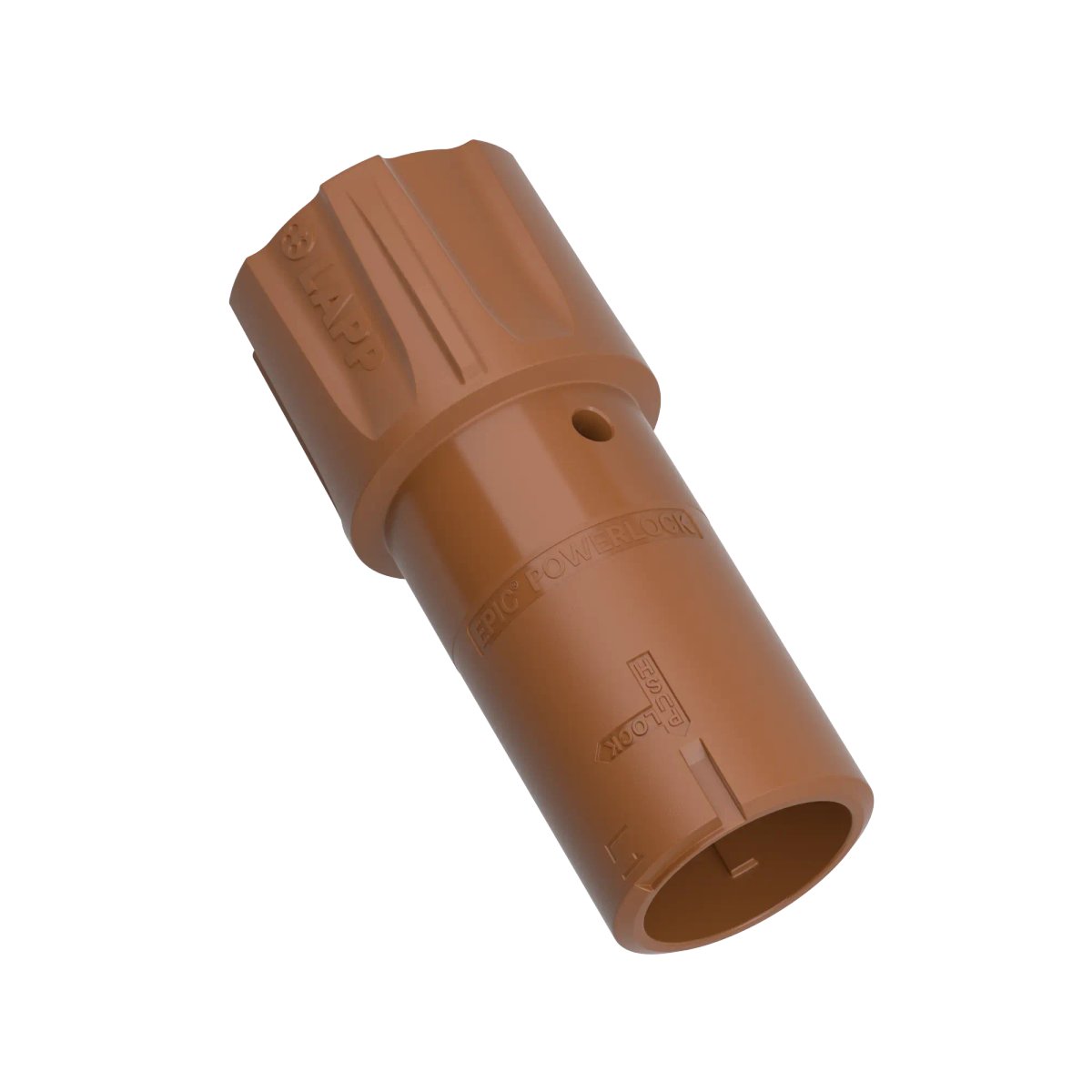

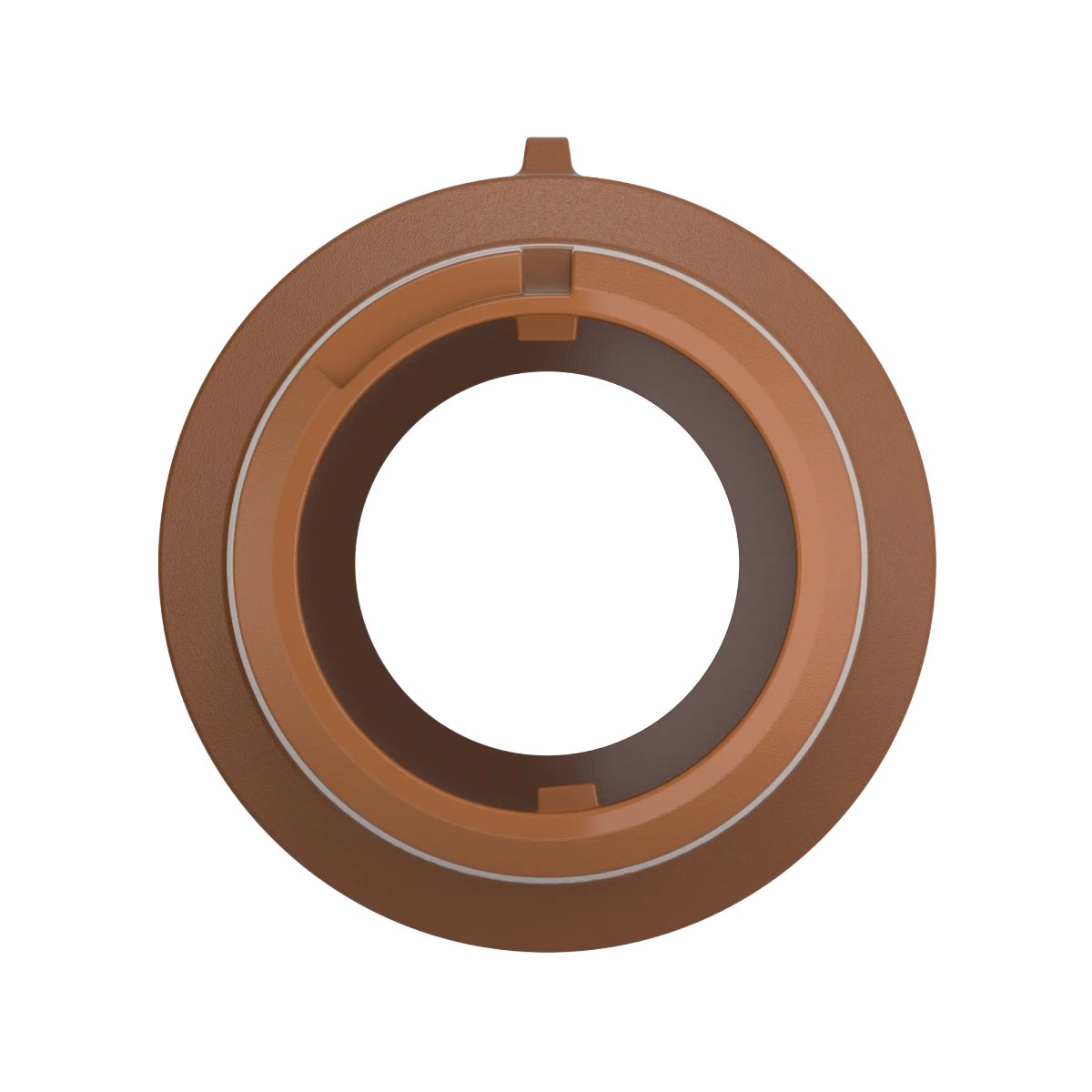

EPIC® POWERLOCK 2.0 D6 L1 BN

381167905

2 m?

35 mm2

240 mm2

13,53 €

Pakiranje *

Rok dobave sporočimo po obdelavi naročila.

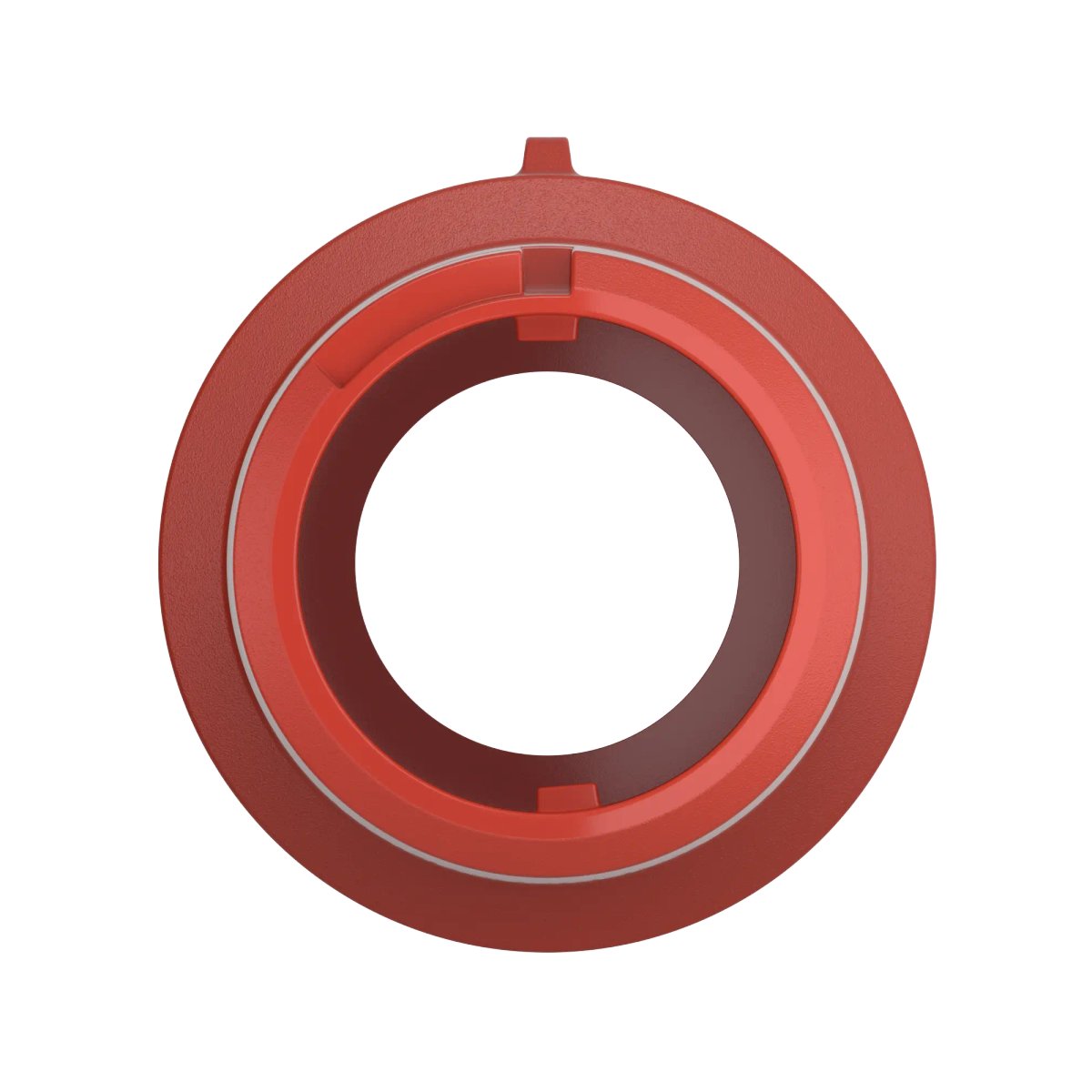

EPIC® POWERLOCK 2.0 D6 L1 RD

381167908

2 m?

35 mm2

240 mm2

13,53 €

Pakiranje *

Rok dobave sporočimo po obdelavi naročila.

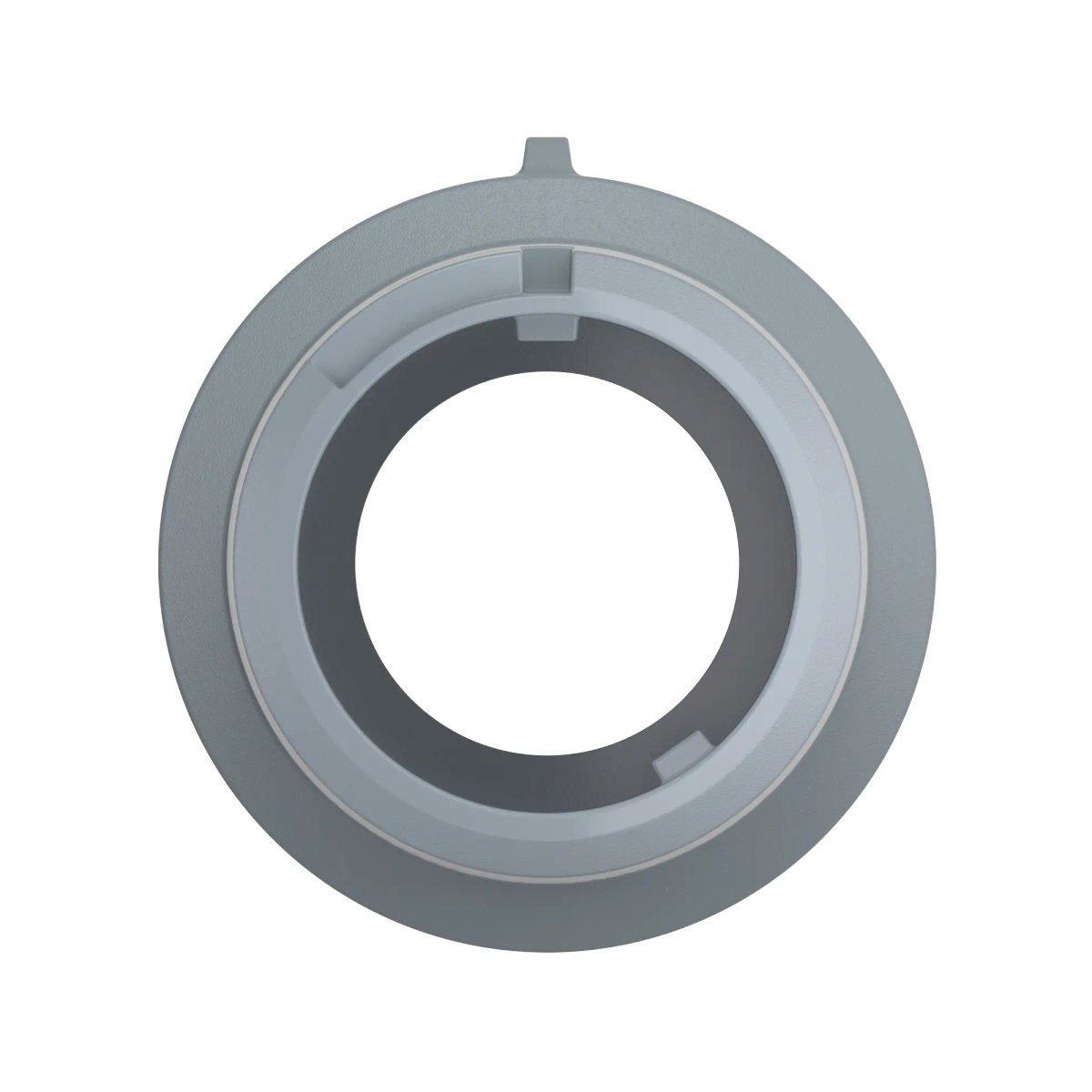

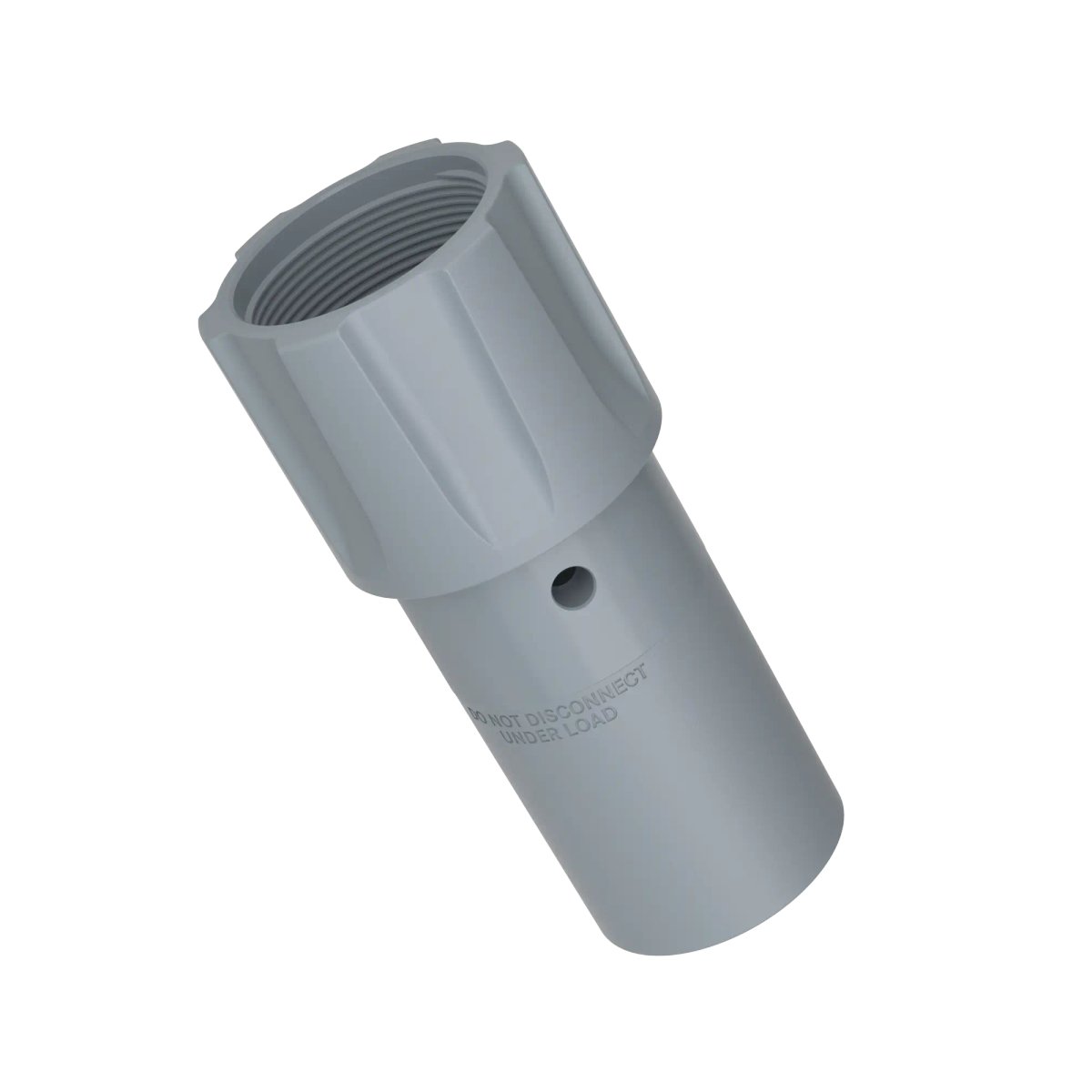

EPIC® POWERLOCK 2.0 D6 L3 GY

381167907

2 m?

35 mm2

240 mm2

13,53 €

Pakiranje *

Rok dobave sporočimo po obdelavi naročila.

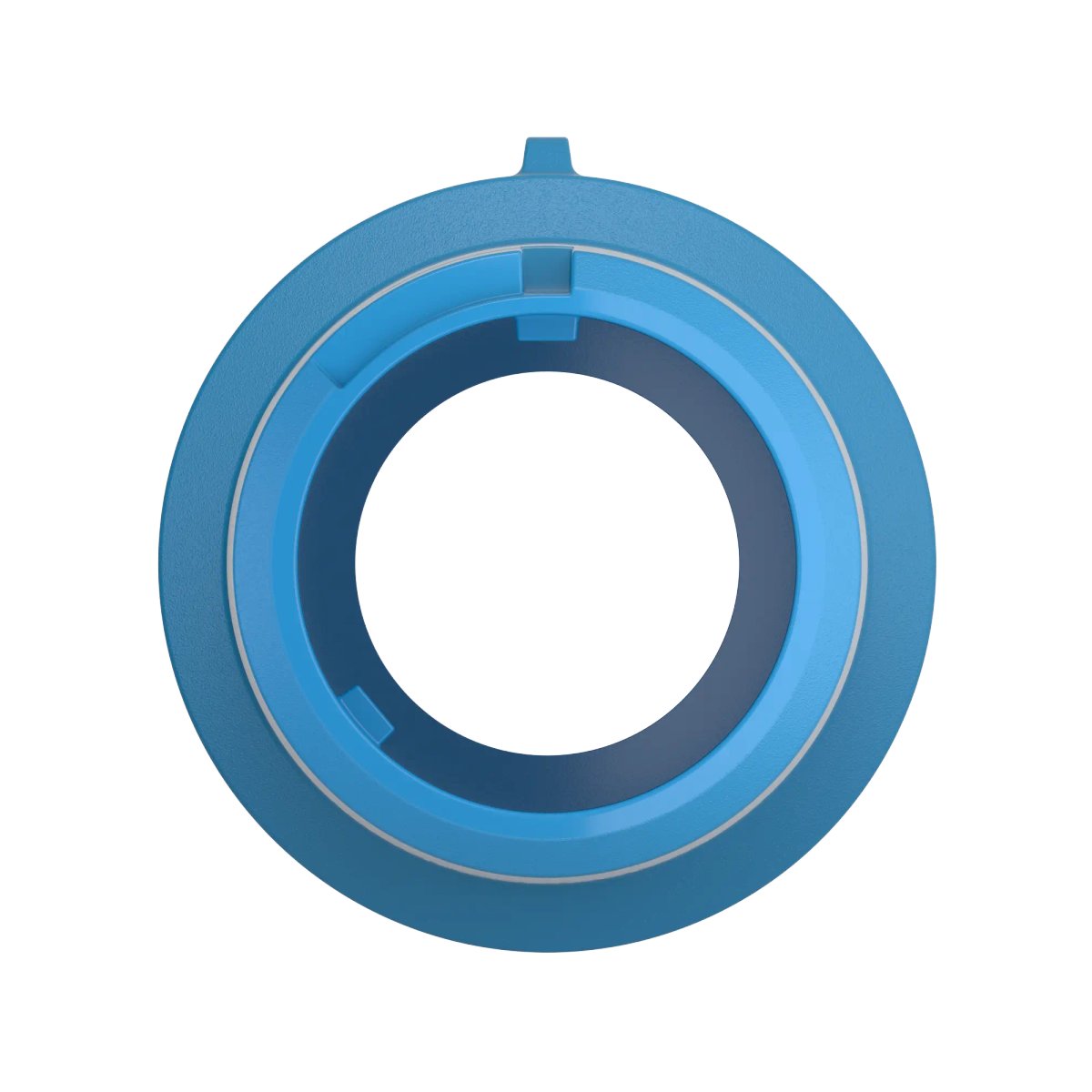

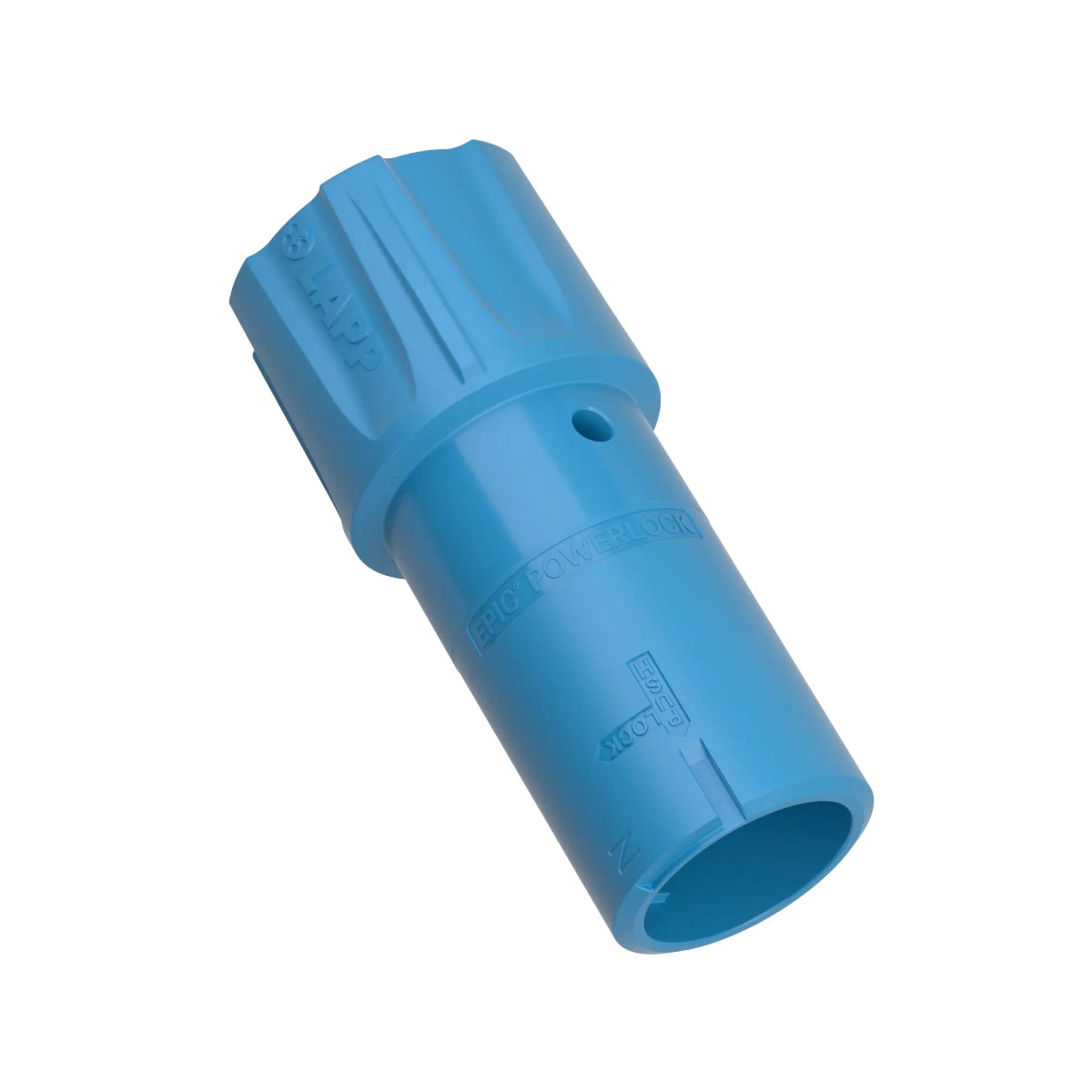

EPIC® POWERLOCK 2.0 D6 N BU

381167904

2 m?

35 mm2

240 mm2

13,53 €

Pakiranje *

Rok dobave sporočimo po obdelavi naročila.

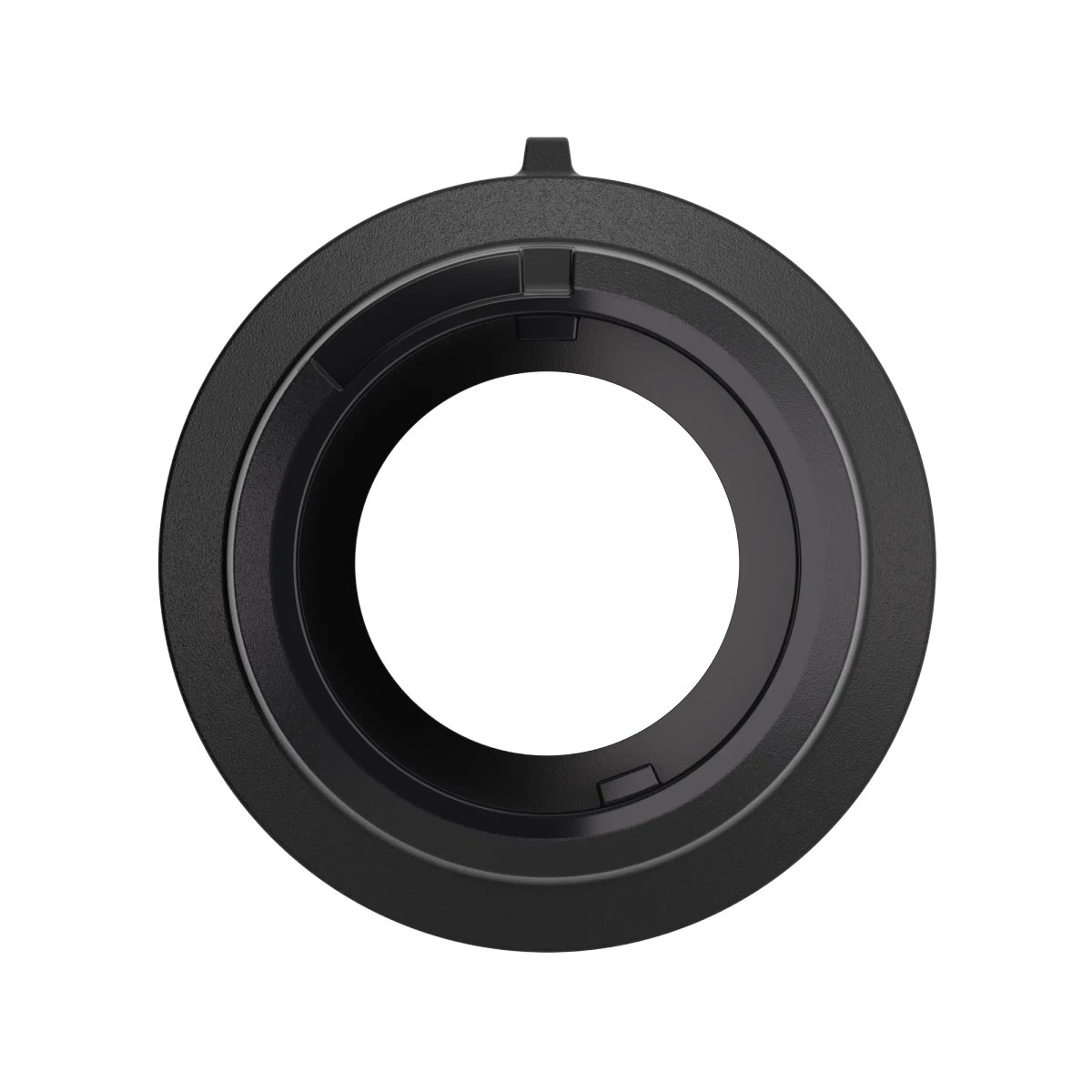

EPIC® POWERLOCK 2.0 D6 L2 BK

381167906

2 m?

35 mm2

240 mm2

13,53 €

Pakiranje *

Rok dobave sporočimo po obdelavi naročila.

EPIC® POWERLOCK 2.0 D6 PE GN

381167903

2 m?

35 mm2

240 mm2

13,53 €

Pakiranje *

Rok dobave sporočimo po obdelavi naročila.

Benefits

Cable connector source (type D6) for use with a contact source (available separately).
Integrated unlocking function for quick and safe plugging and unplugging without additional tools.
Can be used as an electrical shore connection for inland waterway vehicles.
For conductor cross-sections up to 240 mm2.
Available in harmonised colours according to European standard (colour coding for DC and AC).
VDE-tested quality.
With M40 thread for use with a corresponding cable gland.
High stability due to robust PBT plastic.
When connected, protection class IP 67 can be achieved.

Applications

Suitable for electric motors and cooling units.
Suitable for outdoor use.
Withstands moderate mechanical stress.
For use with unshielded single cores.
Can be used for mobile and stationary power supply or emergency power supply via generators or battery storage systems.

Documentation

Notes

If applicable, the prices are solid metal prices without surcharges and VAT. Sales only to business customers.
Photographs and graphics are not to scale and do not represent detailed images of the respective products.
Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.
