EPIC® POWERLOCK A6 S

Naziv
Koda izdelka
Dolžina snemanja izolacije
Min. presek povezovalnega vodnika (mm2)
Maks. presek povezovalnega vodnika (mm2)
Cena
Količina
+
EPIC® POWERLOCK A6 S PE/GN QP M12 (1)
44420277
33 mm
50 mm2
120 mm2
11,00 €
Ni zaloge, predviden rok dobave: 12. 04. 2024.
+
EPIC® POWERLOCK A6 S N/BL QP M12 (1)
44420278
33 mm
50 mm2
120 mm2
11,00 €
Ni zaloge, predviden rok dobave: 26. 05. 2024.
+
EPIC® POWERLOCK A6 S L1/BN QP M12 (1)
44420279
33 mm
50 mm2
120 mm2
11,00 €
Ni zaloge, predviden rok dobave: 31. 05. 2024.
+
EPIC® POWERLOCK A6 S L2/BK QP M12 (1)
44420280
33 mm
50 mm2
120 mm2
11,00 €
Ni zaloge, predviden rok dobave: 15. 04. 2024.
+
EPIC® POWERLOCK A6 S L3/GY QP M12 (1)
44420281
33 mm
50 mm2
120 mm2
11,00 €
Ni zaloge, predviden rok dobave: 22. 06. 2024.
+
EPIC® POWERLOCK A6 S N/BK QP M12 (1)
44420312
33 mm
50 mm2
120 mm2
11,41 €
*
Rok dobave sporočimo po obdelavi naročila.
+
EPIC® POWERLOCK A6 S L2/WT QP M12 (1)
44420314
33 mm
50 mm2
120 mm2
11,41 €
*
Rok dobave sporočimo po obdelavi naročila.
+
EPIC® POWERLOCK A6 S L3/BL QP M12 (1)
44420315
33 mm
50 mm2
120 mm2
11,41 €
*
Rok dobave sporočimo po obdelavi naročila.
+
EPIC® POWERLOCK A6 S L1/RD QP M12 (1)
44420321
42 mm
50 mm2
120 mm2
11,41 €
Ni zaloge, predviden rok dobave: 12. 04. 2024.

Benefits

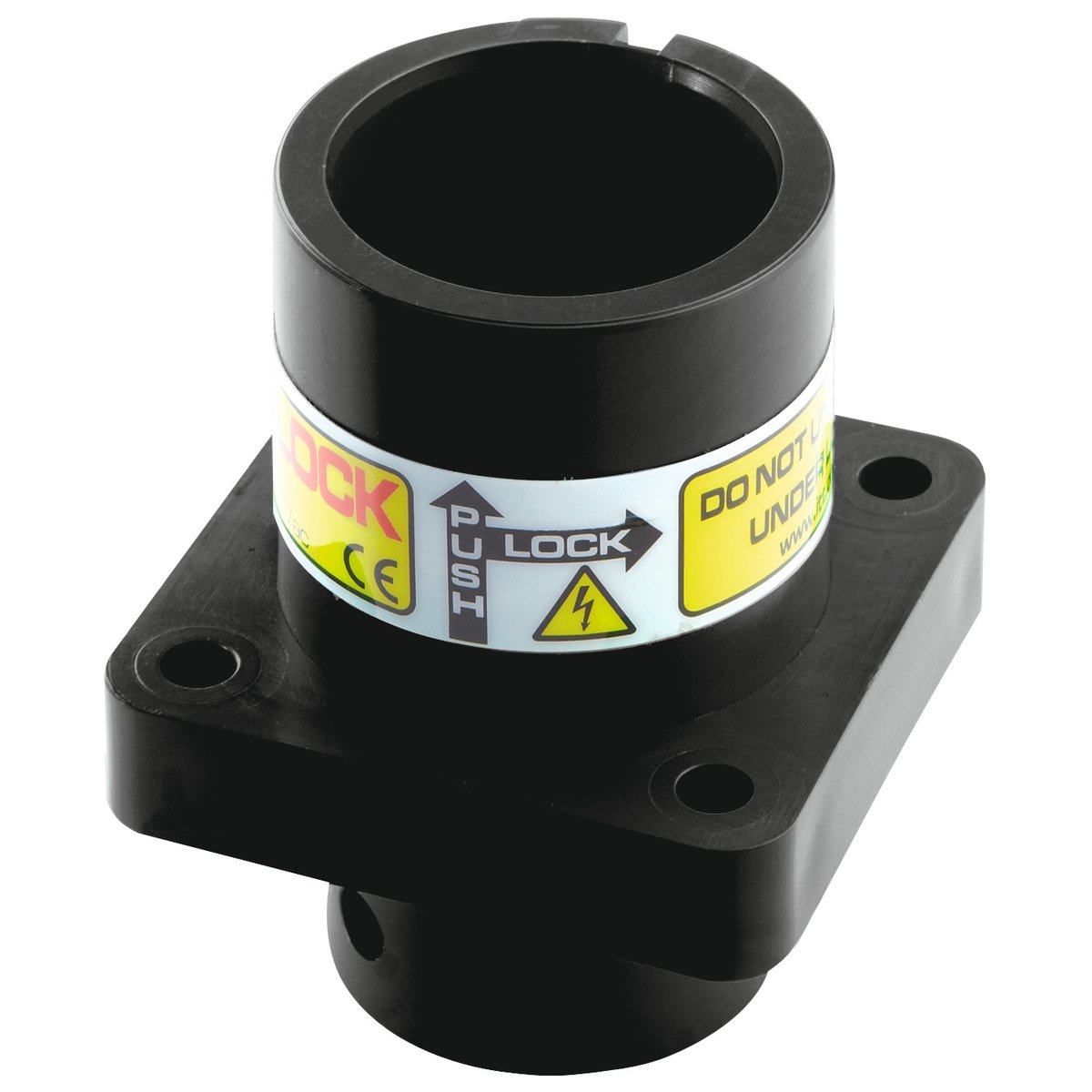

  • Panel-mount base source (type A6) for use with an M12 threaded post contact source (available separately).
  • Available in harmonised colours according to European standard (colour coding for DC and AC).
  • For conductor cross-sections up to 120 mm2.
  • High stability due to robust PBT plastic.
  • When connected, protection class IP 67 can be achieved.
  • Easy assembly with 4 fastening screws.
  • VDE-tested quality.
  • Compliant with standards for inland navigation (in accordance with DIN VDE 0100-730 Part 7-730 "Electrical land connection for inland navigation vehicles".

Applications

  • Can be used for mobile and stationary power supply or emergency power supply via generators or battery storage systems.
  • Suitable for electric motors and cooling units.
  • Suitable for three-phase and direct current applications up to 400 A.
  • For use with unshielded single cores.
  • Withstands moderate mechanical stress.
  • Suitable for outdoor use.

Notes

  • If applicable, the prices are solid metal prices without surcharges and VAT. Sales only to business customers.
  • Photographs and graphics are not to scale and do not represent detailed images of the respective products.
