EPIC® POWERLOCK A6

Bodite prvi in ocenite ta izdelek

Naziv

Koda izdelka

Maks. upor kontakta (mOhms)

Min. presek povezovalnega vodnika (mm2)

Maks. presek povezovalnega vodnika (mm2)

Cena

Količina

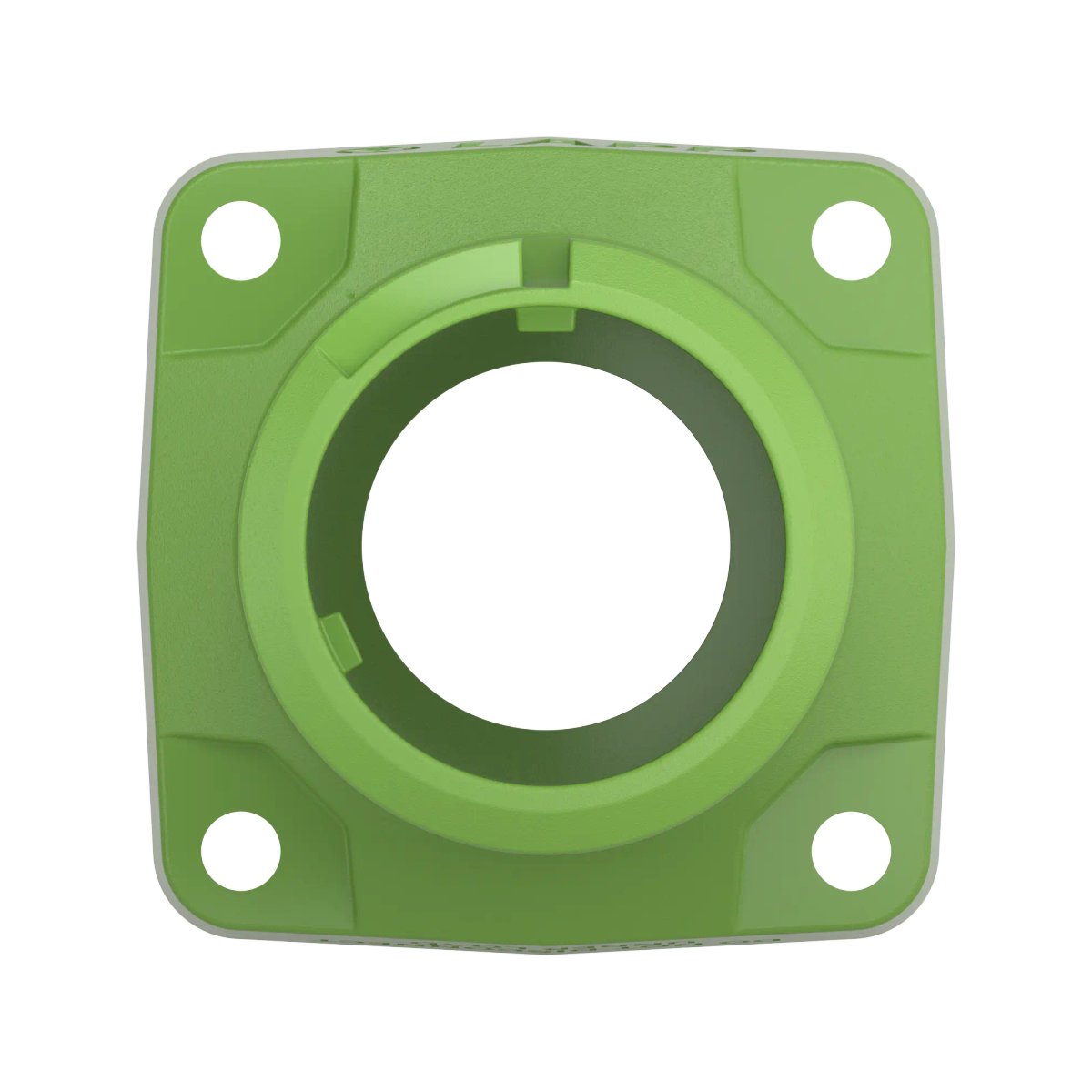

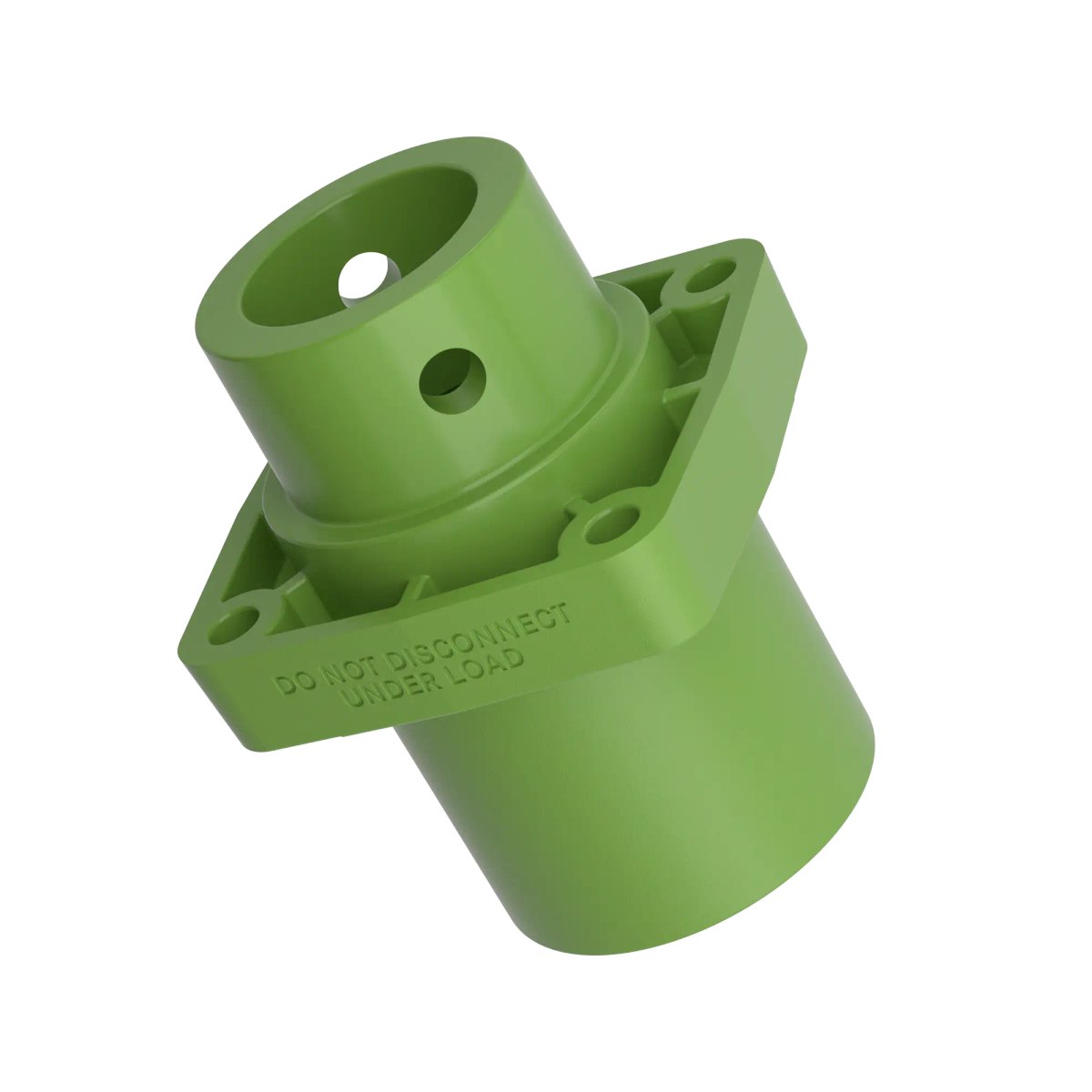

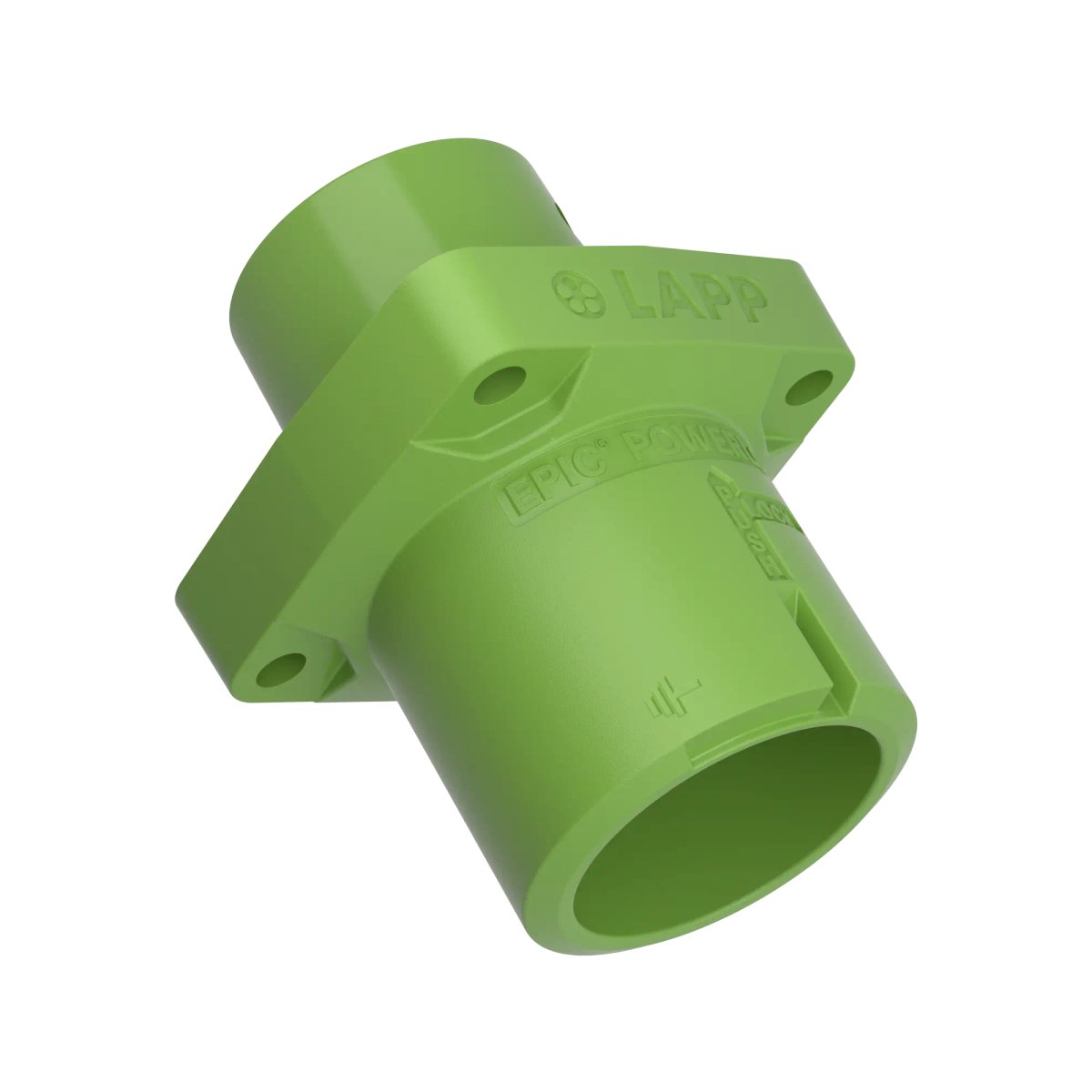

EPIC® POWERLOCK 2.0 A6 PE GN

381167921

2 m?

35 mm2

240 mm2

8,38 €

Pakiranje *

Rok dobave sporočimo po obdelavi naročila.

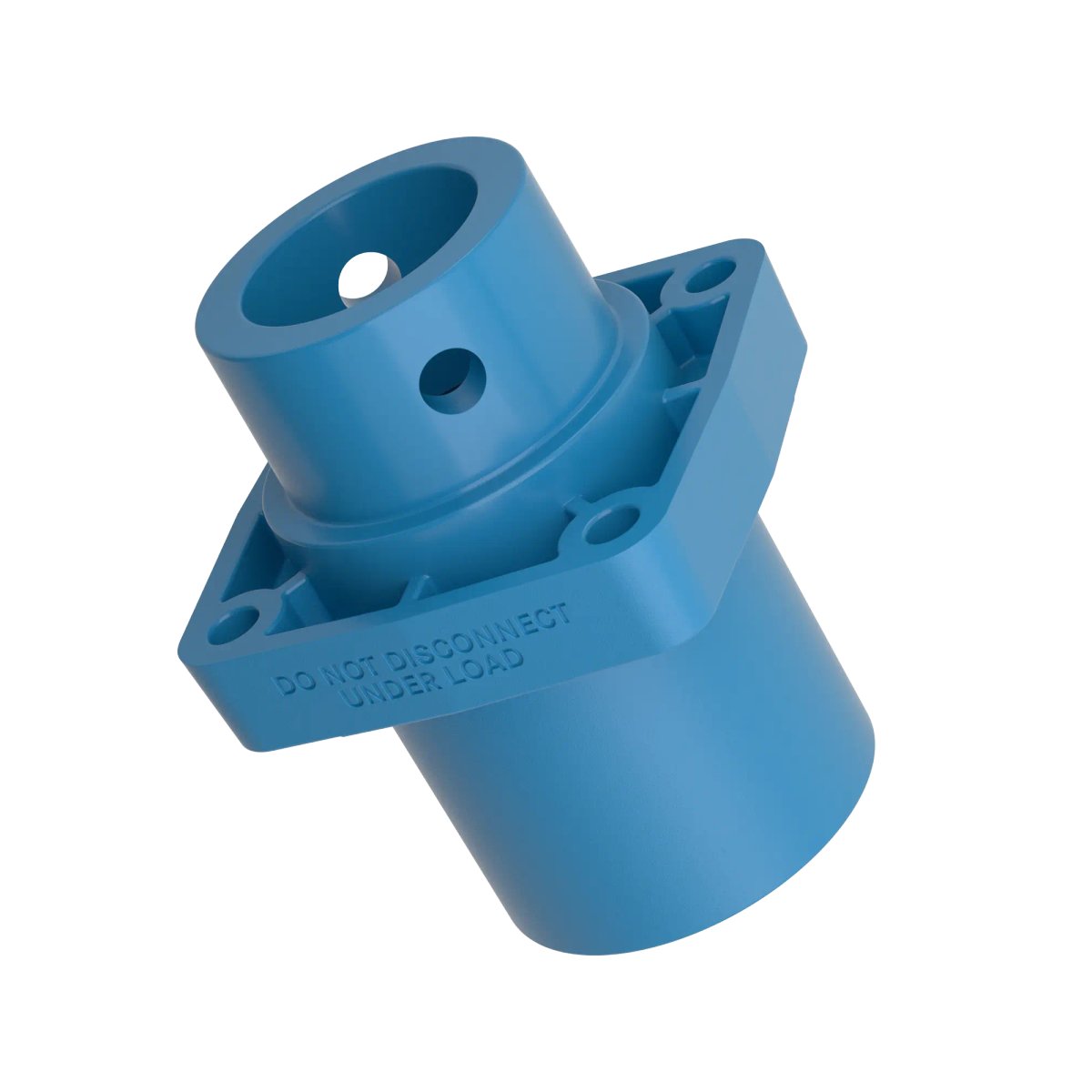

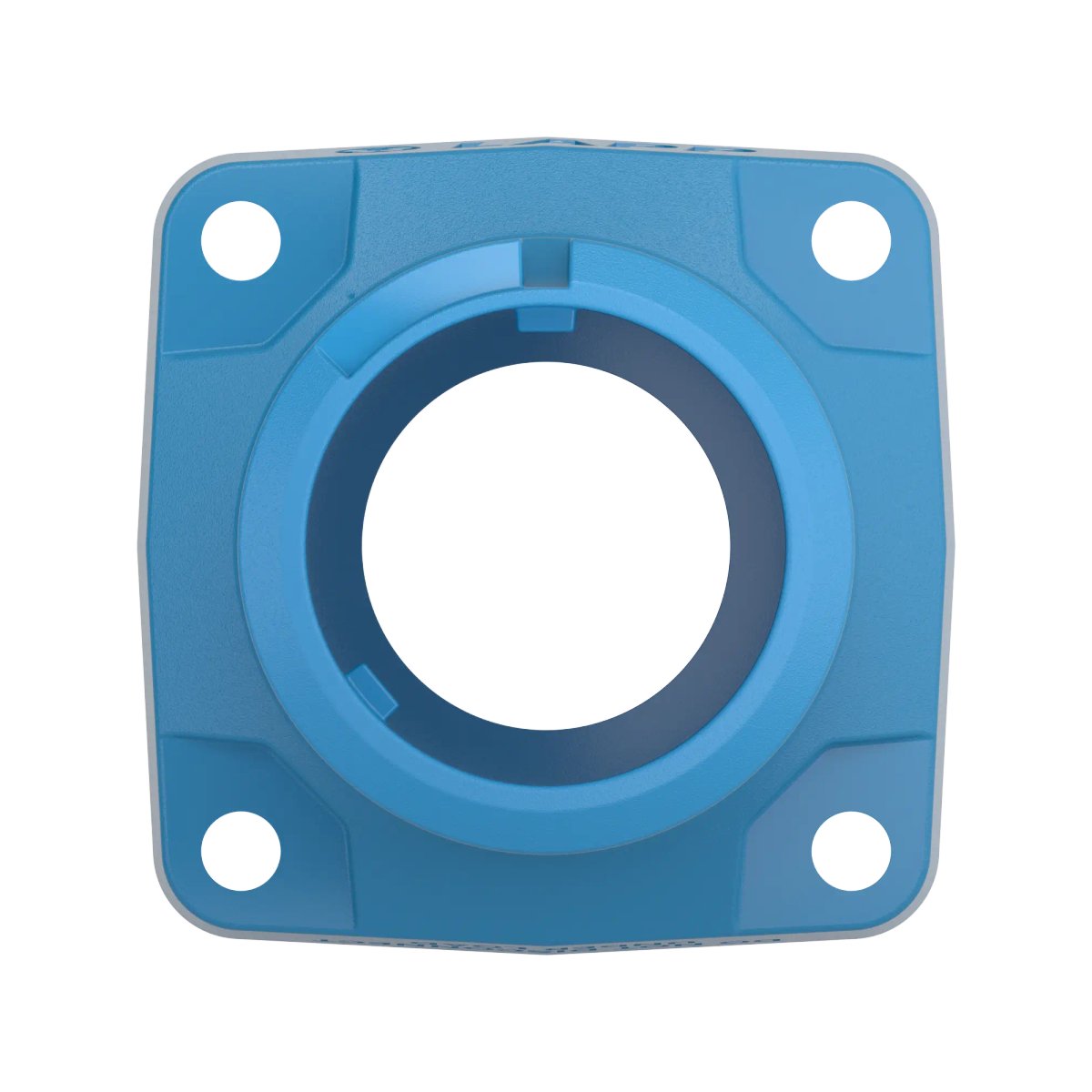

EPIC® POWERLOCK 2.0 A6 N BU

381167922

2 m?

35 mm2

240 mm2

8,38 €

Pakiranje *

Rok dobave sporočimo po obdelavi naročila.

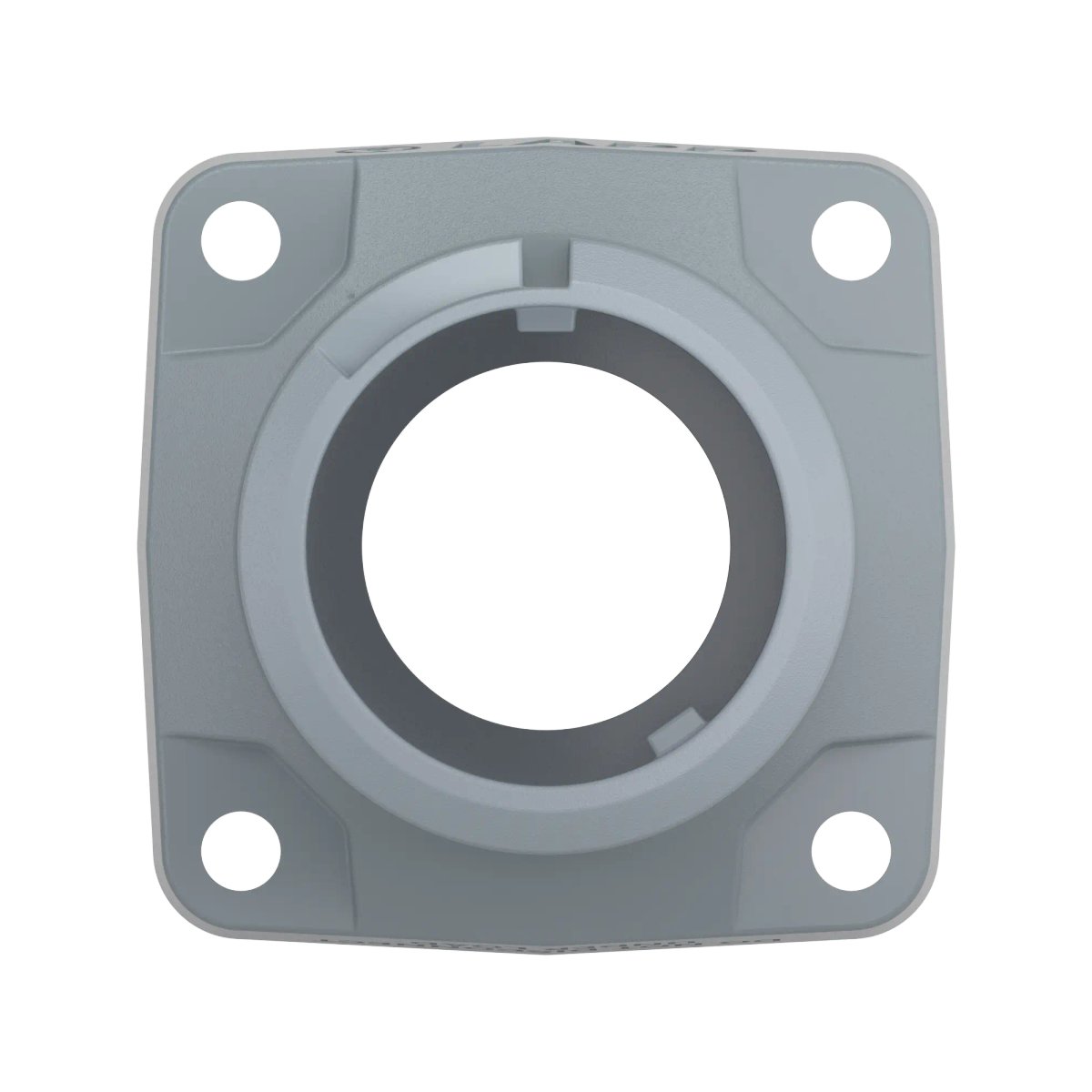

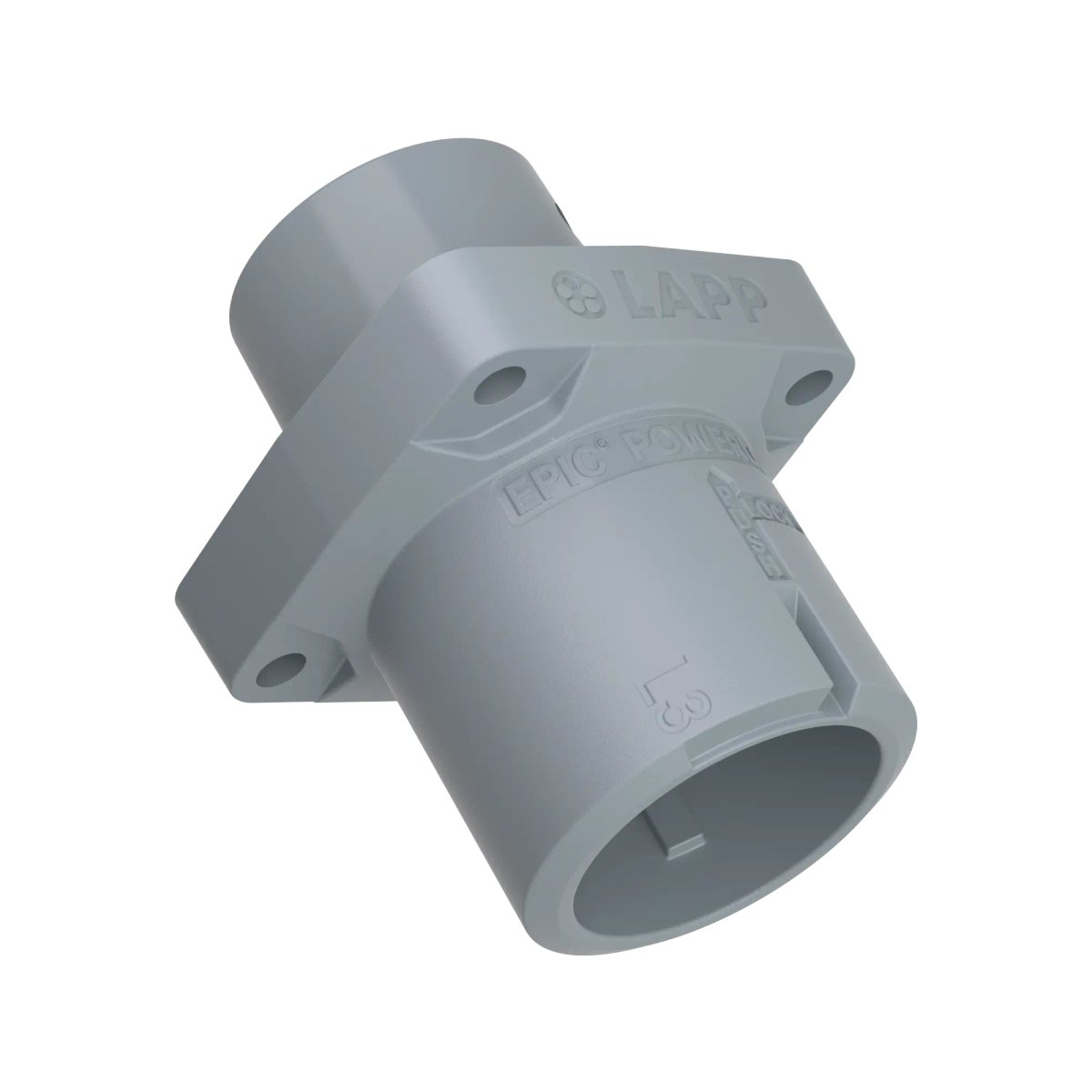

EPIC® POWERLOCK 2.0 A6 L3 GY

381167923

2 m?

35 mm2

240 mm2

8,38 €

Pakiranje *

Rok dobave sporočimo po obdelavi naročila.

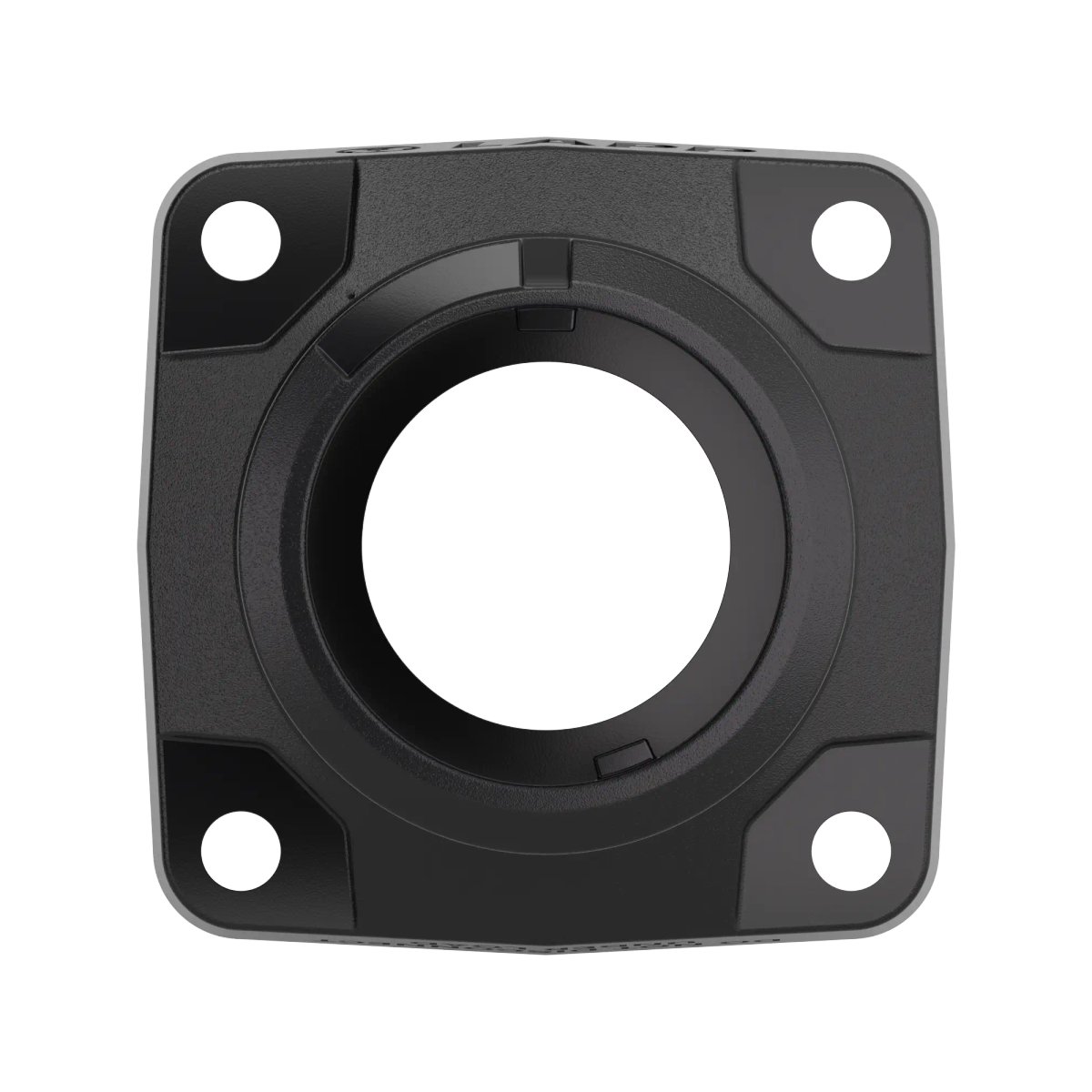

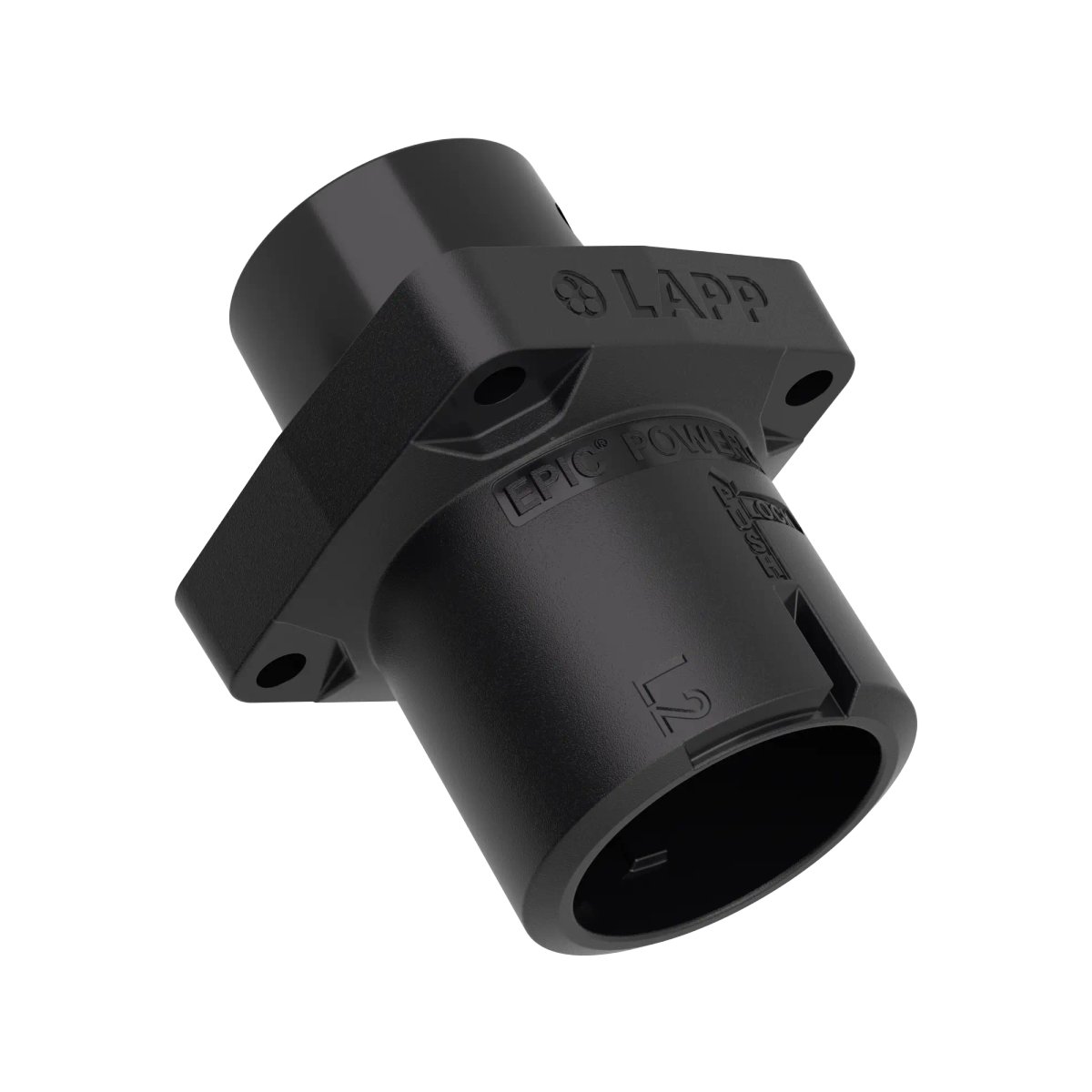

EPIC® POWERLOCK 2.0 A6 L2 BK

381167924

2 m?

35 mm2

240 mm2

8,38 €

Pakiranje *

Rok dobave sporočimo po obdelavi naročila.

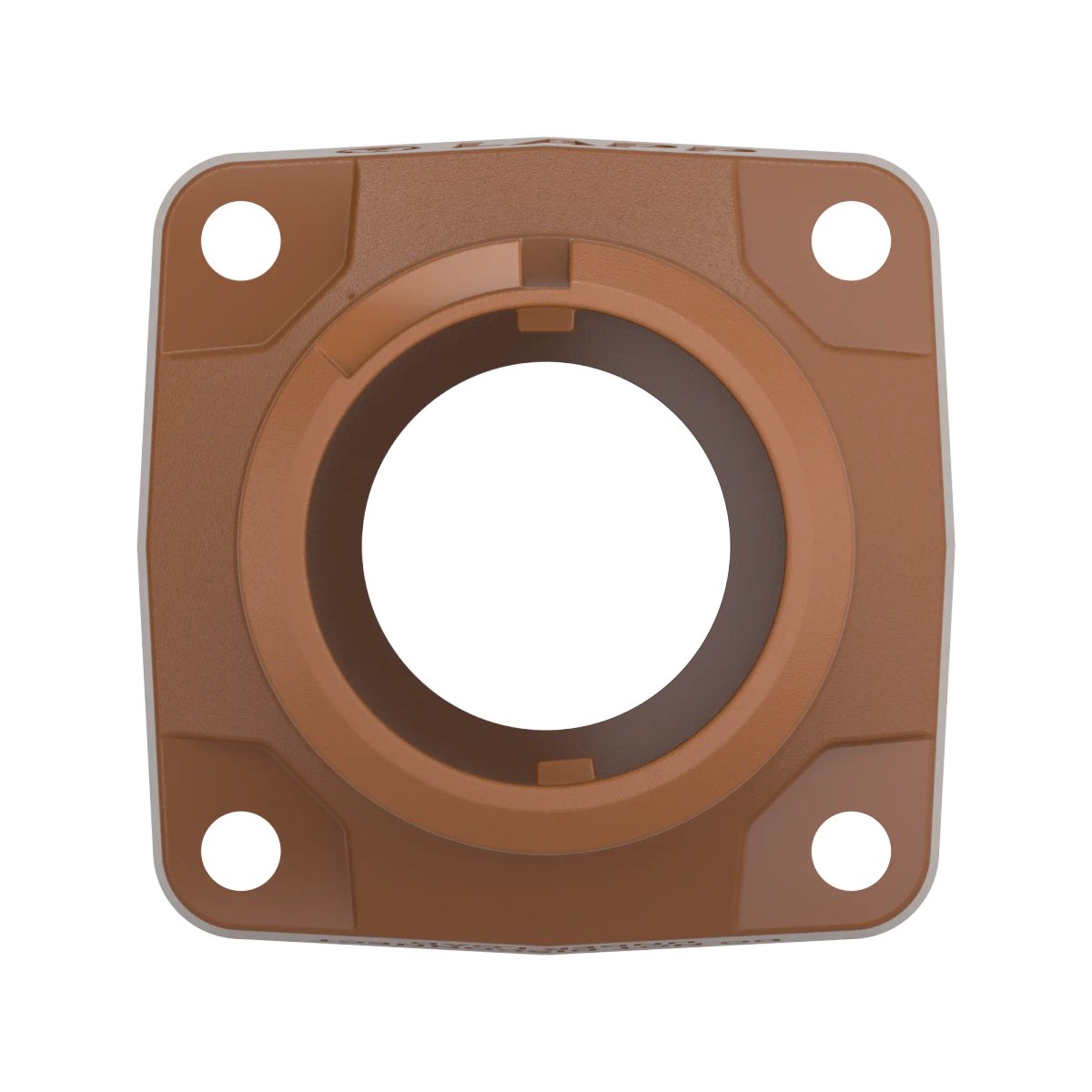

EPIC® POWERLOCK 2.0 A6 L1 BN

381167925

2 m?

35 mm2

240 mm2

8,38 €

Pakiranje *

Rok dobave sporočimo po obdelavi naročila.

EPIC® POWERLOCK 2.0 A6 L1 RD

381167926

2 m?

35 mm2

240 mm2

8,38 €

Pakiranje *

Rok dobave sporočimo po obdelavi naročila.

Benefits

Integrated unlocking function for quick and safe plugging and unplugging without additional tools.
VDE-tested quality.
For conductor cross-sections up to 240 mm2.
High stability due to robust PBT plastic.
When connected, protection class IP 67 can be achieved.
Can be used as an electrical shore connection for inland waterway vehicles.

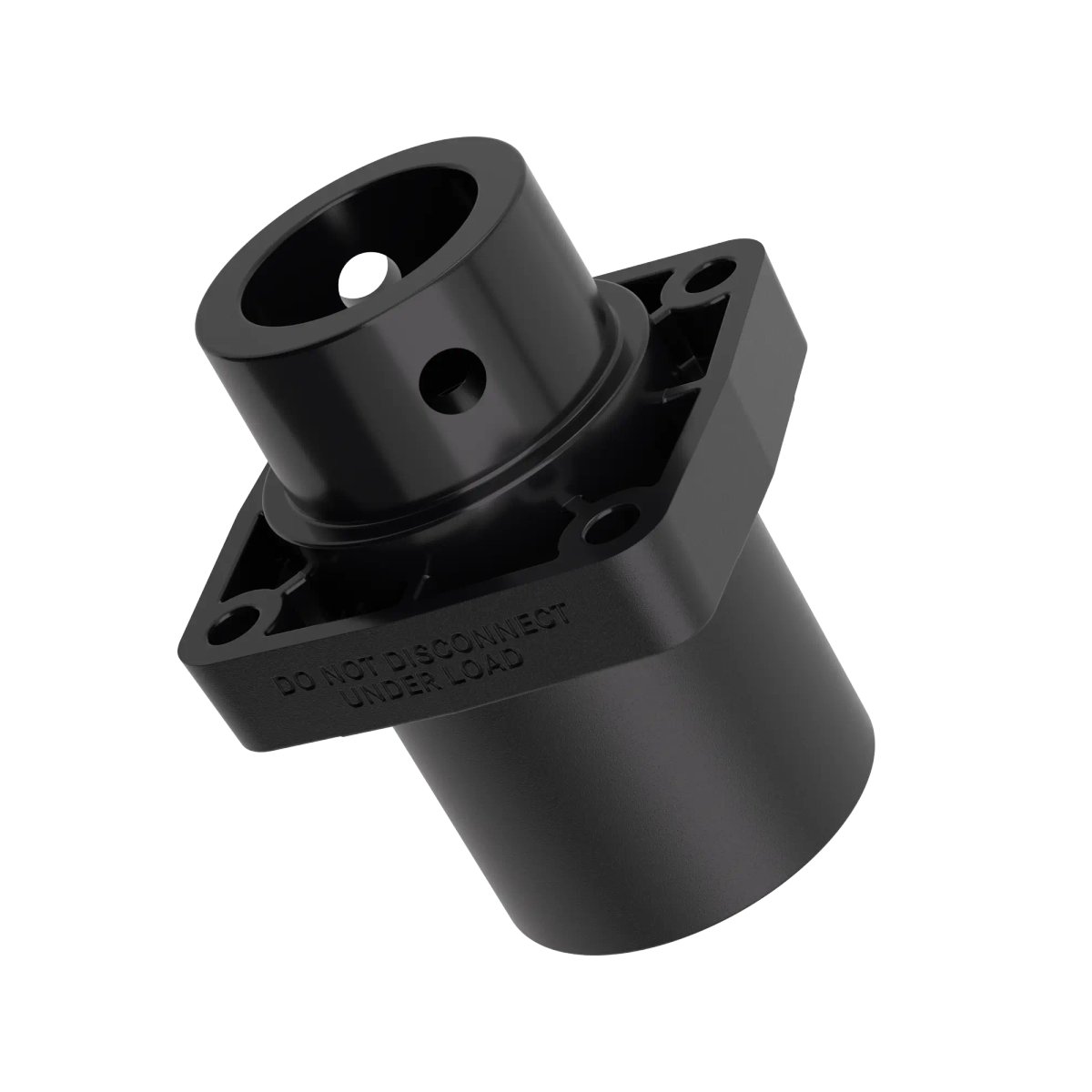

Panel-mount base source (type A6) for use with an M12 threaded post contact source (available separately).
Available in harmonised colours according to European standard (colour coding for DC and AC).
Easy assembly with 4 fastening screws.

Applications

Can be used for mobile and stationary power supply or emergency power supply via generators or battery storage systems.
Suitable for electric motors and cooling units.
Suitable for outdoor use.
For use with unshielded single cores.
Withstands moderate mechanical stress.

Documentation

Notes

Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.
Photographs and graphics are not to scale and do not represent detailed images of the respective products.
If applicable, the prices are solid metal prices without surcharges and VAT. Sales only to business customers.
